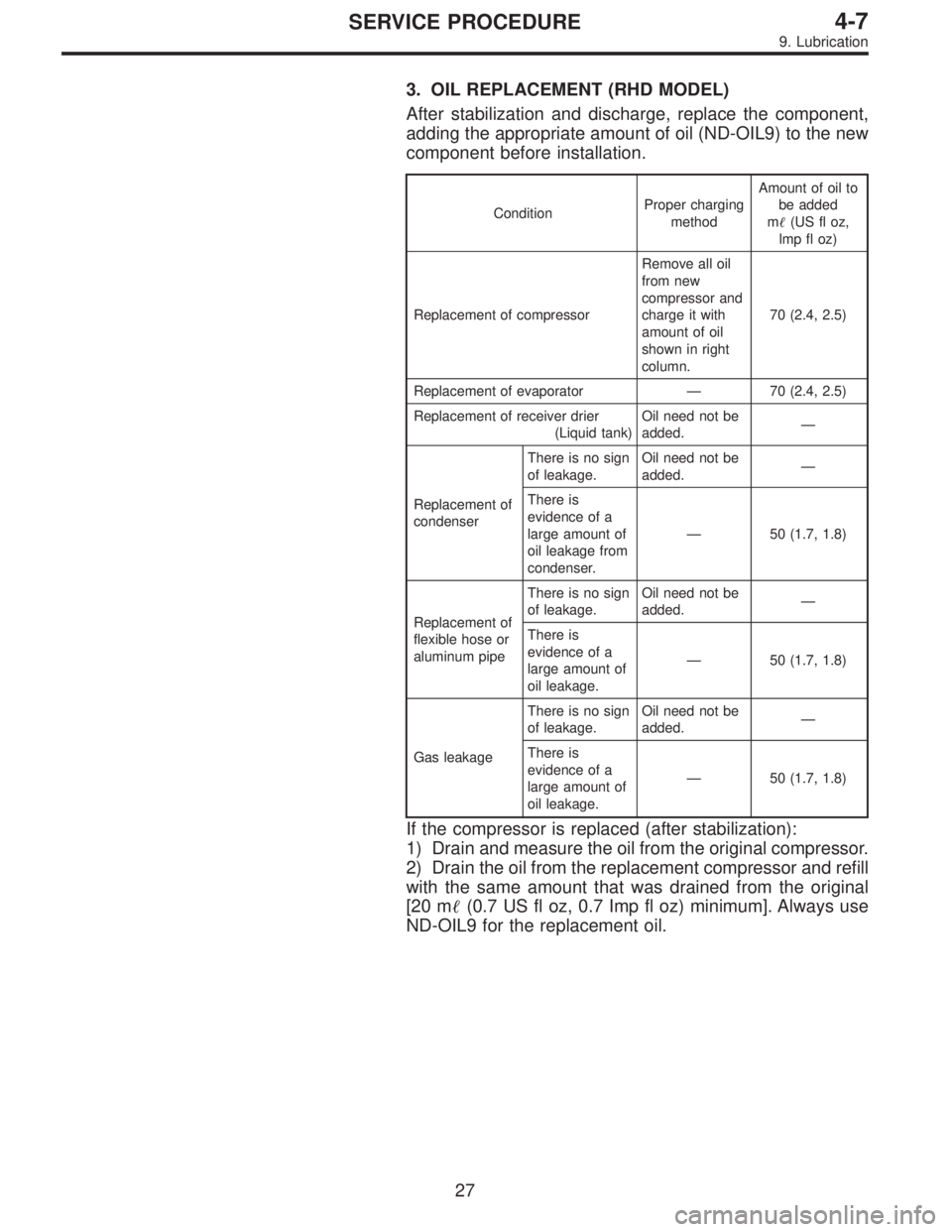

SUBARU LEGACY 1997 Service Repair Manual 3. OIL REPLACEMENT (RHD MODEL) After stabilization and discharge, replace the component, adding the appropriate amount of oil (ND-OIL9) to the new component before installation. ConditionProper chargi

Page 1482 of 3342

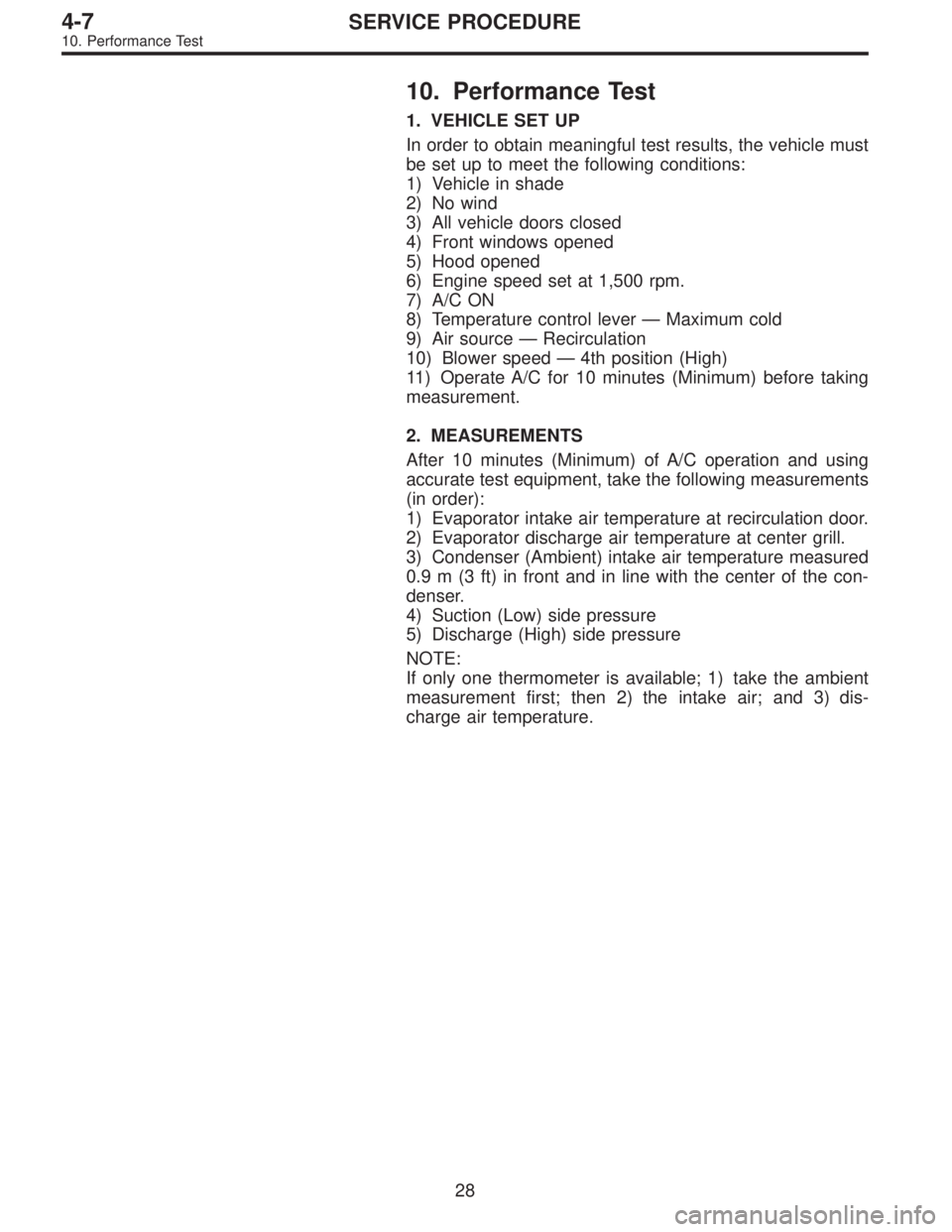

SUBARU LEGACY 1997 Service Repair Manual 10. Performance Test 1. VEHICLE SET UP In order to obtain meaningful test results, the vehicle must be set up to meet the following conditions: 1) Vehicle in shade 2) No wind 3) All vehicle doors clos

Page 1483 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3. MEASUREMENT STANDARD BY VERSES Compare temperature and pressure measurements with the established standards shown in the following charts. B4M0371A 29 4-7SERVICE PROCEDURE 10. Performance Test

Page 1484 of 3342

SUBARU LEGACY 1997 Service Repair Manual 11. Compressor Compressor is a swash plate type. When trouble occurs, replace compressor as a single unit. B4M0090 A: COMPRESSOR CLUTCH INSPECTION Compressor clutch trouble is often caused by clutch s

Page 1485 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0761A 3) Remove low-pressure hose1(Flexible hose Ps) and high-pressure hose 2(Flexible hose Pd). CAUTION: Be careful not to lose O-ring of low-pressure hose. Plug the opening to prevent foreign

Page 1486 of 3342

SUBARU LEGACY 1997 Service Repair Manual G4M0628 8) Disconnect compressor harness. Disconnect compressor harness from body harness. 9) Lower bracket. Remove bolts which secure lower compressor bracket. G4M0629 10) Remove compressor. Remove b

Page 1487 of 3342

SUBARU LEGACY 1997 Service Repair Manual Pulley arrangement Tension mm (in)/98N (10 kg, 22 lb) G4M0939 AB *New belt: 7.0—9.0 (0.276—0.354) Existing belt: 9.0—11.0 (0.354—0.433)*New belt: 7.5—8.5 (0.295—0.335) Existing belt: 9.0

Page 1488 of 3342

SUBARU LEGACY 1997 Service Repair Manual 9) Install belt cover. 10) Connect ground cable to negative terminal of battery. 11) Charge refrigerant. <Ref. to 4-7 [W708].> B4M0095 12. Condenser A: REMOVAL AND INSTALLATION 1) Disconnect battery n
