Page 1633 of 3342

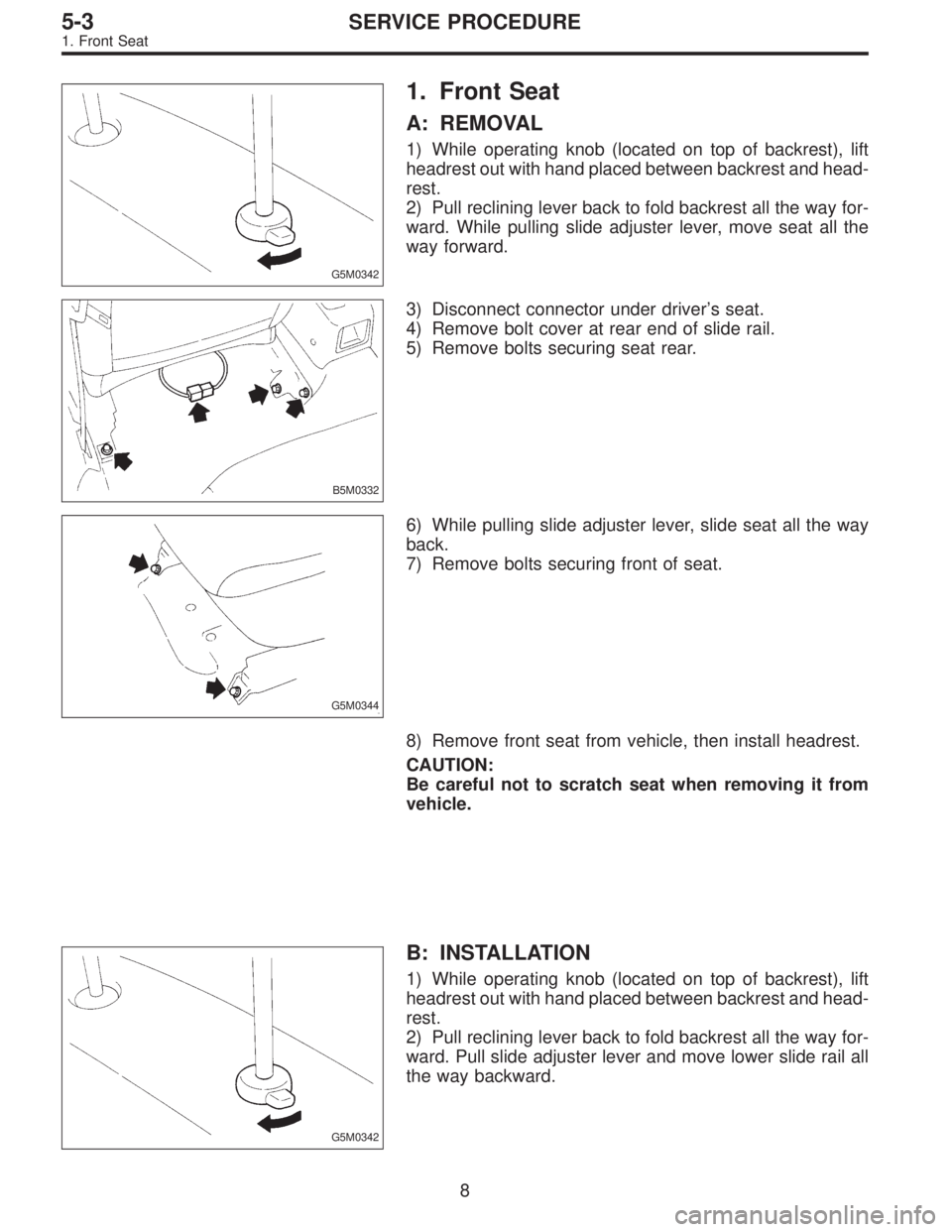

SUBARU LEGACY 1997 Service Repair Manual G5M0342 1. Front Seat A: REMOVAL 1) While operating knob (located on top of backrest), lift headrest out with hand placed between backrest and head- rest. 2) Pull reclining lever back to fold backrest

Page 1634 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0341 3) Position seat in compartment and align the holes on the seat with the holes on the vehicle body side. 4) Secure the front of seat using inward and outward bolts  1and2in that order. 5) Wh

Page 1635 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0341 3) Position seat in compartment and align the holes on the seat with the holes on the vehicle body side. 4) Secure the front of seat using inward and outward bolts  1and2in that order. 5) Wh

Page 1636 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0350 2. WAGON MODEL 1) Remove bolts securing hinges (located at front of seat) to body. 2) Pull strap (located in middle rear portion of cushion) to release lock. Lift cushion out and away from bod

Page 1637 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. WAGON MODEL Installation is in the reverse order of removal. CAUTION: Do not allow center seat belt to get under cushion when folding cushion. Ensure that side seat belt tongue is free from cush-

Page 1638 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. WAGON MODEL Installation is in the reverse order of removal. CAUTION: Do not allow center seat belt to get under cushion when folding cushion. Ensure that side seat belt tongue is free from cush-

Page 1639 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0358 4. Rear Seat Belt A: REMOVAL AND INSTALLATION 1. SEDAN MODEL 1) Remove rear cushion from vehicle. 2) Remove rear backrest from vehicle. 3) Remove rear pillar upper trim. 4) Remove outer anchor

Page 1640 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0042 6) Remove lap anchor cover and then remove lower anchor bolt. 7) Remove outer belt assembly. 8) Installation is in the reverse order of removal. Ensure that seat belt is properly reeled on and
