Page 2137 of 3342

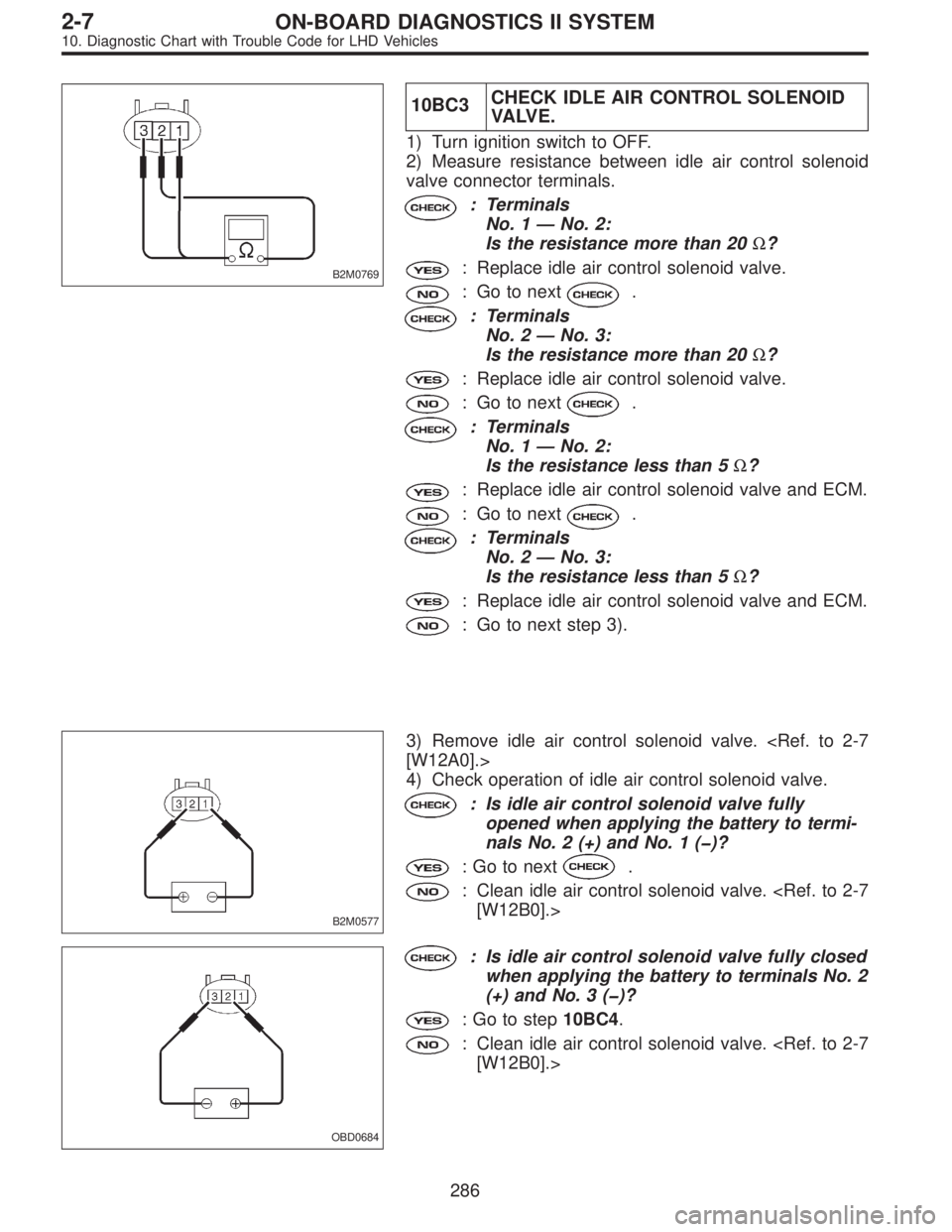

SUBARU LEGACY 1997 Service Repair Manual B2M0769 10BC3CHECK IDLE AIR CONTROL SOLENOID VA LV E . 1) Turn ignition switch to OFF. 2) Measure resistance between idle air control solenoid valve connector terminals. : Terminals No. 1—No. 2: Is

Page 2138 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0578A 10BC4CHECK POWER SUPPLY TO IDLE AIR CONTROL SOLENOID VALVE. 1) Turn ignition switch to OFF. 2) Disconnect connector from idle air control solenoid valve. 3) Turn ignition switch to ON. 4) Mea

Page 2139 of 3342

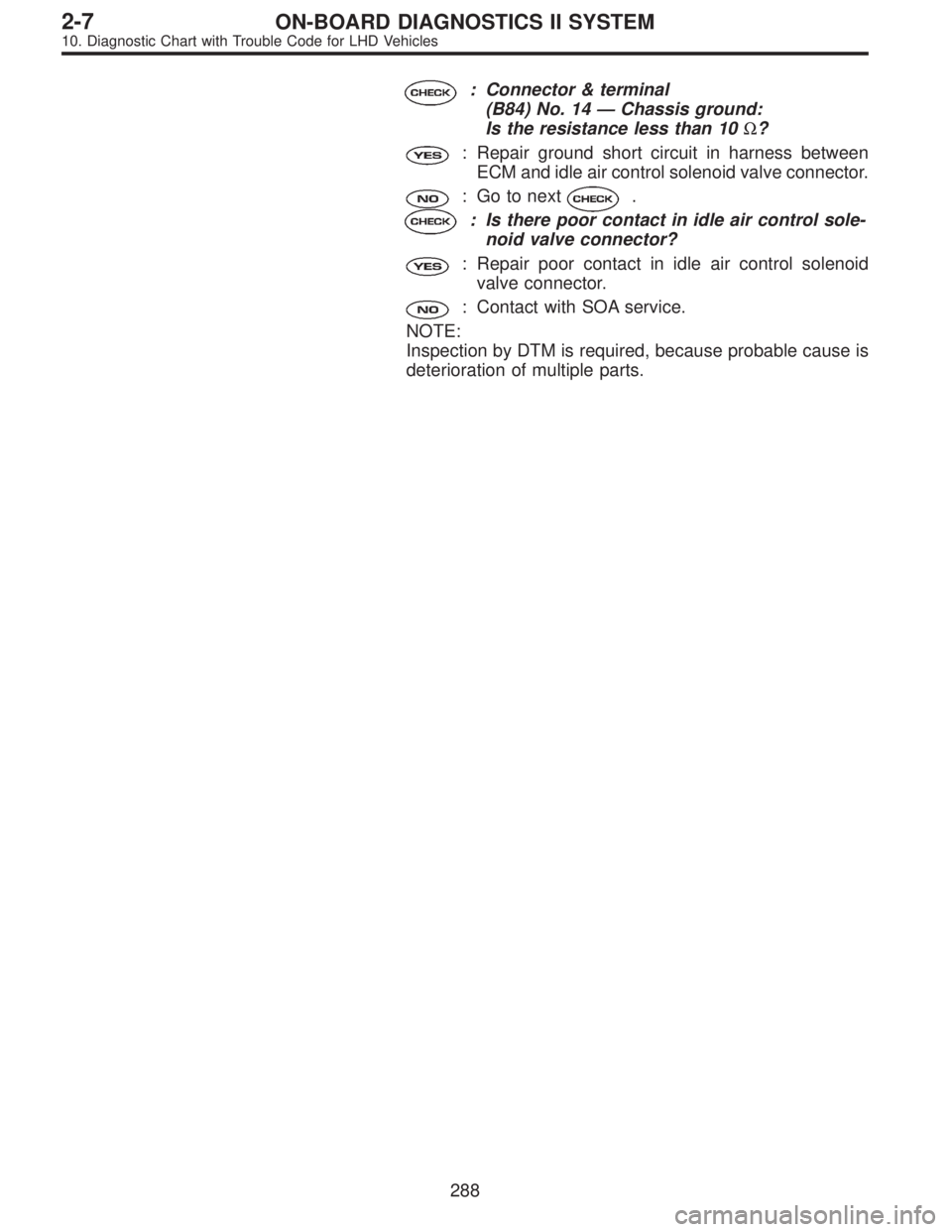

SUBARU LEGACY 1997 Service Repair Manual : Connector & terminal (B84) No. 14—Chassis ground: Is the resistance less than 10Ω? : Repair ground short circuit in harness between ECM and idle air control solenoid valve connector. : Go to nex

Page 2140 of 3342

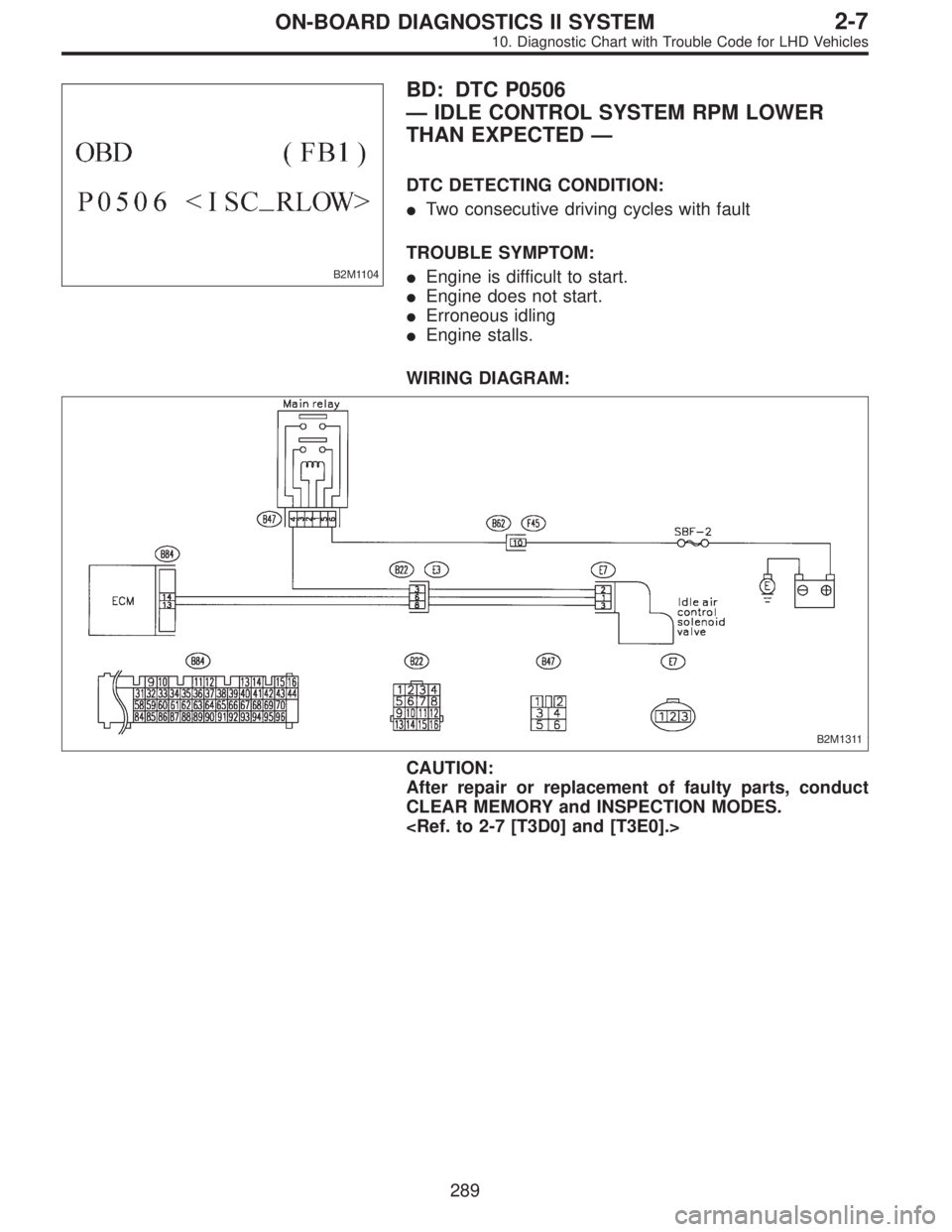

SUBARU LEGACY 1997 Service Repair Manual B2M1104 BD: DTC P0506 —IDLE CONTROL SYSTEM RPM LOWER THAN EXPECTED— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Engine is difficult to start. Engine does

Page 2141 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10BD1 CHECK DTC P0505 ON DISPLAY. : Does the Subaru select monitor or OBD-II general scan tool indicate DTC P0505? : Inspect DTC P0505 using“10. Diagnostics Chart with Trouble Code”. <Ref. to 2-7

Page 2142 of 3342

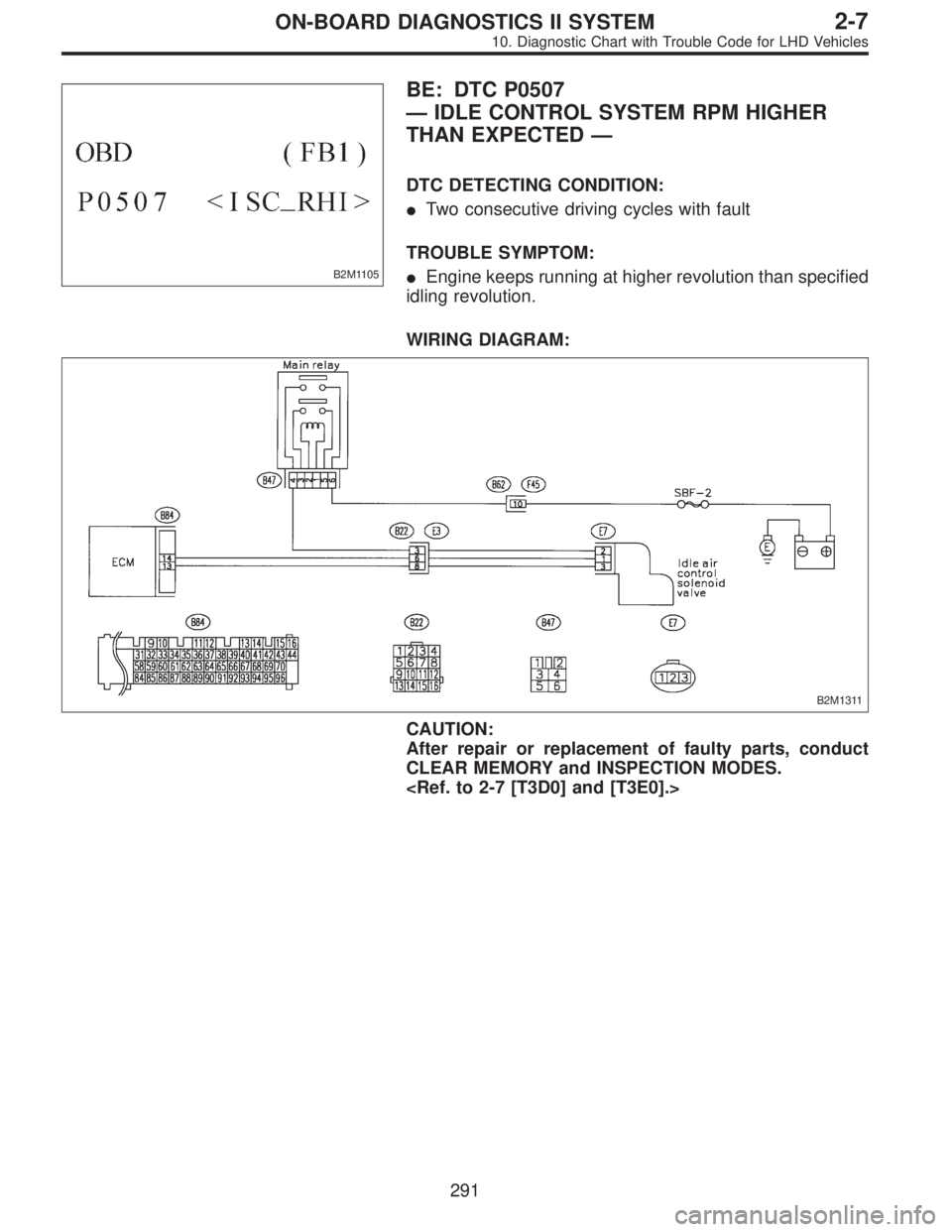

SUBARU LEGACY 1997 Service Repair Manual B2M1105 BE: DTC P0507 —IDLE CONTROL SYSTEM RPM HIGHER THAN EXPECTED— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Engine keeps running at higher revolution

Page 2143 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10BE1 CHECK DTC P0505 ON DISPLAY. : Does the Subaru select monitor or OBD-II general scan tool indicate DTC P0505? : Inspect DTC P0505 using“10. Diagnostics Chart with Trouble Code”. <Ref. to 2-7

Page 2144 of 3342

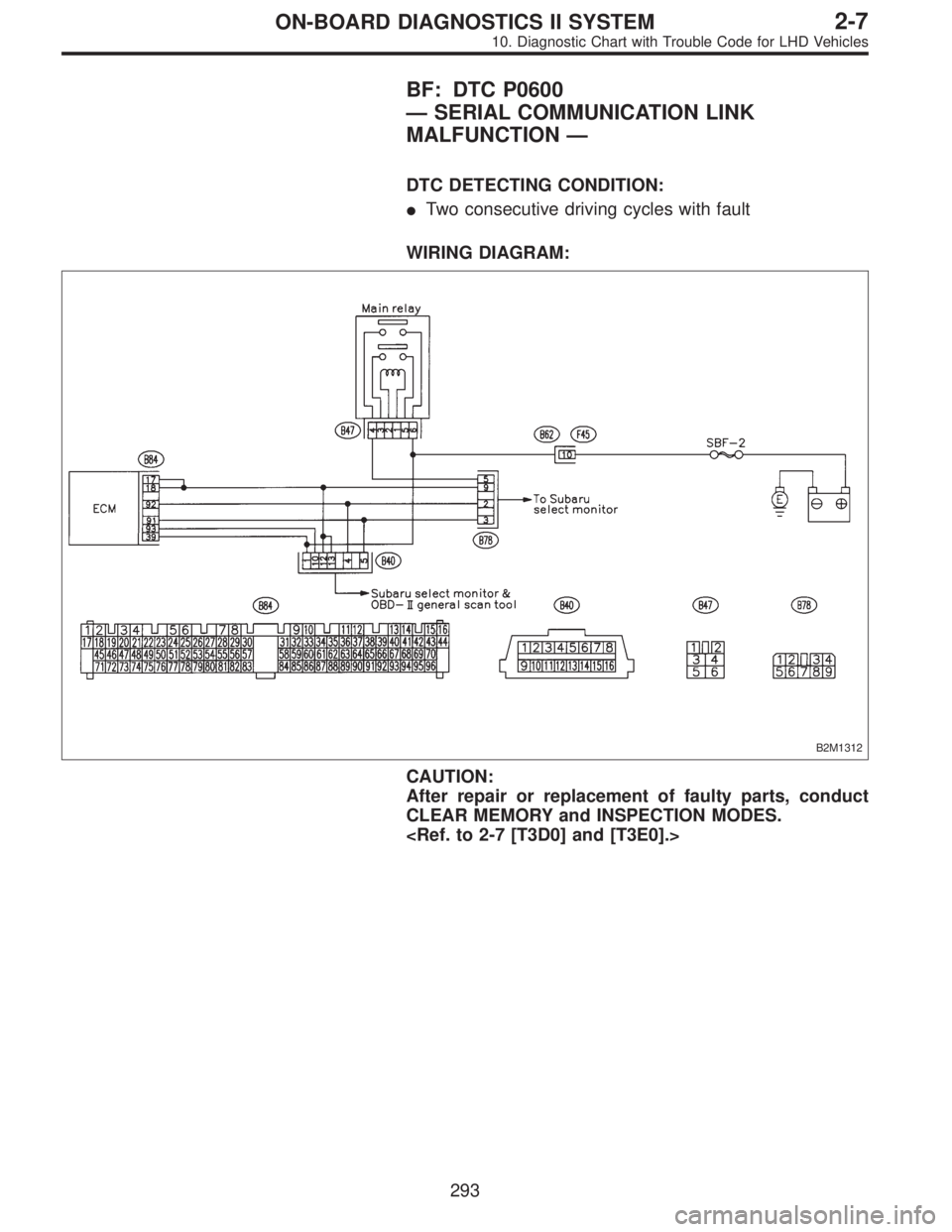

SUBARU LEGACY 1997 Service Repair Manual BF: DTC P0600 —SERIAL COMMUNICATION LINK MALFUNCTION— DTC DETECTING CONDITION: Two consecutive driving cycles with fault WIRING DIAGRAM: B2M1312 CAUTION: After repair or replacement of faulty par
