SUBARU LEGACY 1997 Service Repair Manual B2M1170 1) Open front hood fully, and support with stay. 2) Disconnect battery ground terminal. 3) Remove air intake duct and chamber. G2M0544 4) Disconnect connectors and cables. (1) Disconnect the f

Page 618 of 3342

SUBARU LEGACY 1997 Service Repair Manual G2M0545 (2) Disconnect the following cables. Clutch release spring (MT model) Clutch cable (MT mechanical clutch model) G2M0309 5) Remove starter. (1) Disconnect connectors and terminal from starter

Page 619 of 3342

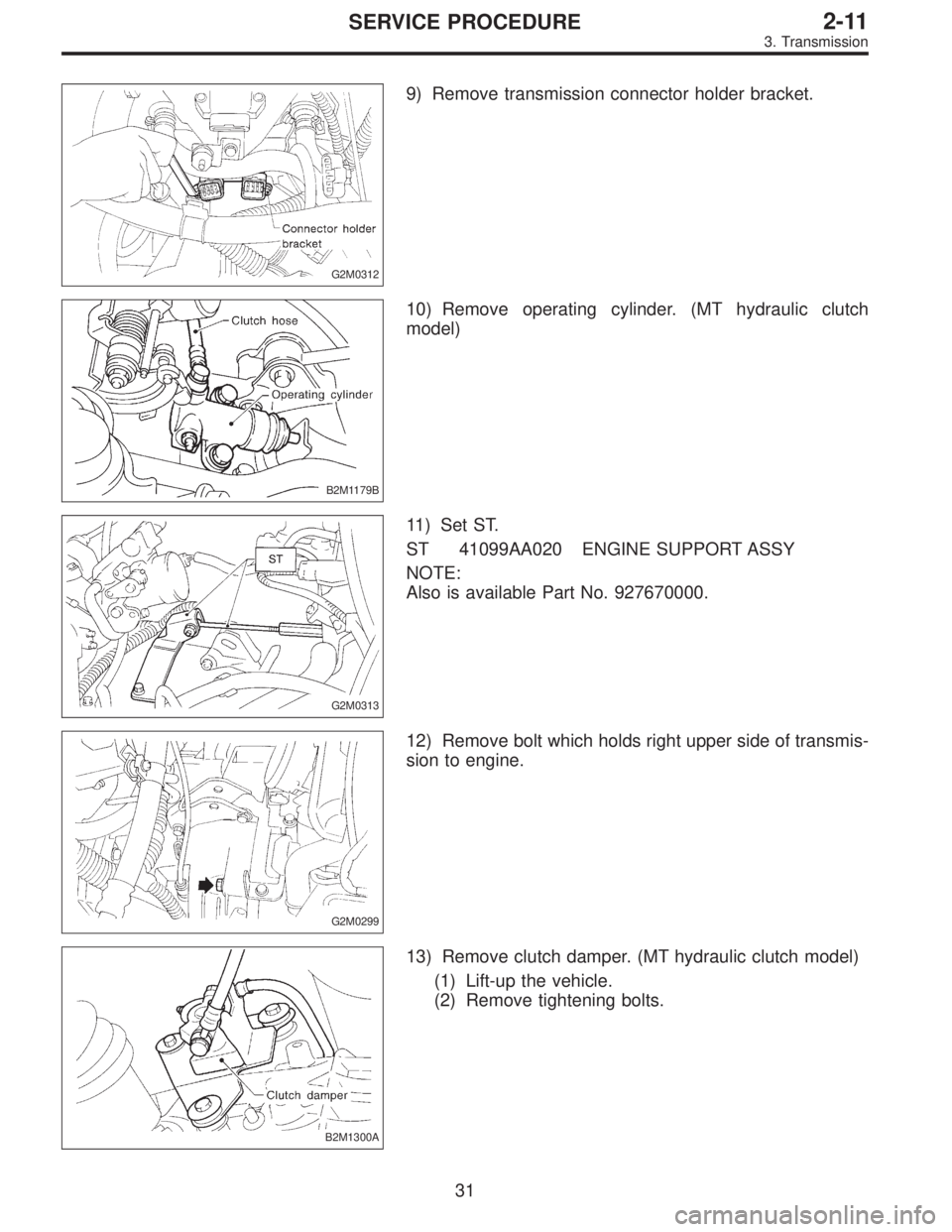

SUBARU LEGACY 1997 Service Repair Manual G2M0312 9) Remove transmission connector holder bracket. B2M1179B 10) Remove operating cylinder. (MT hydraulic clutch model) G2M0313 11) Set ST. ST 41099AA020 ENGINE SUPPORT ASSY NOTE: Also is availab

Page 620 of 3342

SUBARU LEGACY 1997 Service Repair Manual G2M0290 14) Remove exhaust system. (1) Remove nuts which install front exhaust pipe onto engine. B2M0335 (2) Disconnect connector from rear oxygen sensor. G2M0291 (3) Separate center exhaust pipe from

Page 621 of 3342

SUBARU LEGACY 1997 Service Repair Manual G2M0830 (7) Remove heat shield cover of rear exhaust pipe. (AWD model) B2M0032 (8) Remove hanger bracket from right side of transmis- sion. (AWD model) G2M0316 15) Drain ATF to remove ATF drain plug.

Page 622 of 3342

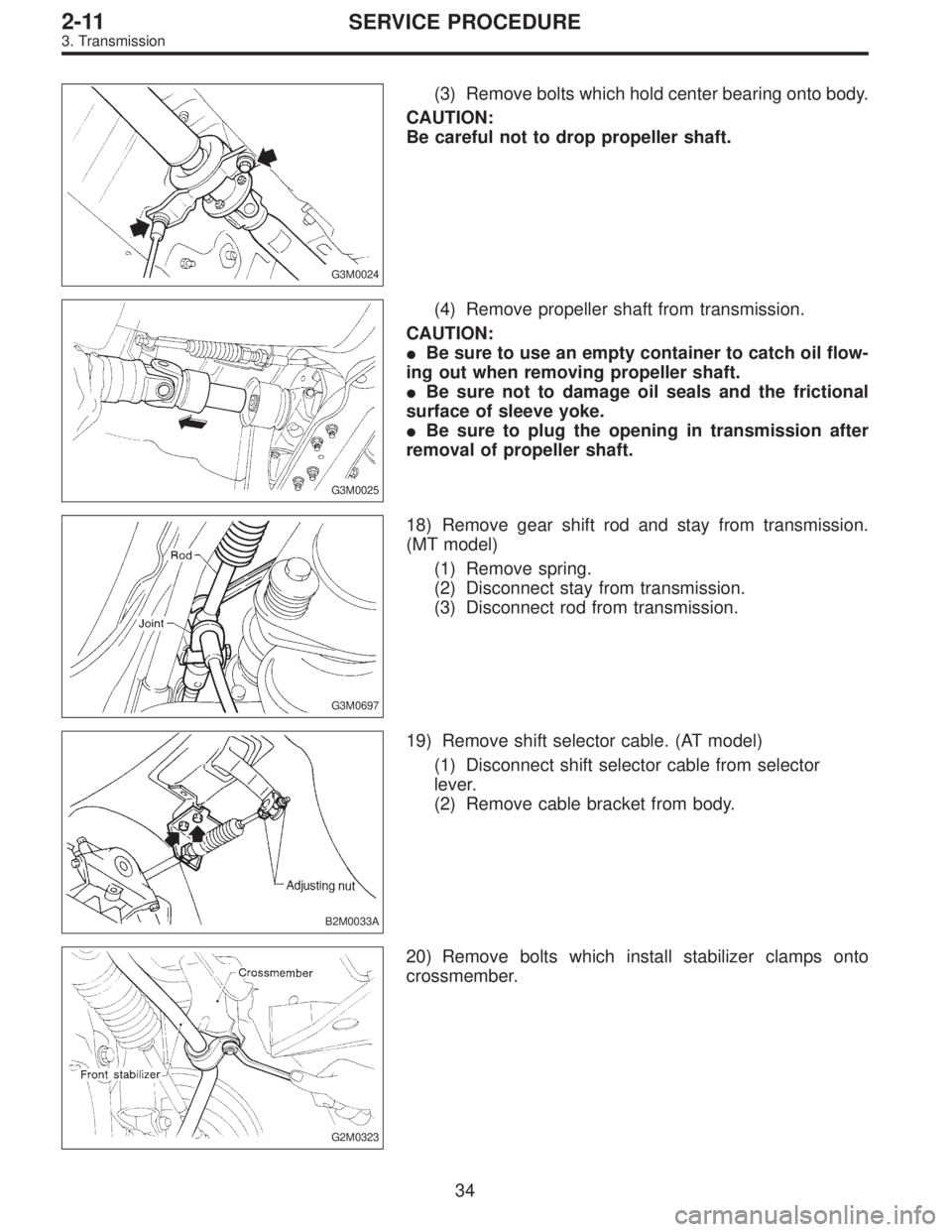

SUBARU LEGACY 1997 Service Repair Manual G3M0024 (3) Remove bolts which hold center bearing onto body. CAUTION: Be careful not to drop propeller shaft. G3M0025 (4) Remove propeller shaft from transmission. CAUTION: Be sure to use an empty c

Page 623 of 3342

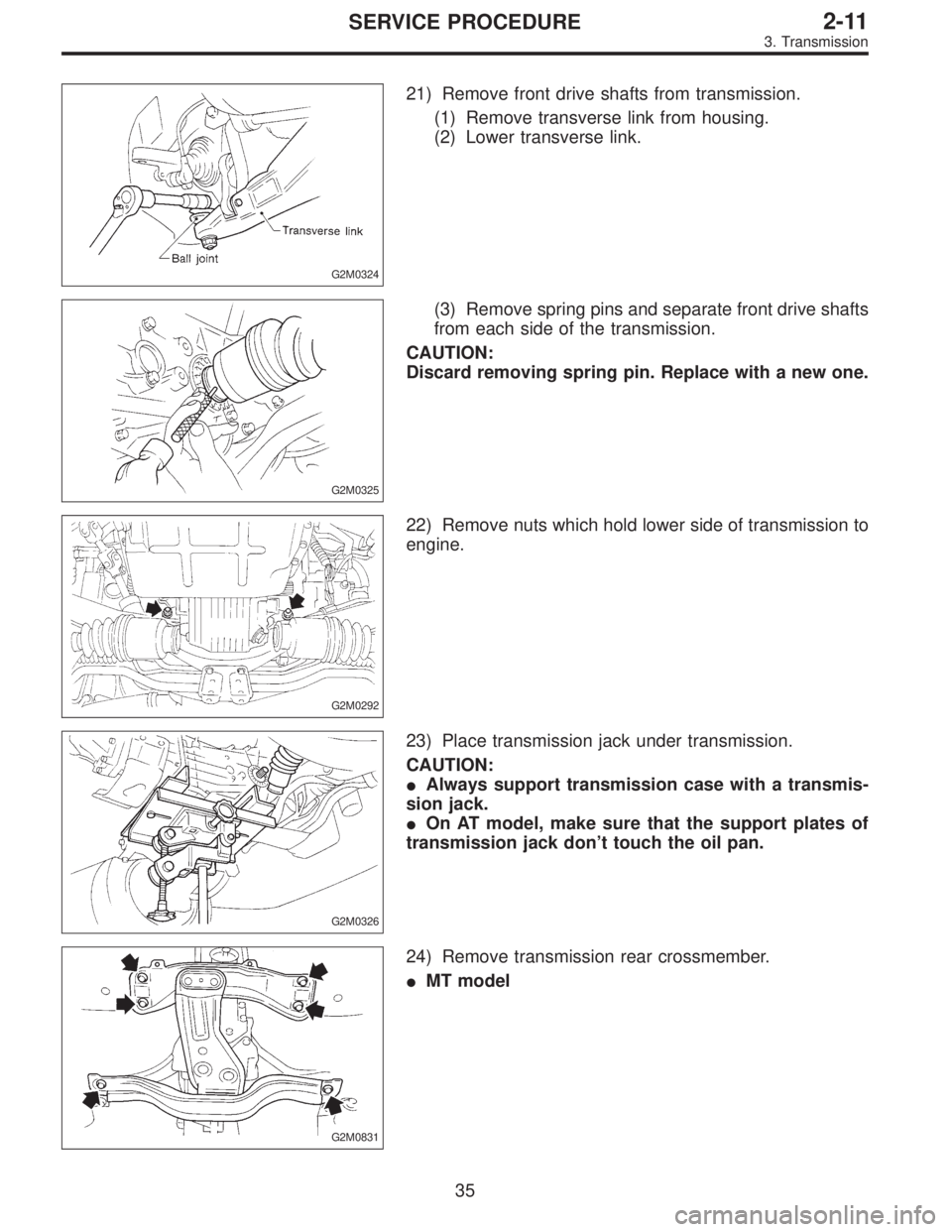

SUBARU LEGACY 1997 Service Repair Manual G2M0324 21) Remove front drive shafts from transmission. (1) Remove transverse link from housing. (2) Lower transverse link. G2M0325 (3) Remove spring pins and separate front drive shafts from each si

Page 624 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1171 AT model B2M0035 25) Remove transmission. CAUTION: Move transmission jack toward rear until mainshaft is withdrawn from clutch cover. (MT model) Move transmission and torque converter as a
