SUBARU LEGACY 1997 Service Repair Manual G2M0366 B: INSPECTION Connect lead harness to connector terminal of fuel pump, and apply battery power supply to check whether the pump operate. WARNING: Wipe off the fuel completely. Keep battery a

Page 546 of 3342

SUBARU LEGACY 1997 Service Repair Manual G2M0344 4) Remove nuts which install fuel pump assembly onto fuel tank. 5) Take off fuel pump assembly. G2M0346 B: INSTALLATION Installation is in the reverse order of removal. Do the fol- lowing: (1)

Page 547 of 3342

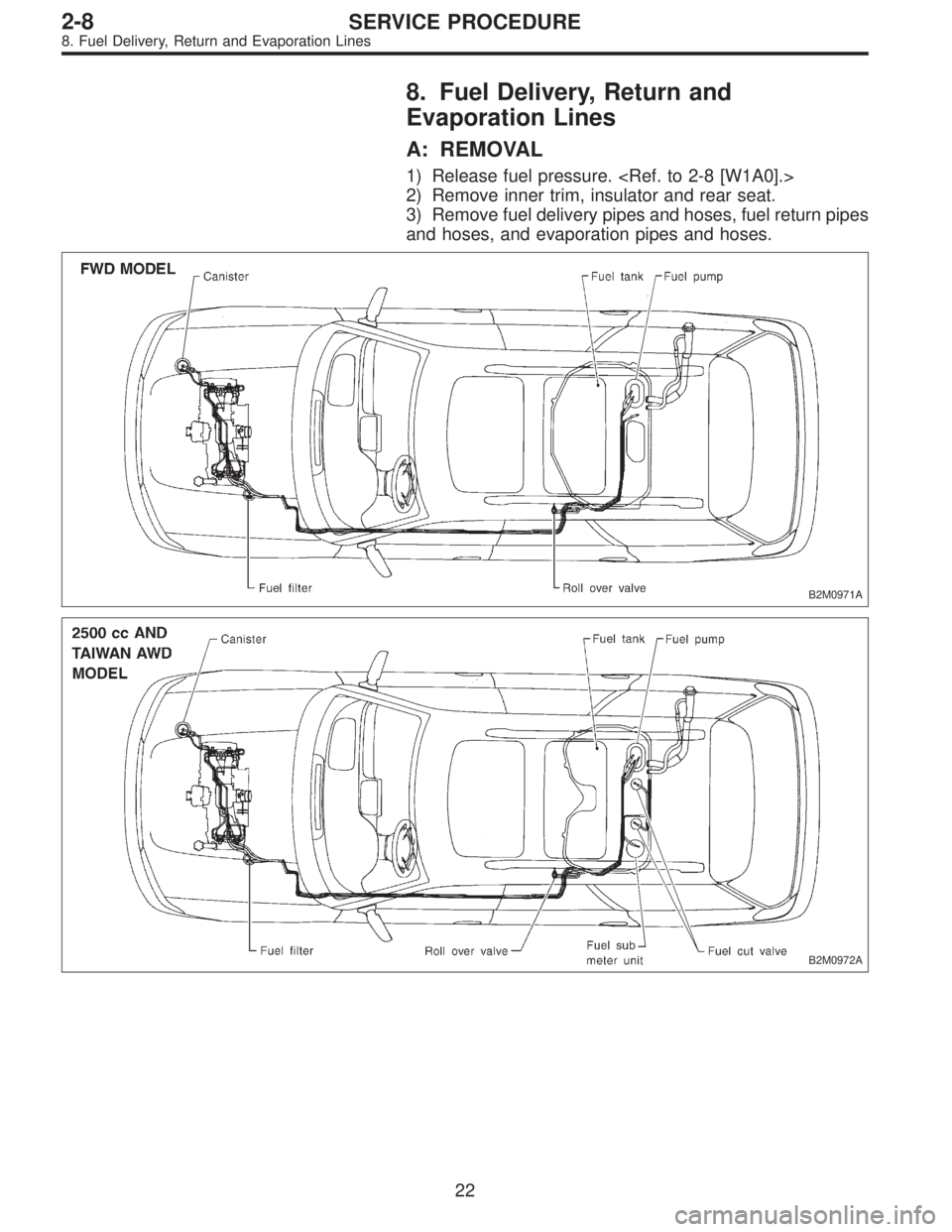

SUBARU LEGACY 1997 Service Repair Manual 8. Fuel Delivery, Return and Evaporation Lines A: REMOVAL 1) Release fuel pressure. <Ref. to 2-8 [W1A0].> 2) Remove inner trim, insulator and rear seat. 3) Remove fuel delivery pipes and hoses, fuel r

Page 548 of 3342

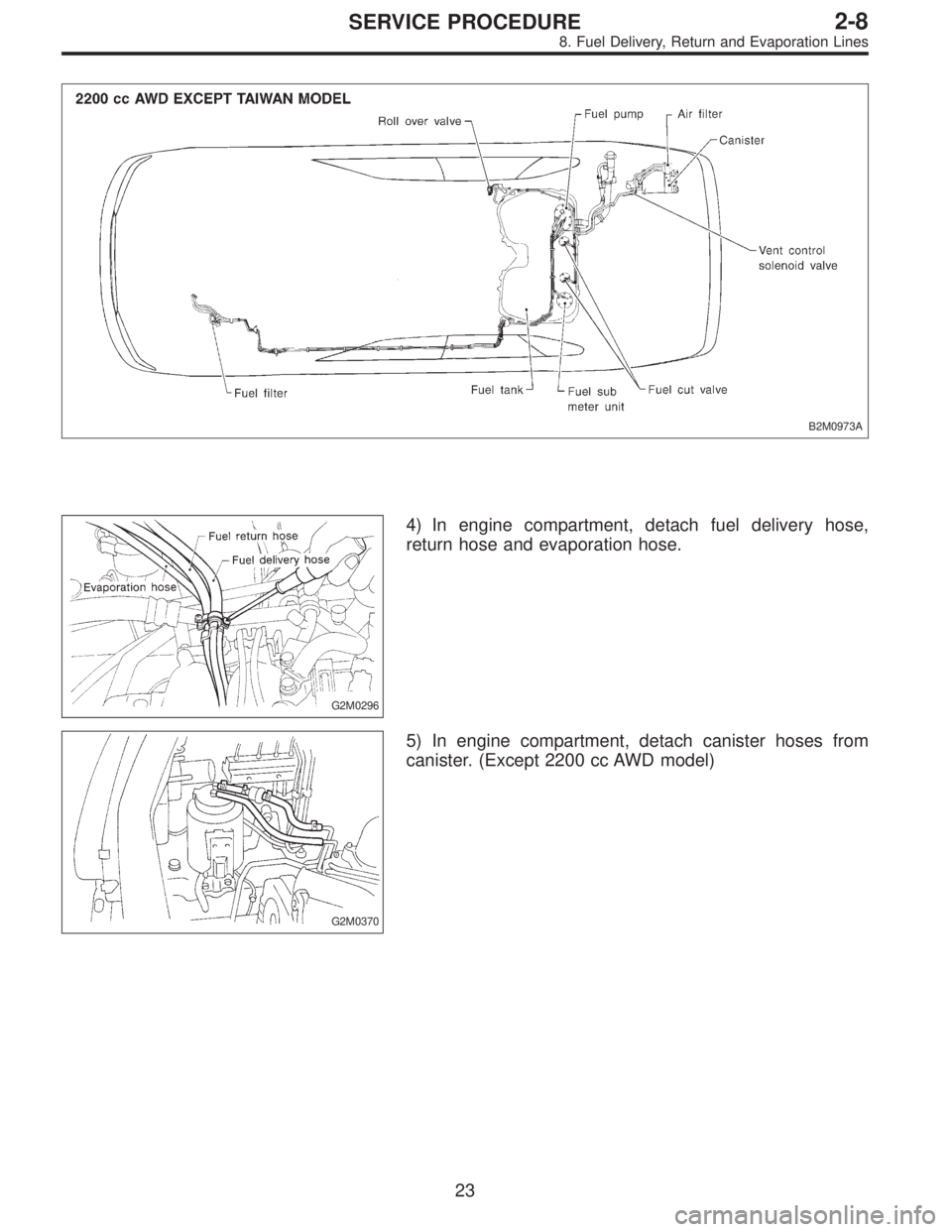

SUBARU LEGACY 1997 Service Repair Manual B2M0973A G2M0296 4) In engine compartment, detach fuel delivery hose, return hose and evaporation hose. G2M0370 5) In engine compartment, detach canister hoses from canister. (Except 2200 cc AWD model

Page 549 of 3342

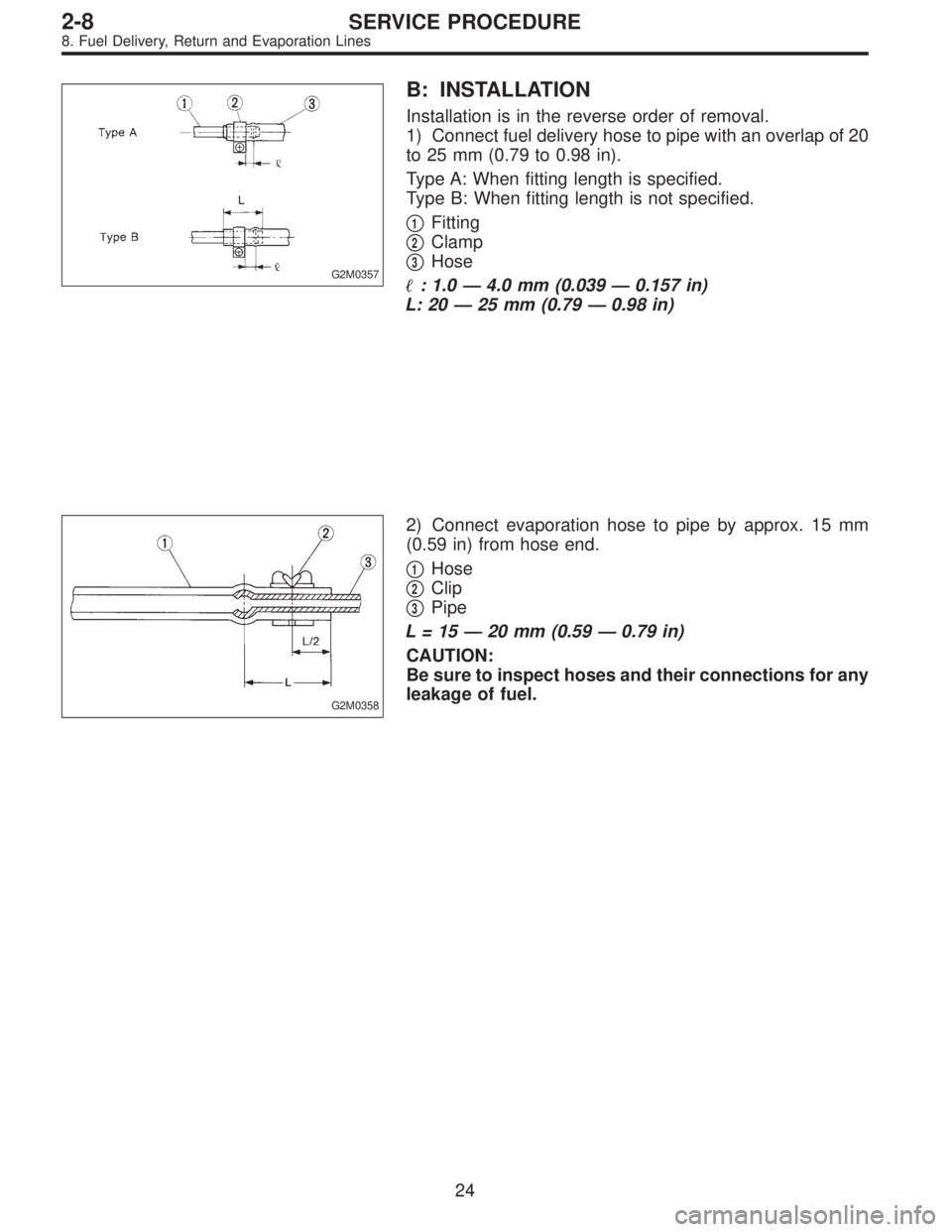

SUBARU LEGACY 1997 Service Repair Manual G2M0357 B: INSTALLATION Installation is in the reverse order of removal. 1) Connect fuel delivery hose to pipe with an overlap of 20 to 25 mm (0.79 to 0.98 in). Type A: When fitting length is specifie

Page 550 of 3342

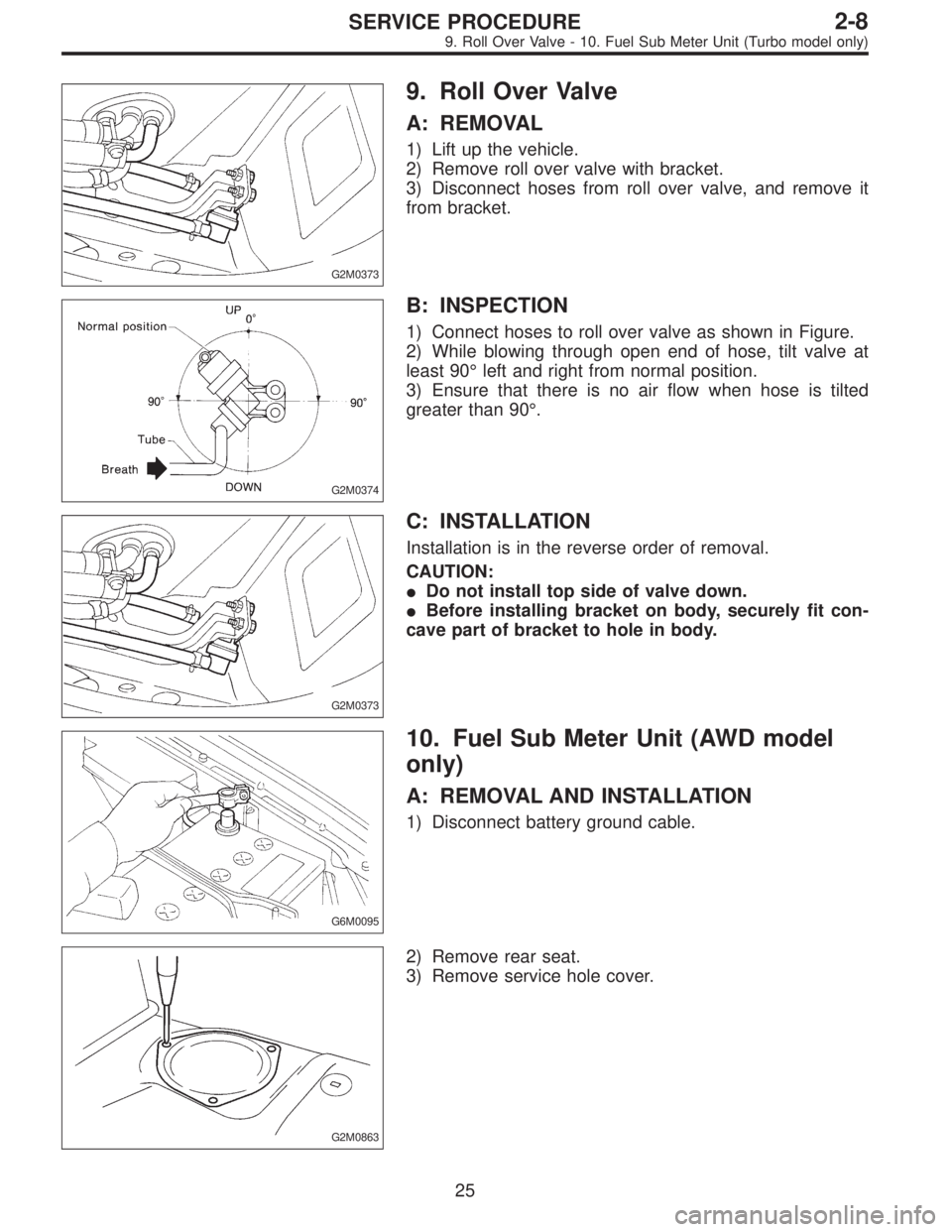

SUBARU LEGACY 1997 Service Repair Manual G2M0373 9. Roll Over Valve A: REMOVAL 1) Lift up the vehicle. 2) Remove roll over valve with bracket. 3) Disconnect hoses from roll over valve, and remove it from bracket. G2M0374 B: INSPECTION 1) Con

Page 551 of 3342

SUBARU LEGACY 1997 Service Repair Manual G2M0373 9. Roll Over Valve A: REMOVAL 1) Lift up the vehicle. 2) Remove roll over valve with bracket. 3) Disconnect hoses from roll over valve, and remove it from bracket. G2M0374 B: INSPECTION 1) Con

Page 552 of 3342

SUBARU LEGACY 1997 Service Repair Manual G2M0864 4) Disconnect connector from fuel sub meter. 5) Disconnect jet pump hose. G2M0865 6) Remove fuel sub meter unit. G2M0866 7) Installation is in the reverse order of removal procedure. Tightenin
