Page 2681 of 3342

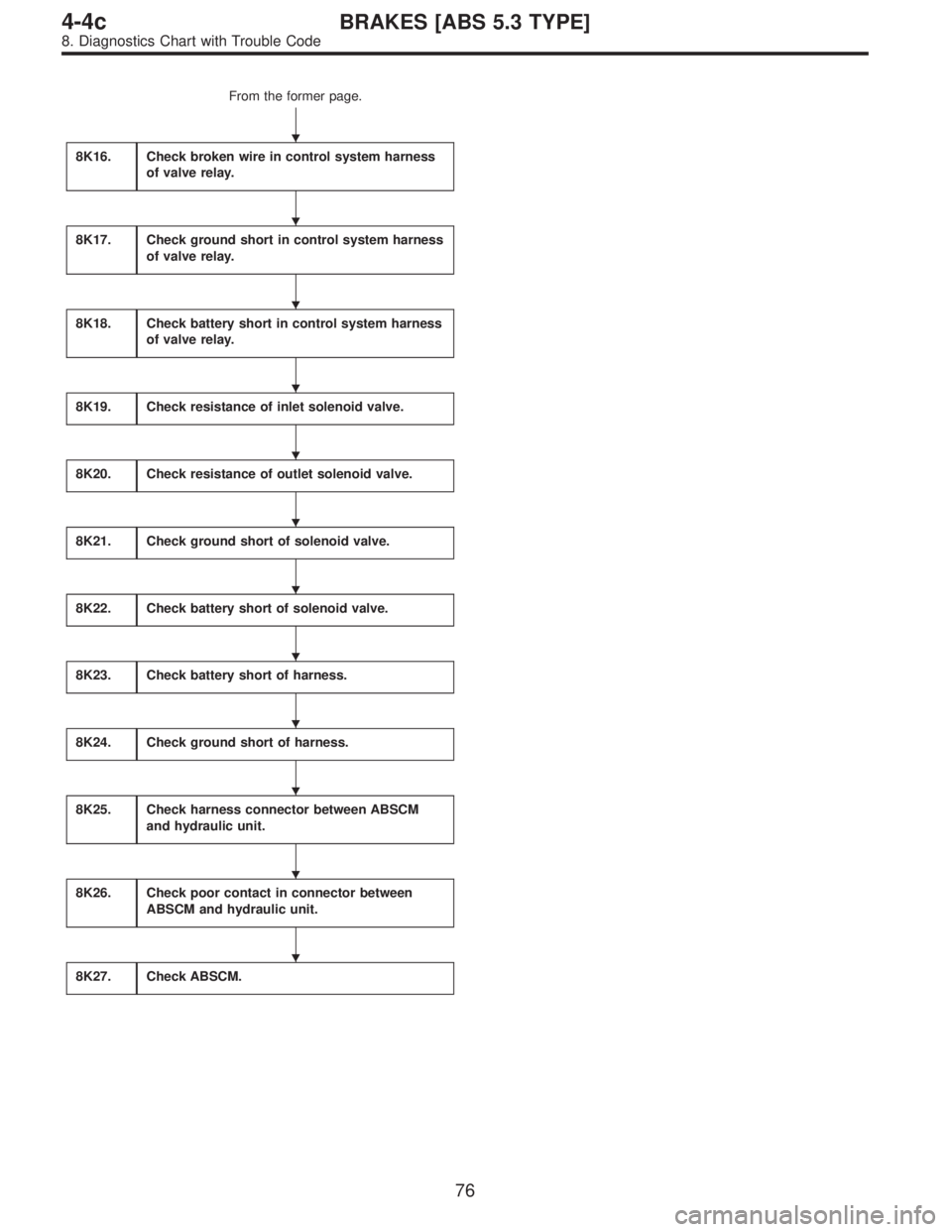

SUBARU LEGACY 1997 Service Repair Manual From the former page. 8K16. Check broken wire in control system harness of valve relay. 8K17.Check ground short in control system harness of valve relay. 8K18.Check battery short in control system har

Page 2682 of 3342

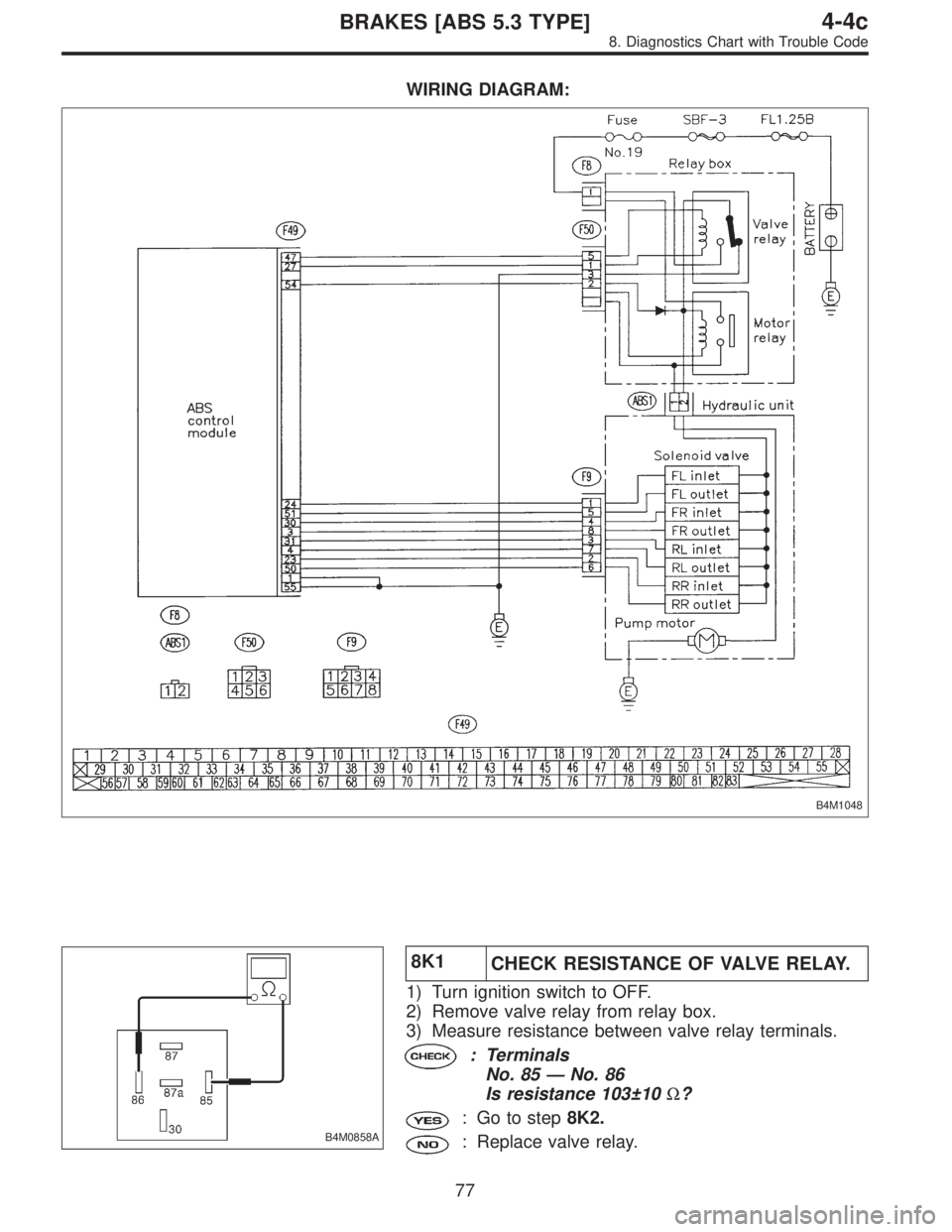

SUBARU LEGACY 1997 Service Repair Manual WIRING DIAGRAM: B4M1048 B4M0858A 8K1 CHECK RESISTANCE OF VALVE RELAY. 1) Turn ignition switch to OFF. 2) Remove valve relay from relay box. 3) Measure resistance between valve relay terminals. : Termi

Page 2683 of 3342

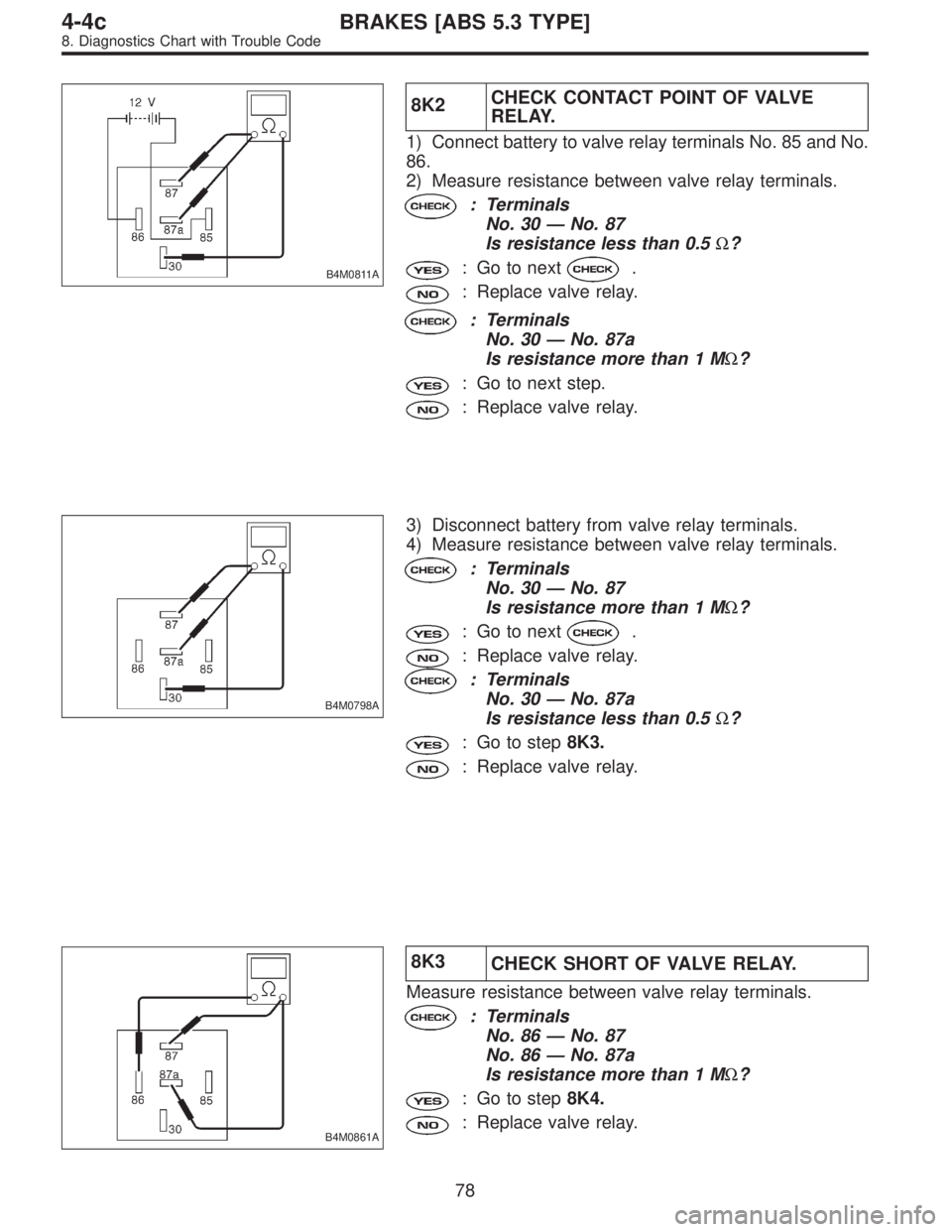

SUBARU LEGACY 1997 Service Repair Manual B4M0811A 8K2CHECK CONTACT POINT OF VALVE RELAY. 1) Connect battery to valve relay terminals No. 85 and No. 86. 2) Measure resistance between valve relay terminals. : Terminals No. 30—No. 87 Is resis

Page 2684 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0862B 8K4CHECK POWER SUPPLY VOLTAGE AT VALVE RELAY CONTACT POINT. 1) Disconnect connector (F8) from relay box. 2) Measure voltage between relay box connector and chassis ground. : Connector & termi

Page 2685 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0864 8K6CHECK BROKEN WIRE AND GROUND SHORT IN POWER SUPPLY CIRCUIT OF RELAY BOX. 1) Disconnect connector (ABS1) from hydraulic unit. 2) Connect connector (F8) to relay box. 3) Measure voltage of re

Page 2686 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0867A 8K9CHECK BATTERY SHORT IN CONTACT POINT CIRCUIT OF RELAY BOX. 1) Disconnect connector from ABSCM. 2) Turn ignition switch to ON. 3) Measure voltage between hydraulic unit connector and chassi

Page 2687 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0870B 8K12CHECK BATTERY SHORT IN GROUND CIRCUIT OF RELAY BOX. 1) Turn ignition switch to ON. 2) Measure voltage between relay box connector and chassis ground. : Connector & terminal To (F50) No. 3

Page 2688 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0873B 8K15CHECK BATTERY SHORT IN CONTROL CIRCUIT OF RELAY BOX. 1) Turn ignition switch to ON. 2) Measure voltage between relay box connector and chassis ground. : Connector & terminal To (F50) No.
