Page 1761 of 3342

B6M0070A
4. DOOR SWITCH
1) Remove rubber boot of door switch.
2) Remove screw which secures door switch to body.
3) Remove door switch while disconnecting connector.
5. TRUNK ROOM LIGHT SWITCH (SEDAN)
Refer to 5-1 [W2A3] as for removal and installation of trunk
room light switch which is installed in trunk lid lock.
6. LUGGAGE ROOM LIGHT SWITCH (WAGON)
Refer to 5-2 [W3A2] as for removal and installation of lug-
gage room light switch which is installed in rear gate lock.
B6M0071
B: INSPECTION
1. DOOR SWITCH
Move switch and check continuity between terminal of door
switch and switch body.
Switch position Terminal Switch body
Open (ON)
Push in (OFF)
B6M0072A
2. TRUNK ROOM LIGHT SWITCH (SEDAN)
Move switch and check continuity between terminals of
trunk room light switch.
Terminal
Switch position12
Open (ON)
Push in (OFF)
B6M0073A
3. LUGGAGE ROOM LIGHT SWITCH (WAGON)
Move switch and check continuity between terminals of
luggage room light switch.
Terminal
Switch position12
Open (ON)
Push in (OFF)
22
6-2SERVICE PROCEDURE
8. Room Light and Door Switch
Page 1762 of 3342

B6M0346
9. Spot Light
A: REMOVAL AND INSTALLATION
1. SPOT LIGHT AND SWITCH
1) Pry spot light lens off using a screwdriver.
2) Remove screws which secure spot light body.
3) Remove spot light body while disconnecting connec-
tor(s).
B6M0347
B: INSPECTION
1. SPOT LIGHT SWITCH
Move switch and check continuity between terminal of spot
light switch connector and steel plate as shown.
Switch position Connector terminal Plate
Open (OFF)
Push in (ON)
B6M0907A
10. Front Wiper and Washer
A: ON-CAR SERVICES
1. ADJUSTMENT
1) Turn the wiper switch to OFF position.
2) Adjust blades in original position as shown in figure by
changing wiper arm installation.
G6M0116
3) Stop the vehicle.
4) Adjust washer ejecting point on windshield glass as
shown in figure.
Ejecting point:
A: 375 mm (14.76 in)
B: 150 mm (5.91 in)
C: 380 mm (14.96 in)
B6M0107A
B: REMOVAL AND INSTALLATION
1. BLADE
Pull out blade following the arrow direction from arm while
pushing up locking clip.
23
6-2SERVICE PROCEDURE
9. Spot Light - 10. Front Wiper and Washer
Page 1763 of 3342

B6M0346
9. Spot Light
A: REMOVAL AND INSTALLATION
1. SPOT LIGHT AND SWITCH
1) Pry spot light lens off using a screwdriver.
2) Remove screws which secure spot light body.
3) Remove spot light body while disconnecting connec-
tor(s).
B6M0347
B: INSPECTION
1. SPOT LIGHT SWITCH
Move switch and check continuity between terminal of spot
light switch connector and steel plate as shown.
Switch position Connector terminal Plate
Open (OFF)
Push in (ON)
B6M0907A
10. Front Wiper and Washer
A: ON-CAR SERVICES
1. ADJUSTMENT
1) Turn the wiper switch to OFF position.
2) Adjust blades in original position as shown in figure by
changing wiper arm installation.
G6M0116
3) Stop the vehicle.
4) Adjust washer ejecting point on windshield glass as
shown in figure.
Ejecting point:
A: 375 mm (14.76 in)
B: 150 mm (5.91 in)
C: 380 mm (14.96 in)
B6M0107A
B: REMOVAL AND INSTALLATION
1. BLADE
Pull out blade following the arrow direction from arm while
pushing up locking clip.
23
6-2SERVICE PROCEDURE
9. Spot Light - 10. Front Wiper and Washer
Page 1764 of 3342

G6M0118
2. WIPER ARM
1) Open engine hood.
2) Remove cap of wiper arm installation nut.
3) Remove the nut which secures wiper arm.
4) Remove wiper arm.
5) Installation is in the reverse order of removal.
NOTE:
Remove metal sludge from the wiper arm fixture before
installing it.
Tightening torque:
20±3 N⋅m (2.0±0.3 kg-m, 14.5±2.2 ft-lb)
3. WIPER MOTOR AND LINK
1) Detach weatherstrip and cowl panel.
[W10A0].>
NOTE:
Apply silicone oil or soap water to both sides of cowl net to
facilitate removal.
B6M0108
2) Disconnect connector of wiper motor.
3) Remove motor attaching bolts.
Tightening torque:
5.9±1.5 N⋅m (0.6±0.15 kg-m, 4.3±1.1 ft-lb)
4) Remove wiper link from back side of wiper motor using
a screwdriver inserted into service hole in front panel.
CAUTION:
Do not pry wiper link off forcefully as this may scratch
vehicle body.
5) Remove wiper motor.
6) Separate the driver’s side wiper link from back side of
the passenger’s side wiper sleeve unit.
24
6-2SERVICE PROCEDURE
10. Front Wiper and Washer
Page 1765 of 3342
G6M0021
7) Remove nuts which secure sleeve unit.
Tightening torque:
5.9±1.5 N⋅m (0.6±0.15 kg-m, 4.3±1.1 ft-lb)
G6M0121
8) Remove wiper link from service hole in front panel.
B6M0109A
4. WASHER TANK AND WASHER MOTOR
1) Remove washer tank attaching bolts.
2) Disconnect connectors of washer motors.
3) Disconnect washer hoses from each washer motor.
4) Remove washer tank and washer motor as an unit.
5) Separate washer motor from washer tank.
B6M0110A
5. NOZZLE
1) Disconnect washer hose from nozzle.
2) Push nozzle clip in direction A as shown in figure.
3) Remove nozzle from engine hood.
CAUTION:
Do not pry nozzle off forcefully as this may scratch
vehicle body.
6. COMBINATION SWITCH
Refer to 6-2 [W4B3] as for removal and installation of com-
bination switch.
25
6-2SERVICE PROCEDURE
10. Front Wiper and Washer
Page 1766 of 3342

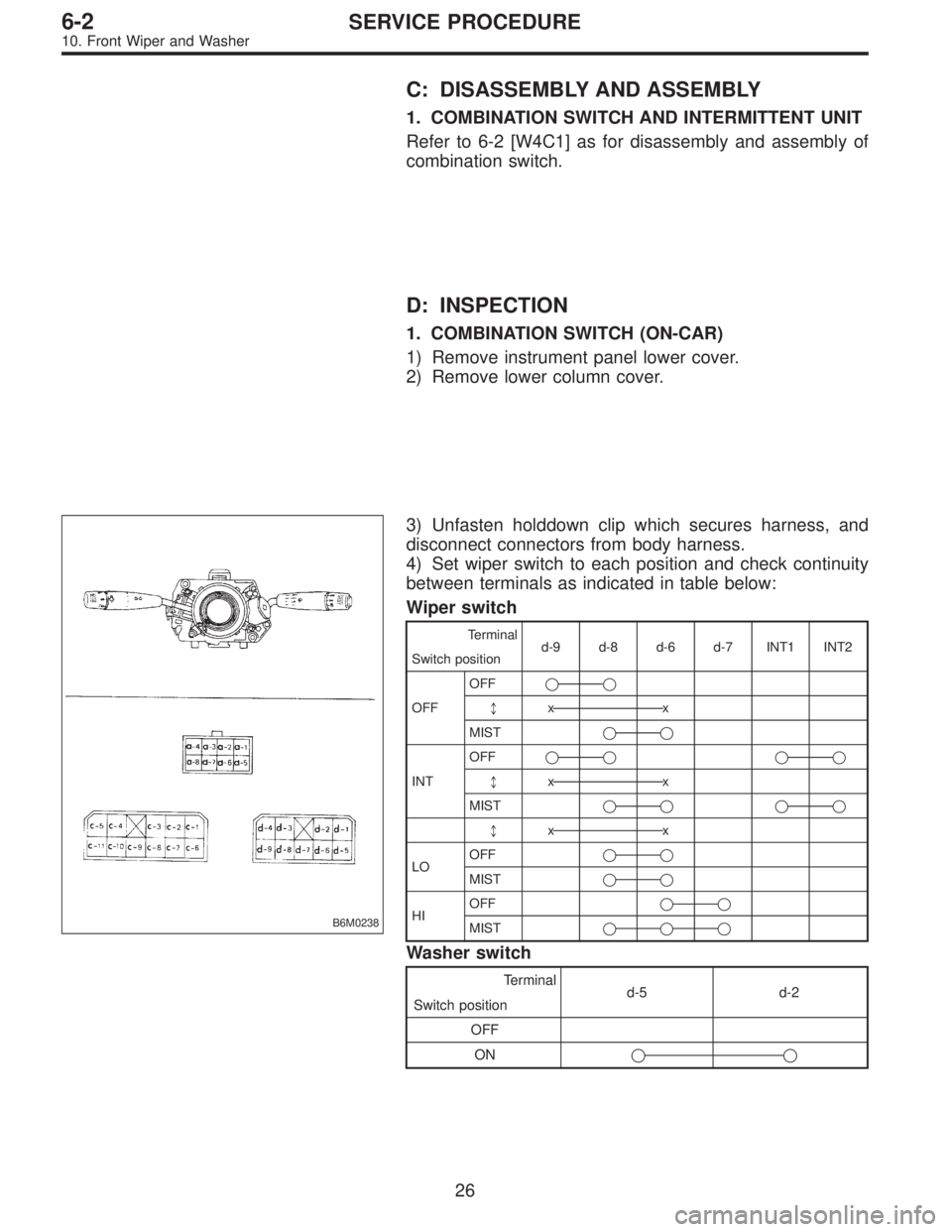

C: DISASSEMBLY AND ASSEMBLY
1. COMBINATION SWITCH AND INTERMITTENT UNIT
Refer to 6-2 [W4C1] as for disassembly and assembly of
combination switch.
D: INSPECTION
1. COMBINATION SWITCH (ON-CAR)
1) Remove instrument panel lower cover.
2) Remove lower column cover.
B6M0238
3) Unfasten holddown clip which secures harness, and
disconnect connectors from body harness.
4) Set wiper switch to each position and check continuity
between terminals as indicated in table below:
Wiper switch
Terminal
d-9 d-8 d-6 d-7 INT1 INT2
Switch position
OFFOFF
*xx
MIST
INTOFF
*xx
MIST
*xx
LOOFFMIST
HIOFFMIST
Washer switch
Terminal
d-5 d-2
Switch position
OFF
ON
26
6-2SERVICE PROCEDURE
10. Front Wiper and Washer
Page 1767 of 3342
B6M0163

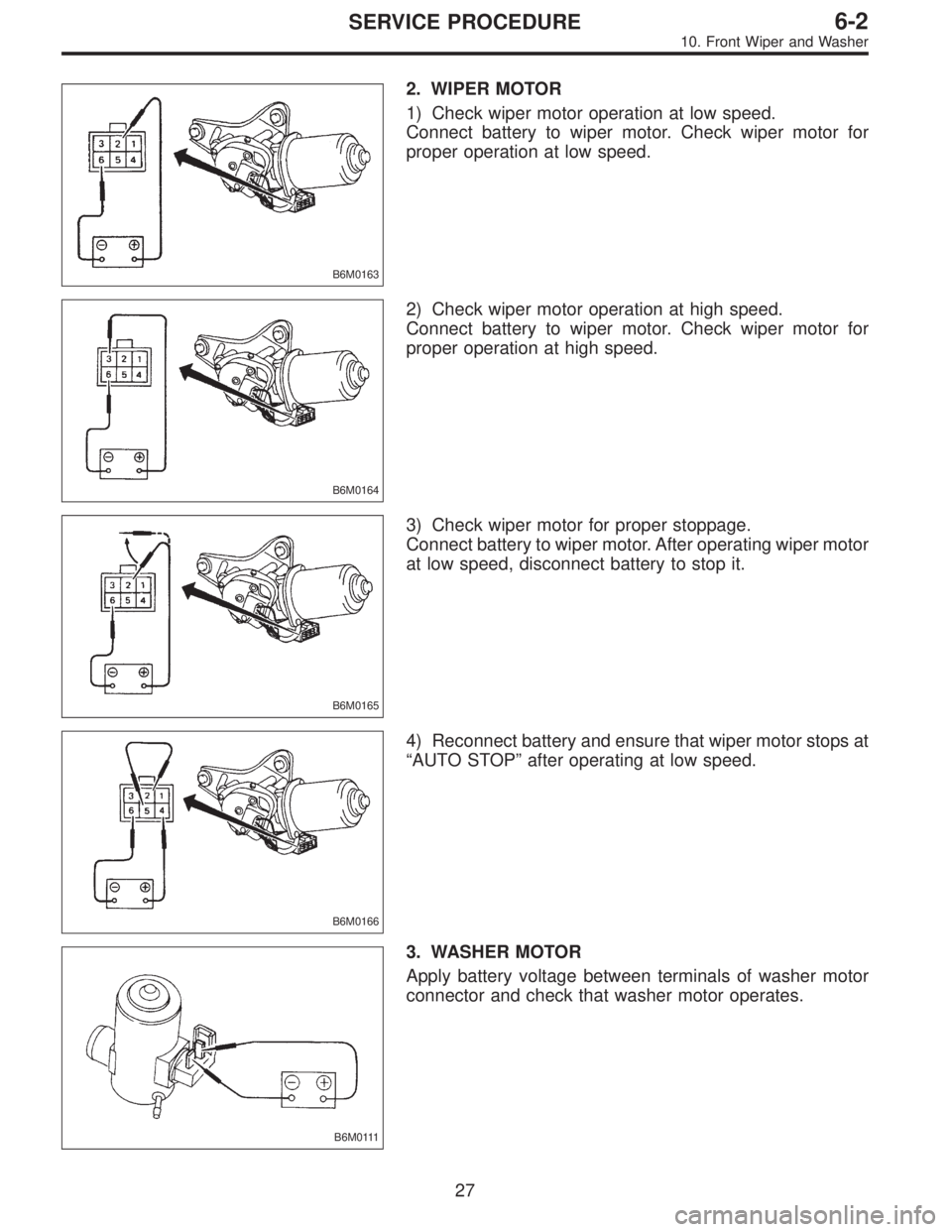

2. WIPER MOTOR
1) Check wiper motor operation at low speed.
Connect battery to wiper motor. Check wiper motor for
proper operation at low speed.
B6M0164
2) Check wiper motor operation at high speed.
Connect battery to wiper motor. Check wiper motor for
proper operation at high speed.
B6M0165
3) Check wiper motor for proper stoppage.
Connect battery to wiper motor. After operating wiper motor
at low speed, disconnect battery to stop it.
B6M0166
4) Reconnect battery and ensure that wiper motor stops at
“AUTO STOP”after operating at low speed.
B6M0111
3. WASHER MOTOR
Apply battery voltage between terminals of washer motor
connector and check that washer motor operates.
27
6-2SERVICE PROCEDURE
10. Front Wiper and Washer
Page 1768 of 3342
G6M0126
11. Rear Wiper and Washer
A: ON-CAR SERVICES
1. ADJUSTMENT
1) Adjust wiper blade in original position as shown in fig-
ure by changing wiper arm installation.
Original position:
A: 25 — 35 mm (0.98 — 1.38 in)
G6M0127
2) Adjust washer ejecting point on rear gate window as
shown in figure when the vehicle stops.
Ejecting point:
A: 25 mm (0.98 in)
B: 200 — 300 mm (7.87 — 11.81 in)
B6M0107A
B: REMOVAL AND INSTALLATION
1. BLADE
Pull out blade following the arrow direction, from arm while
pushing up locking clip.
B6M0112
2. WIPER ARM
1) Remove head cover.
2) Remove nut and wiper arm.
Tightening torque:
5.9±1.5 N⋅m (0.6±0.15 kg-m, 4.3±1.1 ft-lb)
B6M0113
3. WIPER MOTOR
1) Remove cap and special nut.
CAUTION:
Be careful not to strike service tool against nozzle dur-
ing removal.
Tightening torque:
7.4±1.5 N⋅m (0.75±0.15 kg-m, 5.4±1.1 ft-lb)
28
6-2SERVICE PROCEDURE
11. Rear Wiper and Washer
