Page 2313 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0304 AM: DTC P0340 —CAMSHAFT POSITION SENSOR CIRCUIT MALFUNCTION— WIRING DIAGRAM: B2M1055 NOTE: Check camshaft position sensor circuit. <Ref. to 2-7 [T10AM0].> 462 2-7ON-BOARD DIAGNOSTICS II SY

Page 2314 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1092 AN: DTC P0341 —CAMSHAFT POSITION SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM— WIRING DIAGRAM: B2M1055 NOTE: Check camshaft position sensor circuit. <Ref. to 2-7 [T10AN0].> 463 2-7ON-BOARD DIA

Page 2315 of 3342

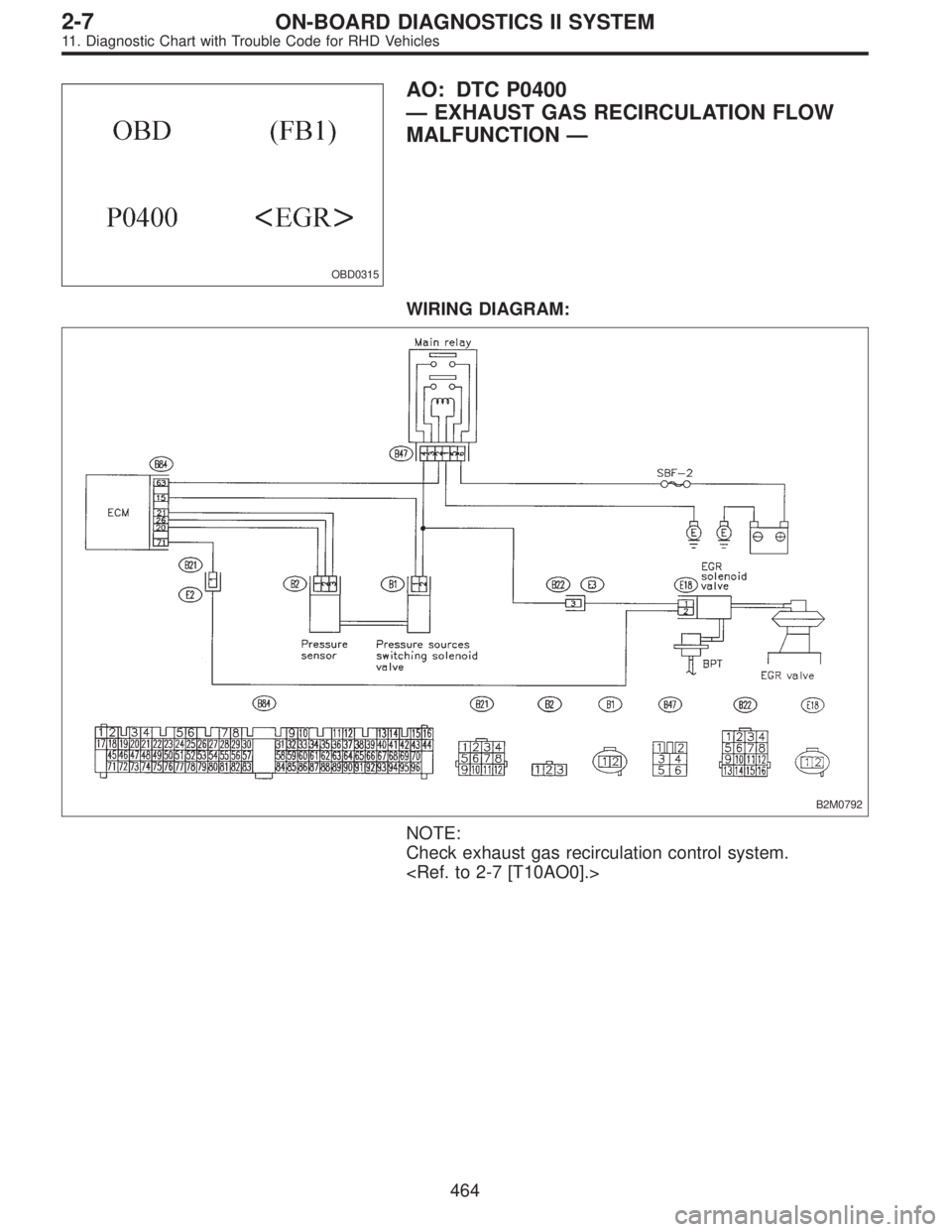

SUBARU LEGACY 1997 Service Repair Manual OBD0315 AO: DTC P0400 —EXHAUST GAS RECIRCULATION FLOW MALFUNCTION— WIRING DIAGRAM: B2M0792 NOTE: Check exhaust gas recirculation control system. <Ref. to 2-7 [T10AO0].> 464 2-7ON-BOARD DIAGNOSTICS

Page 2316 of 3342

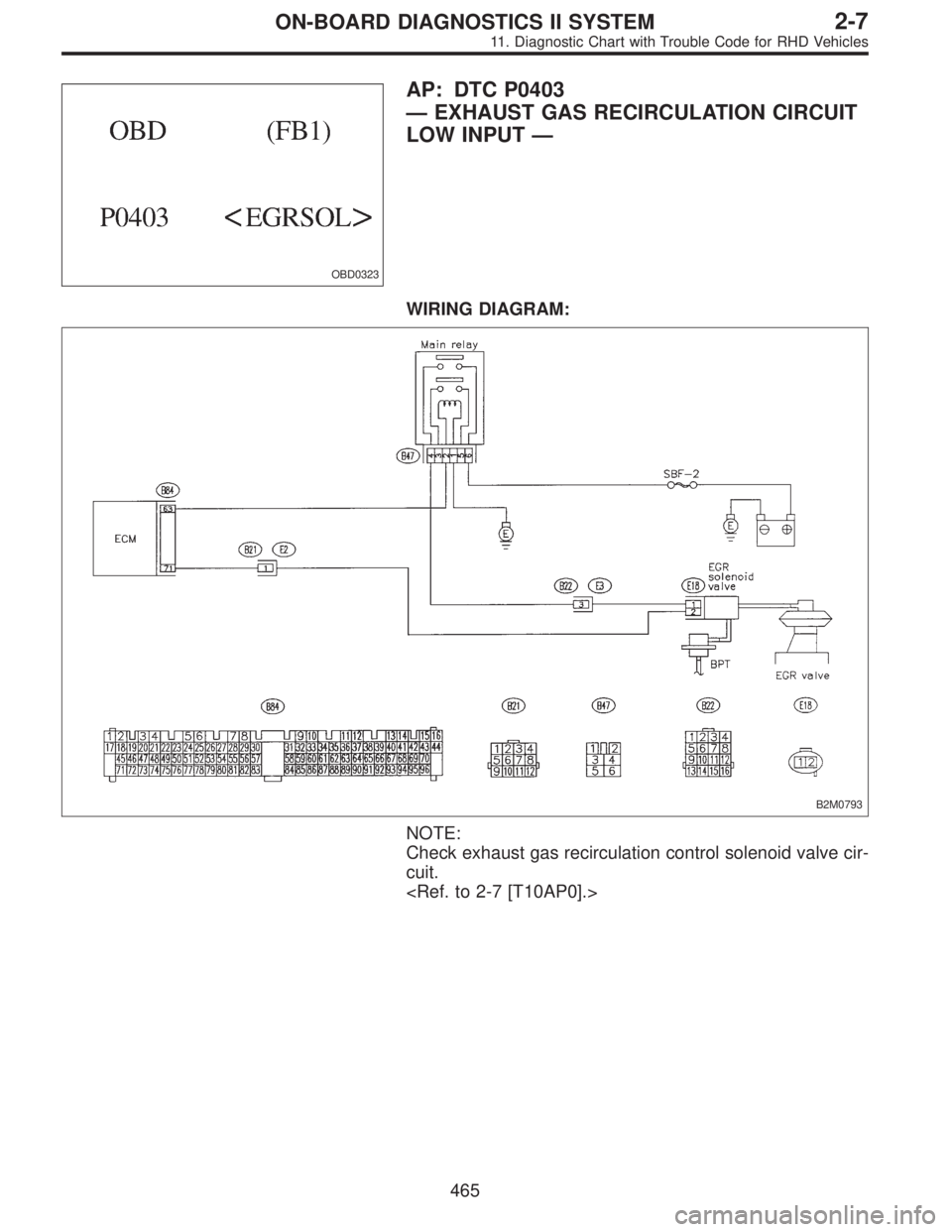

SUBARU LEGACY 1997 Service Repair Manual OBD0323 AP: DTC P0403 —EXHAUST GAS RECIRCULATION CIRCUIT LOW INPUT— WIRING DIAGRAM: B2M0793 NOTE: Check exhaust gas recirculation control solenoid valve cir- cuit. <Ref. to 2-7 [T10AP0].> 465 2-7O

Page 2317 of 3342

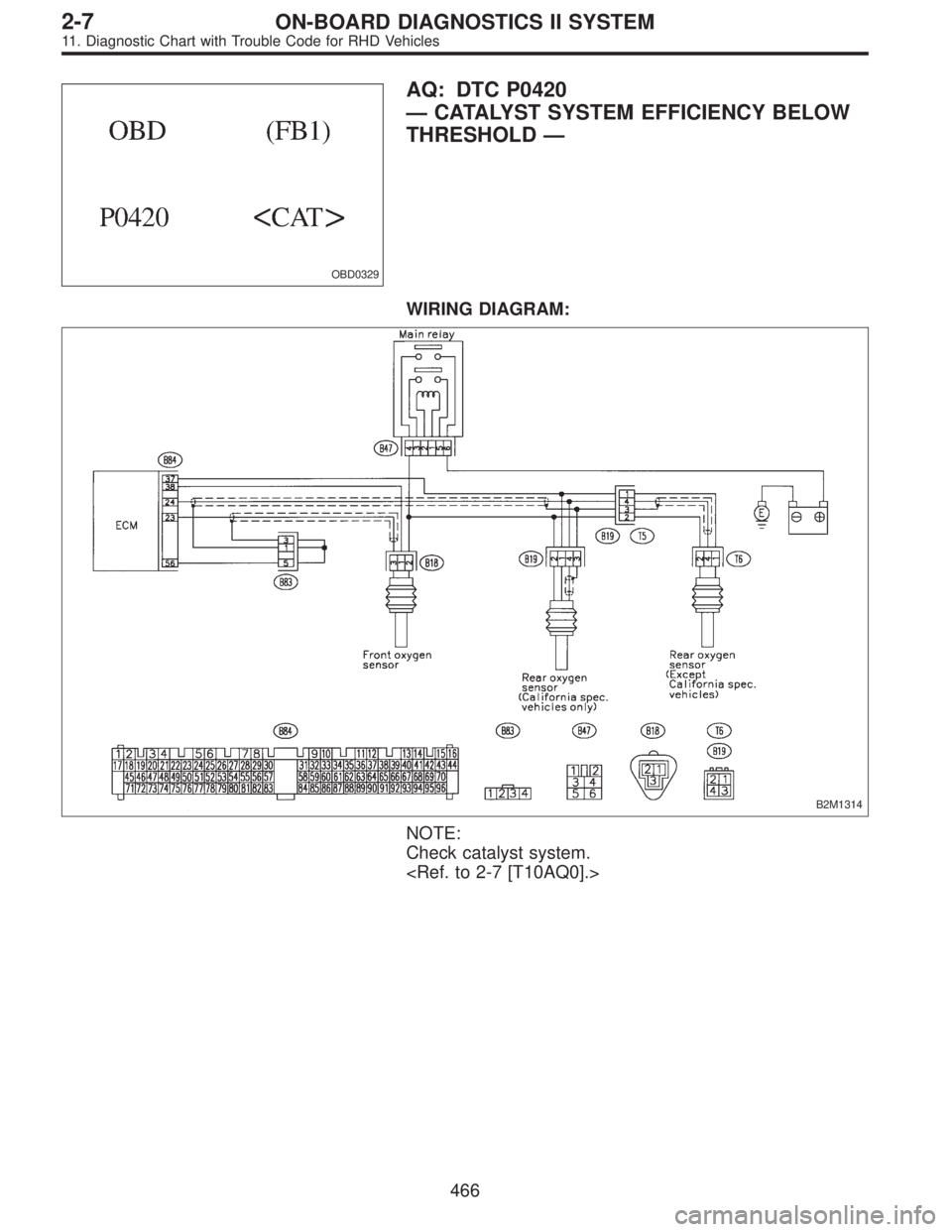

SUBARU LEGACY 1997 Service Repair Manual OBD0329 AQ: DTC P0420 —CATALYST SYSTEM EFFICIENCY BELOW THRESHOLD— WIRING DIAGRAM: B2M1314 NOTE: Check catalyst system. <Ref. to 2-7 [T10AQ0].> 466 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. Diagnostic

Page 2318 of 3342

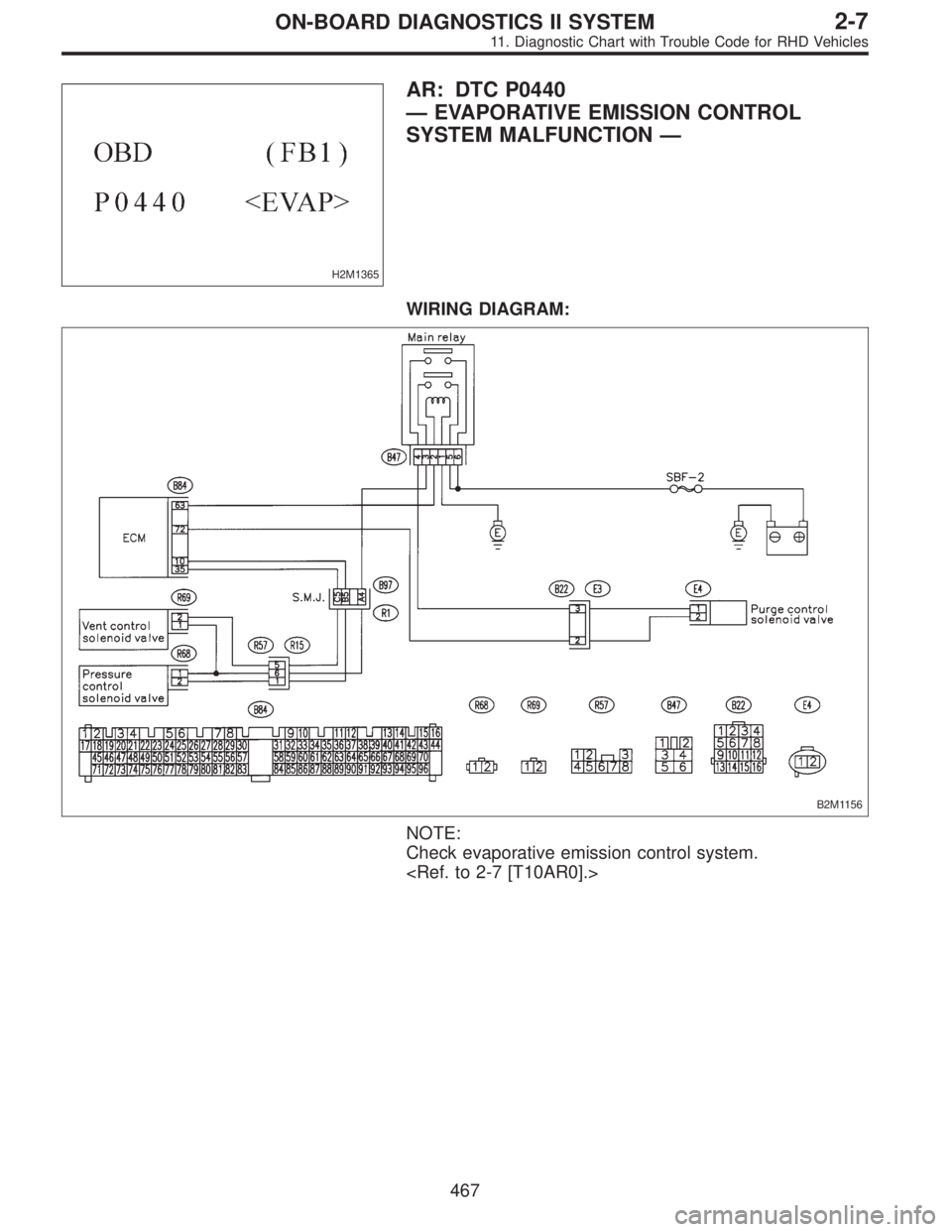

SUBARU LEGACY 1997 Service Repair Manual H2M1365 AR: DTC P0440 —EVAPORATIVE EMISSION CONTROL SYSTEM MALFUNCTION— WIRING DIAGRAM: B2M1156 NOTE: Check evaporative emission control system. <Ref. to 2-7 [T10AR0].> 467 2-7ON-BOARD DIAGNOSTICS

Page 2319 of 3342

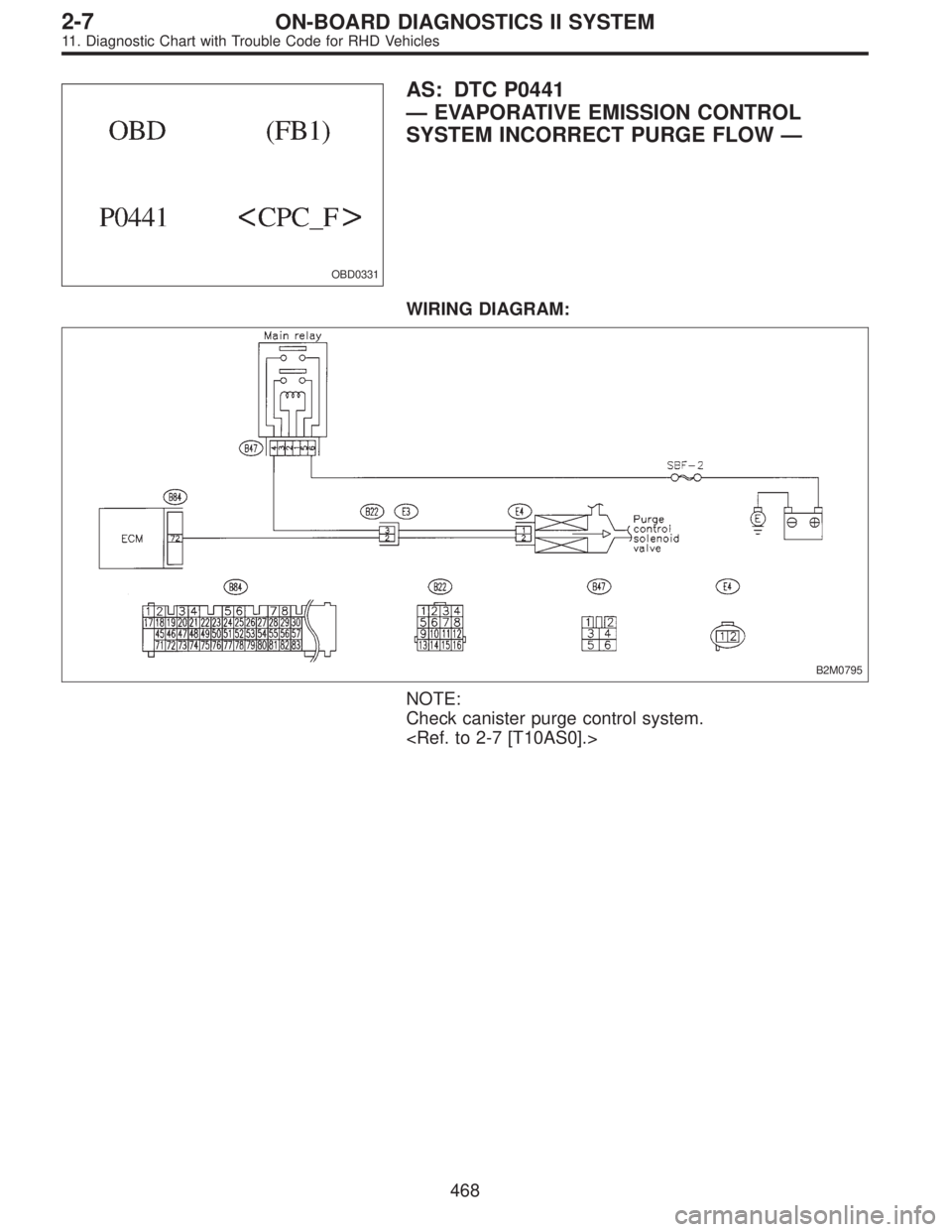

SUBARU LEGACY 1997 Service Repair Manual OBD0331 AS: DTC P0441 —EVAPORATIVE EMISSION CONTROL SYSTEM INCORRECT PURGE FLOW— WIRING DIAGRAM: B2M0795 NOTE: Check canister purge control system. <Ref. to 2-7 [T10AS0].> 468 2-7ON-BOARD DIAGNOST

Page 2320 of 3342

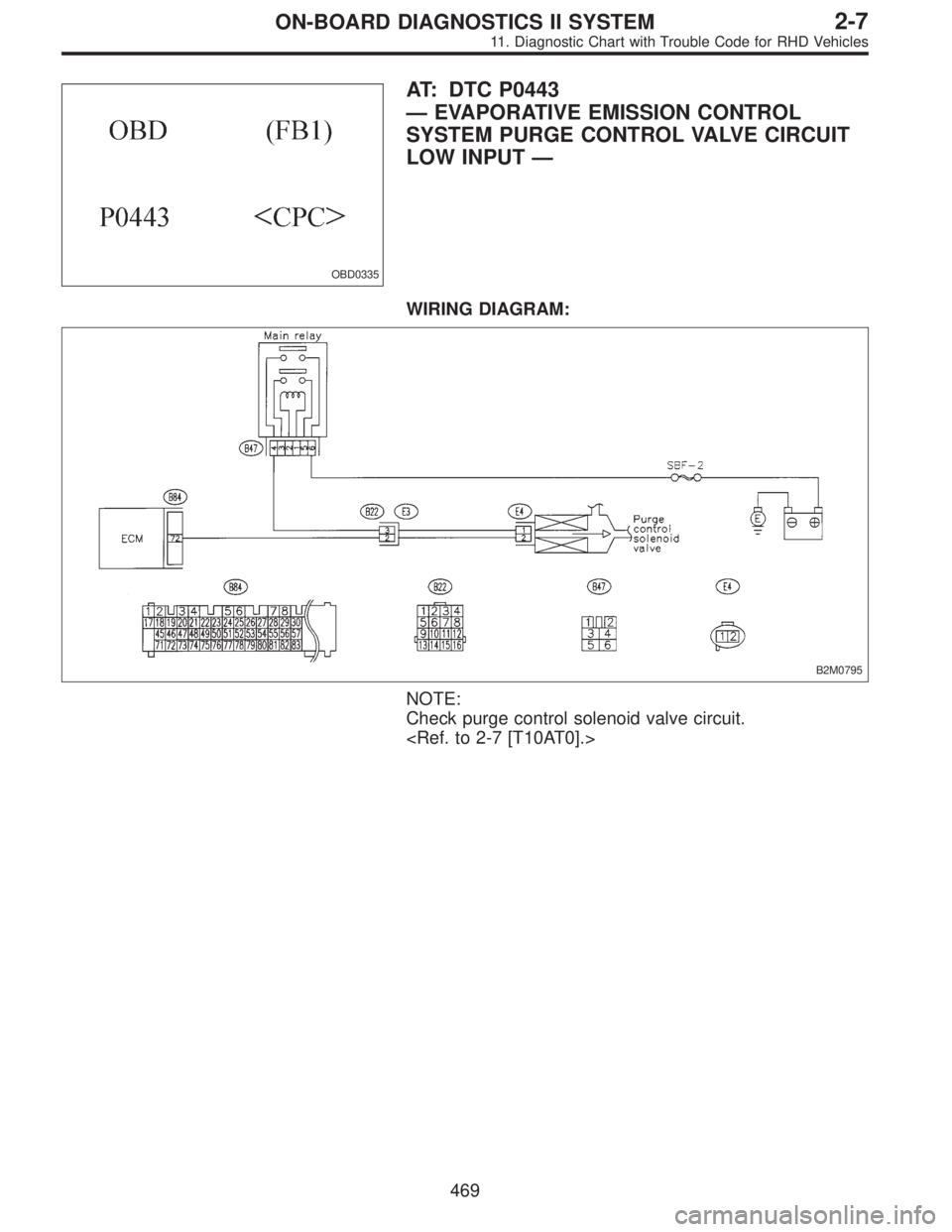

SUBARU LEGACY 1997 Service Repair Manual OBD0335 AT: DTC P0443 —EVAPORATIVE EMISSION CONTROL SYSTEM PURGE CONTROL VALVE CIRCUIT LOW INPUT— WIRING DIAGRAM: B2M0795 NOTE: Check purge control solenoid valve circuit. <Ref. to 2-7 [T10AT0].>
