Page 2081 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1092 AN: DTC P0341 —CAMSHAFT POSITION SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM— DTC DETECTING CONDITION: Immediately at fault recognition TROUBLE SYMPTOM: Engine stalls. Failure of engine to

Page 2082 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10AN1 CHECK DTC P0340 ON DISPLAY. : Does the Subaru select monitor or OBD-II general scan tool indicate DTC P0340? : Inspect DTC P0340 using“10. Diagnostics Chart with Trouble Code”. <Ref. to 2-7

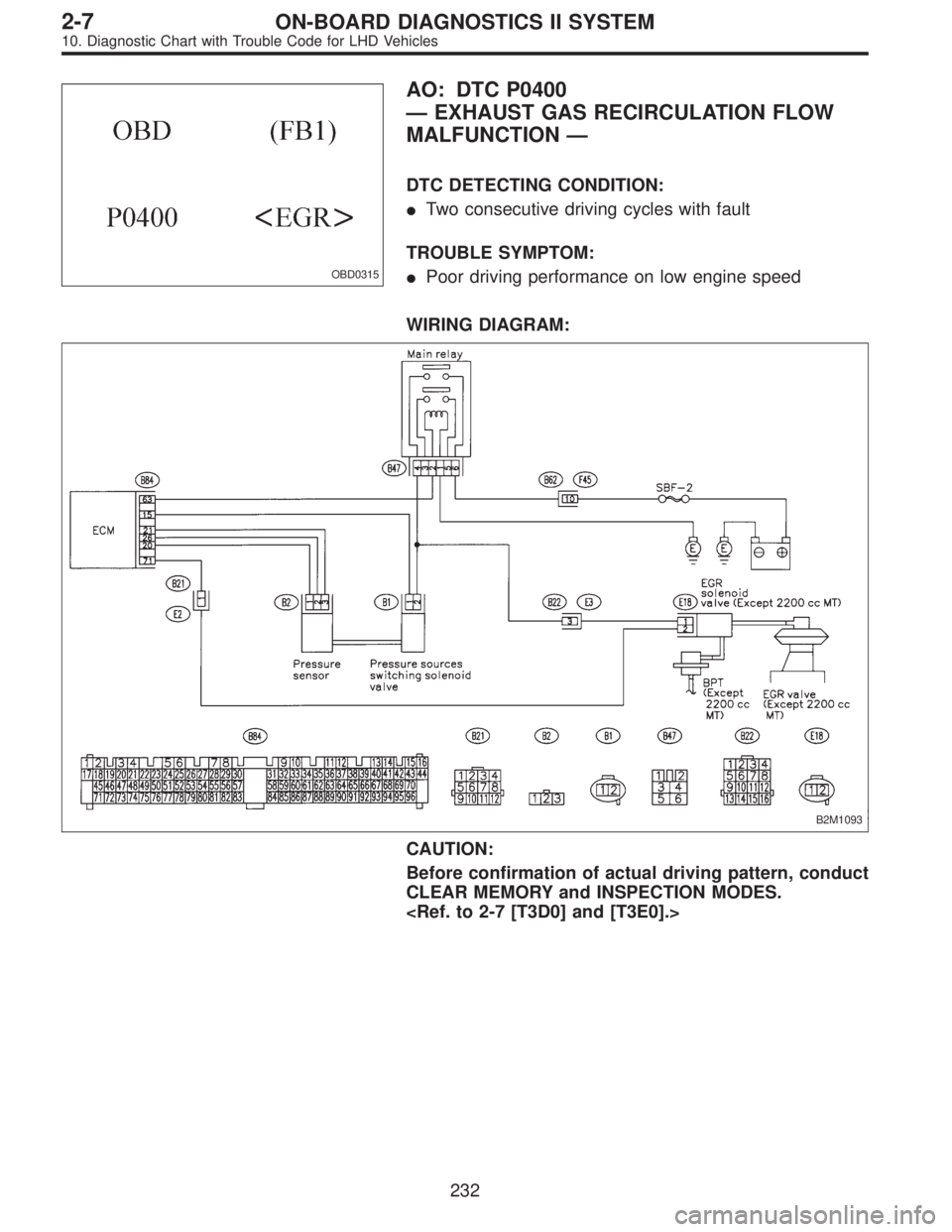

Page 2083 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0315 AO: DTC P0400 —EXHAUST GAS RECIRCULATION FLOW MALFUNCTION— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Poor driving performance on low engine spee

Page 2084 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10AO1 CHECK ENGINE/TRANSMISSION TYPE. : Is engine/transmission type 2200 cc/MT? : Check AT/MT identification circuit. <Ref. to 2-7 [T10DD0].> : Go to step10AO2. 10AO2CHECK DTC P0106, P0107, P0108, P04

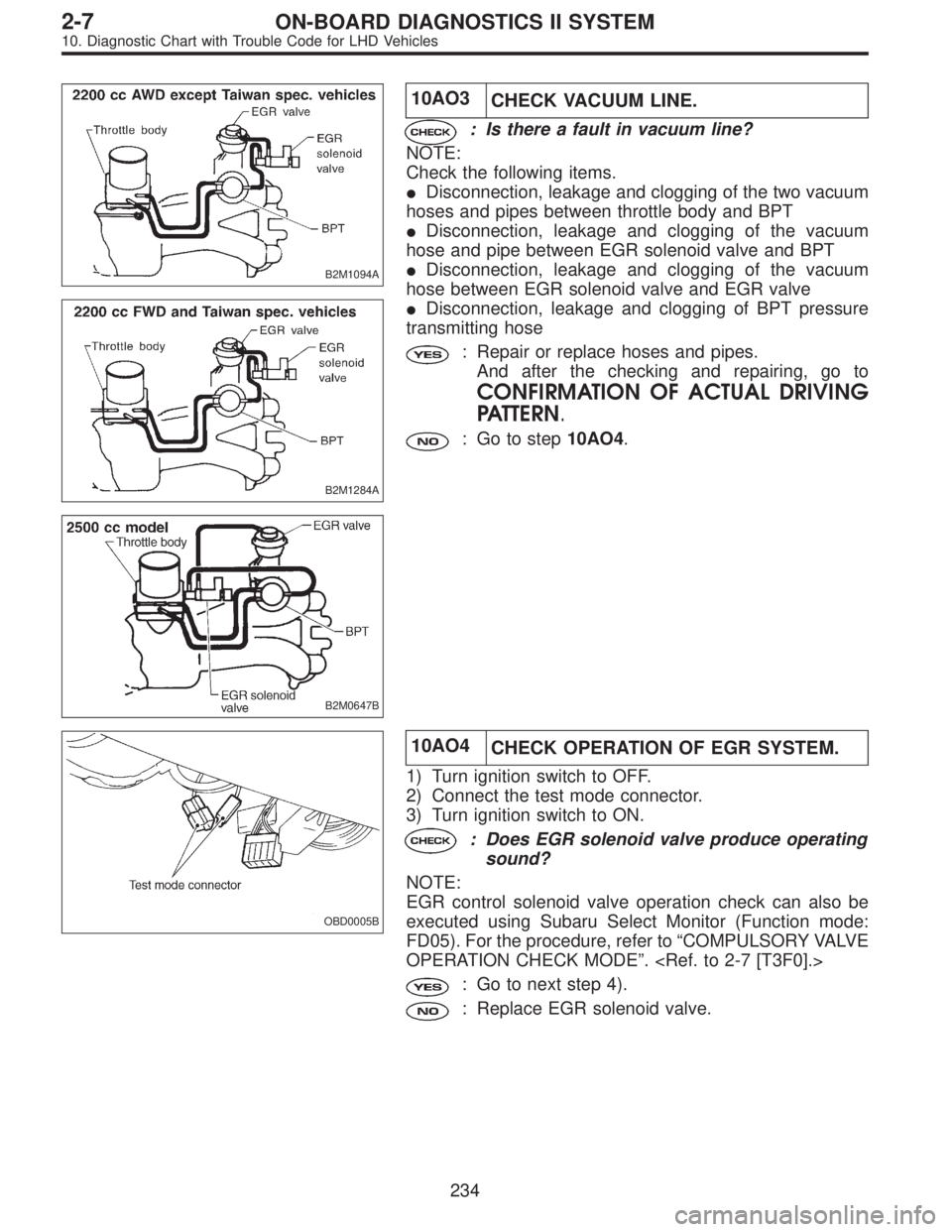

Page 2085 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1094A B2M1284A B2M0647B 10AO3 CHECK VACUUM LINE. : Is there a fault in vacuum line? NOTE: Check the following items. Disconnection, leakage and clogging of the two vacuum hoses and pipes between t

Page 2086 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1095 4) Turn ignition switch to OFF. 5) Disconnect connector from EGR solenoid valve. 6) Connect 12 V battery’s groundterminal to one ter- minal of the EGR solenoid valve. Then connect 12 V bat-

Page 2087 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0145A CONFIRMATION OF ACTUAL DRIVING PATTERN. 1) Conduct CLEAR MEMORY and INSPECTION MODES. <Ref. to 2-7 [T3D0] and [T3E0].> 2) Connect Subaru select monitor to its data link connec- tor. 3) Start

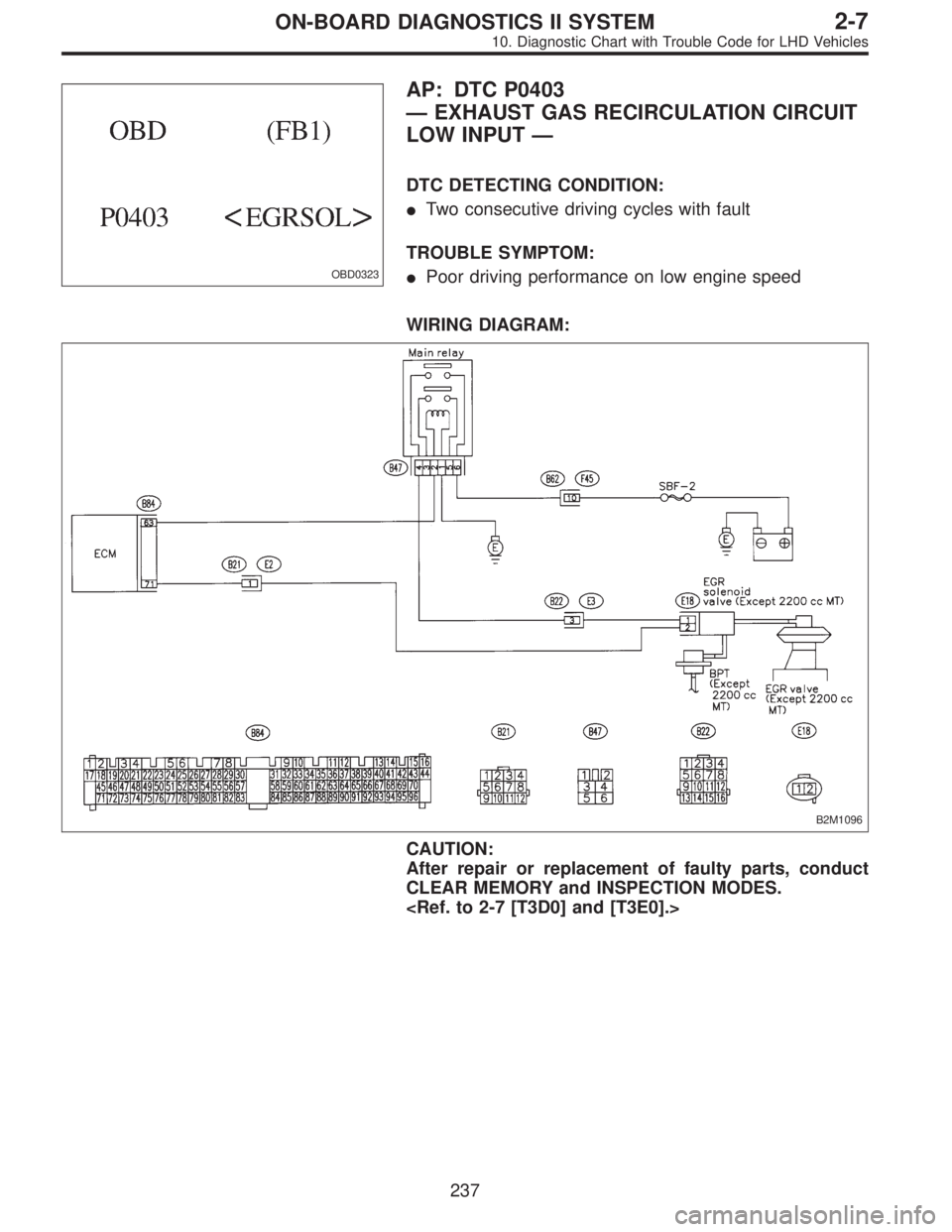

Page 2088 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0323 AP: DTC P0403 —EXHAUST GAS RECIRCULATION CIRCUIT LOW INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Poor driving performance on low engine spe
