1997 SUBARU LEGACY fuel filter

H2M1460
7) Remove two screws fixing bracket on fuel pump assem-
bly.
H2M1461A
8) Remove one screw fixing fuel level sensor on bracket.
9) Remove fuel level sensor from fuel pump assembly.
B2M0955A
B: INSTALLATION
CAUTION:
Leave fuel filler cap open when tightening nuts, to pre-
vent fuel from flowing out through fuel delivery and
return pipes. Close fuel filler cap after tightening nuts.
Installation is in the reverse order of removal. Do the fol-
lowing:
(1) Always use new gaskets.
(2) Ensure sealing portion is free from fuel or foreign
particles before installation.
(3) Tighten nuts in numerical sequence shown in Fig-
ure to specified torque.
Tightening torque:
4.4±1.5 N⋅m (0.45±0.15 kg-m, 3.3±1.1 ft-lb)
B2M0968
13. Air Filter (2200 cc AWD Model)
A: REMOVAL AND INSTALLATION
1) Remove canister.
2) Remove two hoses from air filter.
3) Remove flange nut from bracket.
4) Installation is in the reverse order of removal.
16
2-1SERVICE PROCEDURE
12. Fuel Level Sensor (2200 cc AWD Model) - 13. Air Filter (2200 cc AWD Model)

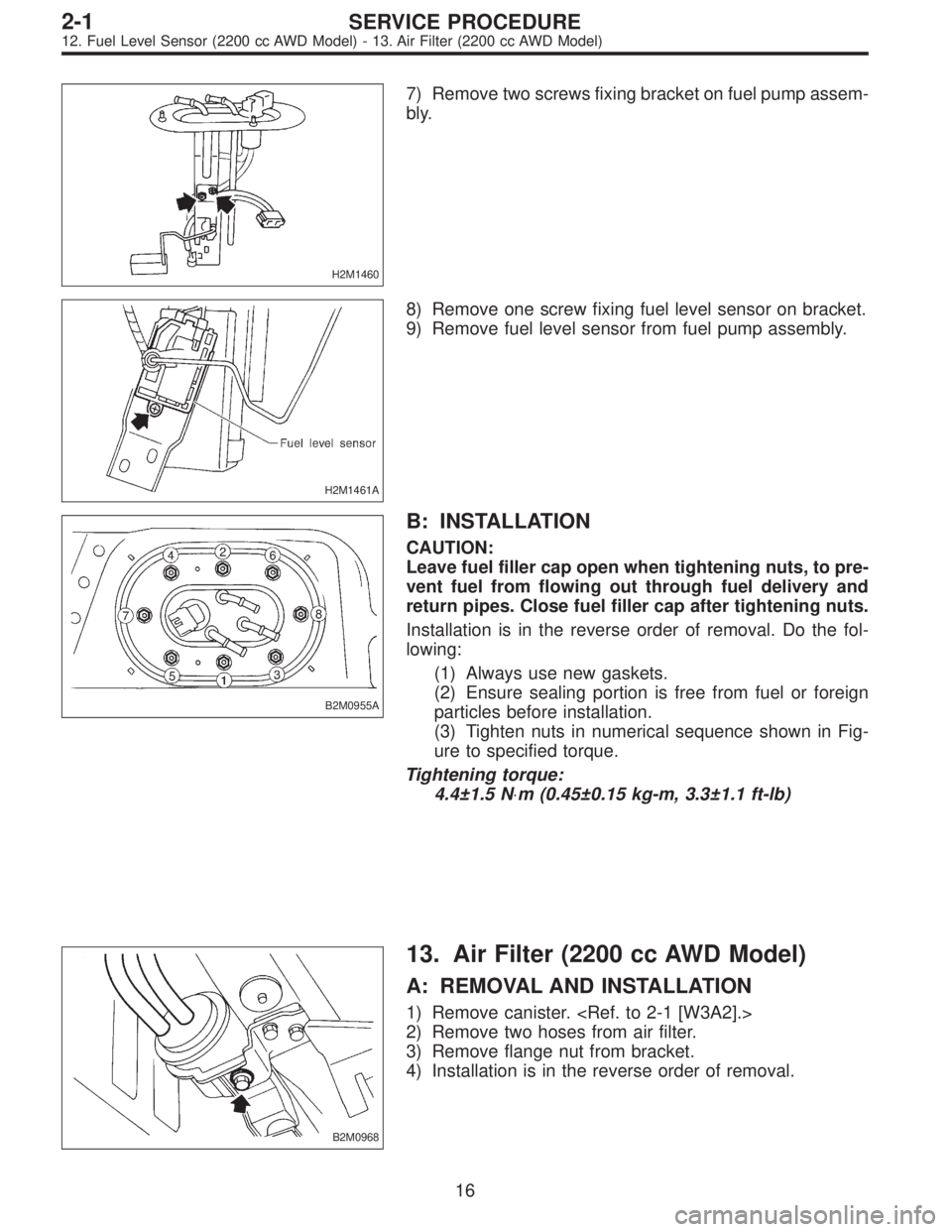

H2M1460
7) Remove two screws fixing bracket on fuel pump assem-
bly.
H2M1461A
8) Remove one screw fixing fuel level sensor on bracket.
9) Remove fuel level sensor from fuel pump assembly.
B2M0955A
B: INSTALLATION
CAUTION:
Leave fuel filler cap open when tightening nuts, to pre-
vent fuel from flowing out through fuel delivery and
return pipes. Close fuel filler cap after tightening nuts.
Installation is in the reverse order of removal. Do the fol-
lowing:
(1) Always use new gaskets.
(2) Ensure sealing portion is free from fuel or foreign
particles before installation.
(3) Tighten nuts in numerical sequence shown in Fig-
ure to specified torque.
Tightening torque:
4.4±1.5 N⋅m (0.45±0.15 kg-m, 3.3±1.1 ft-lb)
B2M0968
13. Air Filter (2200 cc AWD Model)
A: REMOVAL AND INSTALLATION
1) Remove canister.
2) Remove two hoses from air filter.
3) Remove flange nut from bracket.
4) Installation is in the reverse order of removal.
16
2-1SERVICE PROCEDURE
12. Fuel Level Sensor (2200 cc AWD Model) - 13. Air Filter (2200 cc AWD Model)

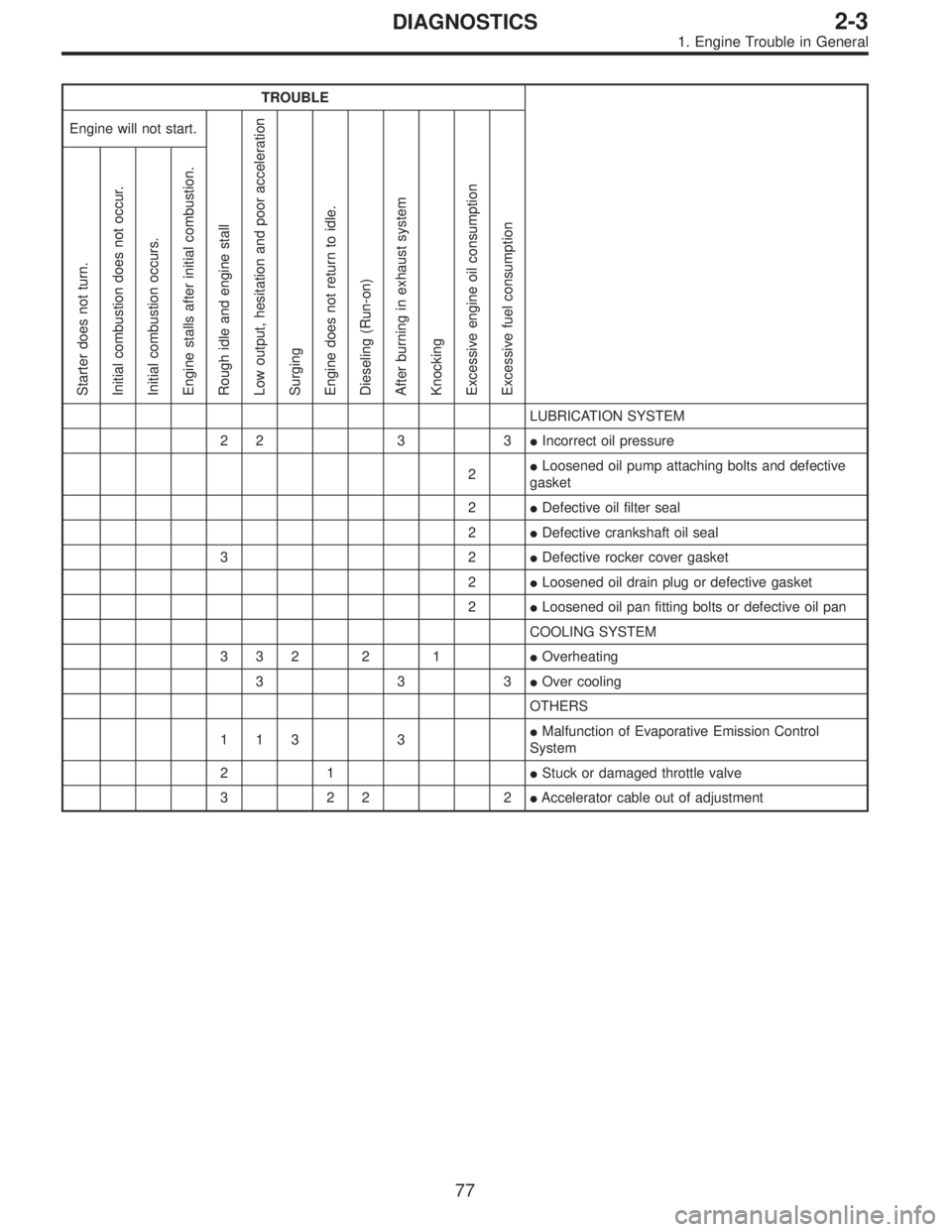

TROUBLE
Engine will not start.
Rough idle and engine stall
Low output, hesitation and poor acceleration
Surging
Engine does not return to idle.
Dieseling (Run-on)
After burning in exhaust system
Knocking
Excessive engine oil consumption
Excessive fuel consumption Starter does not turn.
Initial combustion does not occur.
Initial combustion occurs.
Engine stalls after initial combustion.
LUBRICATION SYSTEM
22 3 3Incorrect oil pressure
2Loosened oil pump attaching bolts and defective
gasket
2Defective oil filter seal
2Defective crankshaft oil seal
32Defective rocker cover gasket
2Loosened oil drain plug or defective gasket
2Loosened oil pan fitting bolts or defective oil pan
COOLING SYSTEM
33221Overheating
333Over cooling
OTHERS
113 3Malfunction of Evaporative Emission Control
System
21Stuck or damaged throttle valve
322 2Accelerator cable out of adjustment
77
2-3DIAGNOSTICS
1. Engine Trouble in General

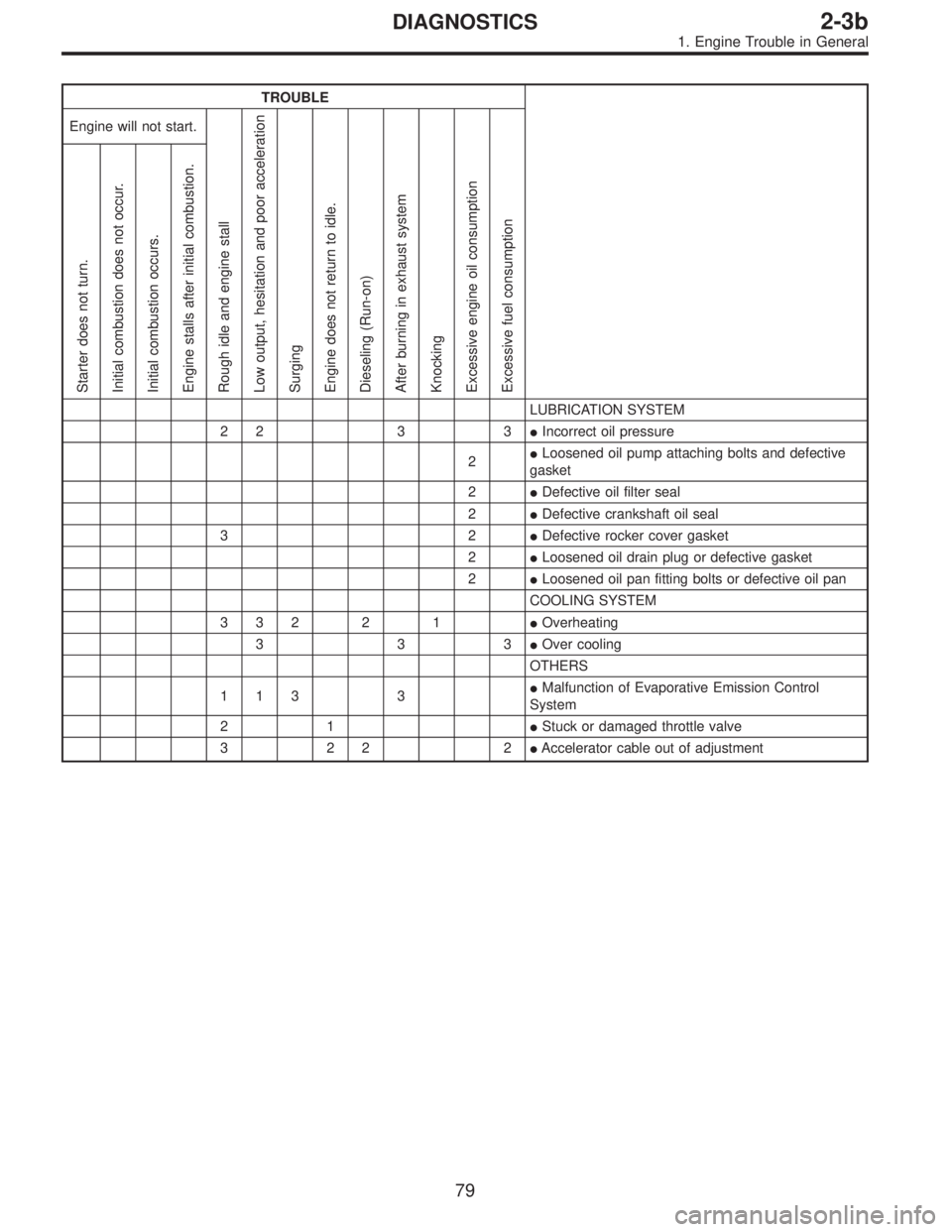

TROUBLE
Engine will not start.
Rough idle and engine stall
Low output, hesitation and poor acceleration
Surging
Engine does not return to idle.
Dieseling (Run-on)
After burning in exhaust system
Knocking
Excessive engine oil consumption
Excessive fuel consumption Starter does not turn.
Initial combustion does not occur.
Initial combustion occurs.
Engine stalls after initial combustion.
LUBRICATION SYSTEM
22 3 3Incorrect oil pressure
2Loosened oil pump attaching bolts and defective
gasket
2Defective oil filter seal
2Defective crankshaft oil seal
32Defective rocker cover gasket
2Loosened oil drain plug or defective gasket
2Loosened oil pan fitting bolts or defective oil pan
COOLING SYSTEM
33221Overheating
333Over cooling
OTHERS
113 3Malfunction of Evaporative Emission Control
System
21Stuck or damaged throttle valve
322 2Accelerator cable out of adjustment
79
2-3bDIAGNOSTICS
1. Engine Trouble in General

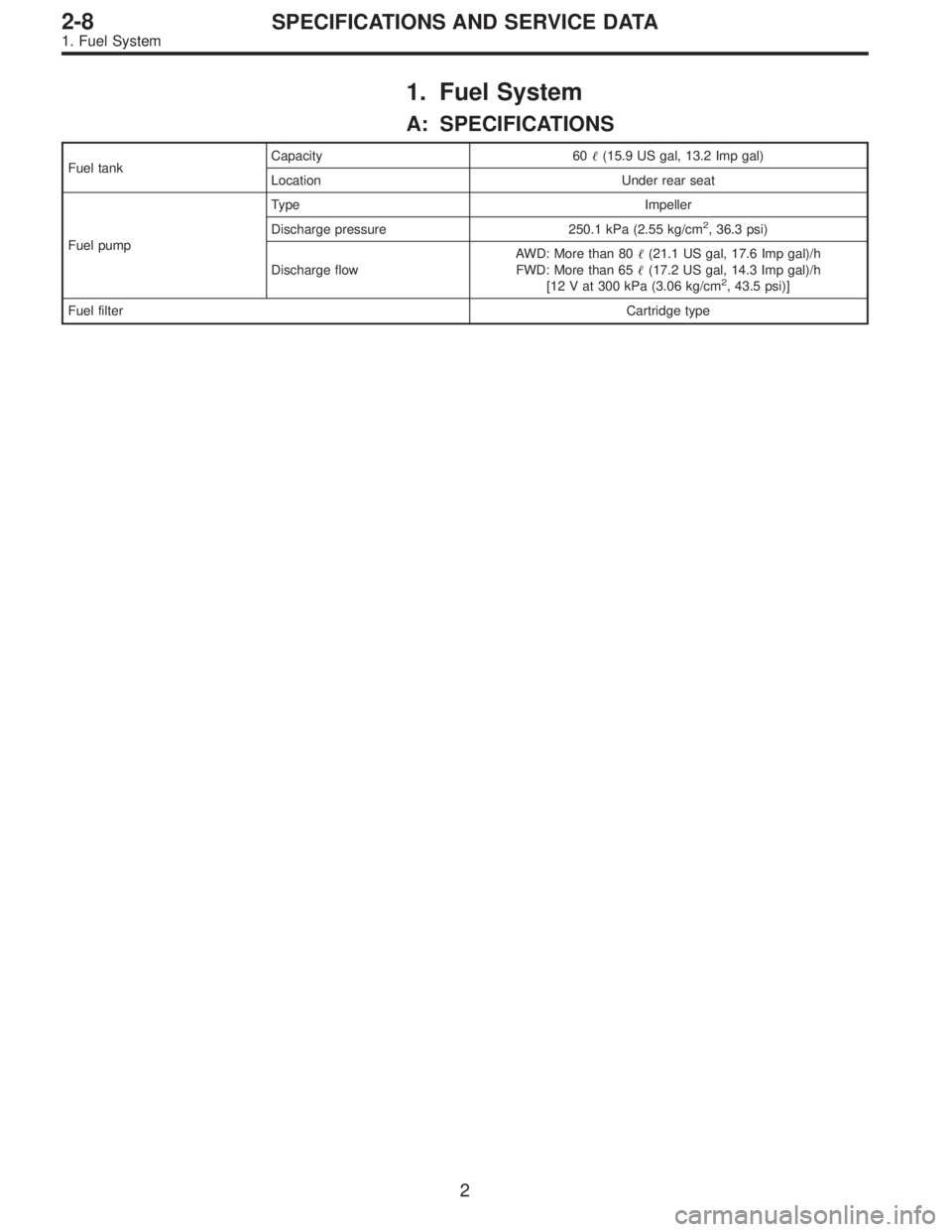

1. Fuel System
A: SPECIFICATIONS
Fuel tankCapacity 60
(15.9 US gal, 13.2 Imp gal)
Location Under rear seat
Fuel pumpType Impeller
Discharge pressure 250.1 kPa (2.55 kg/cm
2, 36.3 psi)
Discharge flowAWD: More than 80
(21.1 US gal, 17.6 Imp gal)/h
FWD: More than 65
(17.2 US gal, 14.3 Imp gal)/h
[12 V at 300 kPa (3.06 kg/cm
2, 43.5 psi)]
Fuel filterCartridge type
2
2-8SPECIFICATIONS AND SERVICE DATA
1. Fuel System

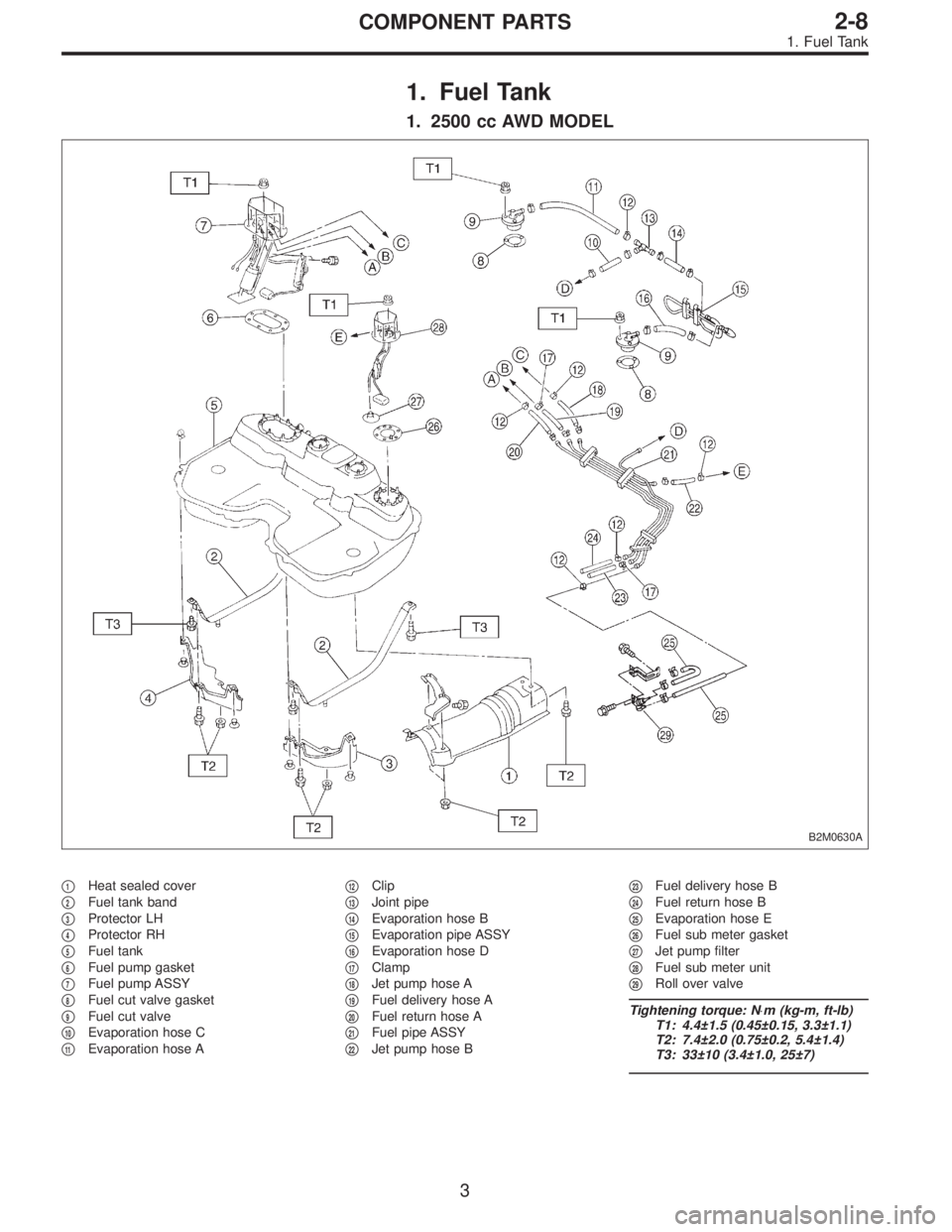

1. Fuel Tank
1. 2500 cc AWD MODEL
B2M0630A

1Heat sealed cover


2Fuel tank band


3Protector LH


4Protector RH


5Fuel tank


6Fuel pump gasket


7Fuel pump ASSY


8Fuel cut valve gasket


9Fuel cut valve


10Evaporation hose C


11Evaporation hose A

12Clip


13Joint pipe


14Evaporation hose B


15Evaporation pipe ASSY


16Evaporation hose D


17Clamp


18Jet pump hose A


19Fuel delivery hose A


20Fuel return hose A


21Fuel pipe ASSY


22Jet pump hose B

23Fuel delivery hose B


24Fuel return hose B


25Evaporation hose E


26Fuel sub meter gasket


27Jet pump filter


28Fuel sub meter unit


29Roll over valve
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 7.4±2.0 (0.75±0.2, 5.4±1.4)
T3: 33±10 (3.4±1.0, 25±7)
3
2-8COMPONENT PARTS

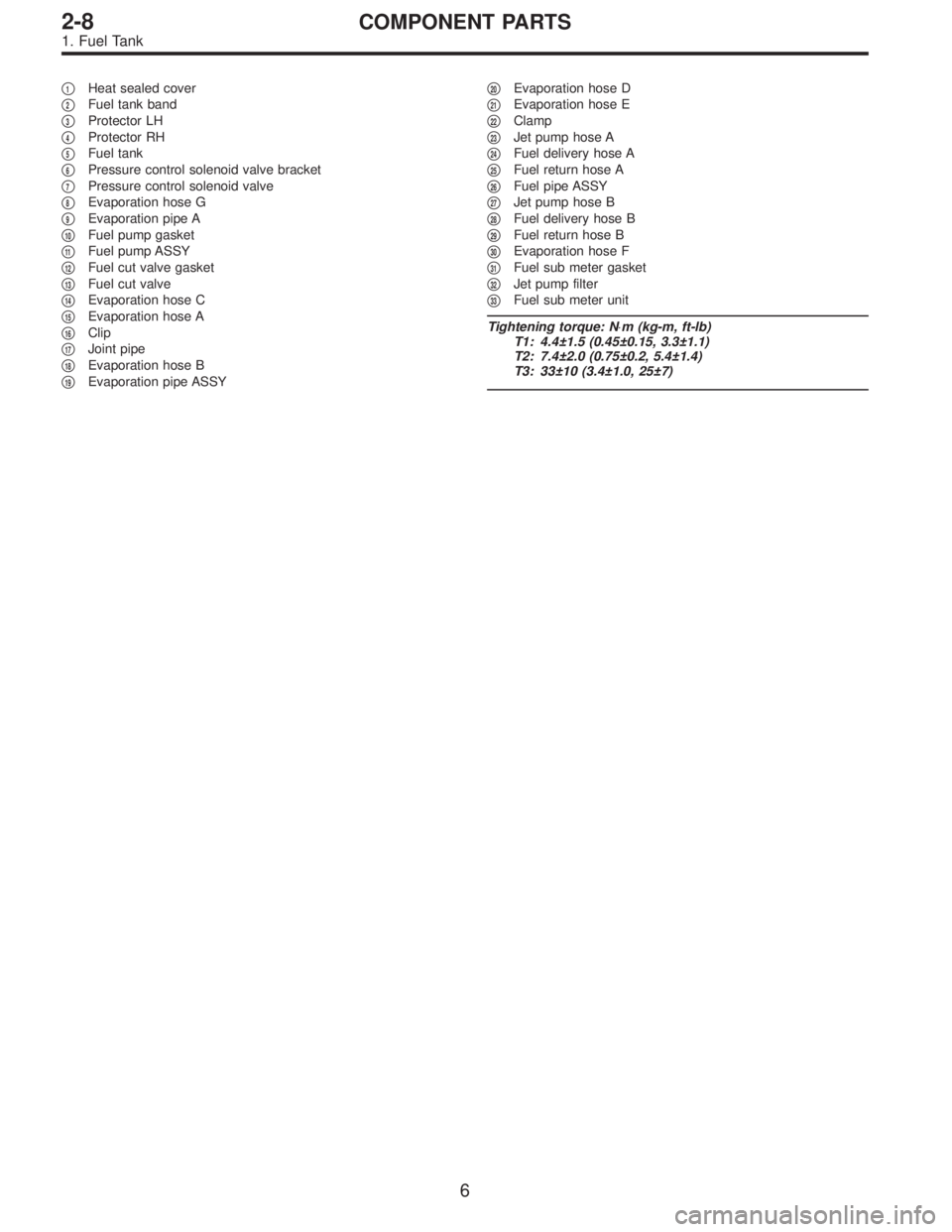

1. Fuel Tank

1Heat sealed cover


2Fuel tank band


3Protector LH


4Protector RH


5Fuel tank


6Pressure control solenoid valve bracket


7Pressure control solenoid valve


8Evaporation hose G


9Evaporation pipe A


10Fuel pump gasket


11Fuel pump ASSY


12Fuel cut valve gasket


13Fuel cut valve


14Evaporation hose C


15Evaporation hose A


16Clip


17Joint pipe


18Evaporation hose B


19Evaporation pipe ASSY

20Evaporation hose D


21Evaporation hose E


22Clamp


23Jet pump hose A


24Fuel delivery hose A


25Fuel return hose A


26Fuel pipe ASSY


27Jet pump hose B


28Fuel delivery hose B


29Fuel return hose B


30Evaporation hose F


31Fuel sub meter gasket


32Jet pump filter


33Fuel sub meter unit
Tightening torque: N⋅m (kg-m, ft-lb)
T1: 4.4±1.5 (0.45±0.15, 3.3±1.1)
T2: 7.4±2.0 (0.75±0.2, 5.4±1.4)
T3: 33±10 (3.4±1.0, 25±7)
6
2-8COMPONENT PARTS
1. Fuel Tank

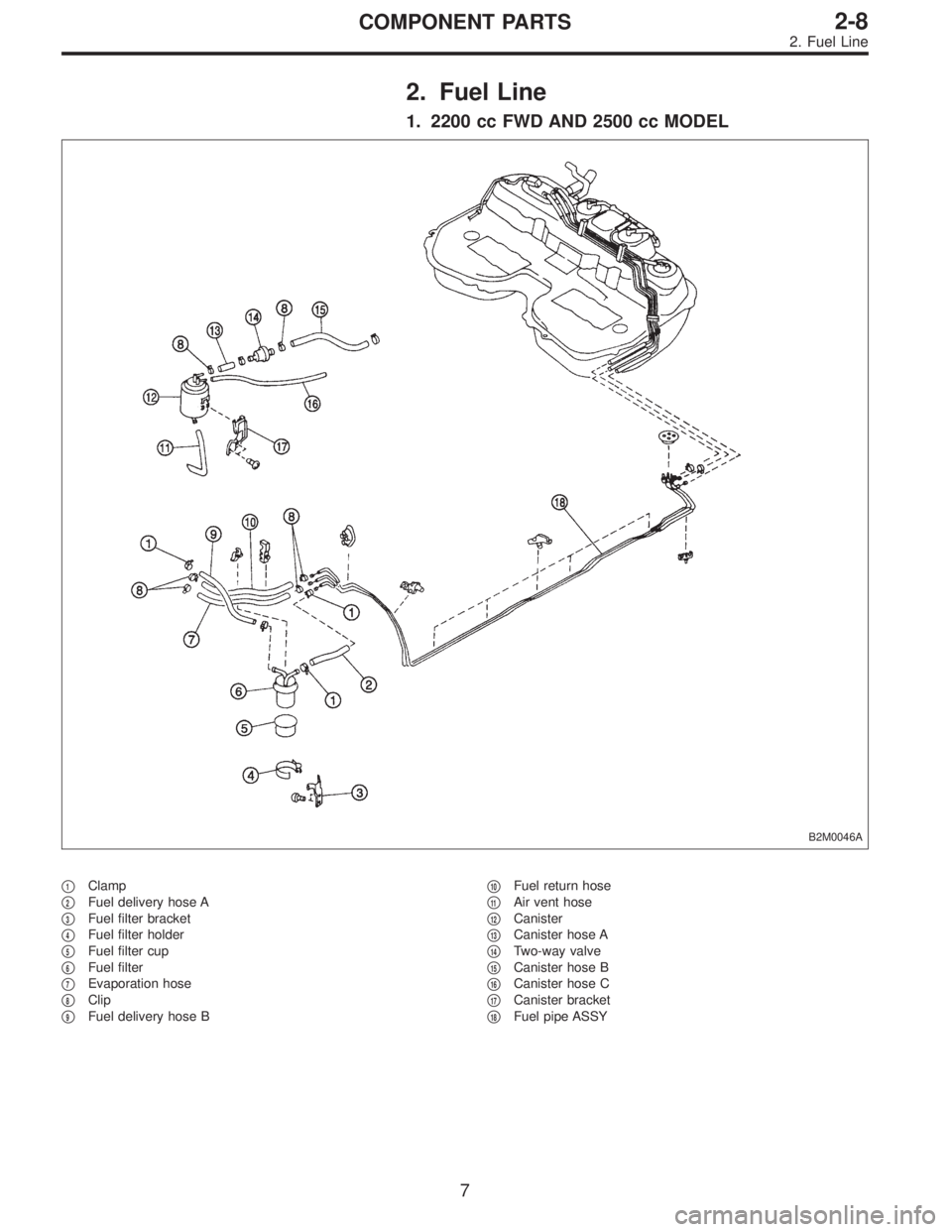

2. Fuel Line
1. 2200 cc FWD AND 2500 cc MODEL
B2M0046A

1Clamp


2Fuel delivery hose A


3Fuel filter bracket


4Fuel filter holder


5Fuel filter cup


6Fuel filter


7Evaporation hose


8Clip


9Fuel delivery hose B

10Fuel return hose


11Air vent hose


12Canister


13Canister hose A


14Two-way valve


15Canister hose B


16Canister hose C


17Canister bracket


18Fuel pipe ASSY
7
2-8COMPONENT PARTS
2. Fuel Line
