Page 521 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1685A 3) Fasten engine harness to engine coolant hose with band clip. NOTE: Make sure that the throttle linkage does not interfere with other parts in the operating area. B2M1179E 4) Install operat

Page 522 of 3342

SUBARU LEGACY 1997 Service Repair Manual 1. Fuel System A: SPECIFICATIONS Fuel tankCapacity 60(15.9 US gal, 13.2 Imp gal) Location Under rear seat Fuel pumpType Impeller Discharge pressure 250.1 kPa (2.55 kg/cm 2, 36.3 psi) Discharge flowAW

Page 523 of 3342

SUBARU LEGACY 1997 Service Repair Manual 1. Fuel Tank 1. 2500 cc AWD MODEL B2M0630A 1Heat sealed cover  2Fuel tank band  3Protector LH  4Protector RH  5Fuel tank  6Fuel pump gasket  7Fuel pump ASSY  8Fuel cut valve gasket  9Fuel cut

Page 524 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. FWD MODEL B2M0631A 1Heat seated cover  2Fuel tank band  3Protector  4Protector bracket  5Fuel tank  6Fuel pump gasket  7Fuel pump ASSY  8Clamp  9Clip  10Fuel delivery hose A  11Fuel retu

Page 525 of 3342

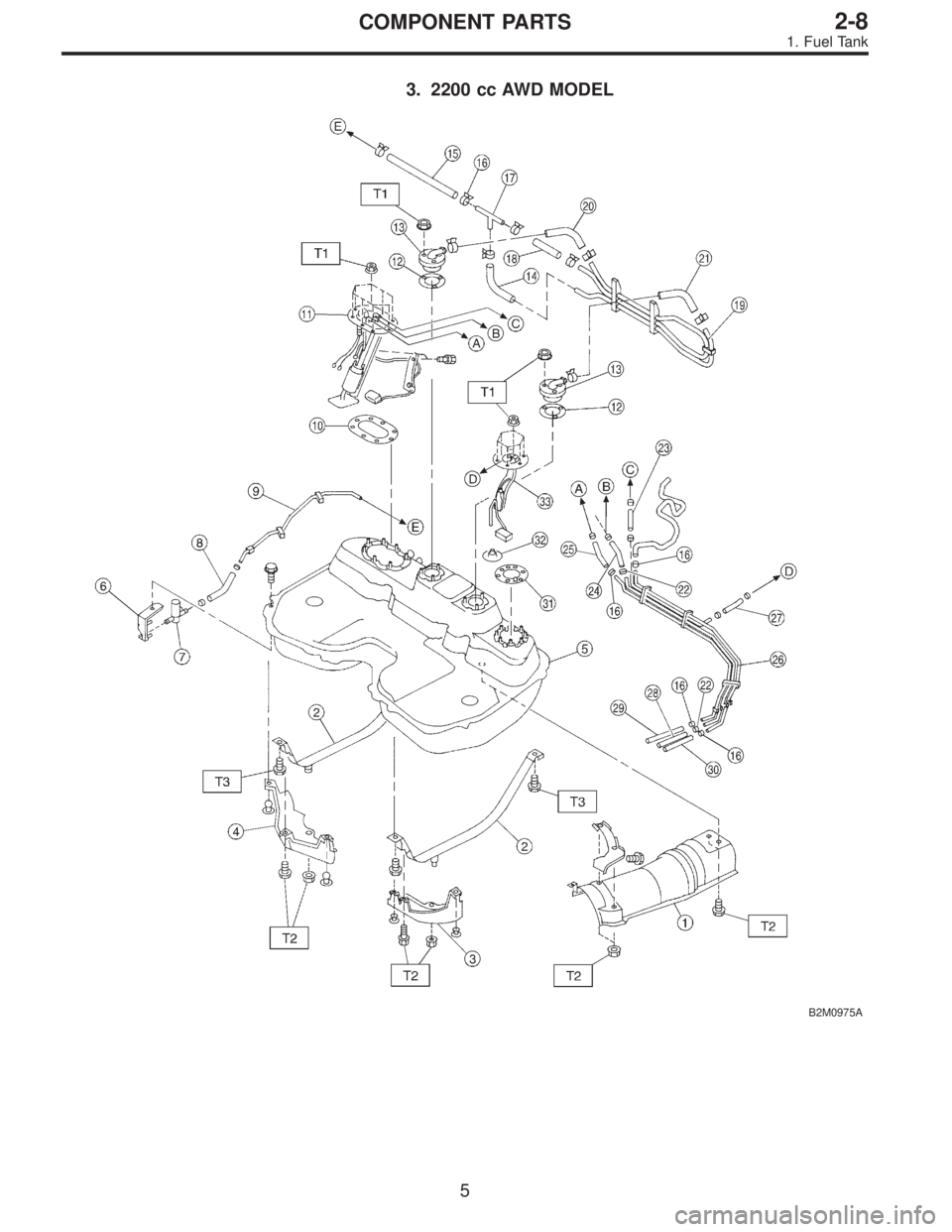

SUBARU LEGACY 1997 Service Repair Manual 3. 2200 cc AWD MODEL B2M0975A 5 2-8COMPONENT PARTS 1. Fuel Tank

Page 526 of 3342

SUBARU LEGACY 1997 Service Repair Manual 1Heat sealed cover  2Fuel tank band  3Protector LH  4Protector RH  5Fuel tank  6Pressure control solenoid valve bracket  7Pressure control solenoid valve  8Evaporation hose G  9Evaporation pi

Page 527 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. Fuel Line 1. 2200 cc FWD AND 2500 cc MODEL B2M0046A 1Clamp  2Fuel delivery hose A  3Fuel filter bracket  4Fuel filter holder  5Fuel filter cup  6Fuel filter  7Evaporation hose  8Clip  9Fue

Page 528 of 3342

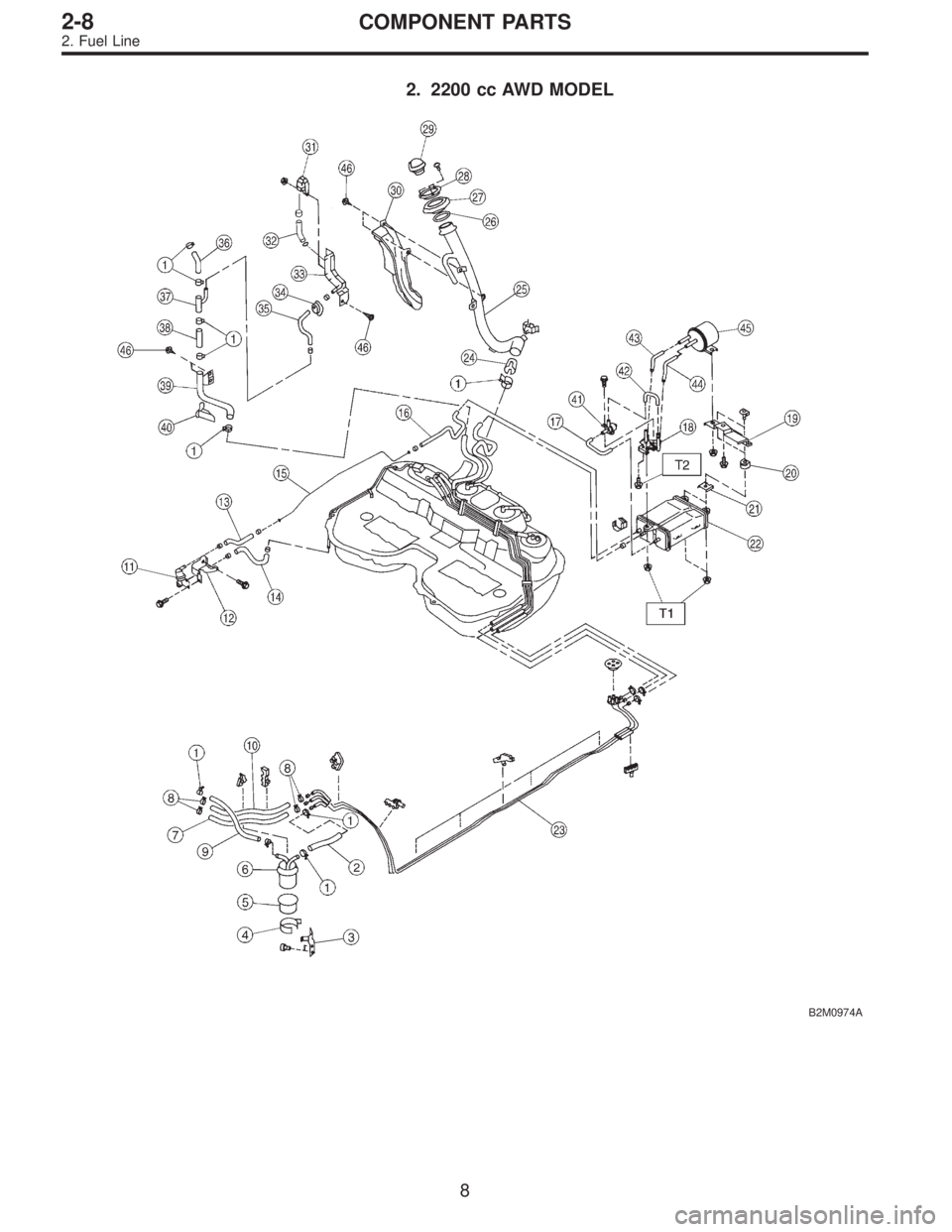

SUBARU LEGACY 1997 Service Repair Manual 2. 2200 cc AWD MODEL B2M0974A 8 2-8COMPONENT PARTS 2. Fuel Line
