Page 2321 of 3342

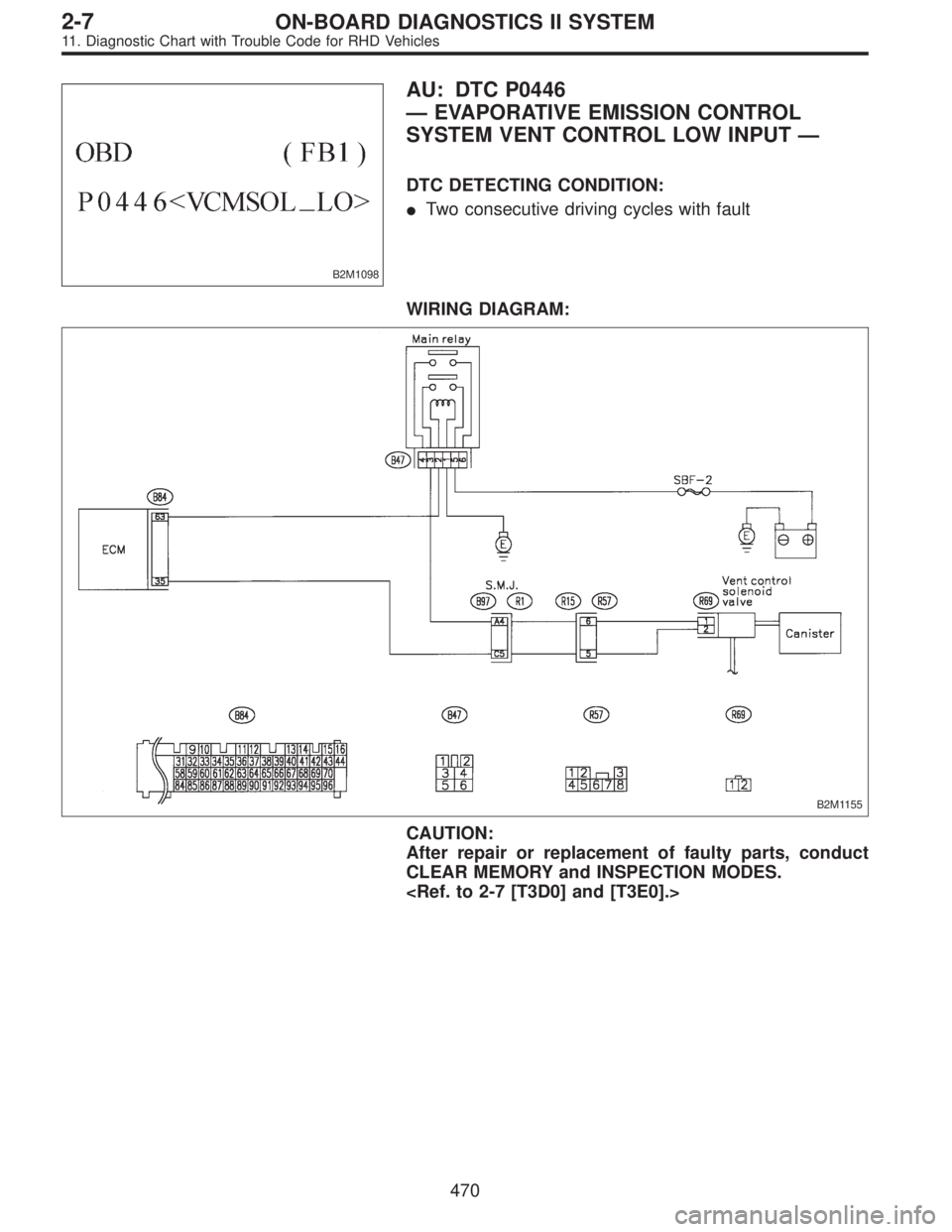

SUBARU LEGACY 1997 Service Repair Manual B2M1098 AU: DTC P0446 —EVAPORATIVE EMISSION CONTROL SYSTEM VENT CONTROL LOW INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault WIRING DIAGRAM: B2M1155 CAUTION: After repair

Page 2322 of 3342

SUBARU LEGACY 1997 Service Repair Manual H2M1370B 11AU1 CHECK OUTPUT SIGNAL FROM ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM and chassis ground. : Connector & terminal (B84) No. 35 (+)—Chassis ground (�): Is the volt

Page 2323 of 3342

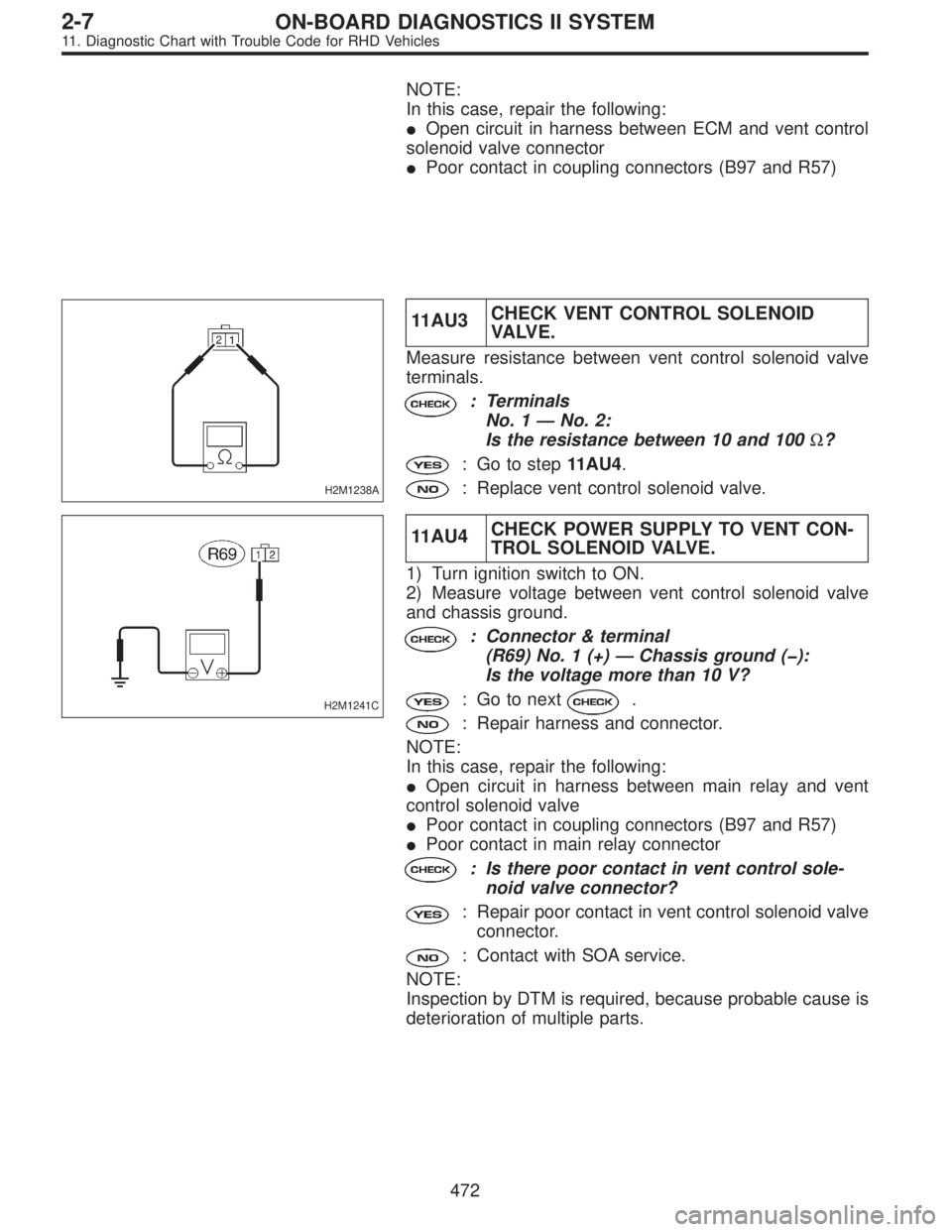

SUBARU LEGACY 1997 Service Repair Manual NOTE: In this case, repair the following: Open circuit in harness between ECM and vent control solenoid valve connector Poor contact in coupling connectors (B97 and R57) H2M1238A 11AU3CHECK VENT CON

Page 2324 of 3342

SUBARU LEGACY 1997 Service Repair Manual H2M1377 AV: DTC P0451 —EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR RANGE/PERFORMANCE PROBLEM— WIRING DIAGRAM: B2M1019 NOTE: Check fuel tank pressure control system. <Ref. to 2-7 [T10AV0].>

Page 2325 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1099 AW: DTC P0452 —EVAPORATIVE EMISSION CONTROL SYSTEM PRESSURE SENSOR LOW INPUT — DTC DETECTING CONDITION: Immediately at fault recognition WIRING DIAGRAM: B2M1019 CAUTION: After repair or r

Page 2326 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1016A 11 AW 1CONNECT SUBARU SELECT MONITOR OR THE OBD-II GENERAL SCAN TOOL, AND READ DATA. 1) Turn ignition switch to OFF. 2) Remove fuel filler cap. 3) Install fuel filler cap. 4) Connect Subaru S

Page 2327 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0535A : Does the voltage change more than 4.5 V by shaking harness and connector of ECM while monitoring the value with voltage meter? : Repair poor contact in ECM connector. : Contact with SOA ser

Page 2328 of 3342

SUBARU LEGACY 1997 Service Repair Manual H2M1255B 5) Disconnect connector from fuel tank pressure sensor. 6) Turn ignition switch to ON. 7) Measure voltage between fuel tank pressure sensor connector and chassis ground. : Connector & termina
