Page 1297 of 3342

SUBARU LEGACY 1997 Service Repair Manual 6. ABS System (Except ABS 5.3i Type) 1. SENSOR AND CONTROL MODULE (EXCEPT ABS 5.3 TYPE) B4M0068A 1G sensor (AWD MT only)  2Rear ABS sensor RH  3ABS spacer  4Rear ABS sensor LH  5Bracket 6ABS con

Page 1298 of 3342

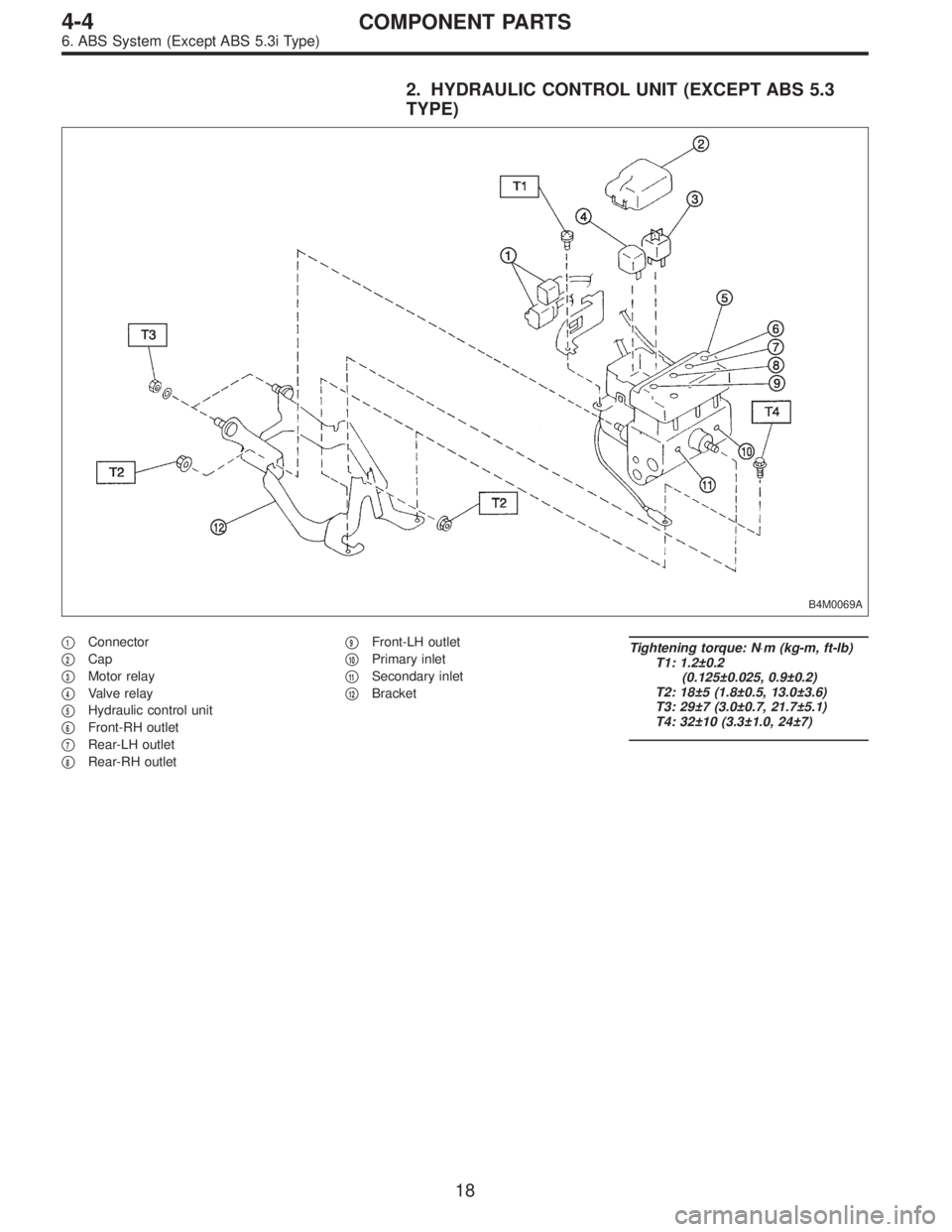

SUBARU LEGACY 1997 Service Repair Manual 2. HYDRAULIC CONTROL UNIT (EXCEPT ABS 5.3 TYPE) B4M0069A 1Connector  2Cap  3Motor relay  4Valve relay  5Hydraulic control unit  6Front-RH outlet  7Rear-LH outlet  8Rear-RH outlet 9Front-LH ou

Page 1299 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3. SENSOR AND CONTROL MODULE (ABS 5.3 TYPE) B4M1044A 1G sensor (AWD only)  2Rear ABS sensor RH  3ABS spacer  4Rear ABS sensor LH 5Bracket  6ABS control module  7Front ABS sensor LH  8Front ABS

Page 1300 of 3342

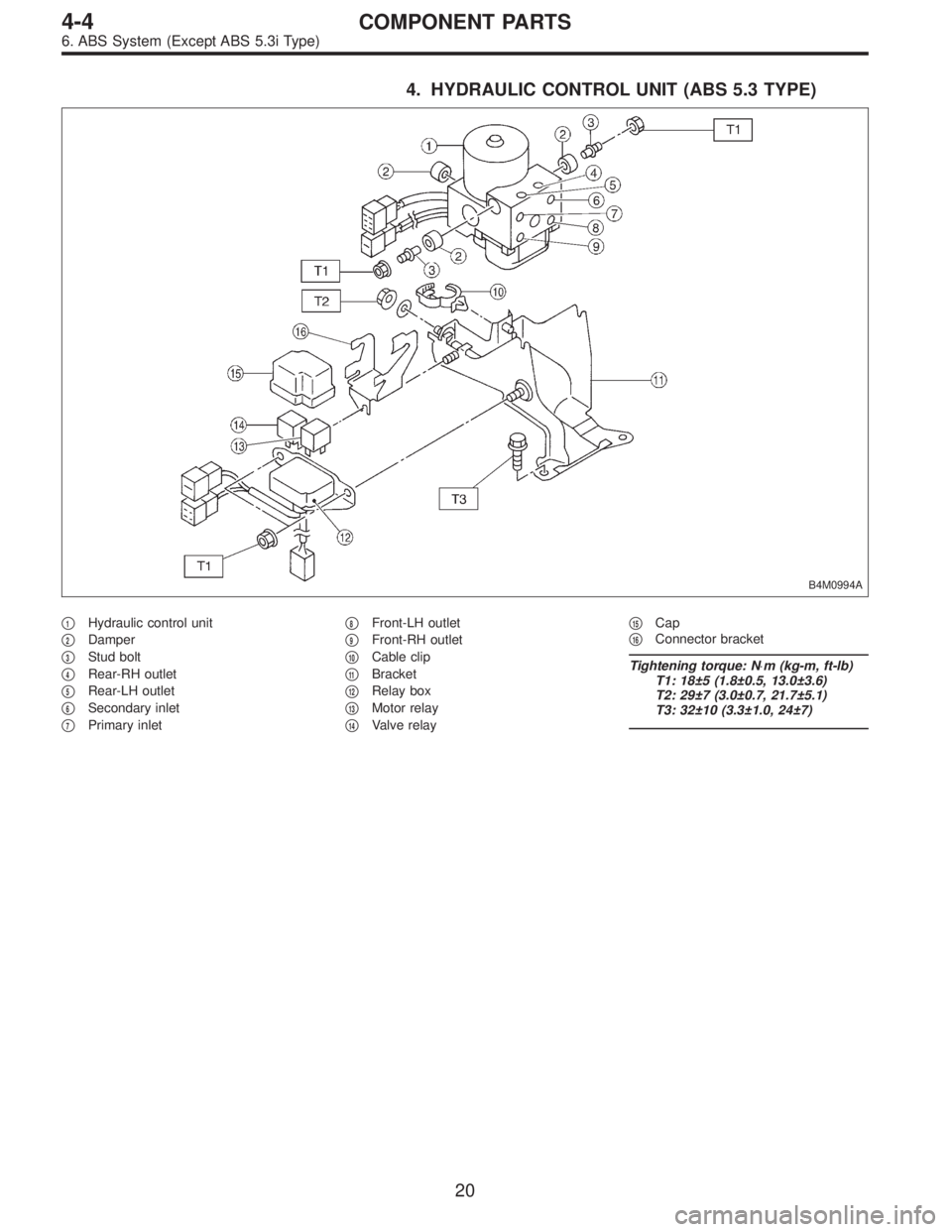

SUBARU LEGACY 1997 Service Repair Manual 4. HYDRAULIC CONTROL UNIT (ABS 5.3 TYPE) B4M0994A 1Hydraulic control unit  2Damper  3Stud bolt  4Rear-RH outlet  5Rear-LH outlet  6Secondary inlet  7Primary inlet 8Front-LH outlet  9Front-RH

Page 1301 of 3342

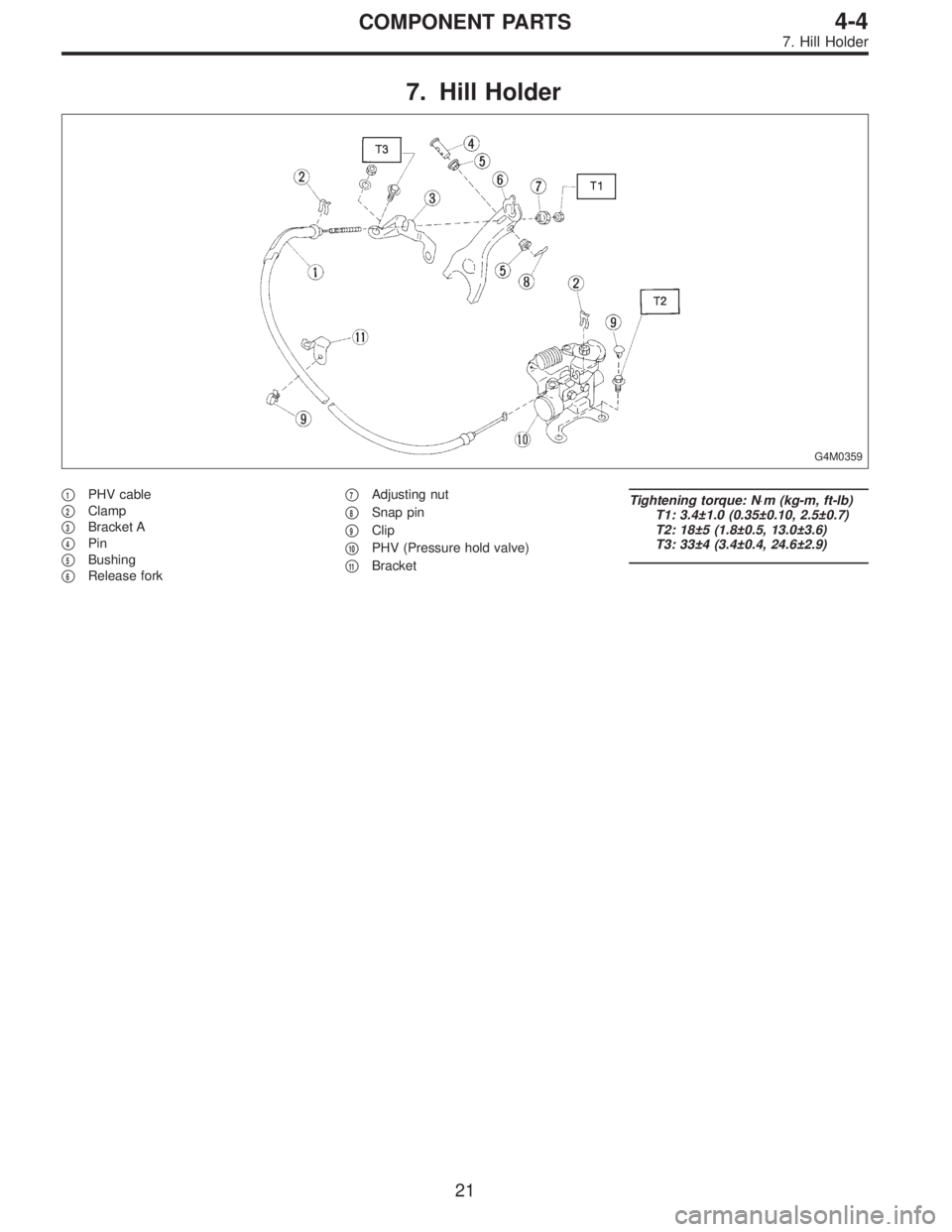

SUBARU LEGACY 1997 Service Repair Manual 7. Hill Holder G4M0359 1PHV cable  2Clamp  3Bracket A  4Pin  5Bushing  6Release fork 7Adjusting nut  8Snap pin  9Clip  10PHV (Pressure hold valve)  11Bracket Tightening torque: N⋅m (kg-m,

Page 1302 of 3342

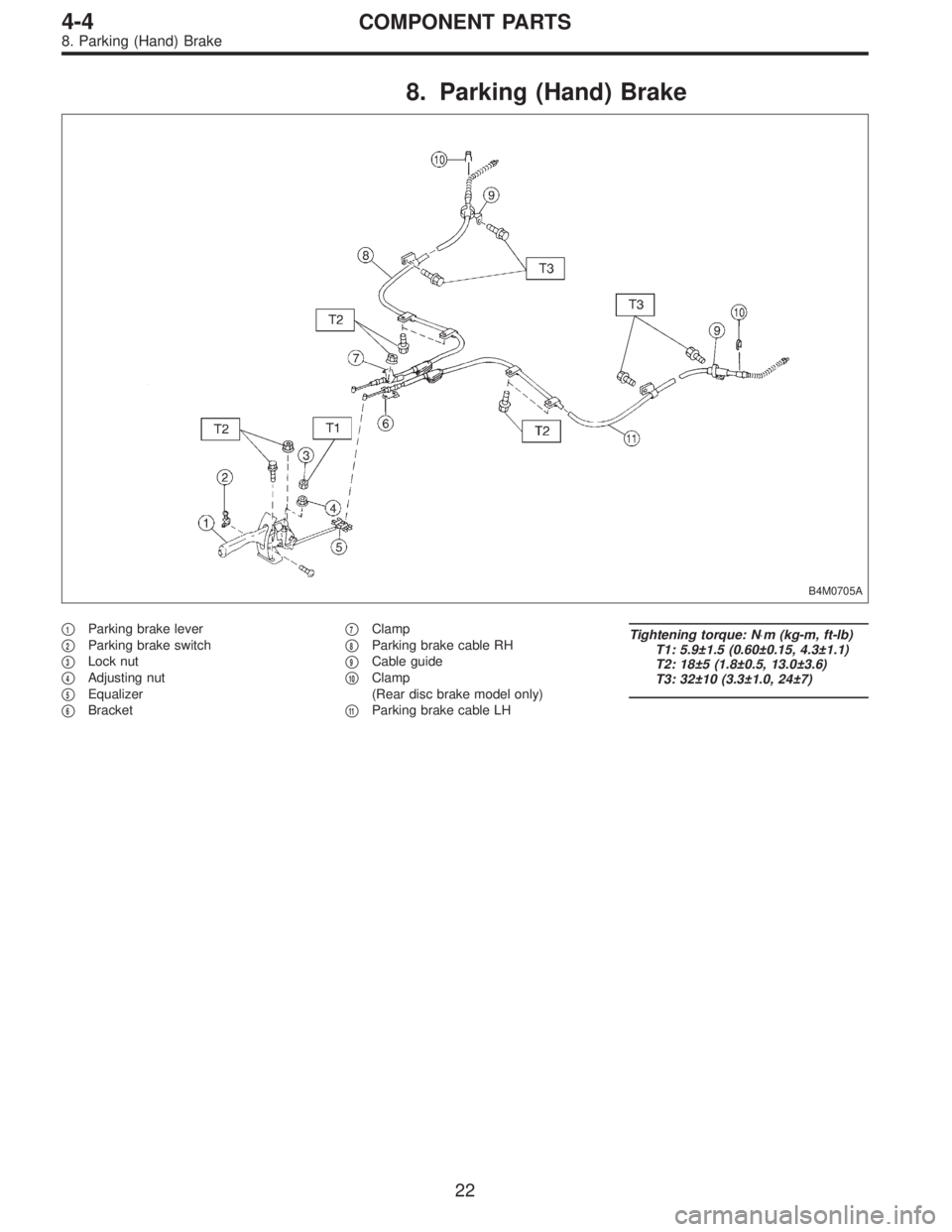

SUBARU LEGACY 1997 Service Repair Manual 8. Parking (Hand) Brake B4M0705A 1Parking brake lever  2Parking brake switch  3Lock nut  4Adjusting nut  5Equalizer  6Bracket 7Clamp  8Parking brake cable RH  9Cable guide  10Clamp (Rear dis

Page 1303 of 3342

SUBARU LEGACY 1997 Service Repair Manual 9. ABS/TCS System 1. SENSOR AND CONTROL MODULE B4M0706A 1Rear ABS sensor RH  2ABS spacer  3Rear ABS sensor LH 4ABS/TCS control module  5Front ABS sensor LH  6Front ABS sensor RH Tightening torqu

Page 1304 of 3342

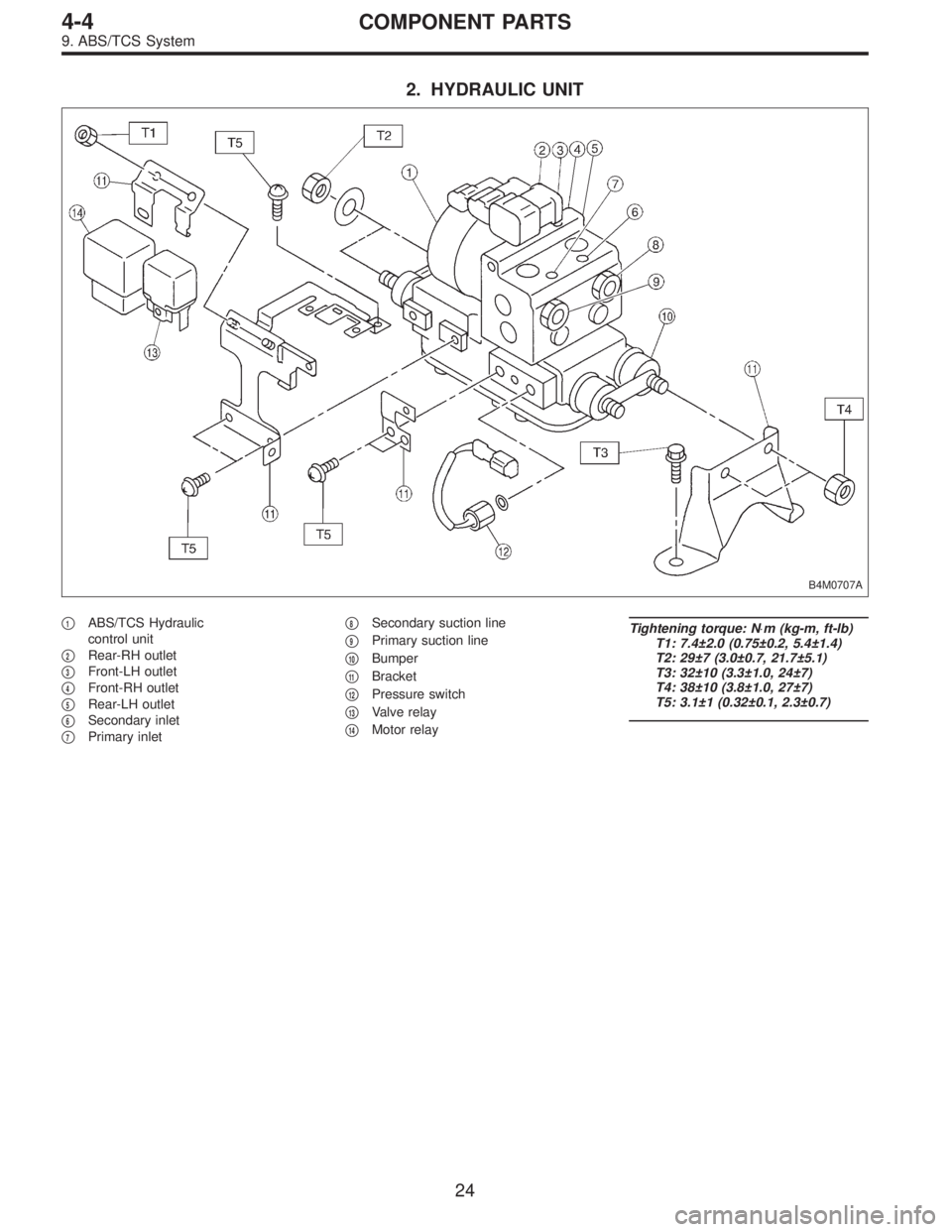

SUBARU LEGACY 1997 Service Repair Manual 2. HYDRAULIC UNIT B4M0707A 1ABS/TCS Hydraulic control unit  2Rear-RH outlet  3Front-LH outlet  4Front-RH outlet  5Rear-LH outlet  6Secondary inlet  7Primary inlet 8Secondary suction line  9Pr
