Page 2089 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10AP1 CHECK ENGINE/TRANSMISSION TYPE. : Is engine/transmission type 2200 cc/MT? : Check AT/MT identification circuit. <Ref. to 2-7 [T10DD0].> : Go to step10AP2. B2M0566A 10AP2 CHECK OUTPUT SIGNAL FROM

Page 2090 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0567A 4) Measure resistance of harness between ECM and EGR solenoid valve connector. : Connector & terminal (B84) No. 71—(E18) No. 2: Is the voltage less than 1Ω? : Go to step10AP4. : Repair ha

Page 2091 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0329 AQ: DTC P0420 —CATALYST SYSTEM EFFICIENCY BELOW THRESHOLD— DTC DETECTING CONDITION: Immediately at fault recognition (2200 cc Federal spec. vehicles only) Two consecutive driving cycles

Page 2092 of 3342

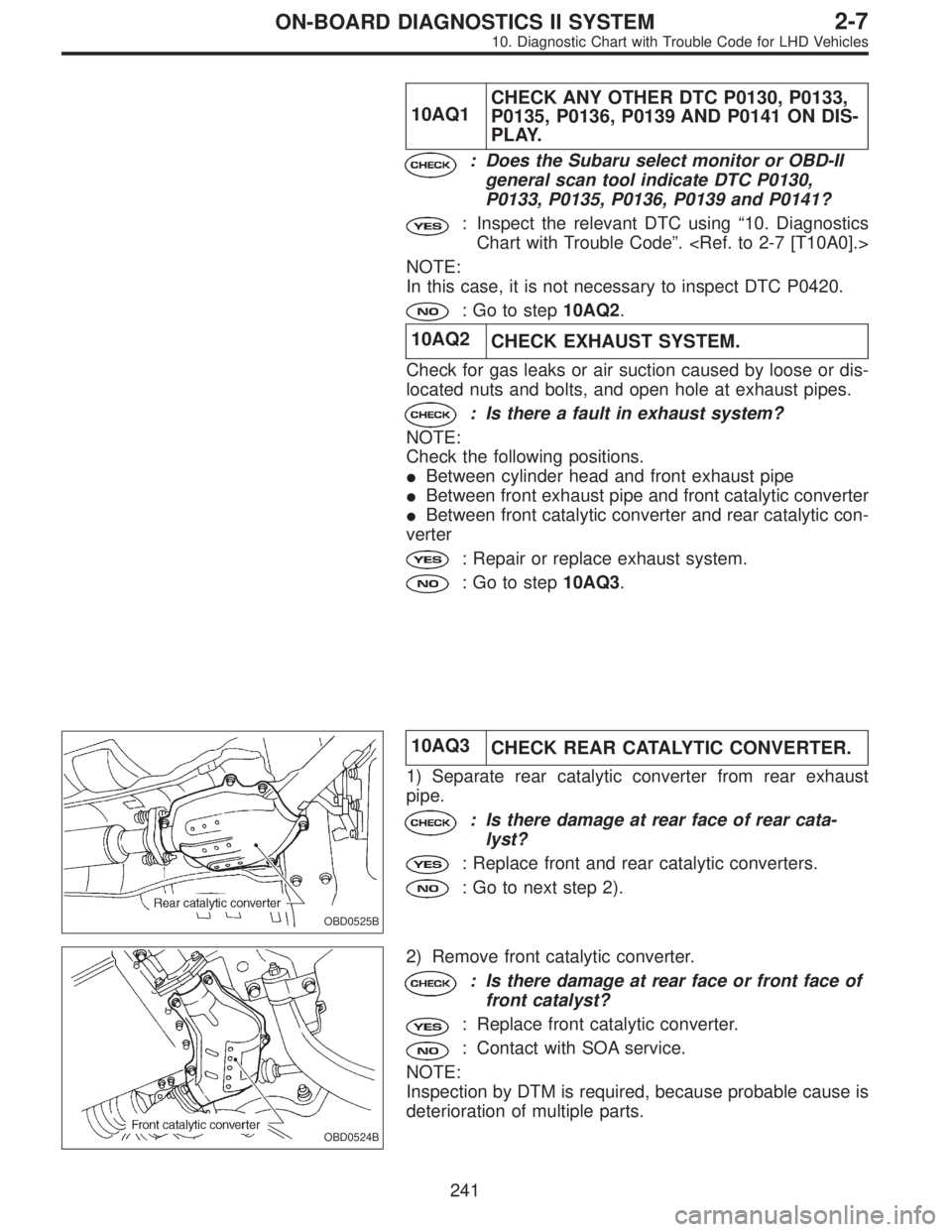

SUBARU LEGACY 1997 Service Repair Manual 10AQ1CHECK ANY OTHER DTC P0130, P0133, P0135, P0136, P0139 AND P0141 ON DIS- PLAY. : Does the Subaru select monitor or OBD-II general scan tool indicate DTC P0130, P0133, P0135, P0136, P0139 and P0141

Page 2093 of 3342

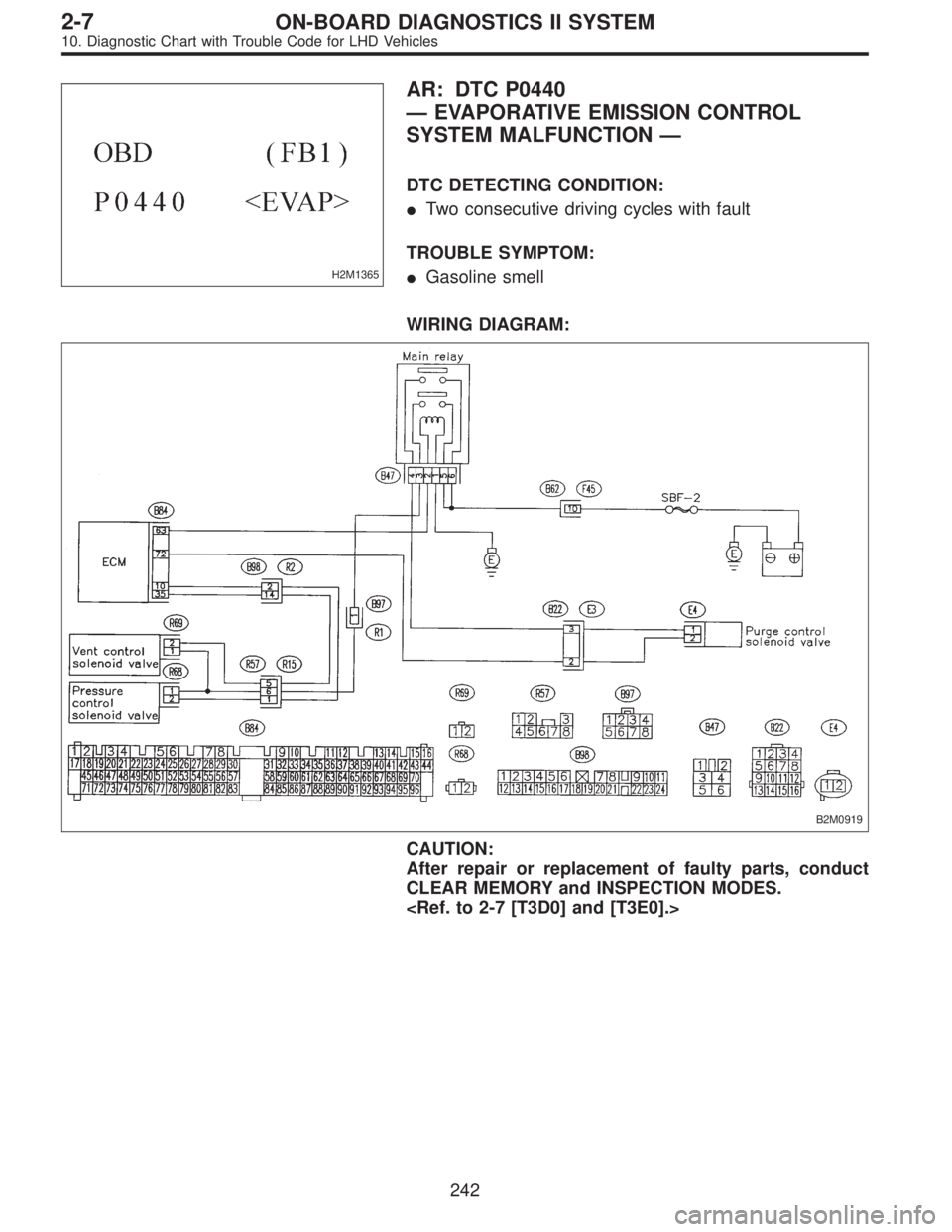

SUBARU LEGACY 1997 Service Repair Manual H2M1365 AR: DTC P0440 —EVAPORATIVE EMISSION CONTROL SYSTEM MALFUNCTION— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Gasoline smell WIRING DIAGRAM: B2M0919

Page 2094 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10AR1CHECK ANY OTHER DTC (BESIDES DTC P0440) ON DISPLAY. : Is there any other DTC on display? : Inspect the relevant DTC using“10. Diagnostics Chart with Trouble Code”. <Ref. to 2-7 [T10A0].> : Go

Page 2095 of 3342

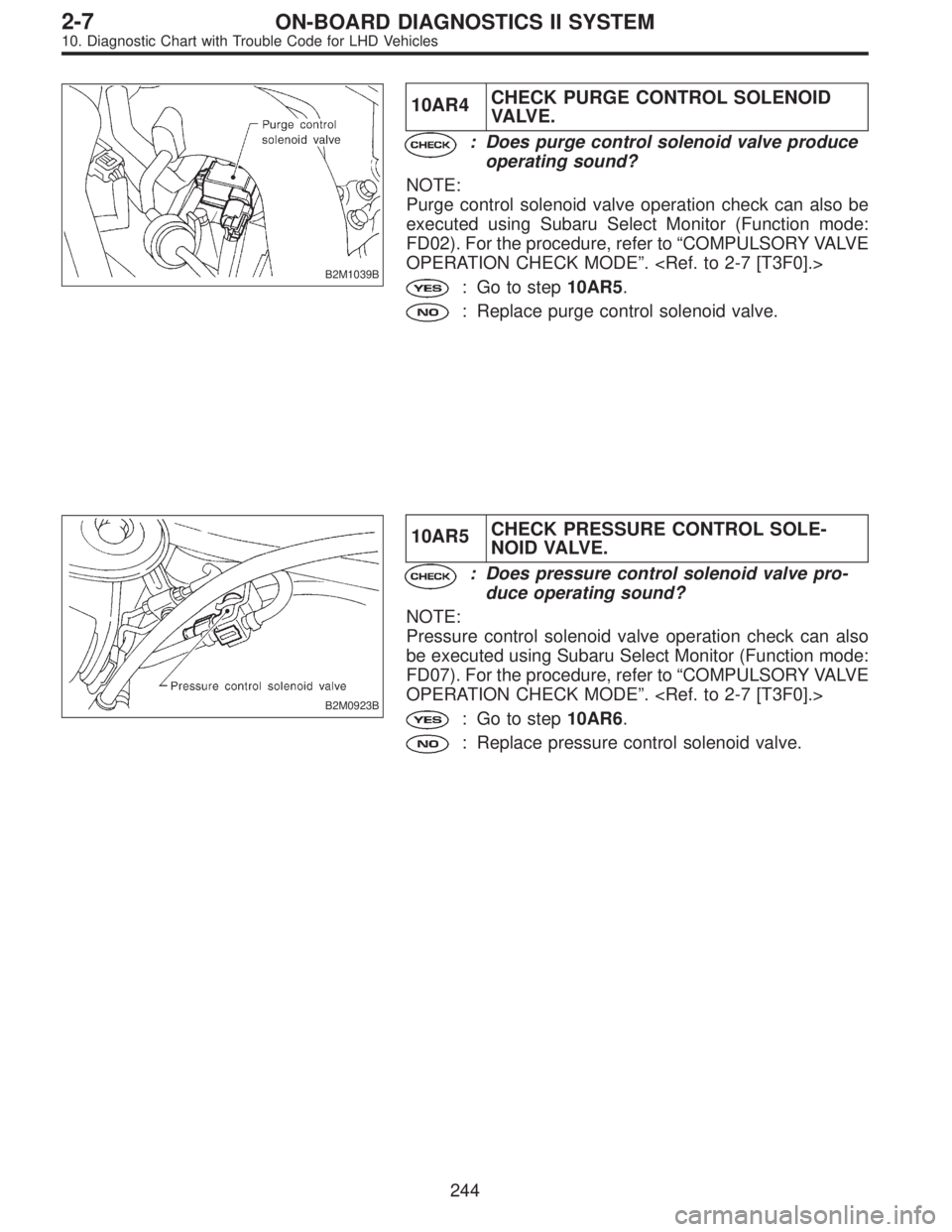

SUBARU LEGACY 1997 Service Repair Manual B2M1039B 10AR4CHECK PURGE CONTROL SOLENOID VA LV E . : Does purge control solenoid valve produce operating sound? NOTE: Purge control solenoid valve operation check can also be executed using Subaru S

Page 2096 of 3342

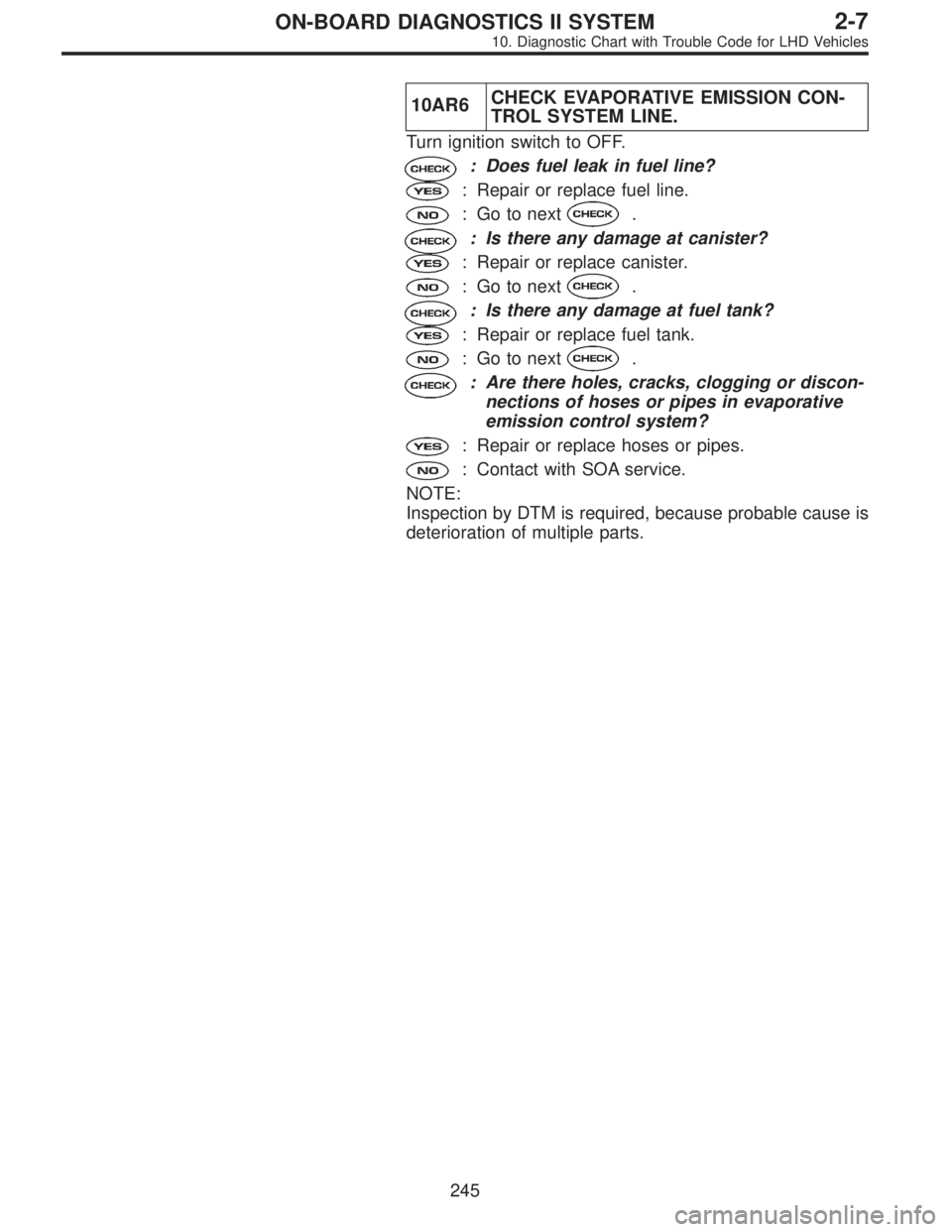

SUBARU LEGACY 1997 Service Repair Manual 10AR6CHECK EVAPORATIVE EMISSION CON- TROL SYSTEM LINE. Turn ignition switch to OFF. : Does fuel leak in fuel line? : Repair or replace fuel line. : Go to next. : Is there any damage at canister? : Rep
