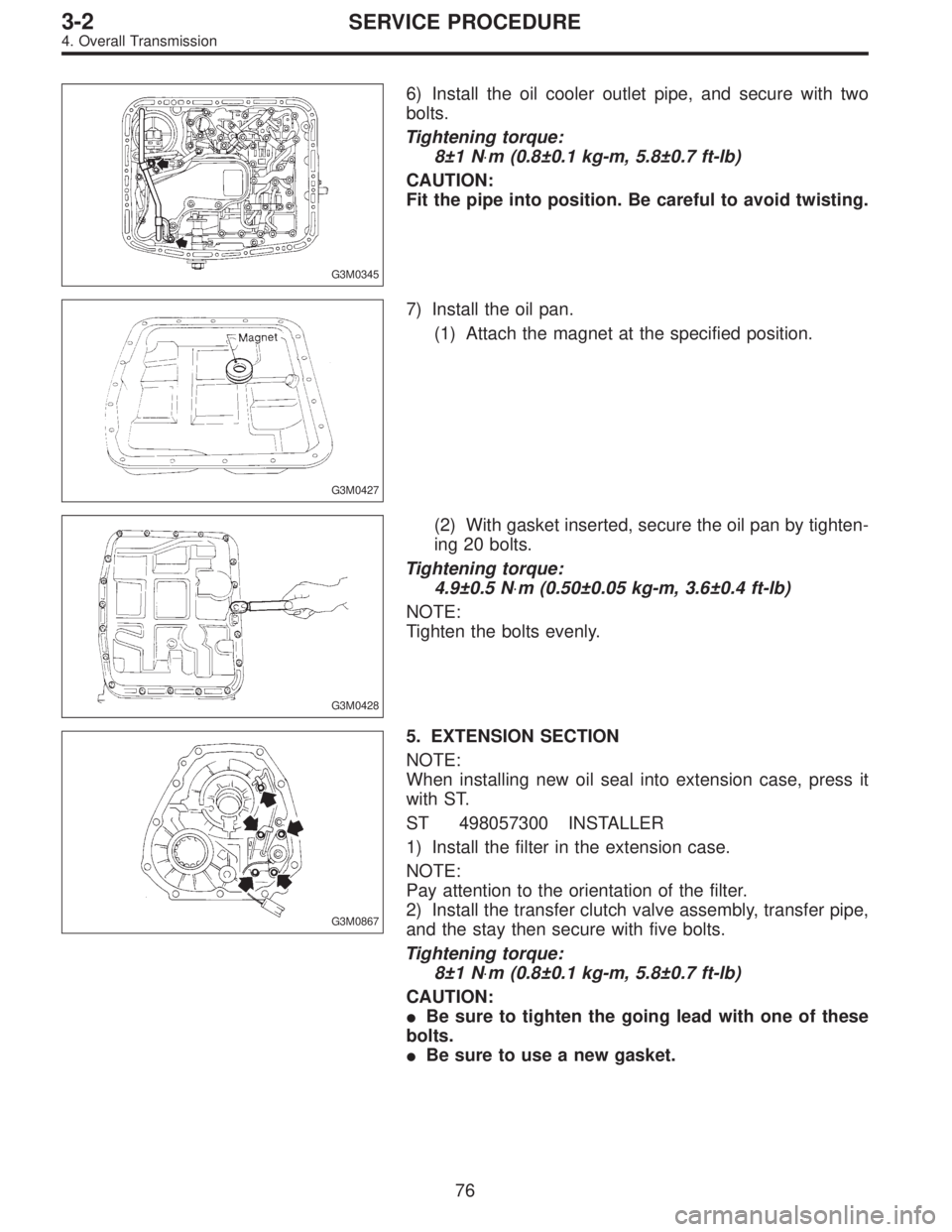

SUBARU LEGACY 1997 Service Repair Manual G3M0367 2) Install and route the transmission harness. CAUTION: Be careful not to damage the harness. B3M0418A 3) Install the control valve assembly. (1) Set the select lever in range“2”. (2) Inst

Page 882 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0345 6) Install the oil cooler outlet pipe, and secure with two bolts. Tightening torque: 8±1 N⋅m (0.8±0.1 kg-m, 5.8±0.7 ft-lb) CAUTION: Fit the pipe into position. Be careful to avoid twistin

Page 883 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0894 3) Install the transfer clutch assembly to the case. CAUTION: Be careful not to damage the seal rings. NOTE: Insert the clutch assembly fully into position until the bear- ing shoulder bottoms

Page 884 of 3342

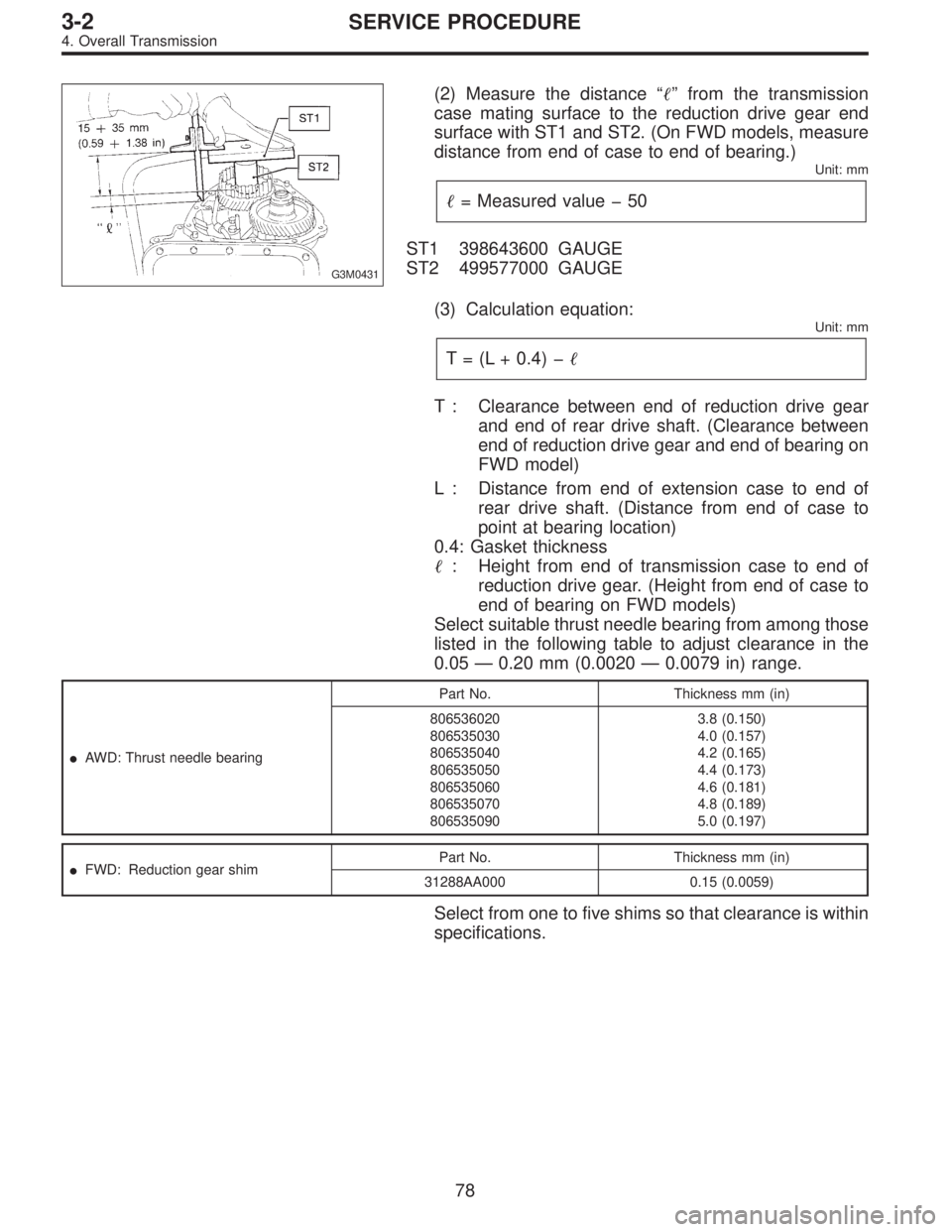

SUBARU LEGACY 1997 Service Repair Manual G3M0431 (2) Measure the distance“”from the transmission case mating surface to the reduction drive gear end surface with ST1 and ST2. (On FWD models, measure distance from end of case to end of b

Page 885 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0896 7) Installation of extension case (AWD), transmission cover (FWD) and transmission case. AWD model: (1) Attach the selected thrust needle bearing to the end surface of reduction drive gear wi

Page 886 of 3342

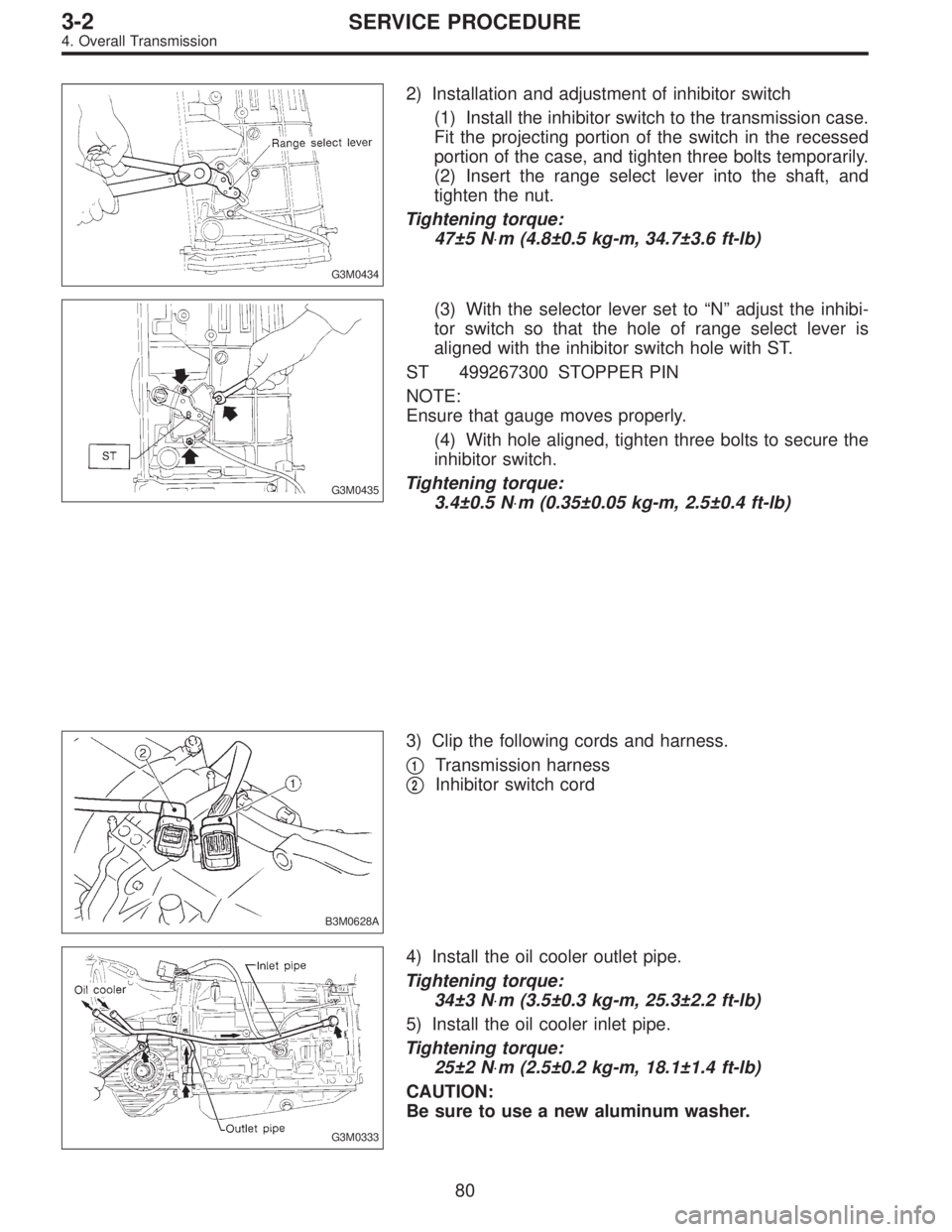

SUBARU LEGACY 1997 Service Repair Manual G3M0434 2) Installation and adjustment of inhibitor switch (1) Install the inhibitor switch to the transmission case. Fit the projecting portion of the switch in the recessed portion of the case, and

Page 887 of 3342

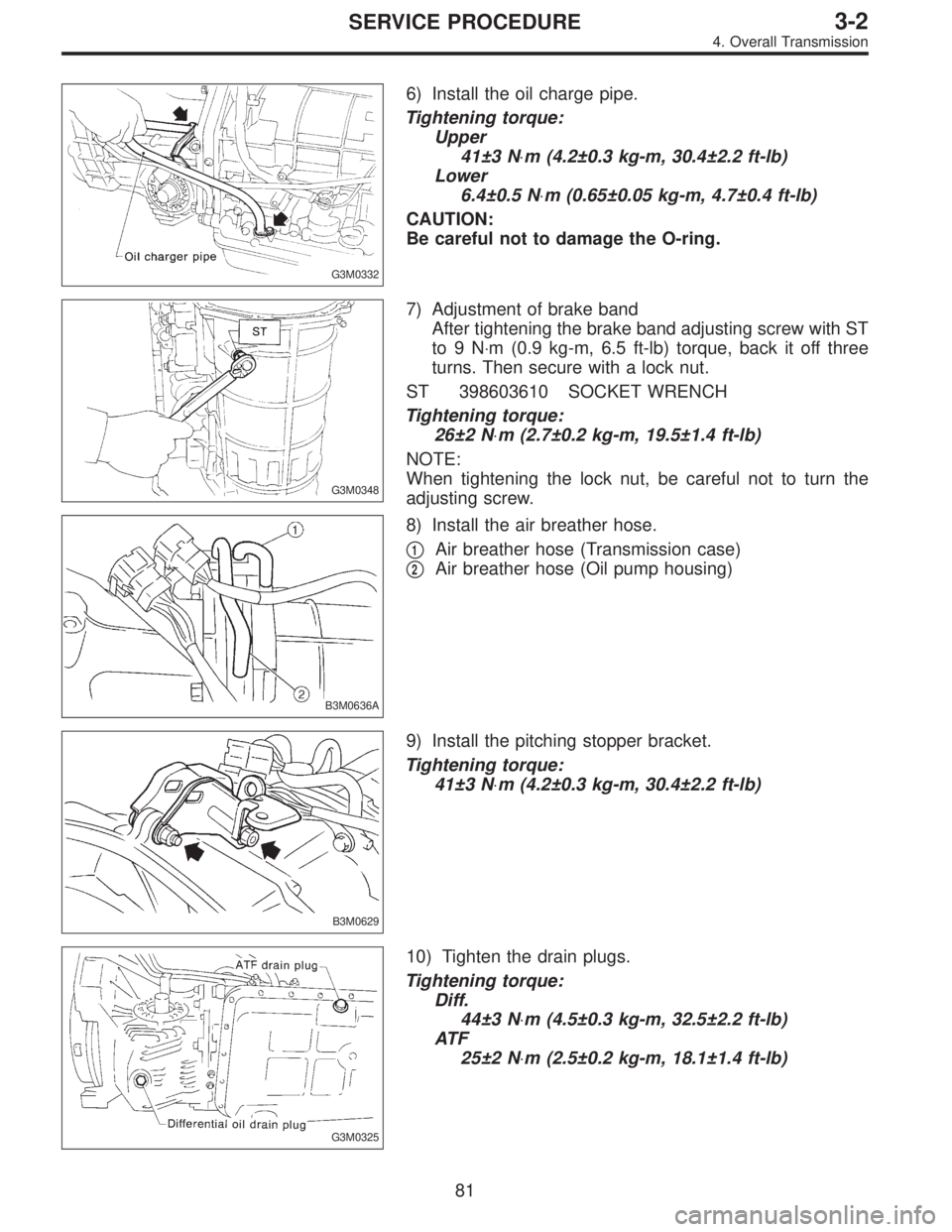

SUBARU LEGACY 1997 Service Repair Manual G3M0332 6) Install the oil charge pipe. Tightening torque: Upper 41±3 N⋅m (4.2±0.3 kg-m, 30.4±2.2 ft-lb) Lower 6.4±0.5 N⋅m (0.65±0.05 kg-m, 4.7±0.4 ft-lb) CAUTION: Be careful not to damage t

Page 888 of 3342

SUBARU LEGACY 1997 Service Repair Manual B3M0630A 11) Insert the input shaft while turning lightly by hand. CAUTION: Be careful not to damage the bushing. Normal protrusion A: 2200 cc: 50—55 mm (1.97—2.17 in) 2500 cc: 28—32 mm (1.10—
