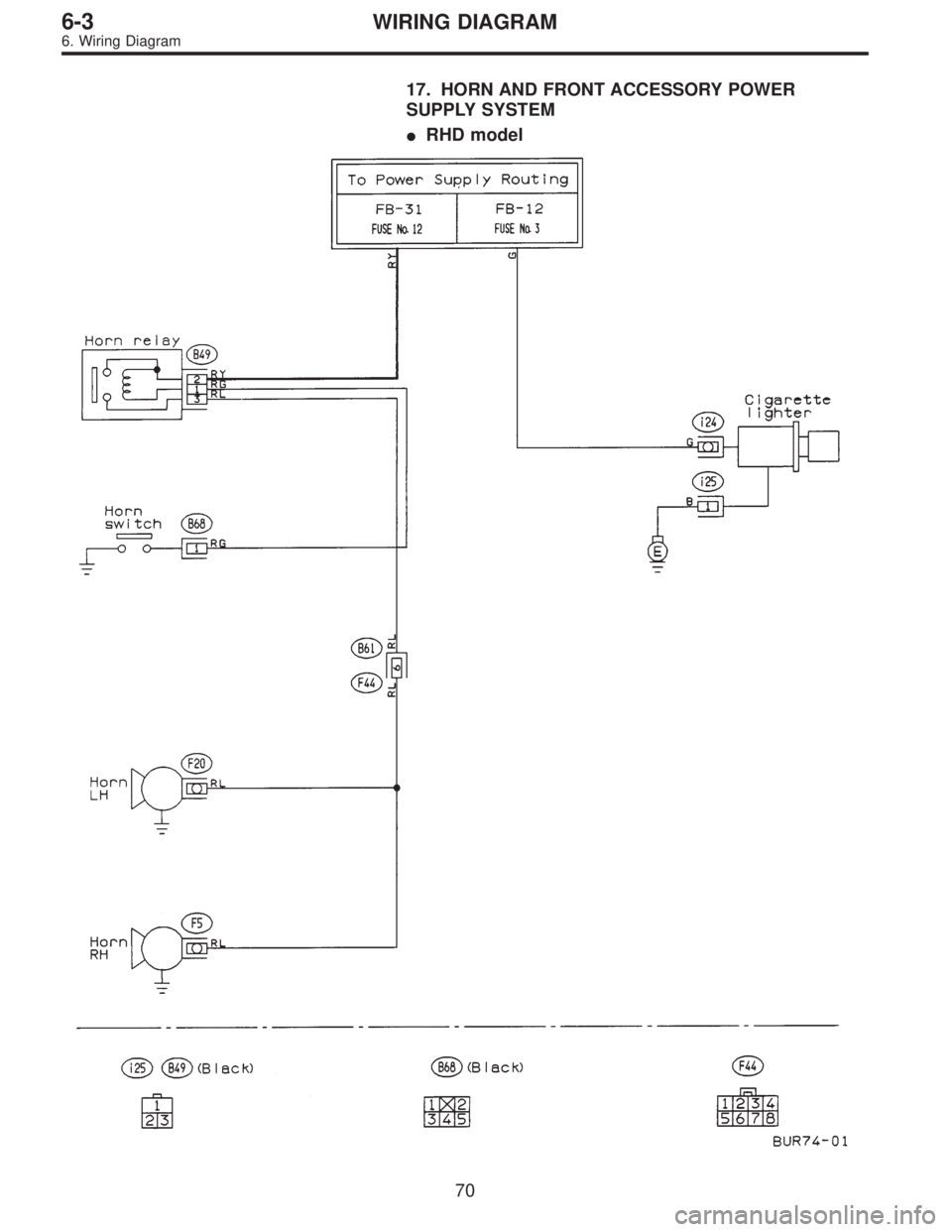

SUBARU LEGACY 1997 Service Repair Manual 17. HORN AND FRONT ACCESSORY POWER SUPPLY SYSTEM RHD model 70 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 3250 of 3342

SUBARU LEGACY 1997 Service Repair Manual 18. LIGHTING (HEADLIGHT) SYSTEM LHD without DRL model BU20-01 71 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 3251 of 3342

SUBARU LEGACY 1997 Service Repair Manual 18. LIGHTING (HEADLIGHT) SYSTEM LHD with DRL model BC20-02A 72 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 3252 of 3342

SUBARU LEGACY 1997 Service Repair Manual BC20-02B 73 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 3253 of 3342

SUBARU LEGACY 1997 Service Repair Manual 18. LIGHTING (HEADLIGHT) SYSTEM RHD model BUR20-01 74 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 3254 of 3342

SUBARU LEGACY 1997 Service Repair Manual 19. LIGHTING (TAIL LIGHT⋅ILLUMINATION LIGHT⋅ETC.) SYSTEM LHD model BU21-04A 75 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 3255 of 3342

SUBARU LEGACY 1997 Service Repair Manual BU21-04B 76 6-3WIRING DIAGRAM 6. Wiring Diagram

Page 3256 of 3342

SUBARU LEGACY 1997 Service Repair Manual 19. LIGHTING (TAIL LIGHT⋅ILLUMINATION LIGHT⋅ETC.) SYSTEM RHD model EPA0113 77 6-3WIRING DIAGRAM 6. Wiring Diagram
