SUBARU LEGACY 1997 Service Repair Manual 1. Front Door B5M0052A 1Gusset  2Weatherstrip (Outer)  3Stabilizer (Outer)  4Stabilizer (Inner)  5Protector  6Stopper  7Knock pin 8Checker  9Sealing cover  10Door panel  11Lower hinge  12U

Page 1586 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. Rear Door B5M0466A 1Weatherstrip (Outer)  2Stabilizer (Outer)  3Stabilizer (Inner)  4Stopper  5Knock pin  6Checker  7Seating cover 8Door panel  9Lower hinge  10Upper hinge  11Door sash (

Page 1587 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3. Front Door Glass B5M0054A 1Glass  2Regulator and motor ASSY  3Regulator handle (Except power window)  4Retainer spring  5Regulator ASSY Tightening torque: N⋅m (kg-m, ft-lb) T: 7.4±2.0 (0.75

Page 1588 of 3342

SUBARU LEGACY 1997 Service Repair Manual 4. Rear Door Glass B5M0055A 1Glass  2Regulator and motor ASSY  3Regulator handle (Except power window)  4Retainer spring  5Regulator ASSY Tightening torque: N⋅m (kg-m, ft-lb) T: 7.4±2.0 (0.75

Page 1589 of 3342

SUBARU LEGACY 1997 Service Repair Manual 5. Rear Gate and Glass B5M0056A 1Rear gate  2Key cylinder  3Outer handle  4Door lock actuator  5Striker  6Latch  7Glass pin 8Glass  9Buffer  10Stopper  11Gas stay  12Hinge  13Rear gate ha

Page 1590 of 3342

SUBARU LEGACY 1997 Service Repair Manual 6. Door Lock Assembly 1. FRONT DOOR B5M0057A 1Holder remote  2Inner remote ASSY  3Door outer handle  4Striker  5Door latch  6Switch ASSY  7Auto-door lock actuator  8Bell crank  9Rod holder Ti

Page 1591 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. REAR DOOR B5M0058A 1Door outer handle  2Door latch  3Door lock actuator  4Striker  5Rod holder  6Holder remote  7Inner remote ASSY Tightening torque: N⋅m (kg-m, ft-lb) T1: 6.4±2.0 (0.65±

Page 1592 of 3342

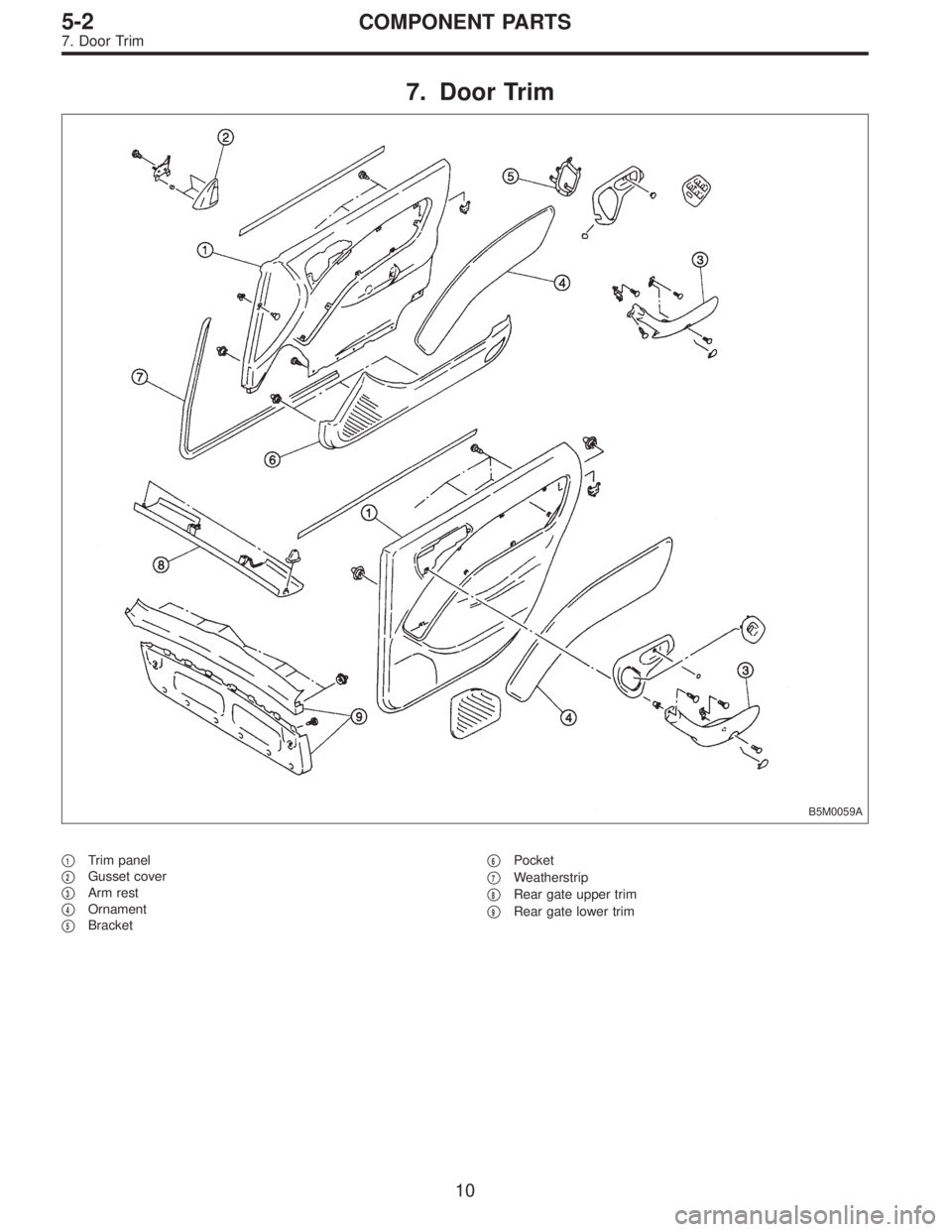

SUBARU LEGACY 1997 Service Repair Manual 7. Door Trim B5M0059A 1Trim panel  2Gusset cover  3Arm rest  4Ornament  5Bracket 6Pocket  7Weatherstrip  8Rear gate upper trim  9Rear gate lower trim 10 5-2COMPONENT PARTS 7. Door Trim
