SUBARU LEGACY 1997 Service Repair Manual 8Y13
CHECK ABSCM&H/U.
1) Connect all connectors.
2) Erase the memory.
3) Perform inspection mode.
4) Read out the trouble code.
: Is the same trouble code as in the current
diagnosis still being outpu

Page 2954 of 3342

SUBARU LEGACY 1997 Service Repair Manual G2M0096
9. Select Monitor Function Mode
Applicable cartridge of select monitor: No. 498346300
A: LIST OF FUNCTION MODE
1. F MODE (ROM ID, ANALOG DATA ARE
DISPLAYED.)
Function code
Measuring items Cont

Page 2955 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. FA MODE (ON/OFF DATA ARE DISPLAYED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FA 0B1 Stop light switchLED 1 comes on with the switch on (with the brak

Page 2956 of 3342

SUBARU LEGACY 1997 Service Repair Manual 4. FC MODE (TROUBLE CODES ARE ERASED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FC0 D⋅CLRHistory of trouble
codes is erased.Function of clearing troubl

4. FC MODE (TROUBLE CODES ARE ERASED.)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FC0 D⋅CLRHistory of trouble
codes is erased.Function of clearing trouble code. Possible 4-4d [T9J0]
5. FD MODE (ABS SEQUENCE CONTROL MODE)
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FD1 A⋅CHKABS sequence con-
trolPerform ABS sequence control by operating valve
and pump motor sequentially.Impossible4-4
[W20D2]
6. FE MODE (FREEZE FRAME DATA)
NOTE:
Data stored at the time of trouble occurrence is shown
on display.
Each time trouble occurs, the latest information is stored
in the freeze frame data in memory.
Function code
Measuring items Contents to be monitored Scroll Ref. to
Code Abbreviation
FE1 FRFR wheel speed
(mile/h)Wheel speed detected by the FR ABS sensor is
displayed in mile/h.Possible 4-4d [T9K0]
FE2 FLFL wheel speed
(mile/h)Wheel speed detected by the FL ABS sensor is dis-
played in mile/h.Possible 4-4d [T9L0]
FE3 RRRR wheel speed
(mile/h)Wheel speed detected by the RR ABS sensor is
displayed in mile/h.Possible 4-4d [T9M0]
FE4 RLRL wheel speed
(mile/h)Wheel speed detected by the RL ABS sensor is
displayed in mile/h.Possible 4-4d [T9N0]
FE5 FRFR wheel speed
(km/h)Wheel speed detected by the FR ABS sensor is
displayed in km/h.Possible 4-4d [T9K0]
FE6 FLFL wheel speed
(km/h)Wheel speed detected by the FL ABS sensor is dis-
played in km/h.Possible 4-4d [T9L0]
FE7 RRRR wheel speed
(km/h)Wheel speed detected by the RR ABS sensor is
displayed in km/h.Possible 4-4d [T9M0]
FE8 RLRL wheel speed
(km/h)Wheel speed detected by the RL ABS sensor is
displayed in km/h.Possible 4-4d [T9N0]
FE13 POWERABSCM&H/U power
supply voltage (V)Power (in volts) supplied to ABSCM&H/U appears
on the select monitor display.Possible 4-4d [T9O0]
FE14 G-SENSG sensor output volt-
age (V)Refers to vehicle acceleration detected by the ana-
log G sensor. It appears on the select monitor dis-
play in volts.Possible 4-4d [T9P0]
FE15MM Motor relay monitor LED 1 comes on when motor relay is on.
Possible 4-4d [T9Q0] B1 Stop light switchLED 2 comes on with the stop light switch on (with
the brake pedal depressed).
AT AT ABS signal LED 3 comes on when ABS control is on.
CM CCM signal LED 4 comes on when ABS control is on.
A0 ABS control LED 5 comes on when ABS control is on.
FE16 CODE Trouble codeThe most recent trouble code appears on select
monitor display.Possible 4-4d [T9R0]
80
4-4dBRAKES [ABS 5.3i TYPE]
9. Select Monitor Function Mode

Page 2957 of 3342

SUBARU LEGACY 1997 Service Repair Manual 1) When a trouble code is not stored in memory, activat-
ing the FE mode causes the initial value to appear on the
select monitor display.
FE1—4: 159 mile/h
FE5—8: 255 km/h
FE13: 18.05 V
FE14:

Page 2958 of 3342

SUBARU LEGACY 1997 Service Repair Manual H4M1117
B: MODE F00
—ROM ID NUMBER (ROM)—
CONDITION:
Ignition switch ON
SPECIFIED DATA:
Presentation display
9B1
CHECK MESSAGE OF DISPLAY.
: Does display indicate message“Error 1”?
: Repair lo

Page 2959 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0923

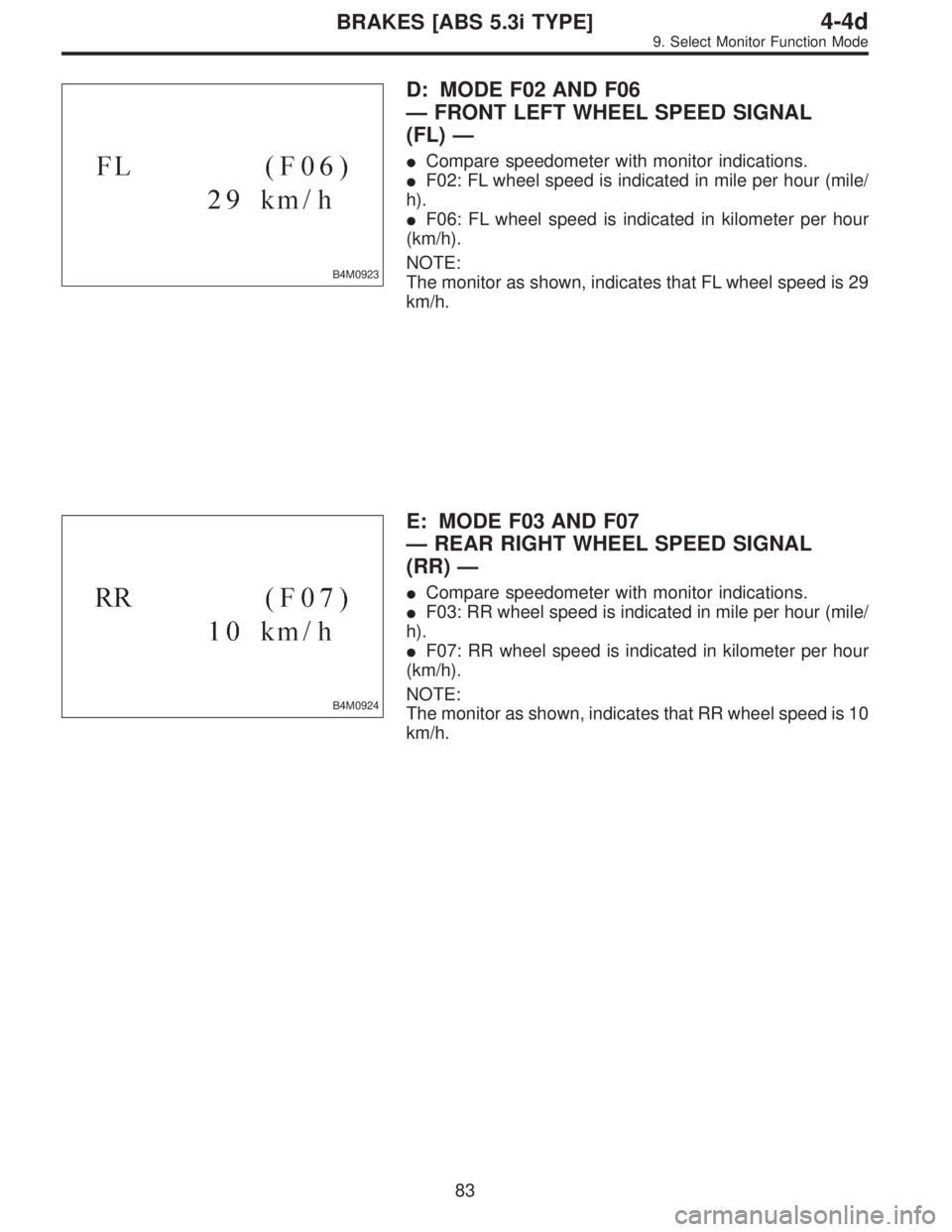

D: MODE F02 AND F06
—FRONT LEFT WHEEL SPEED SIGNAL
(FL)—
Compare speedometer with monitor indications.
F02: FL wheel speed is indicated in mile per hour (mile/
h).
F06: FL wheel speed i

Page 2960 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0925
F: MODE F04 AND F08
—REAR LEFT WHEEL SPEED SIGNAL (RL)
—
Compare speedometer with monitor indications.
F04: RL wheel speed is indicated in mile per hour (mile/
h).
F08: RL wheel speed i
