Page 3065 of 3342

SUBARU LEGACY 1997 Service Repair Manual B: TEST HARNESS B2
G5M0593
5
5-5SUPPLEMENTAL RESTRAINT SYSTEM
3. Tools for Diagnostics

Page 3066 of 3342

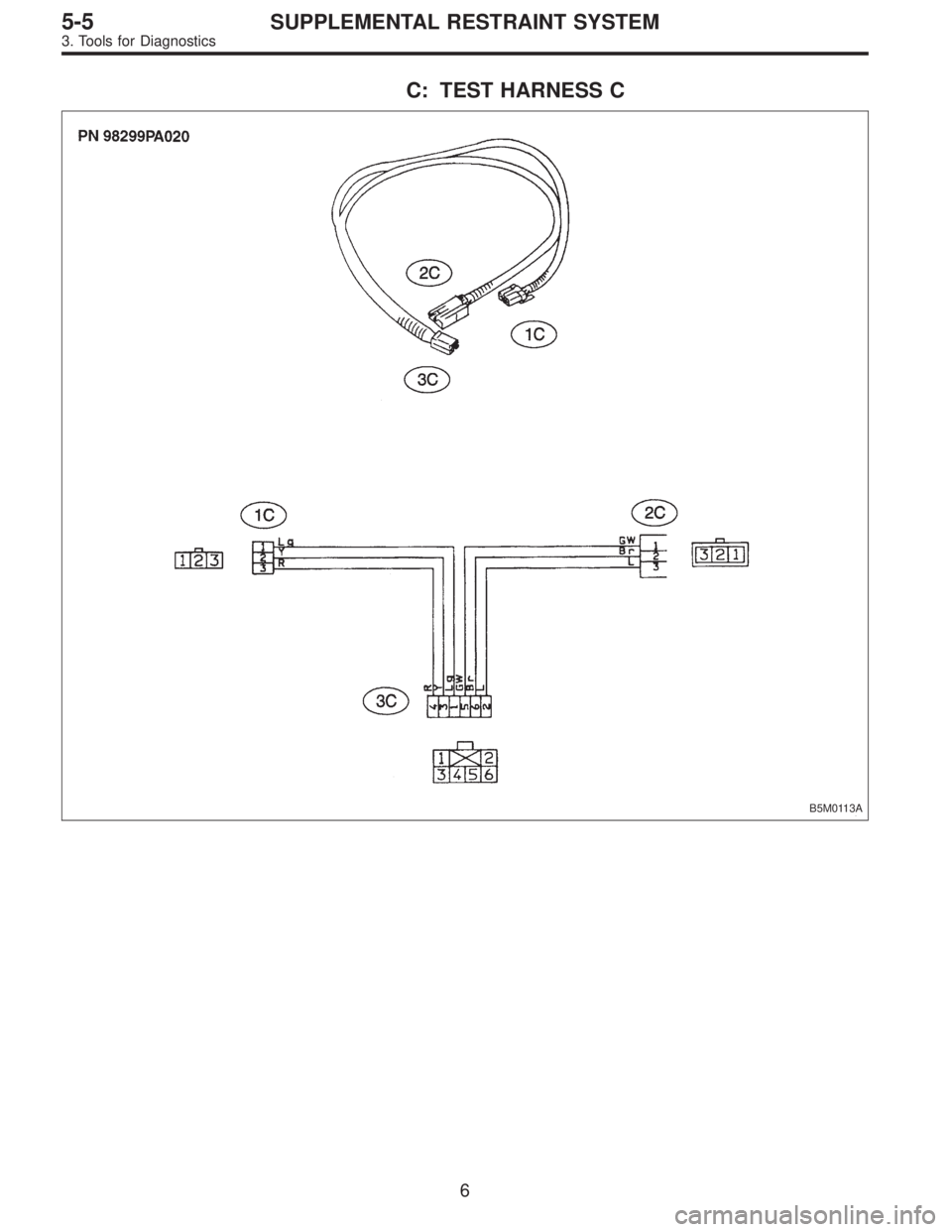

SUBARU LEGACY 1997 Service Repair Manual C: TEST HARNESS C
B5M0113A
6
5-5SUPPLEMENTAL RESTRAINT SYSTEM
3. Tools for Diagnostics

Page 3067 of 3342

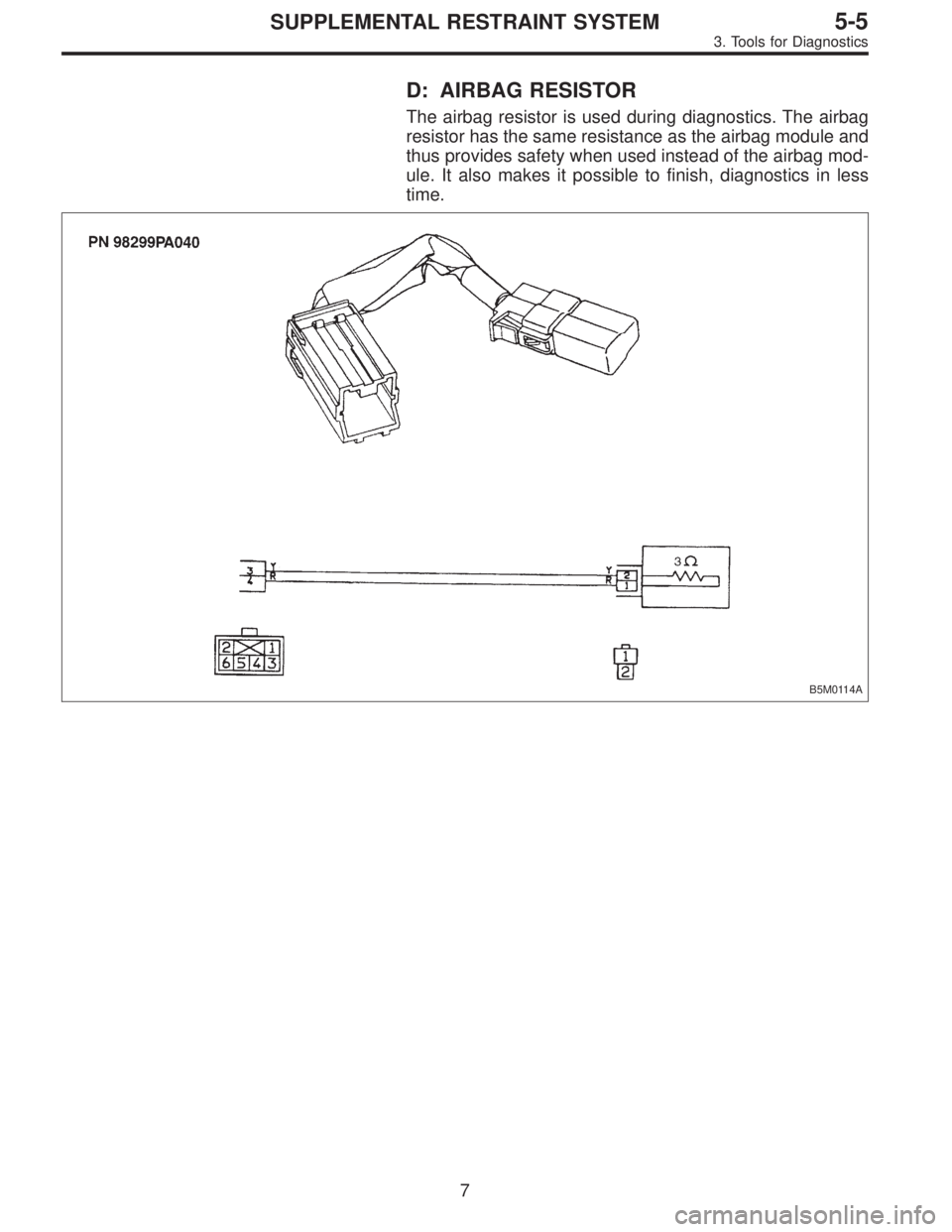

SUBARU LEGACY 1997 Service Repair Manual D: AIRBAG RESISTOR
The airbag resistor is used during diagnostics. The airbag
resistor has the same resistance as the airbag module and
thus provides safety when used instead of the airbag mod-
ule. I

Page 3068 of 3342

SUBARU LEGACY 1997 Service Repair Manual 4. Diagnostics Chart for On-board
Diagnostic System
A: BASIC DIAGNOSTICS PROCEDURE
8
5-5SUPPLEMENTAL RESTRAINT SYSTEM
4. Diagnostics Chart for On-board Diagnostic System

Page 3069 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0115B
B: ON-BOARD DIAGNOSTIC
When the airbag system is in functioning condition, the
airbag warning light will remain on for 8 seconds and go out
when the ignition switch is set to ON.
If there is

Page 3070 of 3342

SUBARU LEGACY 1997 Service Repair Manual D: LIST OF TROUBLE CODES
1. TROUBLE CODES
Trouble code/Contents of troubles Memory function Contents of diagnosis Page
02 Provided.1) Front sensor harness is shorted.
2) Airbag main harness is shorted

D: LIST OF TROUBLE CODES
1. TROUBLE CODES
Trouble code/Contents of troubles Memory function Contents of diagnosis Page
02 Provided.1) Front sensor harness is shorted.
2) Airbag main harness is shorted.
3) Airbag module harness (Dr/Ps) is shorted.
4) Roll connector is shorted.
5) Airbag control module is faulty.16
03 Provided.1) Front sensor harness circuit is open.
2) Front sensor unit circuit is open.18
04 Provided.1) Airbag main harness circuit is shorted.
2) Airbag module harness (Ps) circuit is shorted.
3) Airbag control module is faulty.19
11 Provided.1) Airbag control module is faulty.
2) Airbag main harness circuit is open.
3) Fuse No. 8 is blown.
4) Body harness circuit is open.20
12 Provided.1) Airbag main harness circuit is open.
2) Airbag module harness (Dr) circuit is open.
3) Roll connector circuit is open.
4) Airbag control module is faulty.22
13 Provided.1) Airbag main harness circuit is shorted.
2) Airbag module harness (Dr) is shorted.
3) Roll connector circuit is shorted.
4) Airbag control module is faulty.23
14 Not provided.1) (AB9) and (AB10) are not connected properly.
2) (AB2) and (AB7) are not connected properly.
3) (AB3) and (AB8) are not connected properly.
4) (AB4), (AB5) and (AB6) are not connected
properly to airbag control module.24
21 Provided. Airbag control module is faulty. 26
22 Provided.1) Airbag main harness circuit is open.
2) Airbag module harness (Ps) circuit is open.
3) Airbag control module is faulty.27
23 Provided.1) Airbag main harness is shorted to power supply.
2) Front sensor harness is shorted to power supply.
3) Airbag module harness (Dr/Ps) is damaged.
4) Roll connector is shorted to power supply.
5) Airbag control module is faulty.28
24 Provided.1) Airbag main harness circuit is open.
2) Airbag module harness (Dr) circuit is open.
3) Roll connector circuit is open.
4) Airbag control module is faulty.
5) Above diagnosis plus other faulty of airbag
modular parts.30
31 Not provided.1) Airbag control module is faulty.
2) Airbag main harness circuit is open.
3) Fuse No. 16 is blown.
4) Body harness circuit is open.32
32 Provided.1) Airbag main harness circuit is open.
2) Airbag module harness (Ps) circuit is open.
3) Airbag control module is faulty.
4) Above diagnosis plus other faulty of airbag
modular parts.34
NOTE: Dr: Driver side Ps: Passenger side
10
5-5SUPPLEMENTAL RESTRAINT SYSTEM
4. Diagnostics Chart for On-board Diagnostic System

Page 3071 of 3342

SUBARU LEGACY 1997 Service Repair Manual Trouble code/Contents of troubles Memory function Contents of diagnosis Page
Airbag warning light remains on. Not provided.1) Airbag warning light is faulty.
2) Airbag control module to airbag warning

Page 3072 of 3342

SUBARU LEGACY 1997 Service Repair Manual E: DIAGNOSTICS PROCEDURE
Airbag warning light stays on after 8 seconds.
1) Perform on-board diagnostic. <Ref. to 5-5 [T4B0].>
2) Are trouble codes 2, 4, 12, 13, 22, 23, 24 or 32 indicated? <Ref. to 5-
