Page 1361 of 3342

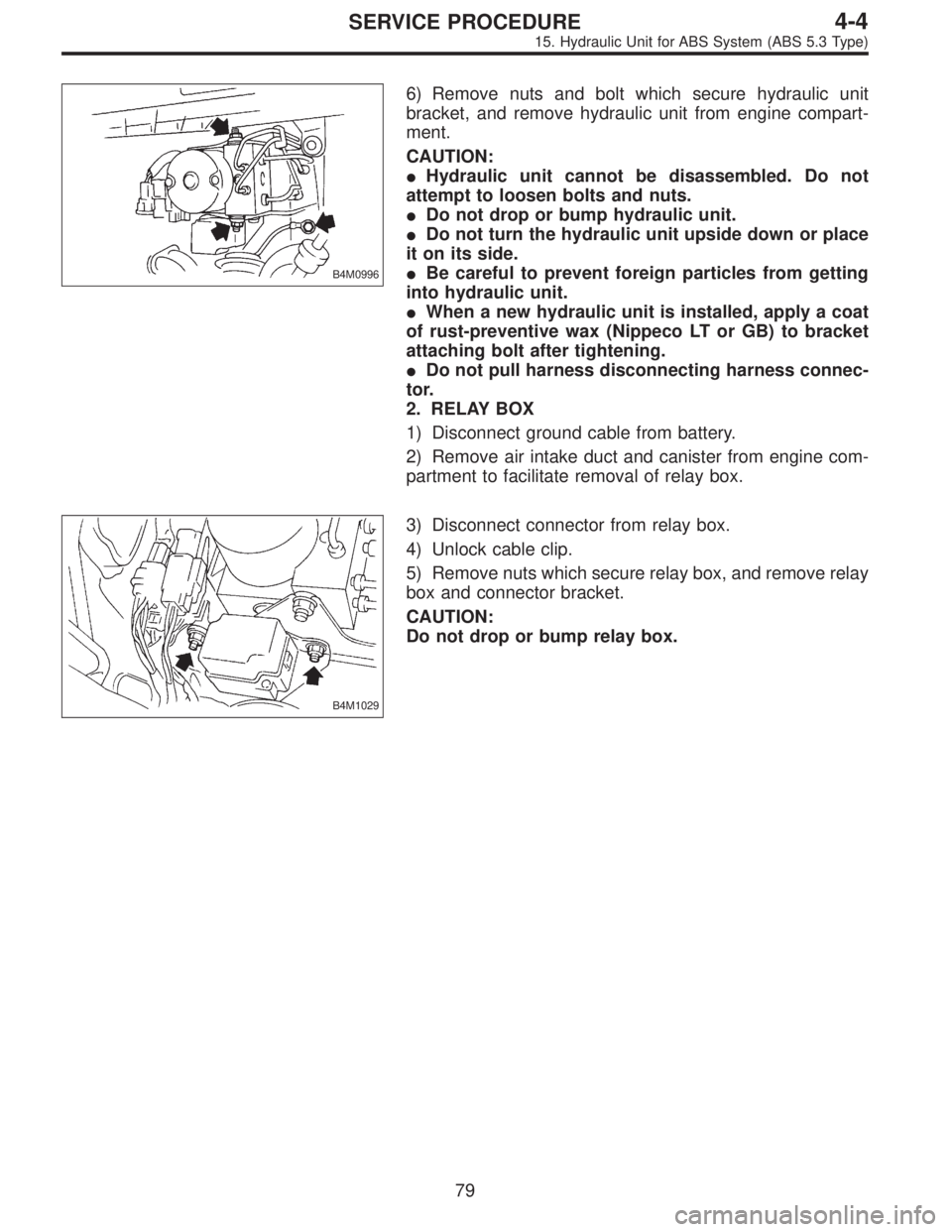

SUBARU LEGACY 1997 Service Repair Manual B4M0996 6) Remove nuts and bolt which secure hydraulic unit bracket, and remove hydraulic unit from engine compart- ment. CAUTION: Hydraulic unit cannot be disassembled. Do not attempt to loosen bolt

Page 1362 of 3342

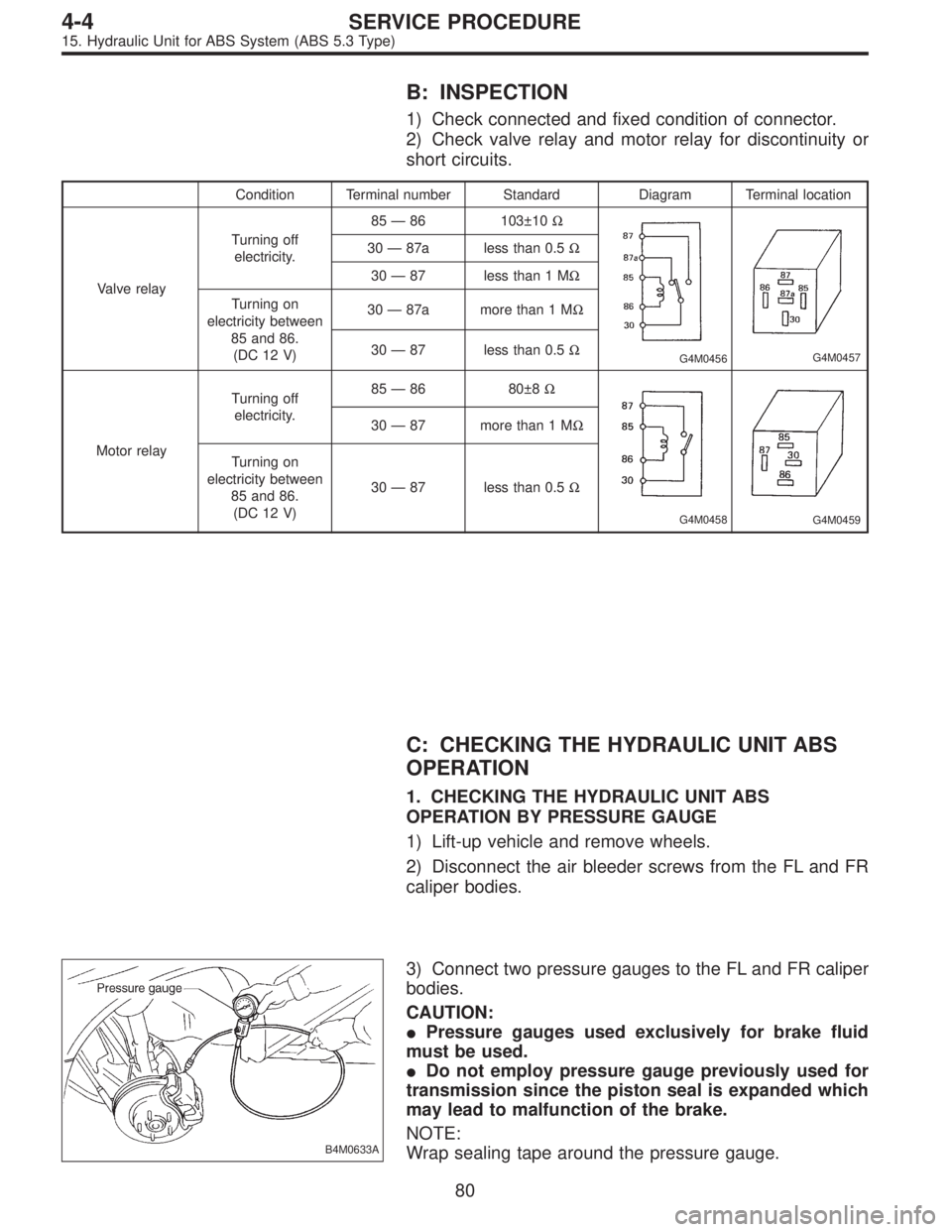

SUBARU LEGACY 1997 Service Repair Manual B: INSPECTION 1) Check connected and fixed condition of connector. 2) Check valve relay and motor relay for discontinuity or short circuits. Condition Terminal number Standard Diagram Terminal locatio

Page 1363 of 3342

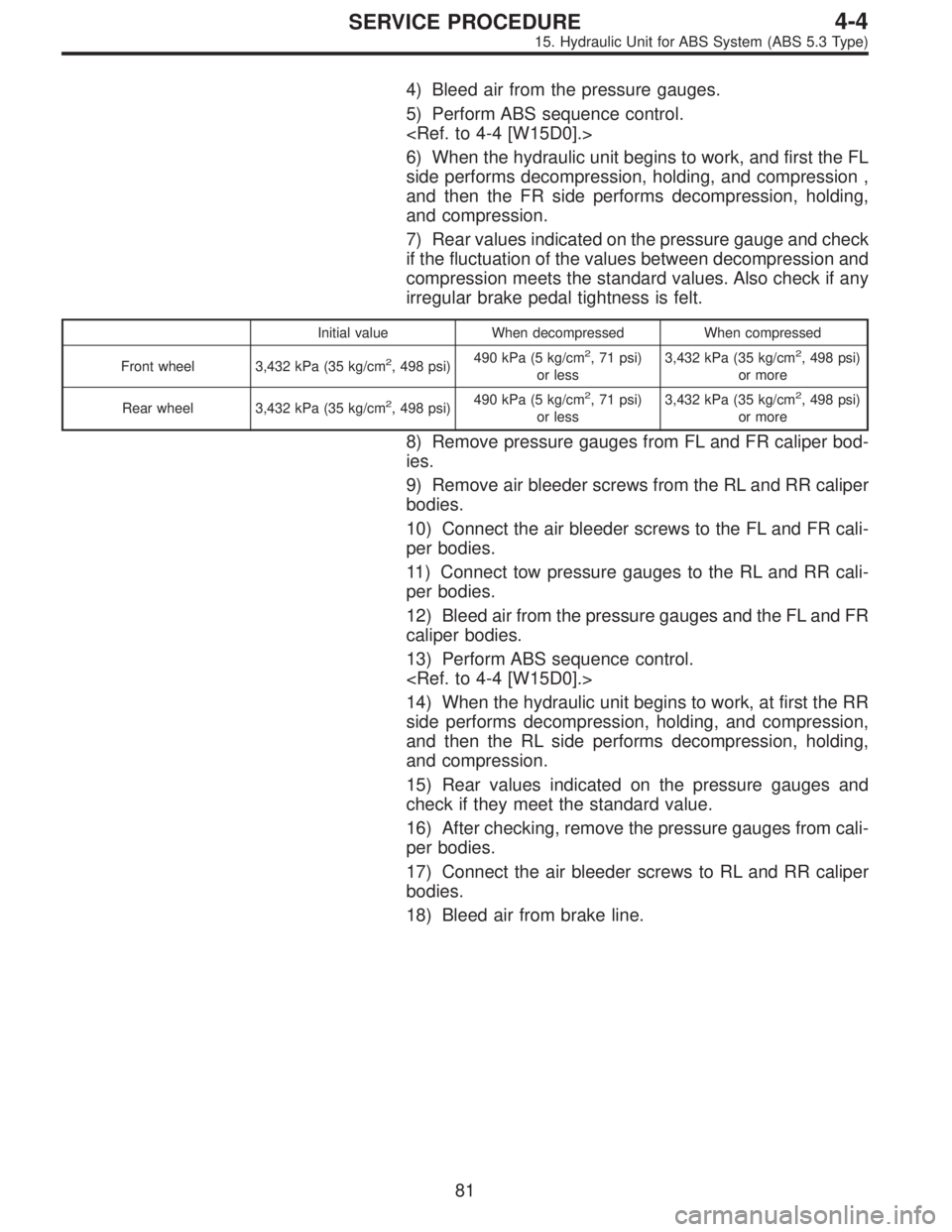

SUBARU LEGACY 1997 Service Repair Manual 4) Bleed air from the pressure gauges. 5) Perform ABS sequence control. <Ref. to 4-4 [W15D0].> 6) When the hydraulic unit begins to work, and first the FL side performs decompression, holding, and com

Page 1364 of 3342

SUBARU LEGACY 1997 Service Repair Manual G4M0462 2. CHECKING THE HYDRAULIC UNIT ABS OPERATION WITH BRAKE TESTER 1) In the case of AWD AT vehicles, install a spare fuse with the FWD connector in the engine compartment to simulate FWD vehicles

Page 1365 of 3342

SUBARU LEGACY 1997 Service Repair Manual D: ABS SEQUENCE CONTROL 1) Under the ABS sequence control, after the hydraulic unit solenoid valve is driven, the operation of the hydraulic unit can be checked by means of the brake tester or pres- s

Page 1366 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0997 5) The message shown in the figure is displayed. B4M0998 6) The message shown in the figure is displayed as fol- lows: (1) When using the brake tester, depress brake pedal with braking force o

Page 1367 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3. CONDITIONS FOR COMPLETION OF ABS SEQUENCE CONTROL When the following conditions develop, the ABS sequence control stops and ABS operation is returned to the normal control mode. 1) When the speed o

Page 1368 of 3342

SUBARU LEGACY 1997 Service Repair Manual 4. CONDITIONS FOR ABS SEQUENCE CONTROL B4M1001A NOTE: When select monitor is used, control operation starts at point A. The patterns from IGN key ON to the point A show that operation is started by d
