Page 905 of 3342

SUBARU LEGACY 1997 Service Repair Manual C: ASSEMBLY G3M0469 1High clutch drum  2Lathe cut seal ring  3High clutch piston  4Lathe cut seal ring  5Spring retainer  6Snap ring  7Driven plate (Thinner) 8Drive plate  9Driven plate (Thic

Page 906 of 3342

SUBARU LEGACY 1997 Service Repair Manual Available retaining platesPart No. Thickness mm (in) 31567AA190 31567AA200 31567AA210 31567AA220 31567AA230 31567AA240 31567AA250 31567AA2603.6 (0.142) 3.8 (0.150) 4.0 (0.157) 4.2 (0.165) 4.4 (0.173)

Page 907 of 3342

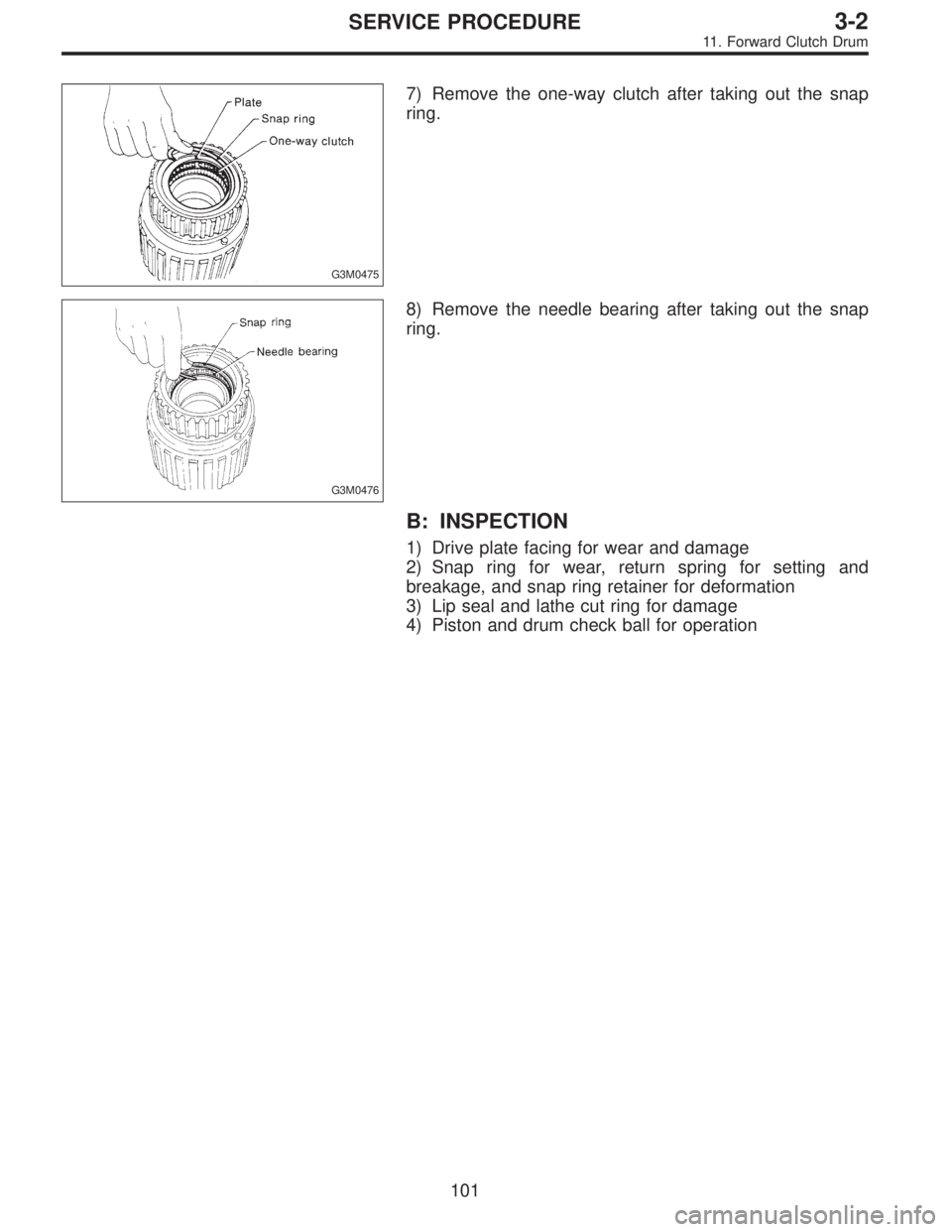

SUBARU LEGACY 1997 Service Repair Manual G3M0475 7) Remove the one-way clutch after taking out the snap ring. G3M0476 8) Remove the needle bearing after taking out the snap ring. B: INSPECTION 1) Drive plate facing for wear and damage 2) Sna

Page 908 of 3342

SUBARU LEGACY 1997 Service Repair Manual C: ASSEMBLY B3H0014 1Snap ring  2Retainer  3Lathe cut seal ring  4Dish plate  5Snap ring  6Snap ring  7Retaining plate  8Dish plate  9Snap ring  10Retaining plate 11Forward clutch piston

Page 909 of 3342

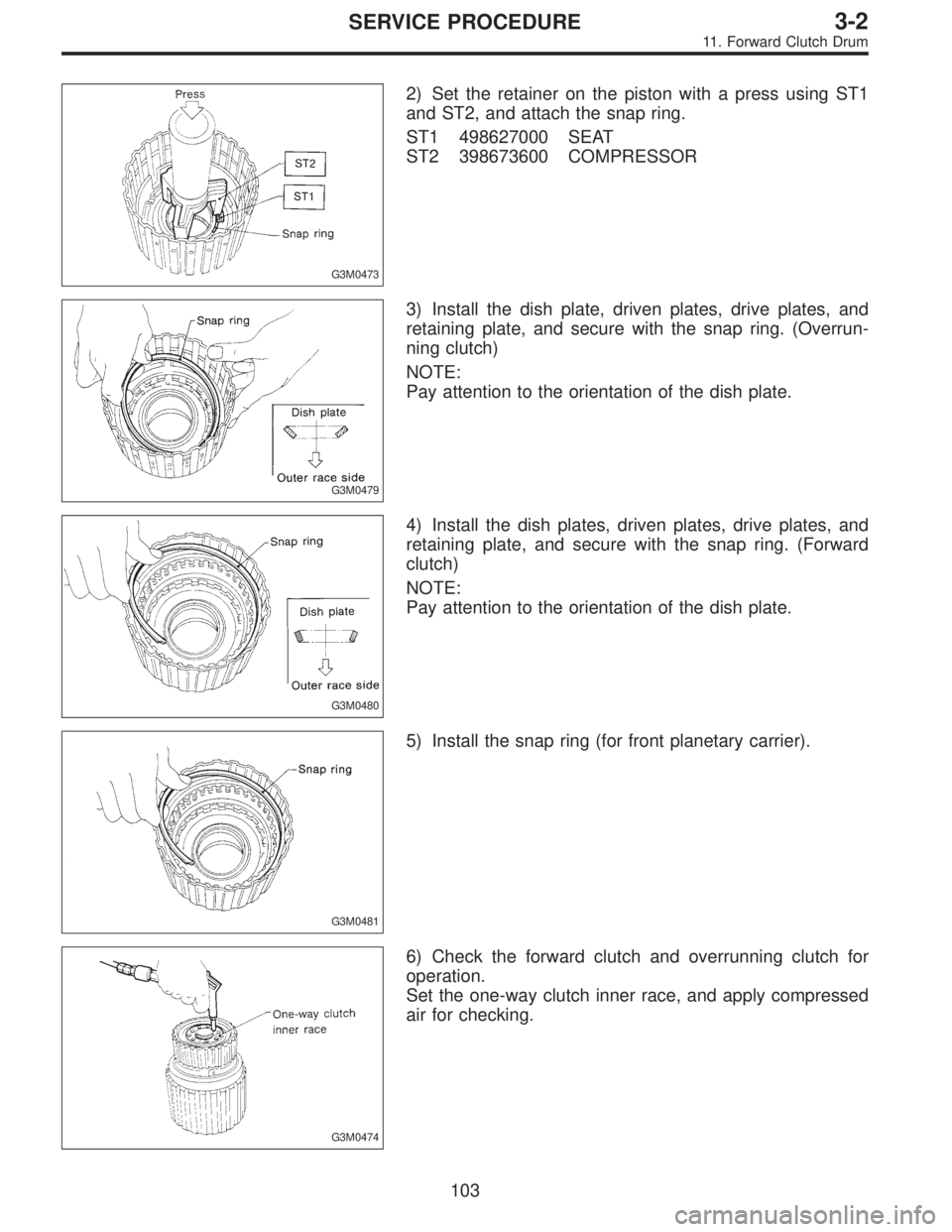

SUBARU LEGACY 1997 Service Repair Manual G3M0473 2) Set the retainer on the piston with a press using ST1 and ST2, and attach the snap ring. ST1 498627000 SEAT ST2 398673600 COMPRESSOR G3M0479 3) Install the dish plate, driven plates, drive

Page 910 of 3342

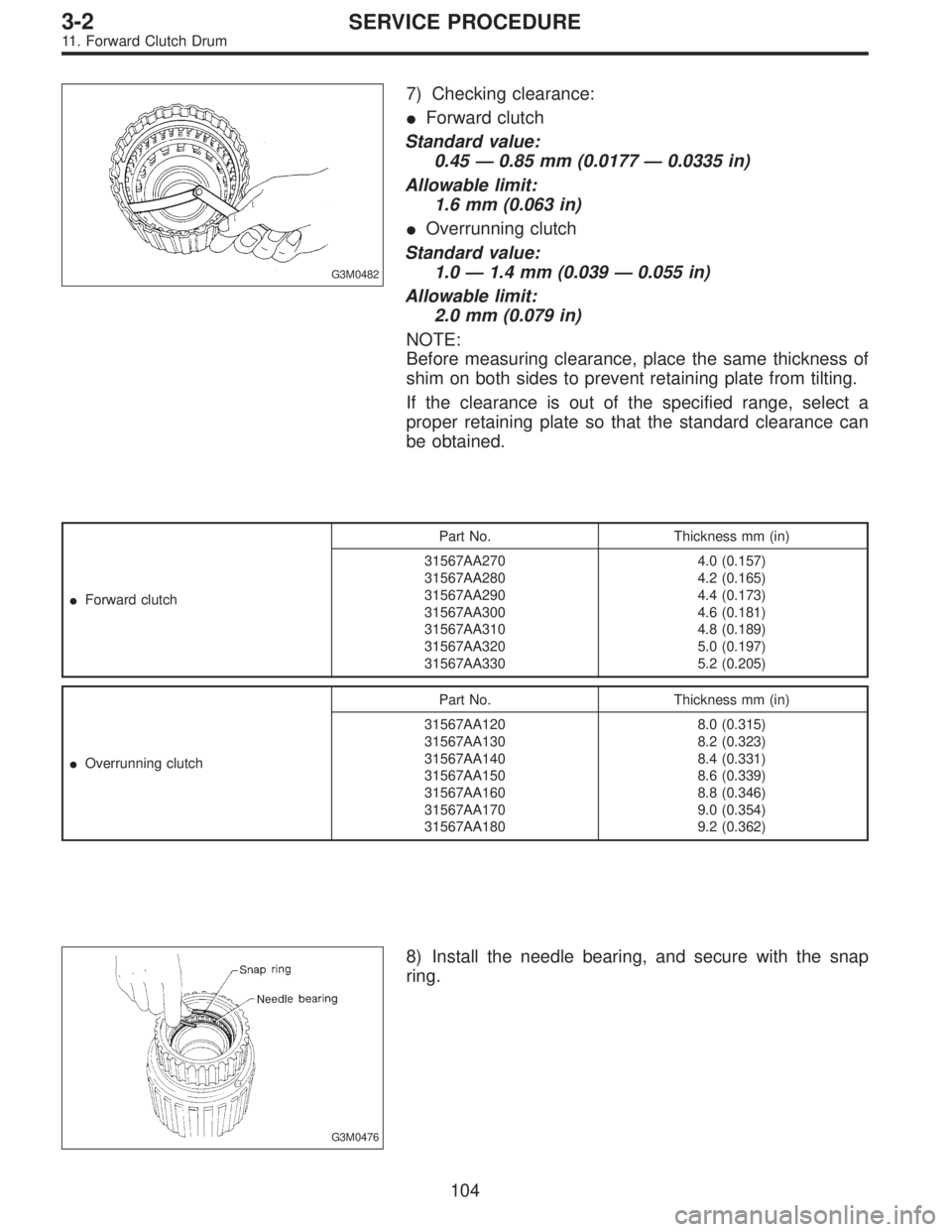

SUBARU LEGACY 1997 Service Repair Manual G3M0482 7) Checking clearance: Forward clutch Standard value: 0.45—0.85 mm (0.0177—0.0335 in) Allowable limit: 1.6 mm (0.063 in) Overrunning clutch Standard value: 1.0—1.4 mm (0.039—0.055 in

Page 911 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0484 9) Install the one-way clutch (1-2) and plate, and secure with the snap ring. NOTE: Set the inner race. Make sure that the forward clutch is free in the clockwise direction and locked in the c

Page 912 of 3342

SUBARU LEGACY 1997 Service Repair Manual B3M0407A 13. Servo Piston 1Band servo piston stem  2Spring  3Lathe cut seal ring  4Band servo piston (1-2)  5Lathe cut seal ring  6O-ring  7Band servo retainer  8O-ring  9Spring  10Retainer
