SUBARU LEGACY 1997 Service Repair Manual 8D2 CHECK TIRE. : Are the tire specifications correct? : Go to next. : Replace tire. : Is the tire worn excessively? : Replace tire. : Go to next. : Is the tire pressure correct? : Go to step8D3. : Ad

Page 2650 of 3342

SUBARU LEGACY 1997 Service Repair Manual G4M0701 : Go to next. : Adjust the gap. NOTE: Adjust the gap using spacer (Part No. 26755AA000). If spacers cannot correct the gap, replace worn sensor or worn tone wheel. : Is an oscilloscope availab

Page 2651 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10) Remove disc rotor from hub. : Is the ABS sensor pole piece or the tone wheel contaminated by dirt or other foreign matter? : Thoroughly remove dirt or other foreign matter. : Go to next. : Are the

Page 2652 of 3342

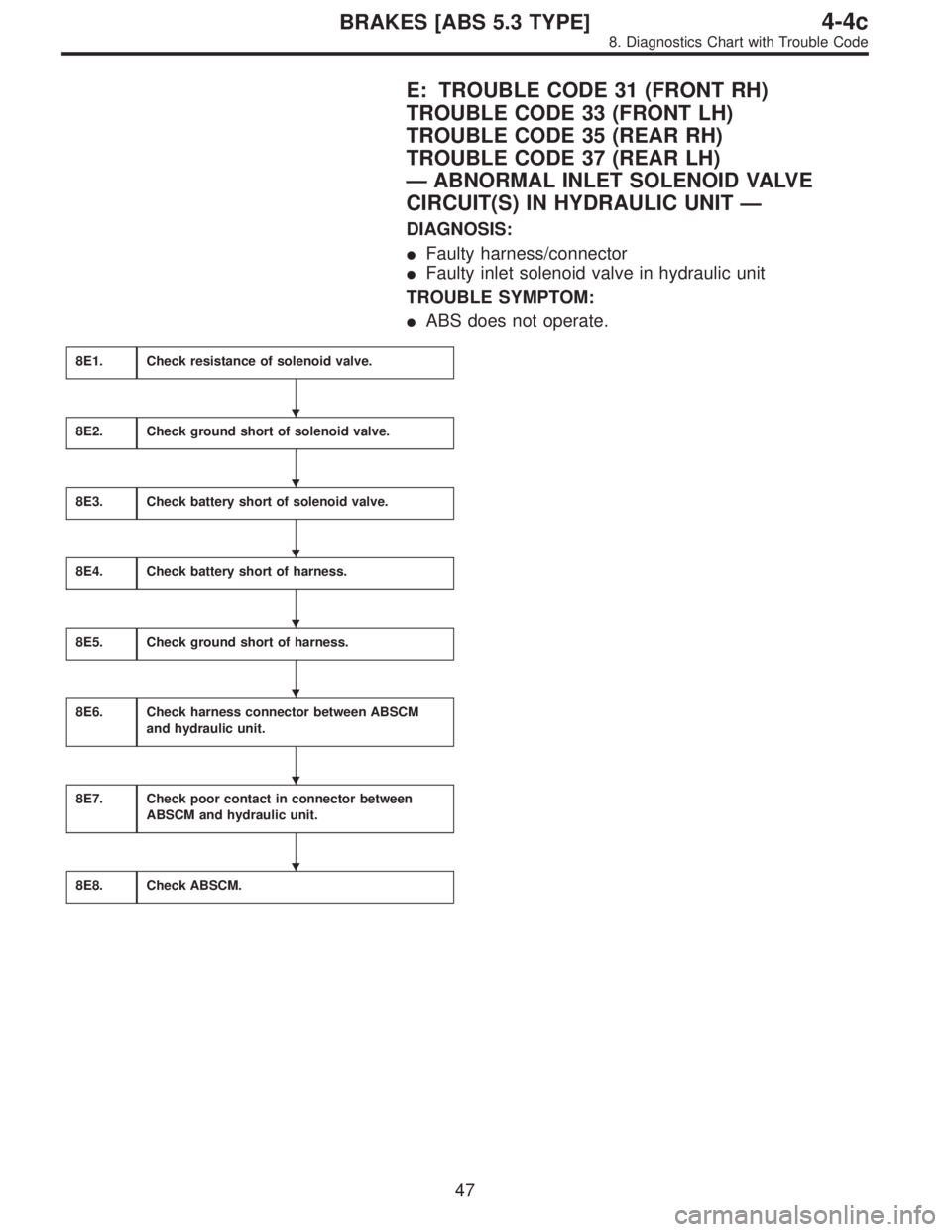

SUBARU LEGACY 1997 Service Repair Manual E: TROUBLE CODE 31 (FRONT RH) TROUBLE CODE 33 (FRONT LH) TROUBLE CODE 35 (REAR RH) TROUBLE CODE 37 (REAR LH) —ABNORMAL INLET SOLENOID VALVE CIRCUIT(S) IN HYDRAULIC UNIT— DIAGNOSIS: Faulty harness

Page 2653 of 3342

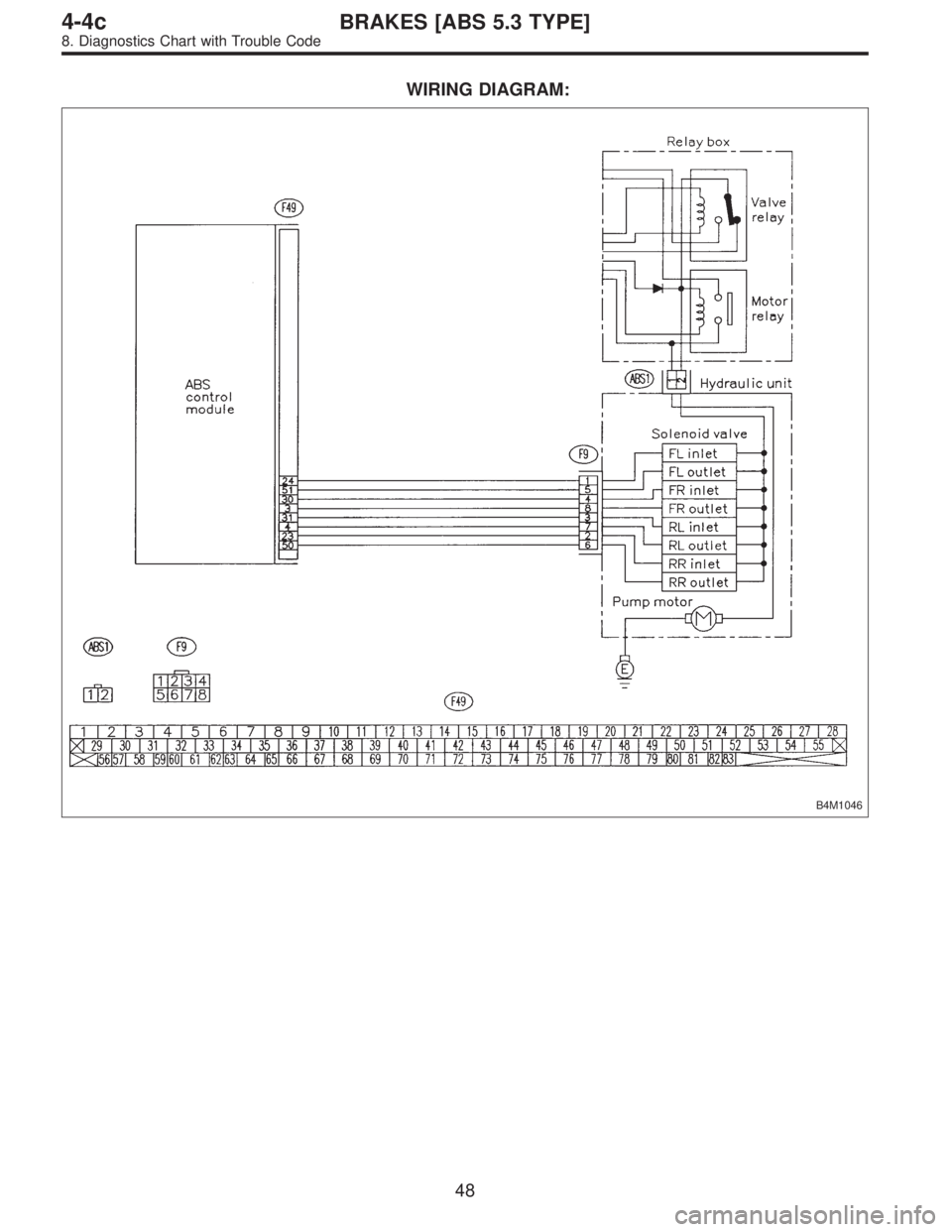

SUBARU LEGACY 1997 Service Repair Manual WIRING DIAGRAM: B4M1046 48 4-4cBRAKES [ABS 5.3 TYPE] 8. Diagnostics Chart with Trouble Code

Page 2654 of 3342

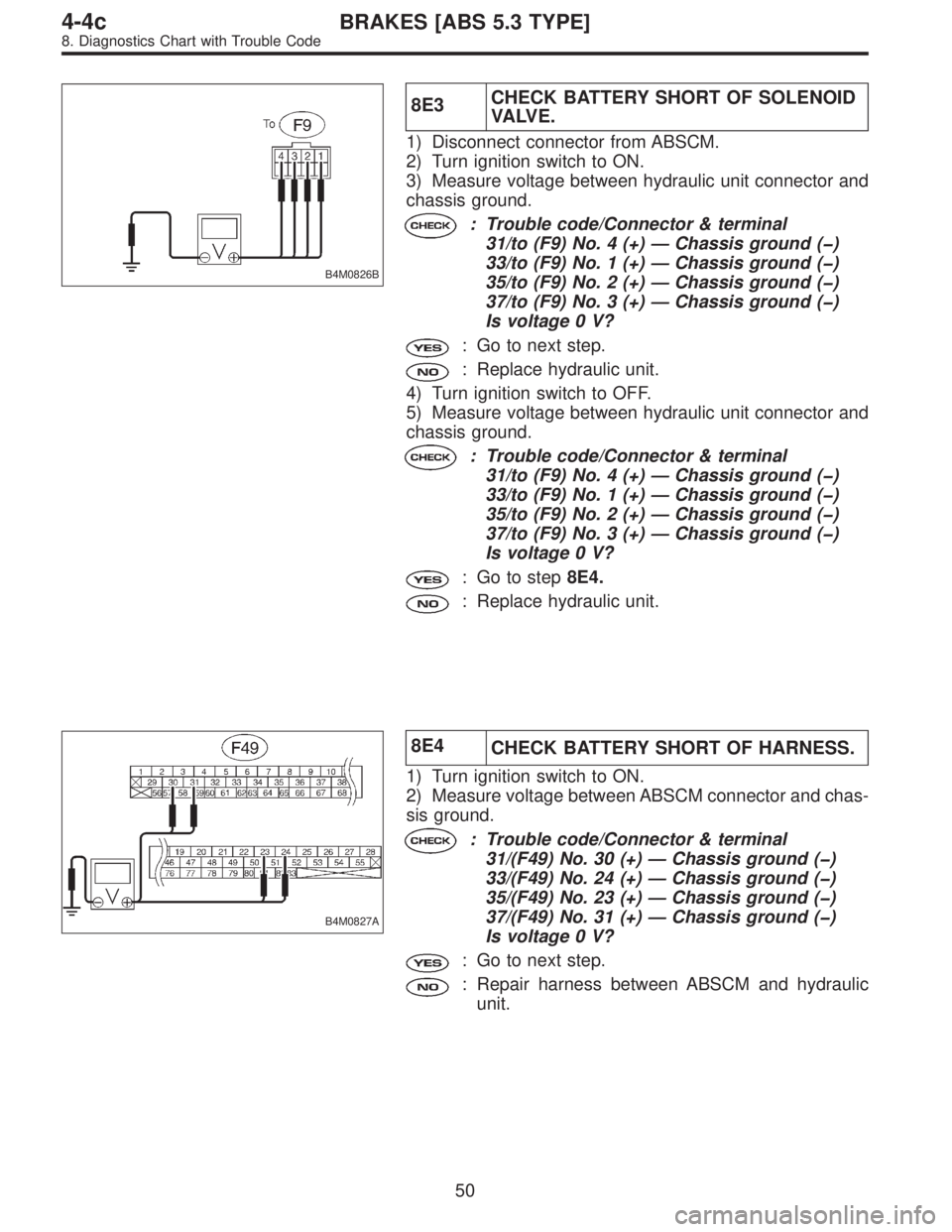

SUBARU LEGACY 1997 Service Repair Manual B4M0824B 8E1CHECK RESISTANCE OF SOLENOID VA LV E . 1) Turn ignition switch to OFF. 2) Disconnect two connectors (ABS1, F9) from hydraulic unit. 3) Measure resistance between hydraulic unit connector t

Page 2655 of 3342

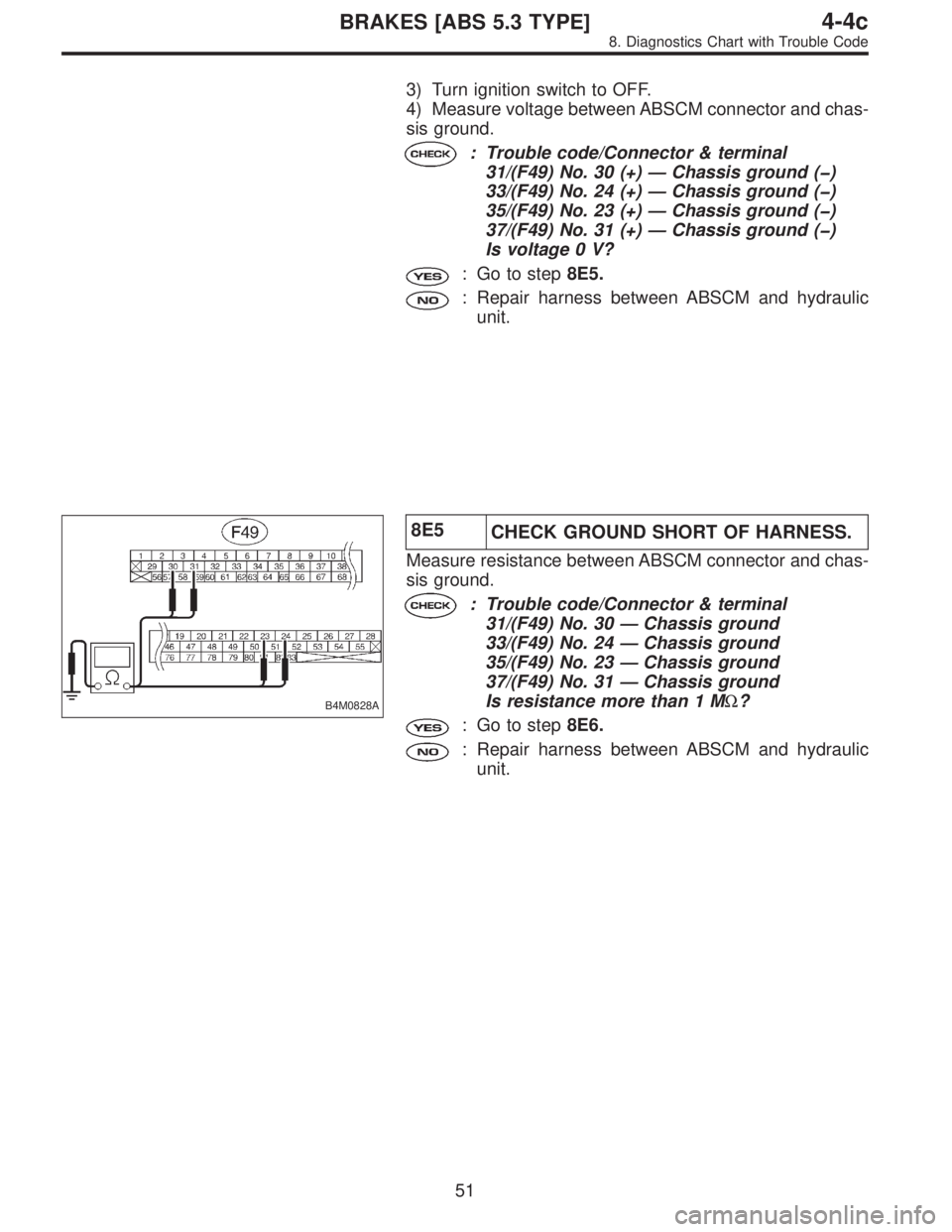

SUBARU LEGACY 1997 Service Repair Manual B4M0826B 8E3CHECK BATTERY SHORT OF SOLENOID VA LV E . 1) Disconnect connector from ABSCM. 2) Turn ignition switch to ON. 3) Measure voltage between hydraulic unit connector and chassis ground. : Troub

Page 2656 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3) Turn ignition switch to OFF. 4) Measure voltage between ABSCM connector and chas- sis ground. : Trouble code/Connector & terminal 31/(F49) No. 30 (+)—Chassis ground (�) 33/(F49) No. 24 (+)—Chas
