Page 2969 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0430 10C1 CHECK GENERATOR. 1) Start the engine. 2) Idle the engine. 3) Measure voltage between generator and chassis ground. Terminal Generator B terminal (+)—Chassis ground (�): : Is the voltage

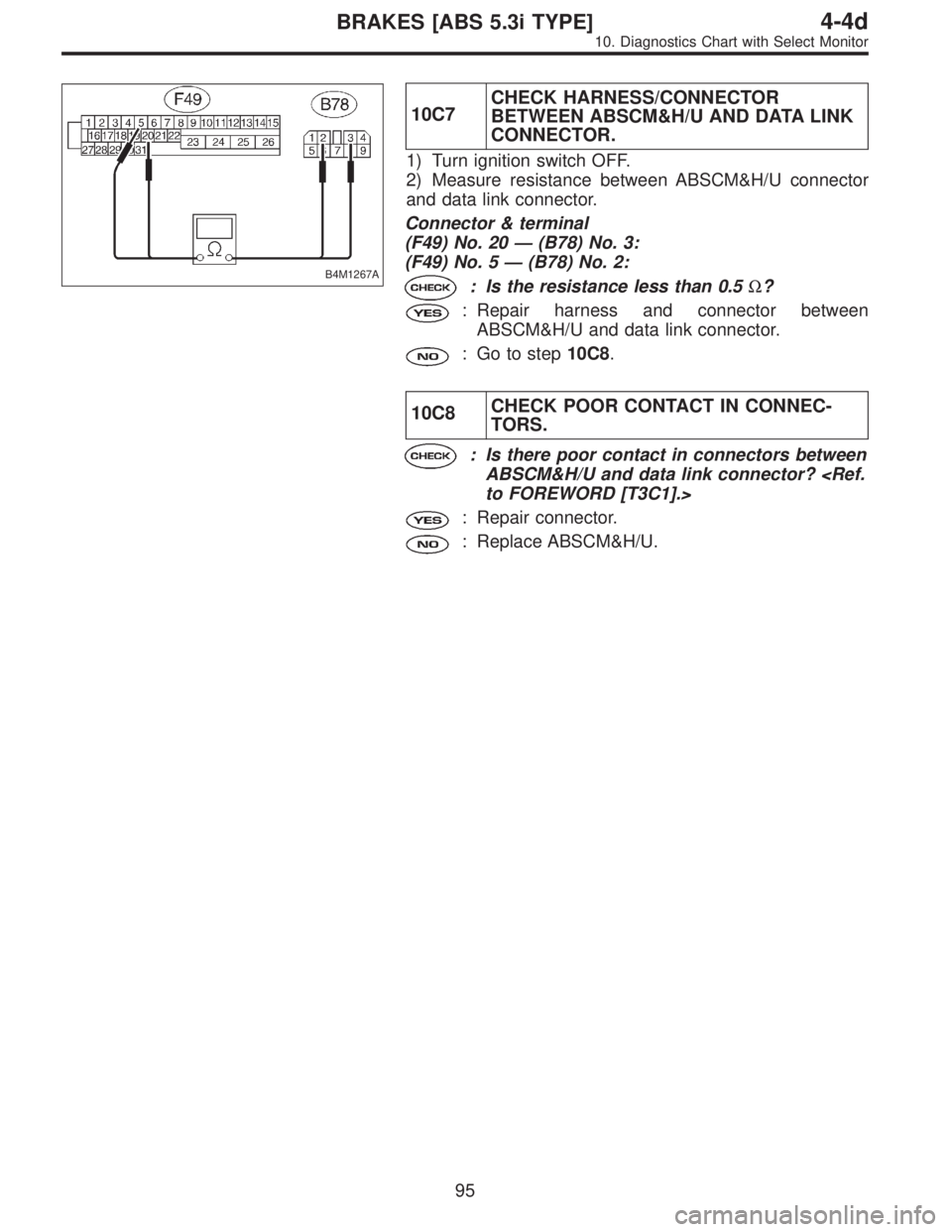

Page 2970 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M1234A 10C5CHECK POWER SUPPLY OF ABSCM&H/U. 1) Disconnect connector from ABSCM&H/U. 2) Start engine. 3) Idle the engine. 4) Measure voltage between ABSCM&H/U connector and chassis ground. Connector

Page 2971 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M1267A 10C7CHECK HARNESS/CONNECTOR BETWEEN ABSCM&H/U AND DATA LINK CONNECTOR. 1) Turn ignition switch OFF. 2) Measure resistance between ABSCM&H/U connector and data link connector. Connector & term

Page 2972 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0944 D: NO TROUBLE —ALTHOUGH NO TROUBLE APPEARS ON THE SELECT MONITOR DISPLAY, THE ABS WARNING LIGHT REMAINS ON— DIAGNOSIS: ABS warning light circuit is shorted. TROUBLE SYMPTOM: ABS warning

Page 2973 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10D1 CHECK WIRING HARNESS. 1) Turn ignition switch to OFF. 2) Disconnect connector (F2) from connector (B100). 3) Turn ignition switch to ON. : Does the ABS warning light remain off? : Go to step10D2.

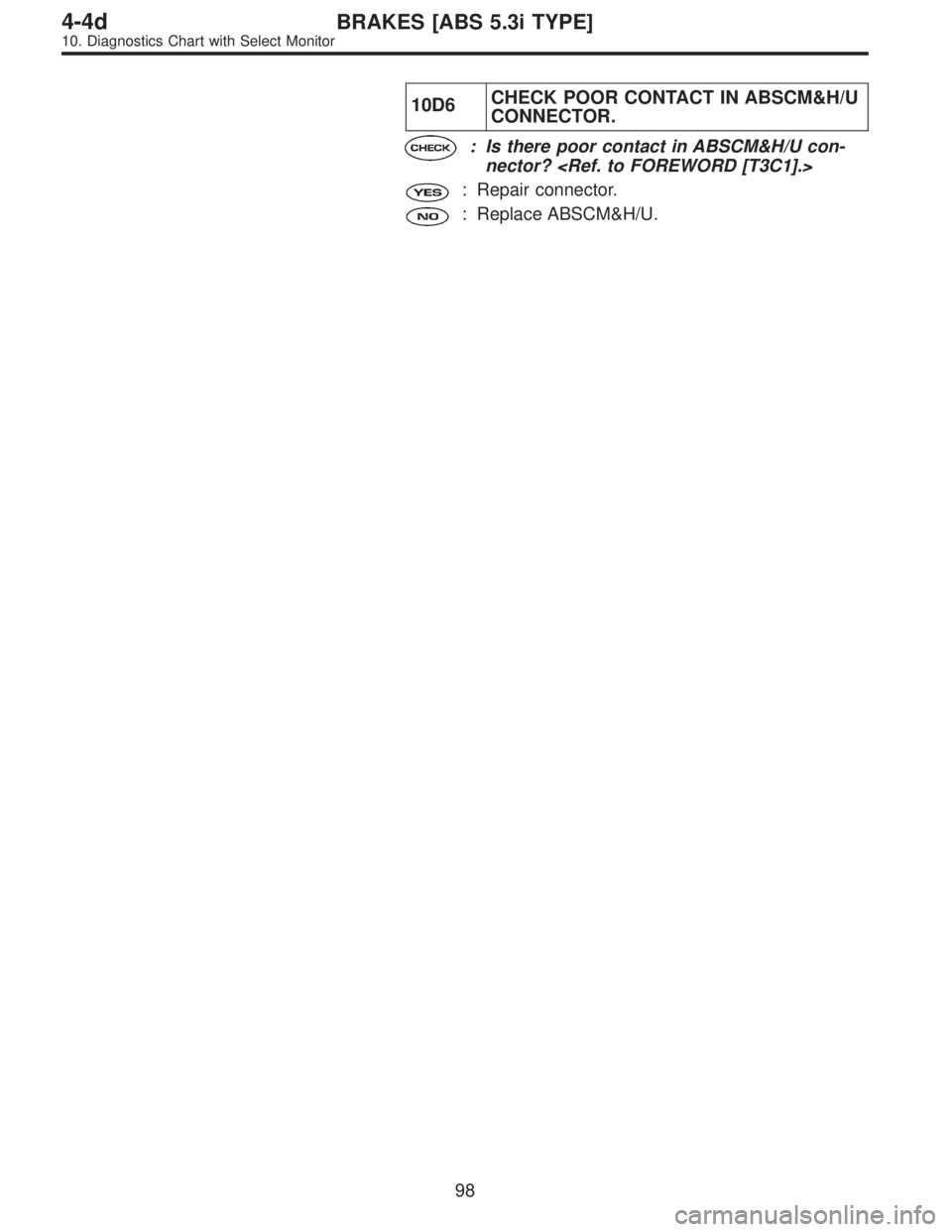

Page 2974 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10D6CHECK POOR CONTACT IN ABSCM&H/U CONNECTOR. : Is there poor contact in ABSCM&H/U con- nector? <Ref. to FOREWORD [T3C1].> : Repair connector. : Replace ABSCM&H/U. 98 4-4dBRAKES [ABS 5.3i TYPE] 10. D

Page 2975 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0945 E: TROUBLE CODE 21 FR. SS HARD —ABNORMAL FRONT RH ABS SENSOR (OPEN CIRCUIT OR INPUT VOLTAGE TOO HIGH)— B4M0946 F: TROUBLE CODE 23 FL. SS HARD —ABNORMAL FRONT LH ABS SENSOR (OPEN CIRCUIT

Page 2976 of 3342

SUBARU LEGACY 1997 Service Repair Manual DIAGNOSIS: Faulty ABS sensor (Broken wire, input voltage too high) Faulty harness connector TROUBLE SYMPTOM: ABS does not operate. WIRING DIAGRAM: B4M1238 100 4-4dBRAKES [ABS 5.3i TYPE] 10. Diagnos
