Page 2193 of 3342

SUBARU LEGACY 1997 Service Repair Manual : Replace pressure sources switching solenoid valve. OBD0676A 10CA4CHECK POWER SUPPLY TO PRESSURE SOURCES SWITCHING SOLENOID VA LV E . 1) Turn ignition switch to ON. 2) Measure voltage between pressur

Page 2194 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0489 CB: DTC P1103 —ENGINE TORQUE CONTROL SIGNAL CIRCUIT MALFUNCTION— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Excessive shift shock WIRING DIAGRAM:

Page 2195 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0599A 10CB1 CHECK INPUT SIGNAL FOR ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM and chassis ground. : Connector & terminal (B84) No. 79 (+)—Chassis ground (�): Is the voltag

Page 2196 of 3342

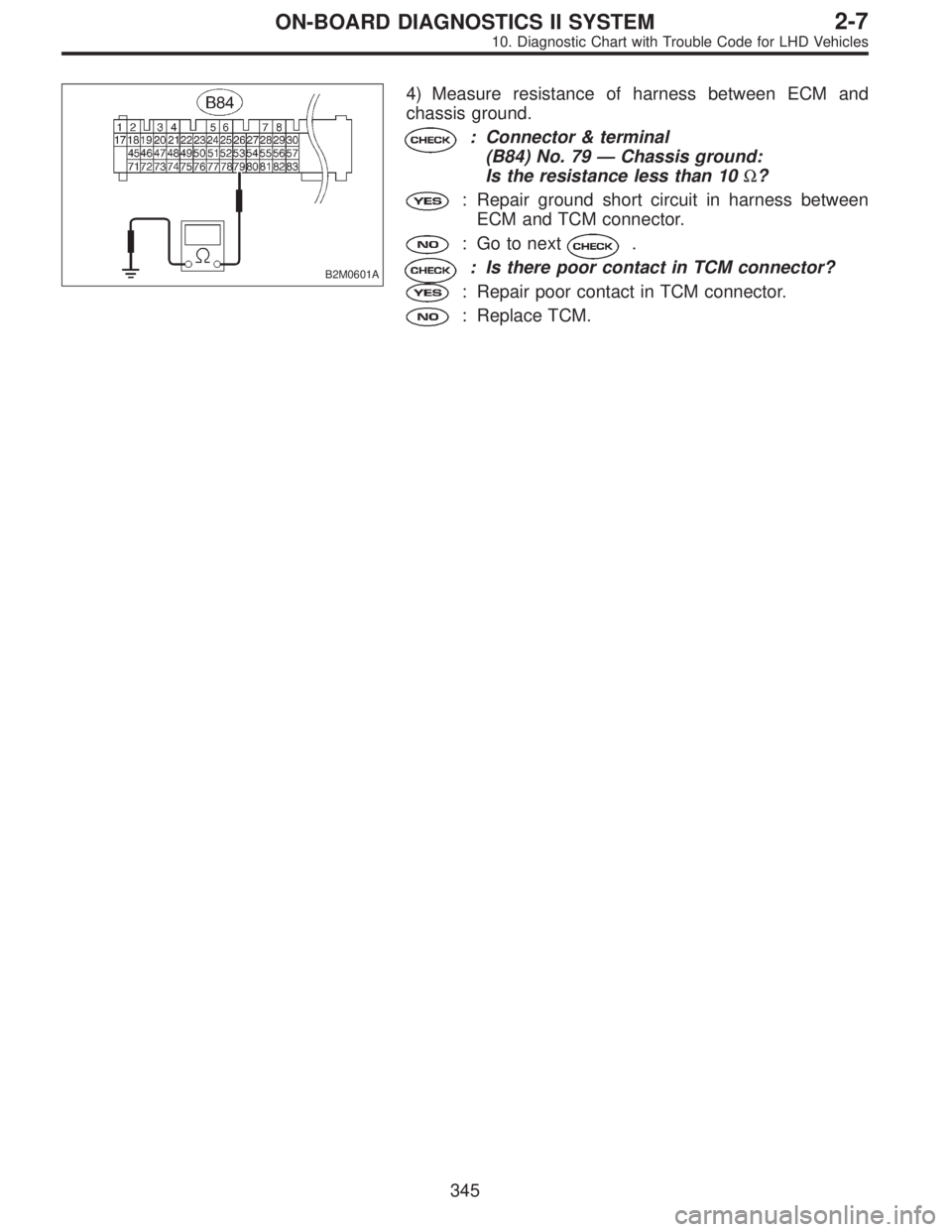

SUBARU LEGACY 1997 Service Repair Manual B2M0601A 4) Measure resistance of harness between ECM and chassis ground. : Connector & terminal (B84) No. 79—Chassis ground: Is the resistance less than 10Ω? : Repair ground short circuit in harn

Page 2197 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1121 CC: DTC P1104 —TCS SIGNAL CIRCUIT LOW INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: No operation TCS TCS warning light remains illuminated.

Page 2198 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0603A 10CC1 CHECK OUTPUT SIGNAL FROM ECM. 1) Turn ignition switch to ON. 2) Measure voltage between ECM and chassis ground. : Connector & terminal (B84) No. 61 (+)—Chassis ground (�): Is the volt

Page 2199 of 3342

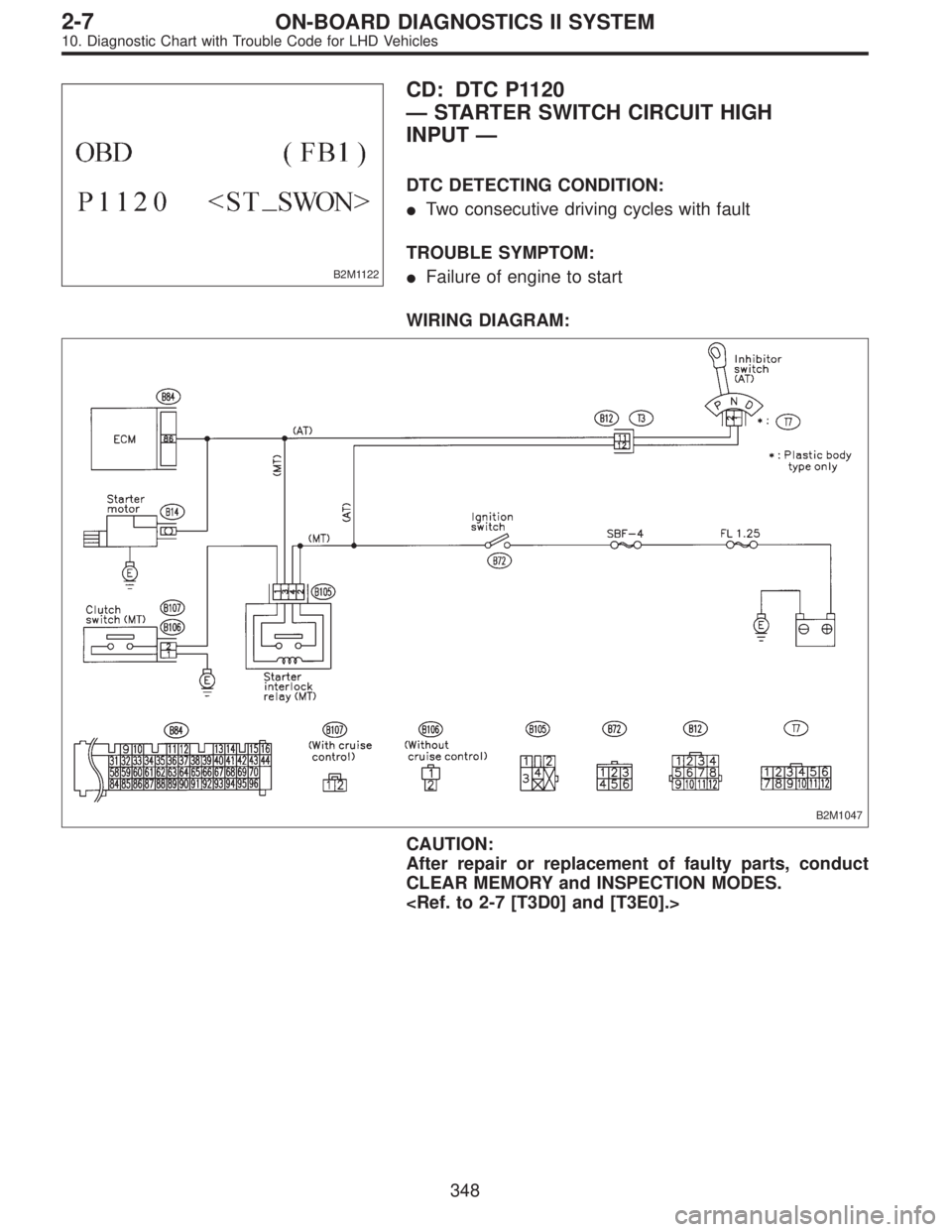

SUBARU LEGACY 1997 Service Repair Manual B2M1122 CD: DTC P1120 —STARTER SWITCH CIRCUIT HIGH INPUT— DTC DETECTING CONDITION: Two consecutive driving cycles with fault TROUBLE SYMPTOM: Failure of engine to start WIRING DIAGRAM: B2M1047 C

Page 2200 of 3342

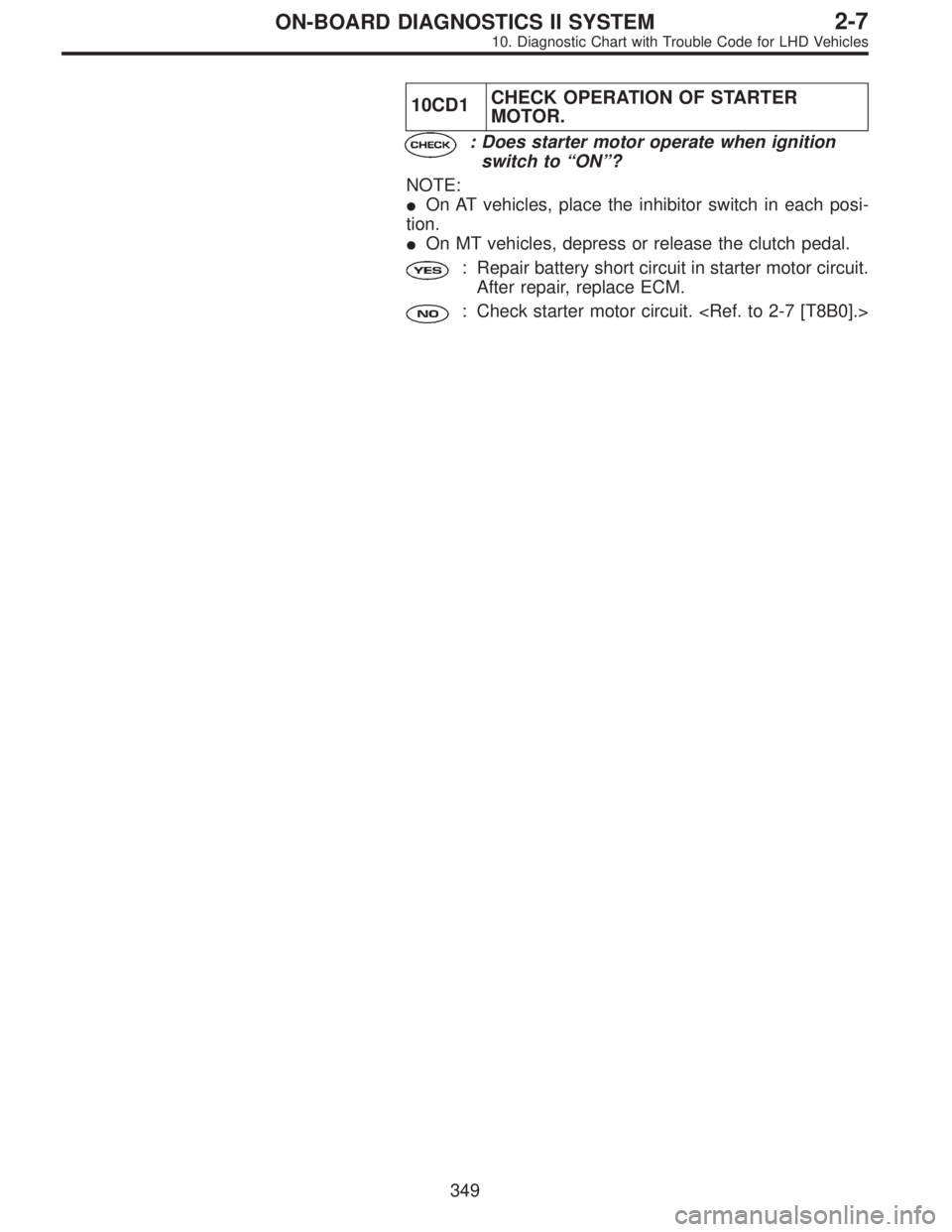

SUBARU LEGACY 1997 Service Repair Manual 10CD1CHECK OPERATION OF STARTER MOTOR. : Does starter motor operate when ignition switch to“ON”? NOTE: On AT vehicles, place the inhibitor switch in each posi- tion. On MT vehicles, depress or r
