Page 1497 of 3342

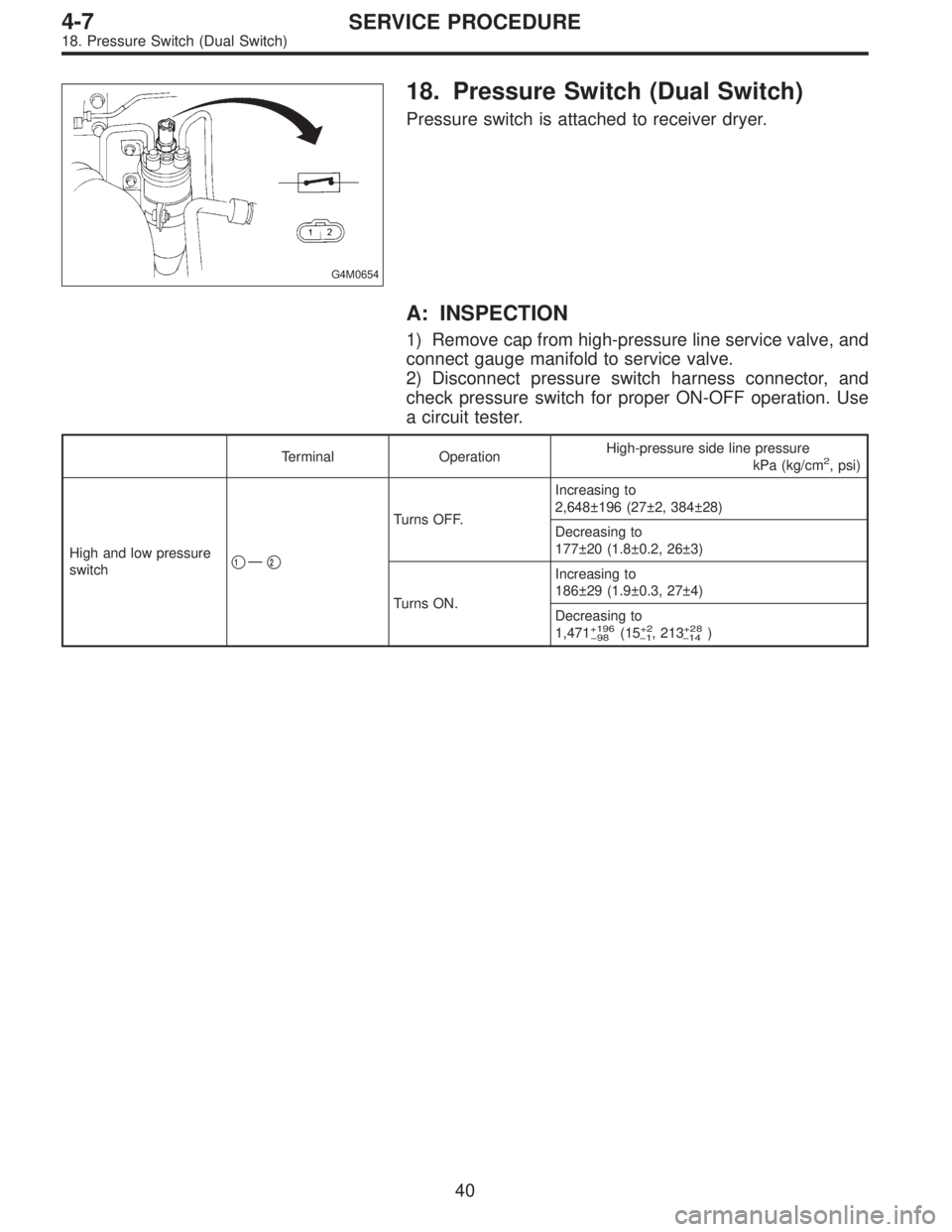

SUBARU LEGACY 1997 Service Repair Manual G4M0654 18. Pressure Switch (Dual Switch) Pressure switch is attached to receiver dryer. A: INSPECTION 1) Remove cap from high-pressure line service valve, and connect gauge manifold to service valve.

Page 1498 of 3342

SUBARU LEGACY 1997 Service Repair Manual 1. Air Conditioning System Diagnosis 41 4-7DIAGNOSTICS 1. Air Conditioning System Diagnosis

Page 1499 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. Performance Test Diagnosis If various conditions caused to other air conditioning system, the characteristics revealed on manifold gauge reading are shown in the following: As to the method of a pe

Page 1500 of 3342

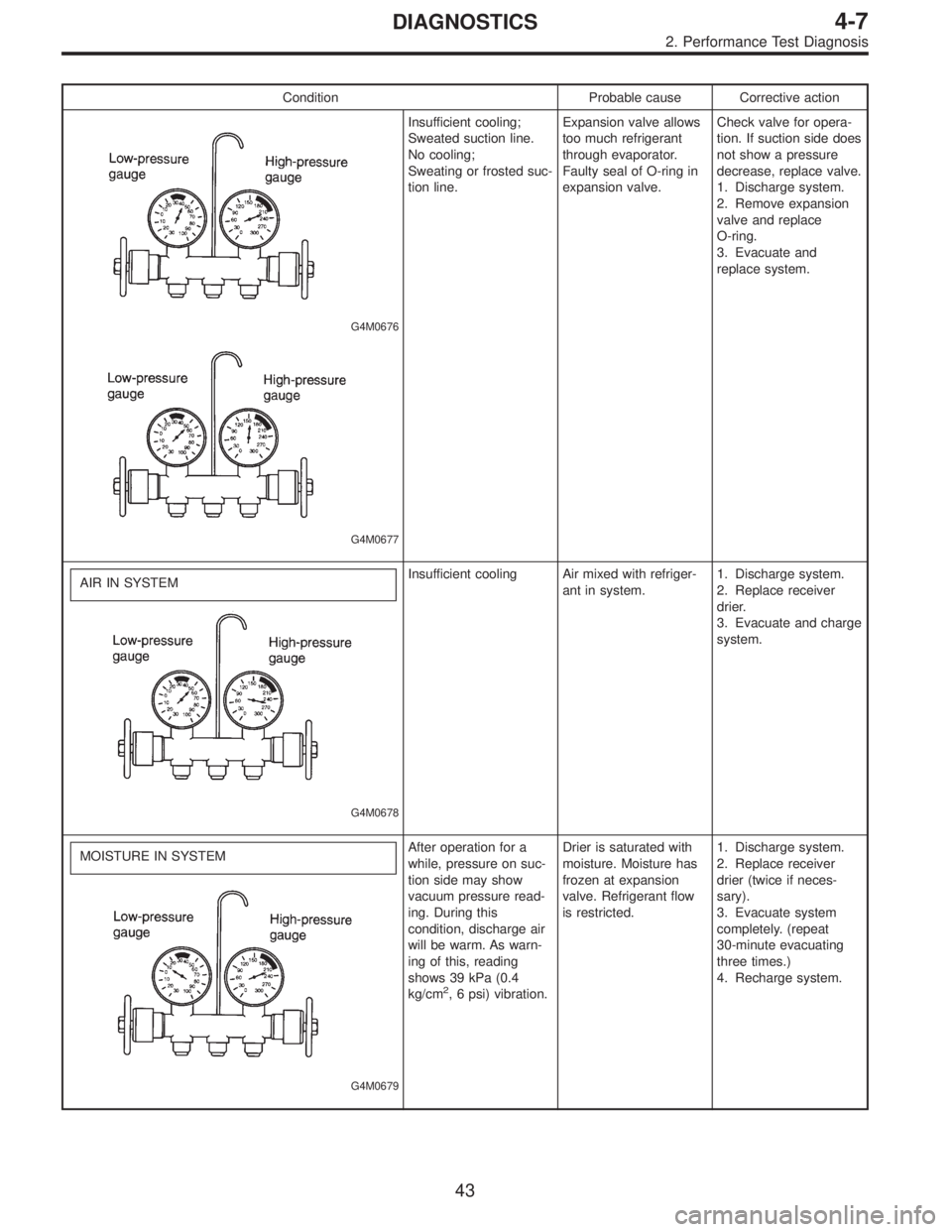

SUBARU LEGACY 1997 Service Repair Manual Condition Probable cause Corrective action G4M0676 G4M0677 Insufficient cooling; Sweated suction line. No cooling; Sweating or frosted suc- tion line.Expansion valve allows too much refrigerant throug

Page 1501 of 3342

SUBARU LEGACY 1997 Service Repair Manual Condition Probable cause Corrective action FAULTY CONDENSER G4M0680 No cooling action; Engine may overheat. Suction line is very hot.Condenser is often found not functioning well.Check condenser cool

Page 1502 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3. Blower Motor Diagnosis 45 4-7DIAGNOSTICS 3. Blower Motor Diagnosis

Page 1503 of 3342

SUBARU LEGACY 1997 Service Repair Manual 4. Compressor Diagnosis 46 4-7DIAGNOSTICS 4. Compressor Diagnosis

Page 1504 of 3342

SUBARU LEGACY 1997 Service Repair Manual 5. Compressor Clutch Diagnosis EPA0110 47 4-7DIAGNOSTICS 5. Compressor Clutch Diagnosis
