Page 2609 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3. Electrical Components Location
B4M0782A
1Hydraulic control unit (H/U)

2Proportioning valve

3ABS control module (ABSCM)

4Diagnosis connector

5ABS warning light

6Data link connector (for S

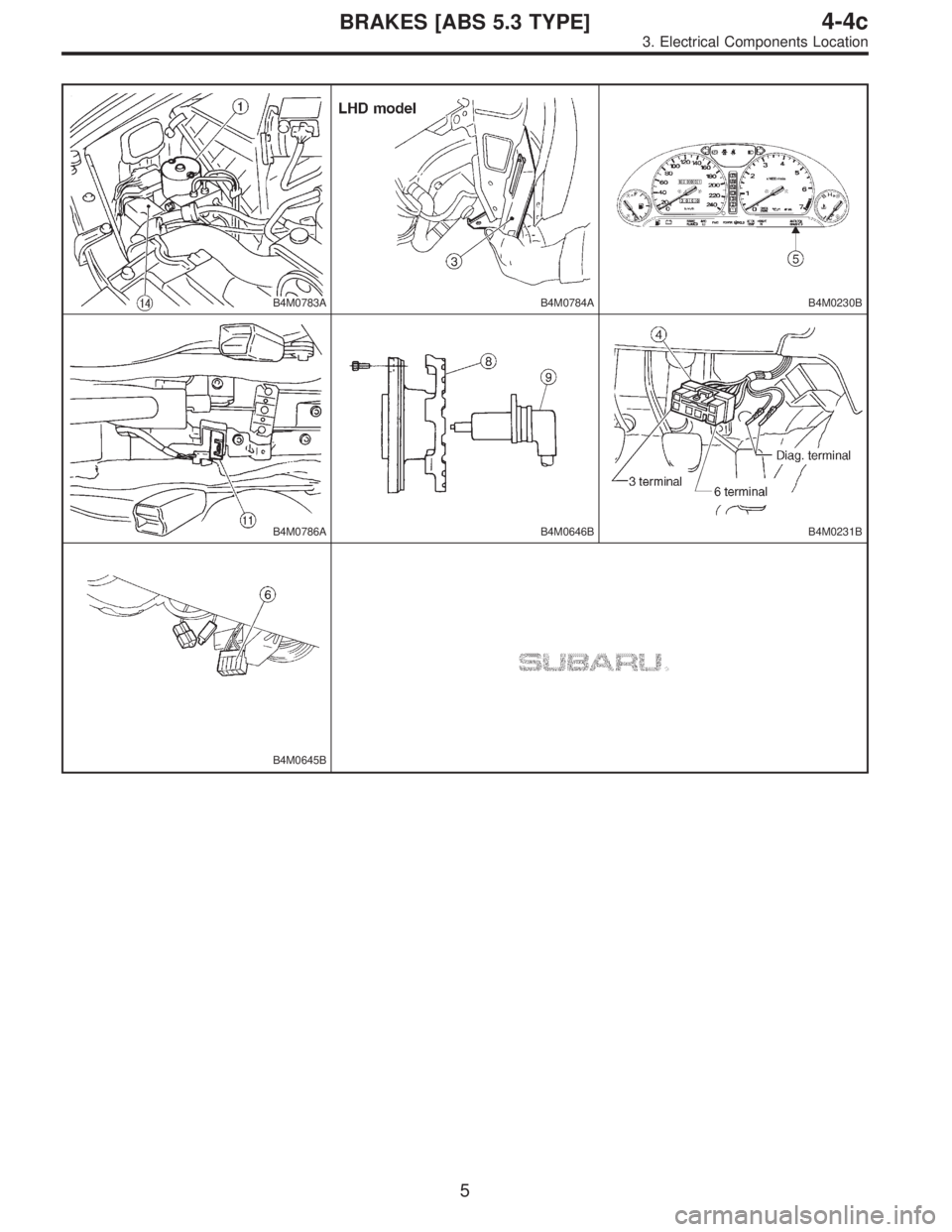

Page 2610 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0783AB4M0784AB4M0230B
B4M0786AB4M0646BB4M0231B
B4M0645B
5
4-4cBRAKES [ABS 5.3 TYPE]
3. Electrical Components Location

Page 2611 of 3342

SUBARU LEGACY 1997 Service Repair Manual 4. Schematic
B4M0787A
1Hydraulic control unit (H/U)

2Front left inlet solenoid valve

3Front left outlet solenoid valve

4Front right inlet solenoid valve

5Front right outlet solenoid valve

6

Page 2612 of 3342

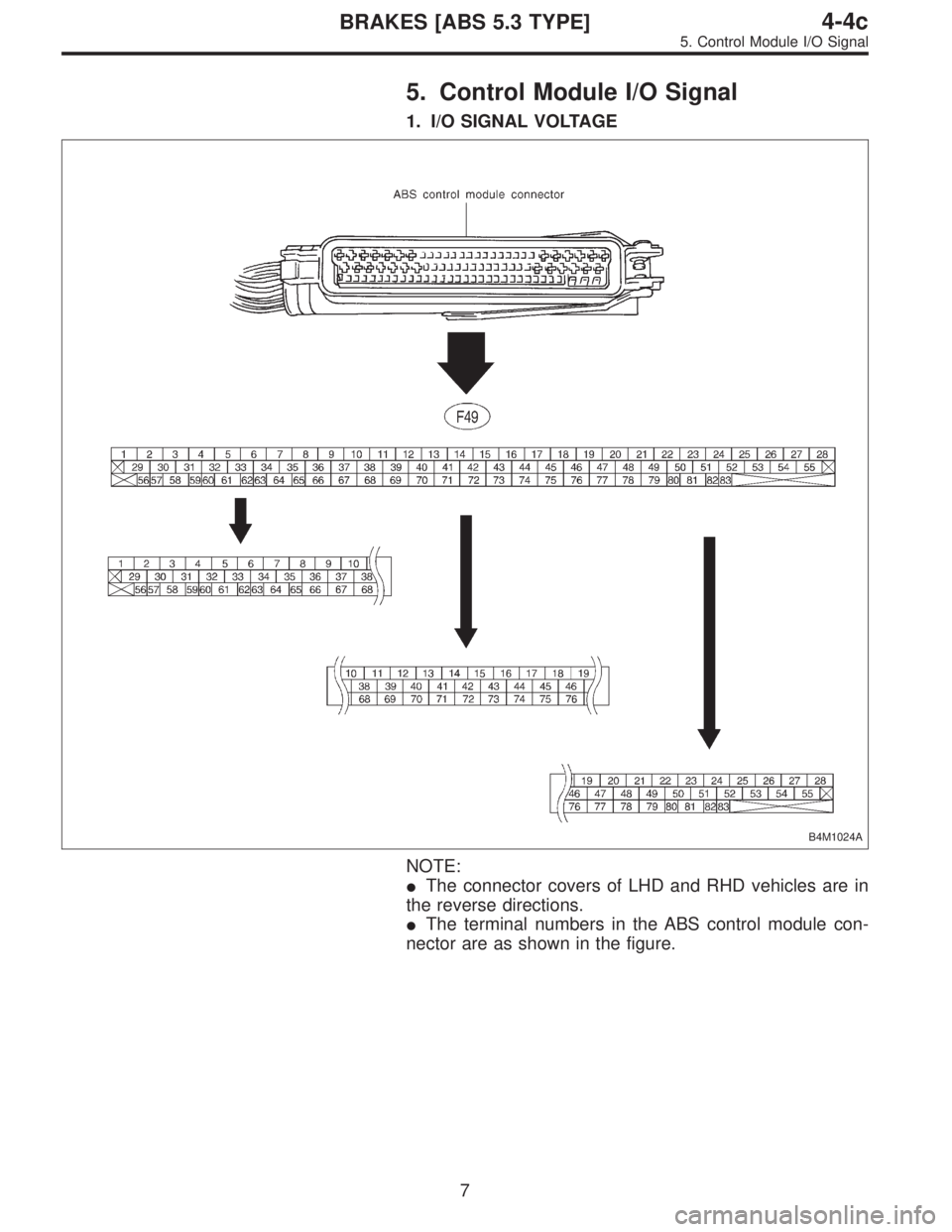

SUBARU LEGACY 1997 Service Repair Manual 5. Control Module I/O Signal
1. I/O SIGNAL VOLTAGE
B4M1024A
NOTE:
The connector covers of LHD and RHD vehicles are in
the reverse directions.
The terminal numbers in the ABS control module con-
nect

Page 2613 of 3342

SUBARU LEGACY 1997 Service Repair Manual Contents Terminal No.Input/Output signal
Measured value and measuring conditions
ABS sensor
(Wheel
speed
sensor)Front left wheel 49—19
0.12—1V
(When it is 20 Hz.) Front right wheel 14—15
Rear le

Contents Terminal No.Input/Output signal
Measured value and measuring conditions
ABS sensor
(Wheel
speed
sensor)Front left wheel 49—19
0.12—1V
(When it is 20 Hz.) Front right wheel 14—15
Rear left wheel 16—17
Rear right wheel 18—46
Hydraulic
control unitSolenoid
valveFront left outlet 51—1
10—13 V when the valve is OFF and
less than 1.5 V when the valve is ON. Front right outlet 3—1
Rear left outlet 4—1
Rear right outlet 50—1
Front left inlet 24—1
Front right inlet 30—1
Rear left inlet 31—1
Rear right inlet 23—1
Relay boxValve relay power supply 27—110—13 V when ignition switch is ON.
Valve relay coil 47—1 Less than 1.5 V when ignition switch is ON.
Motor relay coil 22—1More than 10 V when the ABS control does not operate still
and less than 1.5 V when ABS operates.
Motor monitoring 10—1Less than 1.5 V when the ABS control does not operate still
and more than 10 V when ABS operates.
G sensor
(AWD
model only)power supply 8—45 4.75—5.25 V
ground 45—
output 7—45 2.3±0.2 V when vehicle is in horizontal position.
Stop light switch 36—1Less than 1.5 V when the stop light is OFF and more than
4.5 V when the stop light is ON.
ABS warning light 54—1Less than 1.5 V during 1.5 seconds when ignition switch is
ON, and 10—14 V after 1.5 seconds.
AT ABS signal
(AT model only)12—1Less than 1.5 V when the ABS control does not operate still
and more than 5.5 V when ABS operates.
ABS operation signal monitor 39—1Less than 1.5 V when the ABS control does not operate still
and more than 5.5 V when ABS operates.
Select
monitorData is received. 11—1 Less than 1.5 V when no data is received.
Data is sent. 38—1 4.75—5.25 V when no data is sent.
Diagnosis
connectorTerminal No. 3 5—110—14 V when ignition switch is ON.
Terminal No. 6 13—110—14 V when ignition switch is ON.
Power supply 28—110—14 V when ignition switch is ON.
Grounding line 1—
Grounding line 55—
8
4-4cBRAKES [ABS 5.3 TYPE]
5. Control Module I/O Signal

Page 2614 of 3342

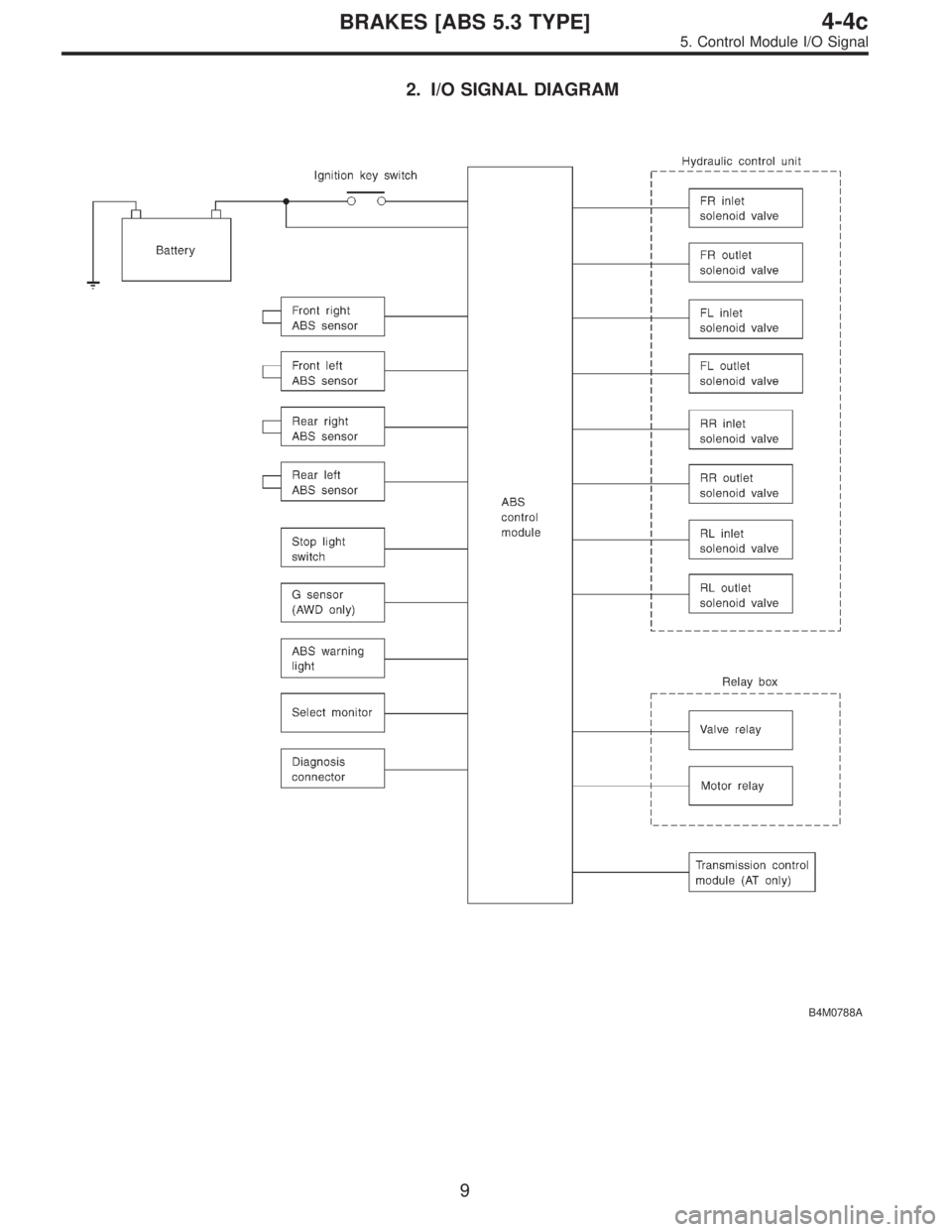

SUBARU LEGACY 1997 Service Repair Manual 2. I/O SIGNAL DIAGRAM
B4M0788A
9
4-4cBRAKES [ABS 5.3 TYPE]
5. Control Module I/O Signal

Page 2615 of 3342

SUBARU LEGACY 1997 Service Repair Manual 6. Diagnostics Chart for On-board
Diagnosis System
A: BASIC DIAGNOSTICS PROCEDURE
TROUBLE OCCURS.
Is Select Monitor available?
No
Ye s
10. Diagnostic Chart with Select
Monitor <Ref. to 4-4c [T10A0].>

Page 2616 of 3342

SUBARU LEGACY 1997 Service Repair Manual B: CHECK LIST FOR INTERVIEW
Check the following items about the vehicle’s state.
1. THE STATE OF THE WARNING LIGHTS
a. ABS warning light

1Is always on.2Sometimes comes on.3Comes on only once.4D

B: CHECK LIST FOR INTERVIEW
Check the following items about the vehicle’s state.
1. THE STATE OF THE WARNING LIGHTS
a. ABS warning light

1Is always on.2Sometimes comes on.3Comes on only once.4Does not come on.
When/how long does it come on?
Ignition key
position
1Lock2Acc3On (before starting engine)4Start5On after starting (Engine: run)
6On after starting (Engine: stop)
Timing
1Immediately after ignition is on.2Immediately after ignition starts.
3When advancing (Speedmiles/h,miles/h)4While traveling at a constant speed (Speedmiles/h)
5When decelerating (Speedmiles/h,miles/h)
6When turning (To right, to left, steering angledeg., steering timesec)
7When moving other electrical parts (Part name:, Operating condition)
2. SYMPTOMS
ABS operating
condition1Performs no work.2Operates only when abruptly applying brakes. (Conditions: vehicle speedmiles/h, how to step
on brake pedal)
3Operating time (sec., etc.)4Operating noise (Produced/Not produced)
5What kind of noise? (Knock, gong gong, bong, buzz, gong gong buzz, etc.)
6Reaction force of brake pedal (Stick, pressed down once with a clunk, pressed and released, etc.)
Behavior of
vehicle
1Directional stability cannot be obtained or steering arm refuses to work when applying brakes (vehicle turns to right, turns
to left, spins, etc.).
2Directional stability cannot be obtained or steering arm refuses to work when accelerating (vehicle turns to right, turns to
left, spins, etc.).
3Brakes are out of order (braking distance is long, brakes lock or drag, pedal stroke is long, pedal sticks, etc.).
4Poor acceleration (fails to accelerate, engine stalls, etc.).
5Vibration, abnormal noise (operating noise is loud, noise is produced during operation from the front of vehicle (right, left)
(tones:), noise is produced during operation from the rear of vehicle (tones:, others)
6Other phenomena (concrete symptoms)
3. CONDITIONS UNDER WHICH TROUBLE OCCURS
Environment1Weather (fine, cloudy, rain, snow, etc.)
2Ambient temperature (°C/°F)
3Road (urban area, suburbs, highway, general road, ascending slope, descending slope, paved road, gravel road, muddy
road, sandy place, etc.)
4Road surface (dry, wet, new-fallen snow, compressed snow, frozen slope, etc.)
Conditions
1Brakes (decelerationg, continuous/intermittent)2Accelerator (accelerationg, continuous/intermittent)
3Travel speed (miles, advancing, accelerating, reducing speed, low speed, turning, etc.)
4Condition of tire of each wheel (air pressure, degree of wear, whether or not genuine parts are used, whether
or not chain is passed around tires, whether or not T tire is used.) others ()
5Condition of suspension alignment ()
6Loading state ()
4. REPAIRED PARTS ARE USED OR NOT
11
4-4cBRAKES [ABS 5.3 TYPE]
6. Diagnostics Chart for On-board Diagnosis System
