Page 2345 of 3342

SUBARU LEGACY 1997 Service Repair Manual H2M1414B 11BA3CHECK INPUT SIGNAL FOR ECM. (USING VOLTAGE METER AND SUBARU SELECT MONITOR.) 1) Turn ignition switch to ON. (Engine OFF) 2) Measure voltage between ECM connector and chassis ground. : Co

Page 2346 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0936 2) Disconnect connector from fuel sub meter unit. 3) Measure resistance between connector terminals of fuel sub meter unit. : Terminals No. 1—No. 2: Is the resistance less than 100Ω? : Go

Page 2347 of 3342

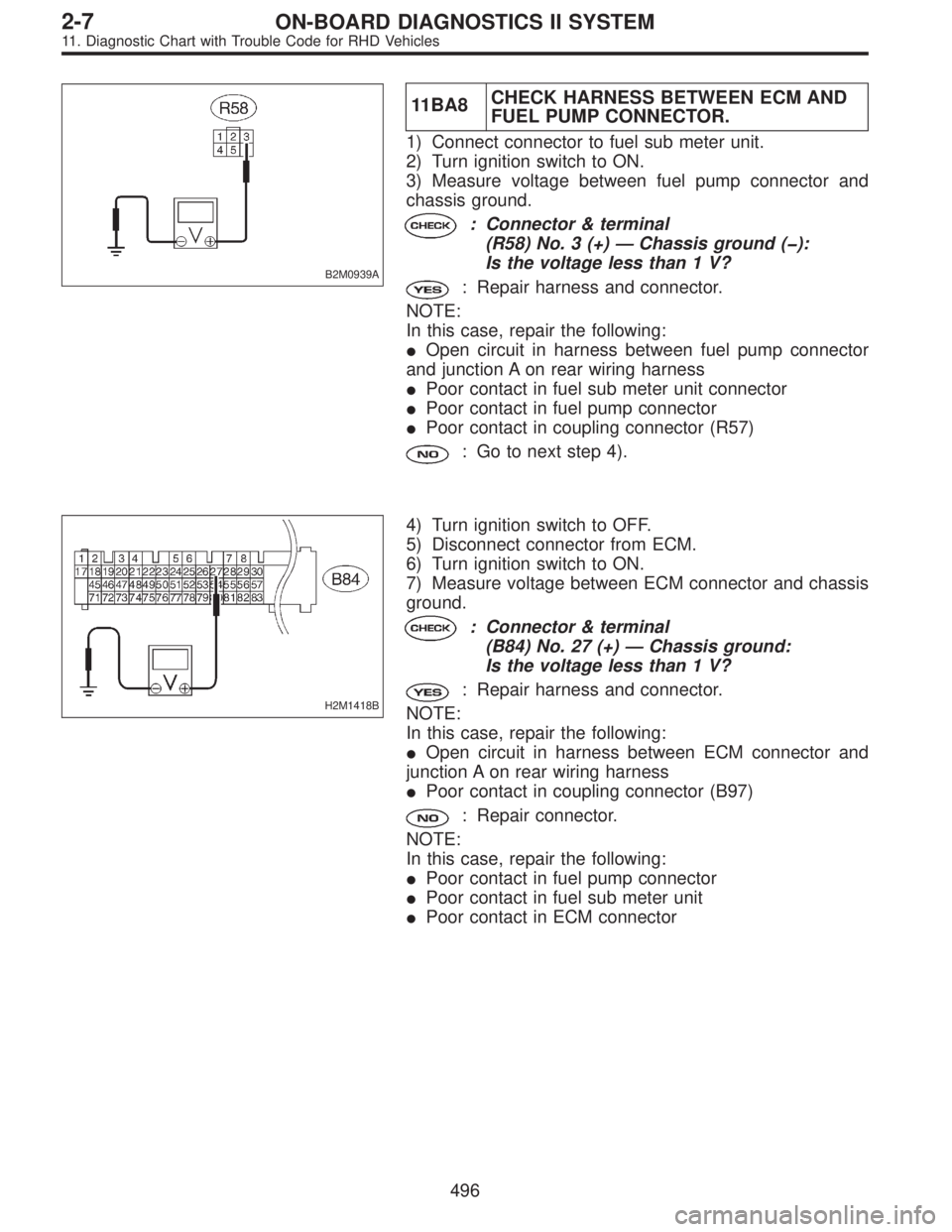

SUBARU LEGACY 1997 Service Repair Manual B2M0939A 11BA8CHECK HARNESS BETWEEN ECM AND FUEL PUMP CONNECTOR. 1) Connect connector to fuel sub meter unit. 2) Turn ignition switch to ON. 3) Measure voltage between fuel pump connector and chassis

Page 2348 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0340 BB: DTC P0500 —VEHICLE SPEED SENSOR MALFUNCTION— WIRING DIAGRAM: B2M1285 NOTE: Check vehicle speed sensor 2 circuit. <Ref. to 2-7 [T10BB0].> 497 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. Diagn

Page 2349 of 3342

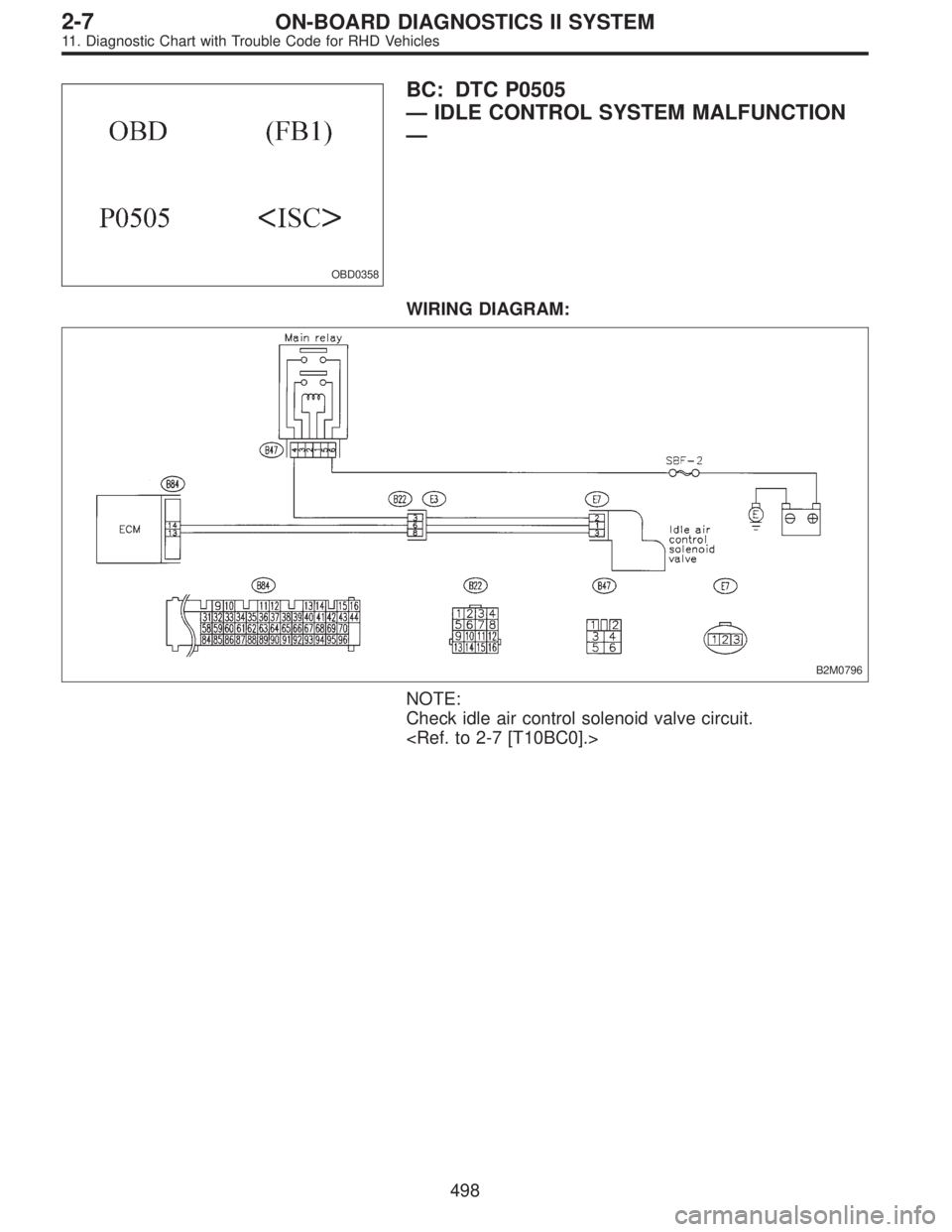

SUBARU LEGACY 1997 Service Repair Manual OBD0358 BC: DTC P0505 —IDLE CONTROL SYSTEM MALFUNCTION — WIRING DIAGRAM: B2M0796 NOTE: Check idle air control solenoid valve circuit. <Ref. to 2-7 [T10BC0].> 498 2-7ON-BOARD DIAGNOSTICS II SYSTEM

Page 2350 of 3342

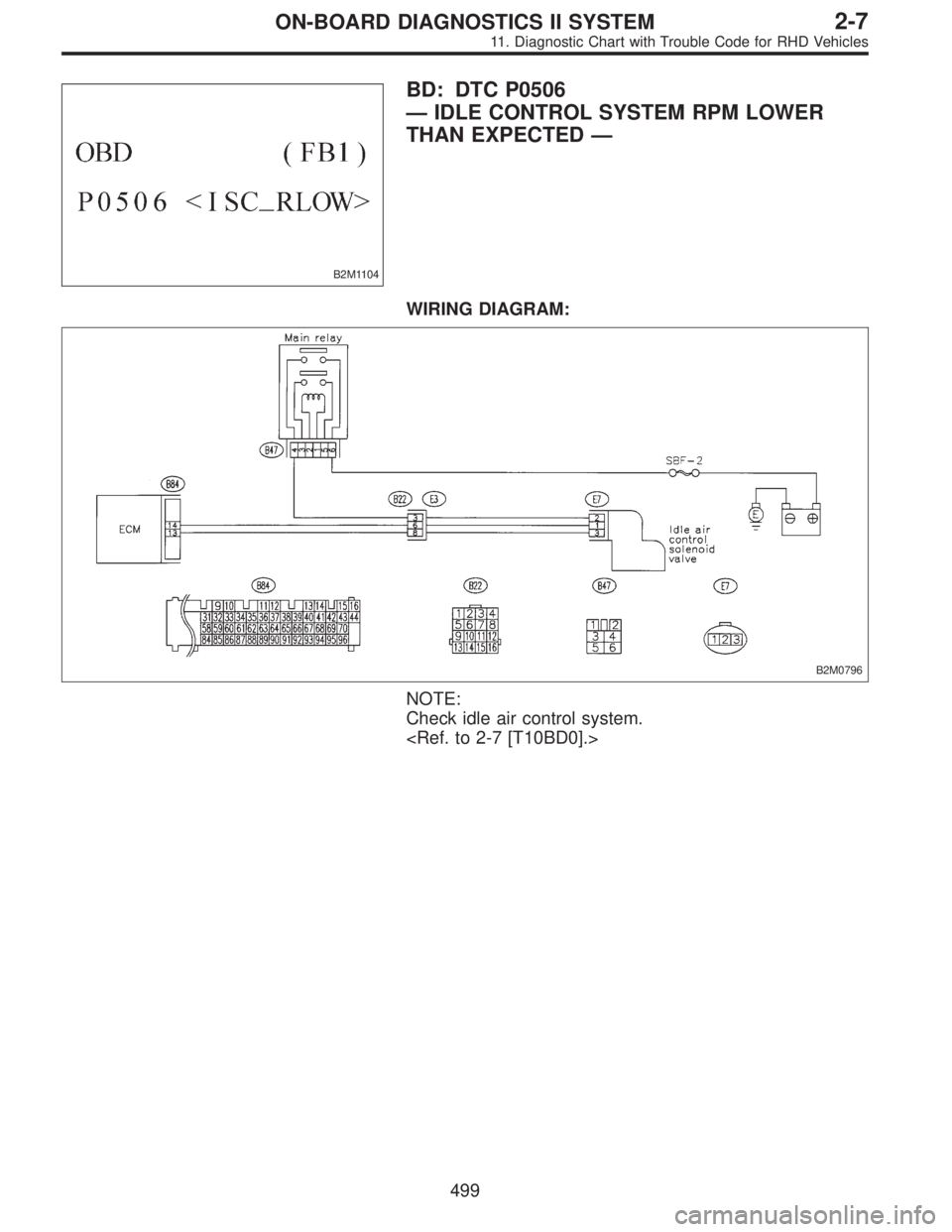

SUBARU LEGACY 1997 Service Repair Manual B2M1104 BD: DTC P0506 —IDLE CONTROL SYSTEM RPM LOWER THAN EXPECTED— WIRING DIAGRAM: B2M0796 NOTE: Check idle air control system. <Ref. to 2-7 [T10BD0].> 499 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. D

Page 2351 of 3342

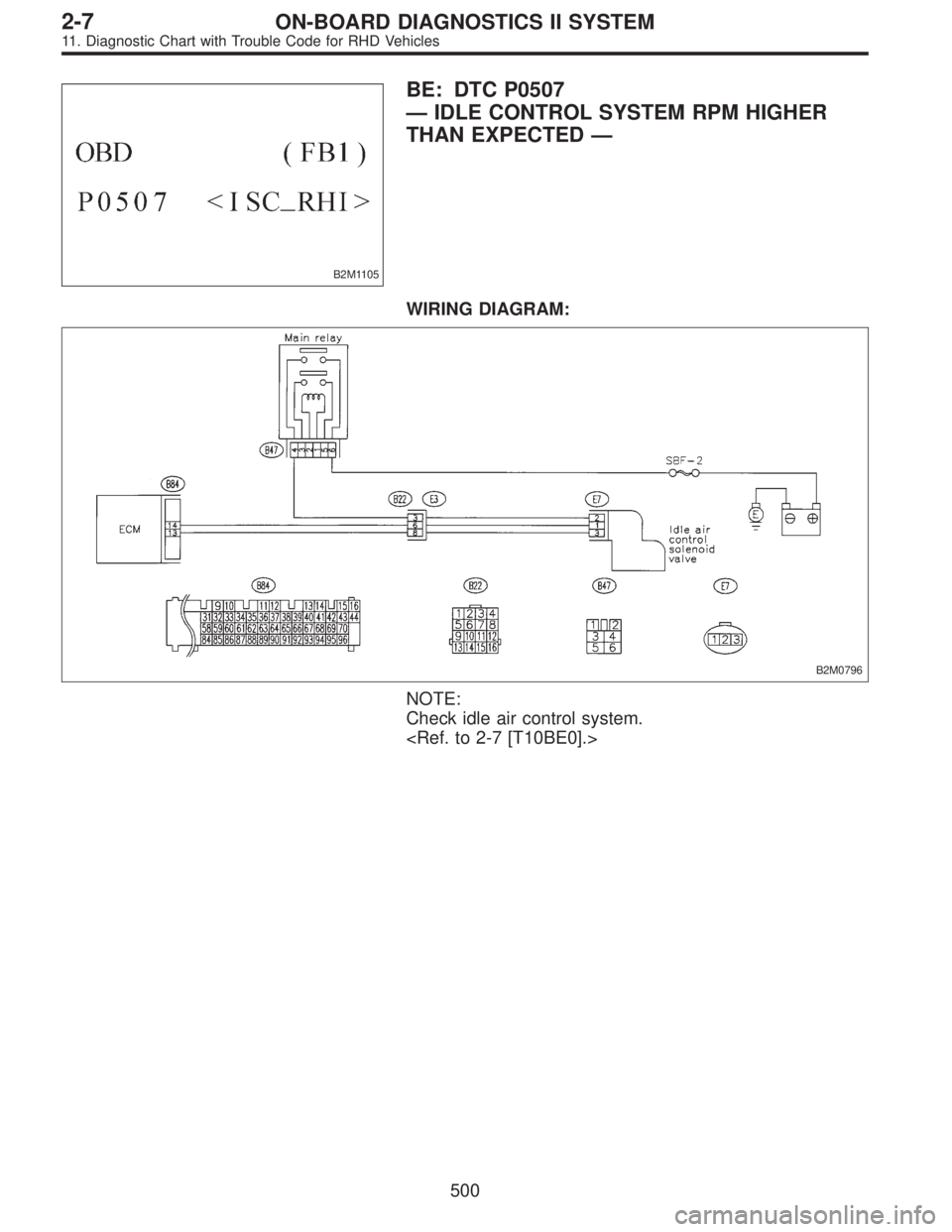

SUBARU LEGACY 1997 Service Repair Manual B2M1105 BE: DTC P0507 —IDLE CONTROL SYSTEM RPM HIGHER THAN EXPECTED— WIRING DIAGRAM: B2M0796 NOTE: Check idle air control system. <Ref. to 2-7 [T10BE0].> 500 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11.

Page 2352 of 3342

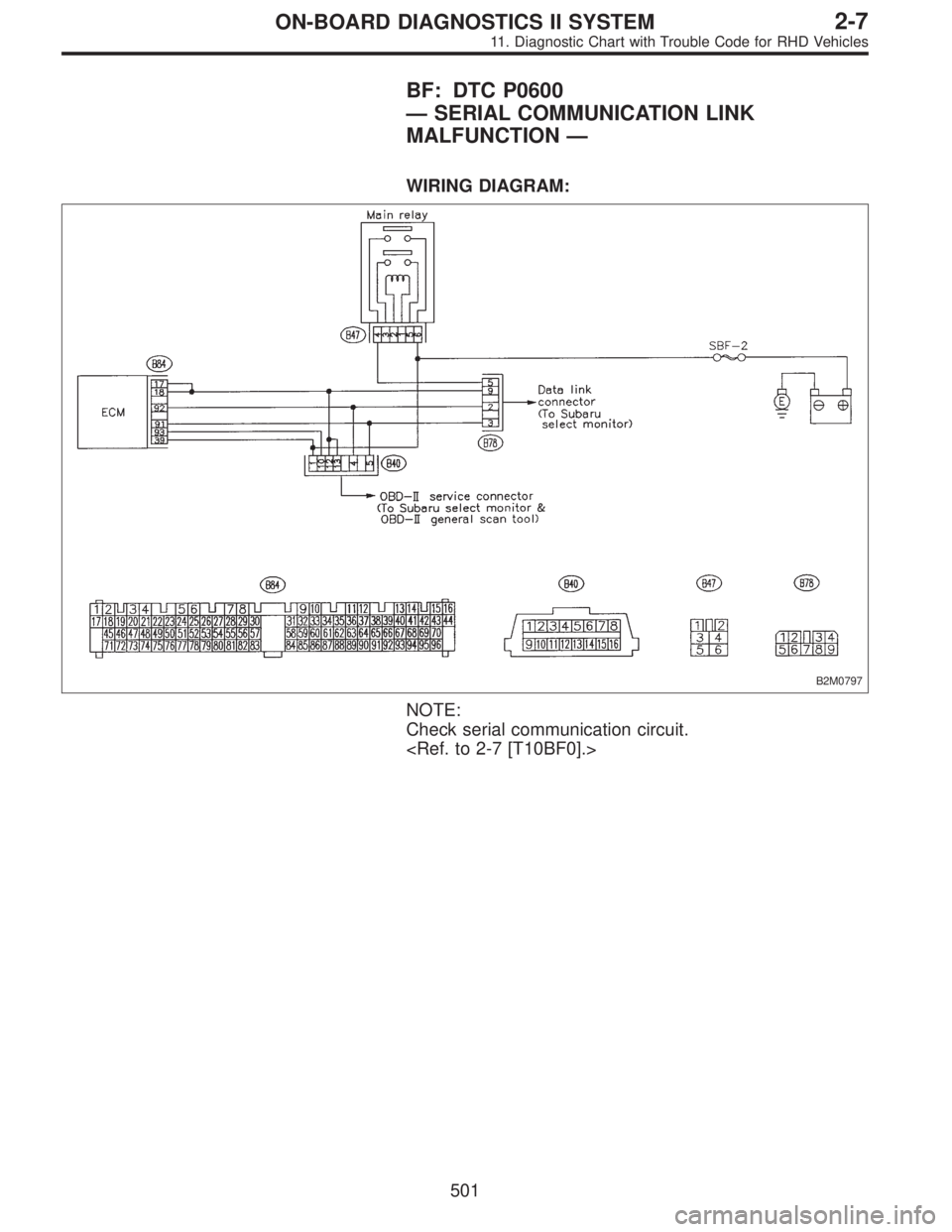

SUBARU LEGACY 1997 Service Repair Manual BF: DTC P0600 —SERIAL COMMUNICATION LINK MALFUNCTION— WIRING DIAGRAM: B2M0797 NOTE: Check serial communication circuit. <Ref. to 2-7 [T10BF0].> 501 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. Diagnostic
