LED No. Signal name Display
1 Stop light switch B1
2 Valve relay signal VR
3 Motor relay signal MR
4 AT ABS signal AT
5——
6 ABS warning light AW
7 Valve relay monitor VM
8 Motor relay monitor MM
9 CCM signal CM
10——
B1 VR MR AT—
AW VM MM CM—
1
2345
678910
I: MODE FA0
—ON↔OFF SIGNAL—
Requirement for LED“ON”
LED No. 1 Stop light switch is turned ON. (With brake
pedal depressed.)
LED No. 2 Valve relay is turned OFF.
LED No. 3 Motor relay is turned ON.
LED No. 4 ABS control operates.
LED No. 6 ABS warning light is ON.
LED No. 7 Valve relay is turned OFF.
LED No. 8 Motor relay is turned ON.
LED No. 9 ABS control operates.
85
4-4dBRAKES [ABS 5.3i TYPE]
9. Select Monitor Function Mode
Page 2962 of 3342
B4M0930
J: MODE FC0
—HISTORY OF TROUBLE CODES IS
ERASED (D⋅CLR)—
Deletes the recorded trouble codes in ABS control mod-
ule.
B4M0931
1) Press the function key [F] [C] [O] [ENT] in that order.
B4M0930
2) System indicates as shown.
B4M0933
3) Press the function key [0], to clear memories. The indi-
cation of
is added to screen.
B4M0934
4) Press the function key [ENT]. System indicates as
shown.
5) Turn ignition switch to OFF.
86
4-4dBRAKES [ABS 5.3i TYPE]
9. Select Monitor Function Mode
Page 2963 of 3342
B4M0935

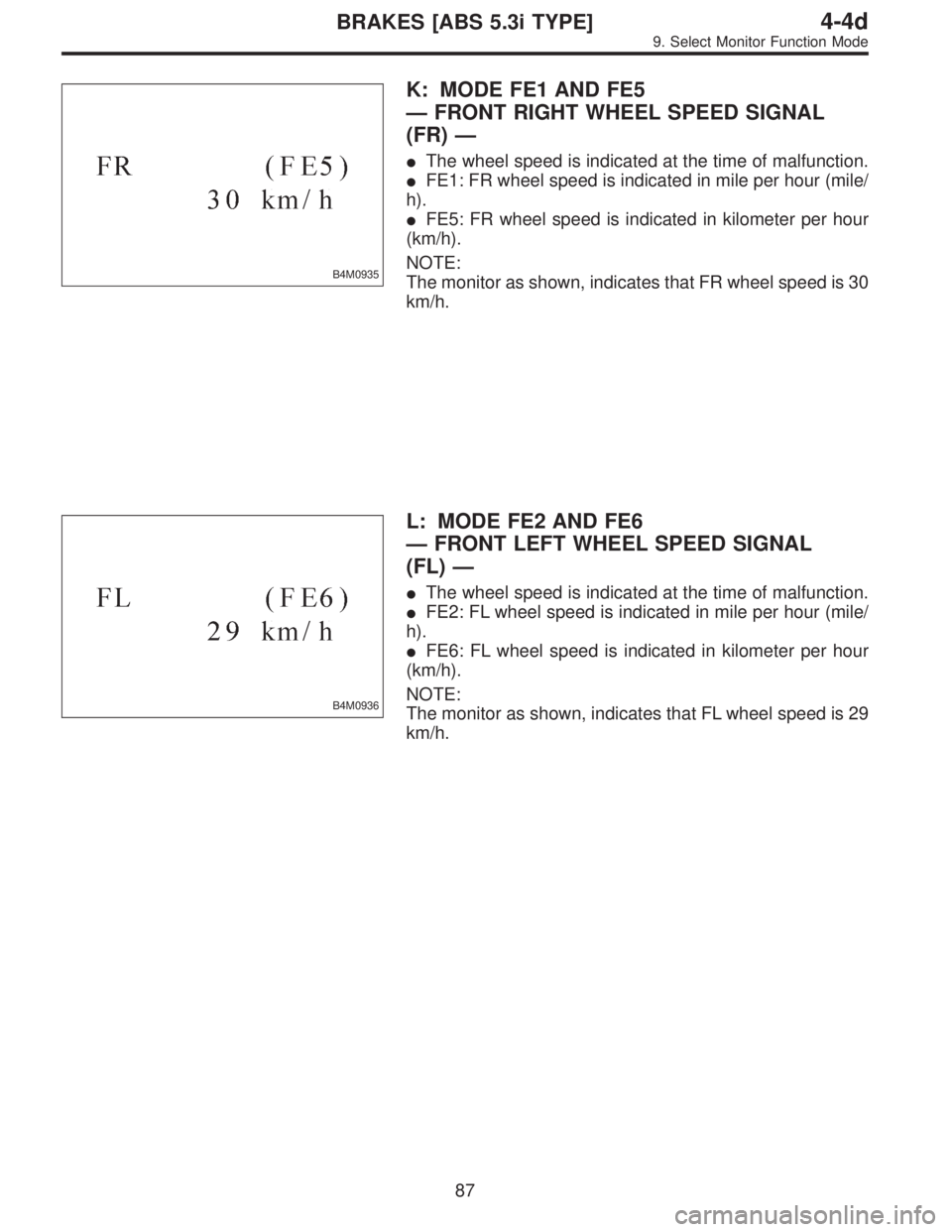

K: MODE FE1 AND FE5
—FRONT RIGHT WHEEL SPEED SIGNAL
(FR)—
The wheel speed is indicated at the time of malfunction.
FE1: FR wheel speed is indicated in mile per hour (mile/
h).
FE5: FR wheel speed is indicated in kilometer per hour
(km/h).
NOTE:
The monitor as shown, indicates that FR wheel speed is 30
km/h.
B4M0936
L: MODE FE2 AND FE6
—FRONT LEFT WHEEL SPEED SIGNAL
(FL)—
The wheel speed is indicated at the time of malfunction.
FE2: FL wheel speed is indicated in mile per hour (mile/
h).
FE6: FL wheel speed is indicated in kilometer per hour
(km/h).
NOTE:
The monitor as shown, indicates that FL wheel speed is 29
km/h.
87
4-4dBRAKES [ABS 5.3i TYPE]
9. Select Monitor Function Mode
Page 2964 of 3342
B4M0937

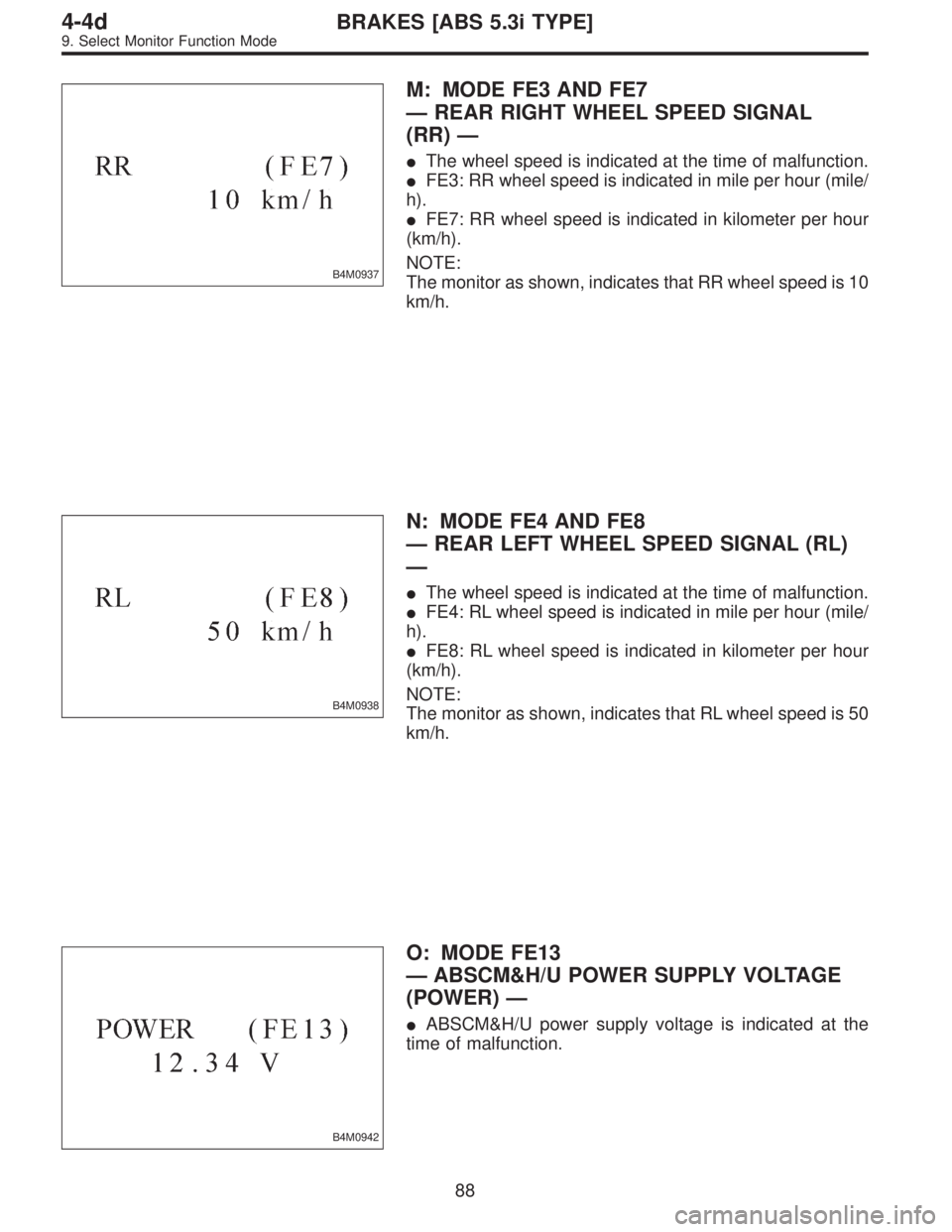

M: MODE FE3 AND FE7
—REAR RIGHT WHEEL SPEED SIGNAL
(RR)—
The wheel speed is indicated at the time of malfunction.
FE3: RR wheel speed is indicated in mile per hour (mile/
h).
FE7: RR wheel speed is indicated in kilometer per hour
(km/h).
NOTE:
The monitor as shown, indicates that RR wheel speed is 10
km/h.
B4M0938
N: MODE FE4 AND FE8
—REAR LEFT WHEEL SPEED SIGNAL (RL)
—
The wheel speed is indicated at the time of malfunction.
FE4: RL wheel speed is indicated in mile per hour (mile/
h).
FE8: RL wheel speed is indicated in kilometer per hour
(km/h).
NOTE:
The monitor as shown, indicates that RL wheel speed is 50
km/h.
B4M0942
O: MODE FE13
—ABSCM&H/U POWER SUPPLY VOLTAGE
(POWER)—
ABSCM&H/U power supply voltage is indicated at the
time of malfunction.
88
4-4dBRAKES [ABS 5.3i TYPE]
9. Select Monitor Function Mode
Page 2965 of 3342
B4M0939
P: MODE FE14
—G SENSOR OUTPUT VOLTAGE (G-SENS)
—
Refers to vehicle acceleration detected by the analog G
sensor at the time of malfunction. It appears on the select
monitor display in volts.
NOTE:
Only AWD model
LED No. Signal name Display
1 Motor relay monitor MM
2 Stop light switch B1
3 AT ABS signal AT
4 CCM signal CM
5 ABS signal AO
6——
7——
8——
9——
10——
MM B1 AT CM AO
—————
1
2345
678910
Q: MODE FE15
—ON↔OFF SIGNAL—
ON or OFF is indicated at the time of malfunction.
Requirement for LED“ON”
LED No. 1 Motor relay is turned ON.
LED No. 2 Stop light switch is turned ON. (With brake
pedal depressed.)
LED No. 3 ABS control operates.
LED No. 4 ABS control operates.
LED No. 5 ABS control operates.
H4M1151
R: MODE FE16
—TROUBLE CODE (CODE)—
When freeze frame data is stored in memory, trouble
code appears on monitor.
NOTE:
The monitor as shown, indicates trouble code 21.
89
4-4dBRAKES [ABS 5.3i TYPE]
9. Select Monitor Function Mode
Page 2966 of 3342

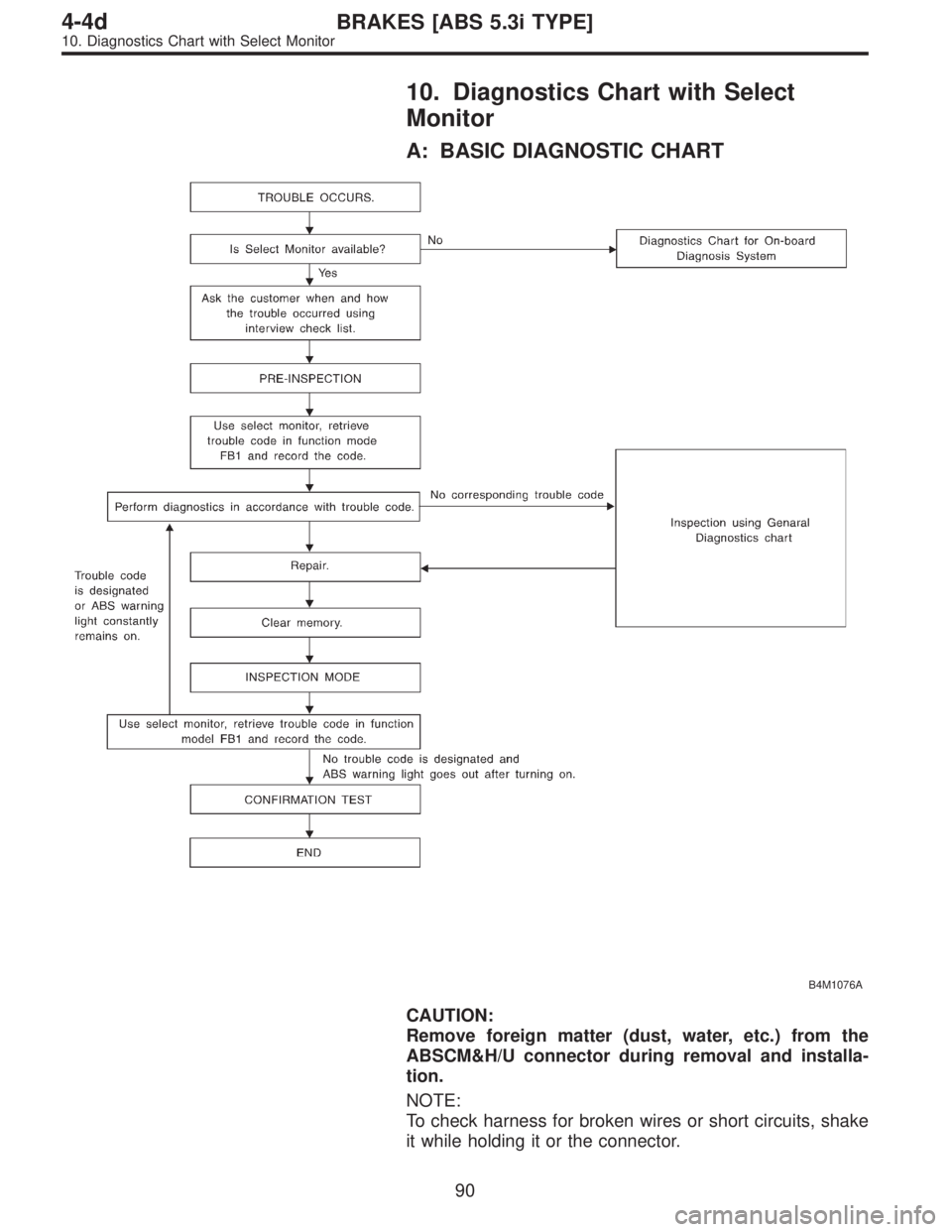

10. Diagnostics Chart with Select
Monitor
A: BASIC DIAGNOSTIC CHART
B4M1076A
CAUTION:
Remove foreign matter (dust, water, etc.) from the
ABSCM&H/U connector during removal and installa-
tion.
NOTE:
To check harness for broken wires or short circuits, shake
it while holding it or the connector.
90
4-4dBRAKES [ABS 5.3i TYPE]
10. Diagnostics Chart with Select Monitor
Page 2967 of 3342
![SUBARU LEGACY 1997 Service Repair Manual B: LIST OF TROUBLE CODE
Code Display screen (FB1) Contents of diagnosis Ref. to
—ERROR 3 (1) Select monitor communication failure 4-4d [T10C0]
11 NO TROUBLEAlthough no trouble appears on the select SUBARU LEGACY 1997 Service Repair Manual B: LIST OF TROUBLE CODE
Code Display screen (FB1) Contents of diagnosis Ref. to
—ERROR 3 (1) Select monitor communication failure 4-4d [T10C0]
11 NO TROUBLEAlthough no trouble appears on the select](/manual-img/17/57434/w960_57434-2966.png)
B: LIST OF TROUBLE CODE
Code Display screen (FB1) Contents of diagnosis Ref. to
—ERROR 3 (1) Select monitor communication failure 4-4d [T10C0]
11 NO TROUBLEAlthough no trouble appears on the select monitor display, the ABS
warning light remains on.4-4d [T10D0]
21 FR. SS HARD Open circuit or input voltage too high of FR sensor 4-4d [T10E0]
22 FR. SS SOFT Abnormal ABS sensor signal of FR sensor 4-4d [T10I0]
23 FL. SS HARD Open circuit or input voltage too high of FL sensor 4-4d [T10F0]
24 FL. SS SOFT Abnormal ABS sensor signal of FL sensor 4-4d [T10J0]
25 RR. SS HARD Open circuit or input voltage too high of RR sensor 4-4d [T10G0]
26 RR. SS SOFT Abnormal ABS sensor signal of RR sensor 4-4d [T10K0]
27 RL. SS HARD Open circuit or input voltage too high of RL sensor 4-4d [T10H0]
28 RL. SS SOFT Abnormal ABS sensor signal of RL sensor 4-4d [T10L0]
29 EITHER. SS SOFT Abnormal ABS sensor signal (any one of four) 4-4d [T10M0]
31 FR. EV VALVE Abnormal FR inlet valve 4-4d [T10N0]
32 FR. AV VALVE Abnormal FR outlet valve 4-4d [T10R0]
33 FL. EV VALVE Abnormal FL inlet valve 4-4d [T10O0]
34 FL. AV VALVE Abnormal FL outlet valve 4-4d [T10S0]
35 RR. EV VALVE Abnormal RR inlet valve 4-4d [T10P0]
36 RR. AV VALVE Abnormal RR outlet valve 4-4d [T10T0]
37 RL. EV VALVE Abnormal RL inlet valve 4-4d [T10Q0]
38 RL. AV VALVE Abnormal RL outlet valve 4-4d [T10U0]
41 ECU Abnormal ABSCM&H/U 4-4d [T10V0]
42LOW VOLTAGE Source voltage is low. 4-4d [T10W0]
HIGH VOLTAGE Source voltage is high. 4-4d [T10X0]
44CCM LINE A combination of AT control abnormals (ABS not in control) 4-4d [T10Y0]
CCM OPEN A combination of AT control abnormals (ABS in control) 4-4d [T10Z0]
51V. RELAY Abnormal valve relay 4-4d [T10AA0]
V. RELAY ON Valve relay ON failure 4-4d [T10AB0]
52M. RELAY OPEN Open circuit of motor relay 4-4d [T10AC0]
M. RELAY ON Motor relay ON failure 4-4d [T10AD0]
MOTOR Abnormal motor 4-4d [T10AE0]
54 BLS Abnormal stop light switch 4-4d [T10AF0]
56G SENSOR LINE Open or short circuit of G sensor 4-4d [T10AG0]
G SENSOR +B Battery short of G sensor 4-4d [T10AH0]
G SENSOR H µ Abnormal G sensor high µ output 4-4d [T10AI0]
G SENSOR STICK G sensor output is stuck. 4-4d [T10AJ0]
NOTE:
High µ means high friction coefficient against road sur-
face.
91
4-4dBRAKES [ABS 5.3i TYPE]
10. Diagnostics Chart with Select Monitor
Page 2968 of 3342
B4M0943
C: ERROR 3 (1)
—SELECT MONITOR COMMUNICATION
FAILURE—
DIAGNOSIS:
Faulty harness connector
TROUBLE SYMPTOM:
ABS warning light remains on.
ERROR 3 or 1 appears on the select monitor display.
WIRING DIAGRAM:
B4M1266
92
4-4dBRAKES [ABS 5.3i TYPE]
10. Diagnostics Chart with Select Monitor
