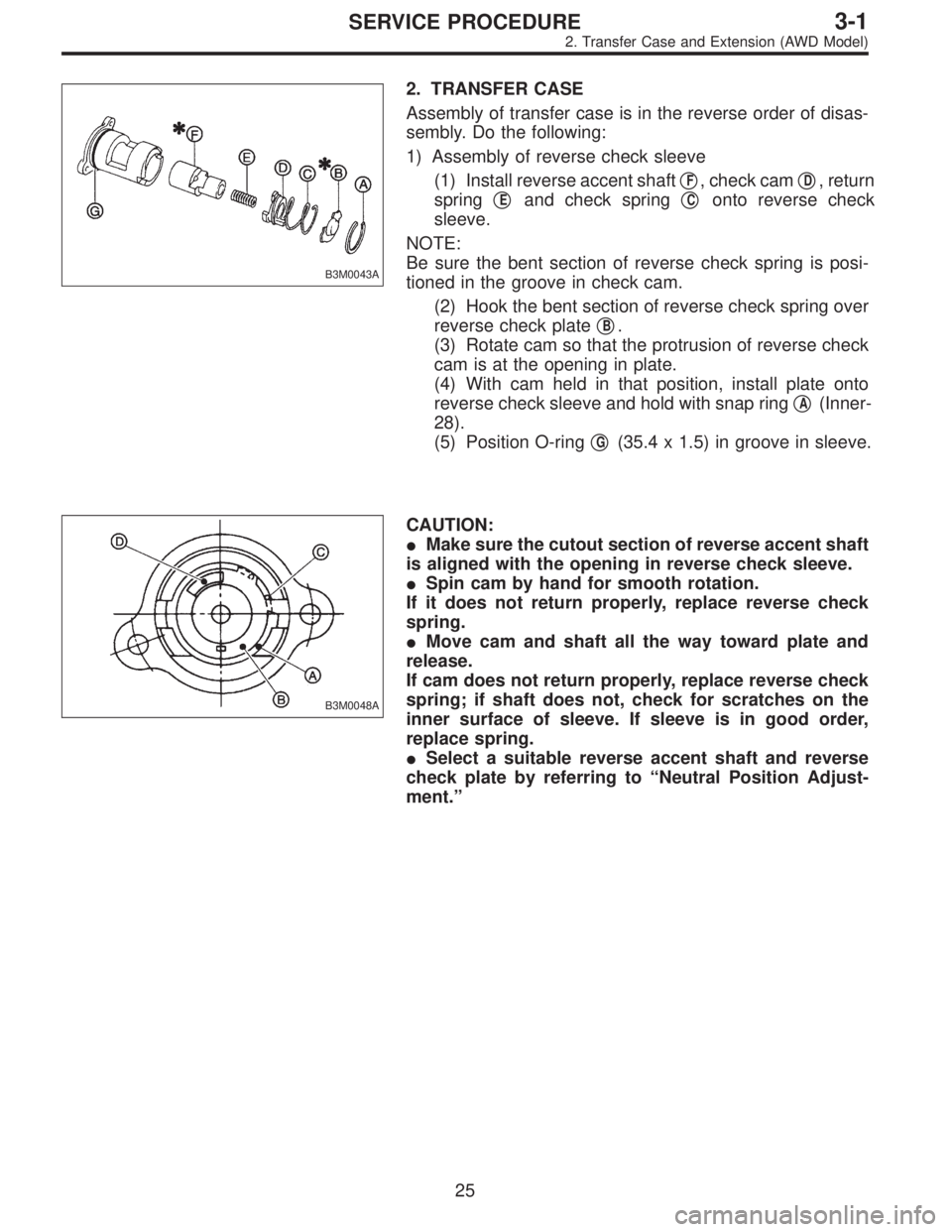

Page 657 of 3342

SUBARU LEGACY 1997 Service Repair Manual B3M0043A 2. TRANSFER CASE Assembly of transfer case is in the reverse order of disas- sembly. Do the following: 1) Assembly of reverse check sleeve (1) Install reverse accent shaft F, check camD, re

Page 658 of 3342

SUBARU LEGACY 1997 Service Repair Manual B3M0042A 2) Installation of shifter arm1and selector arm8 Install shifter arm into the partition from the front while inserting selector arm into the opening in reverse check sleeve. Pass shaft thro

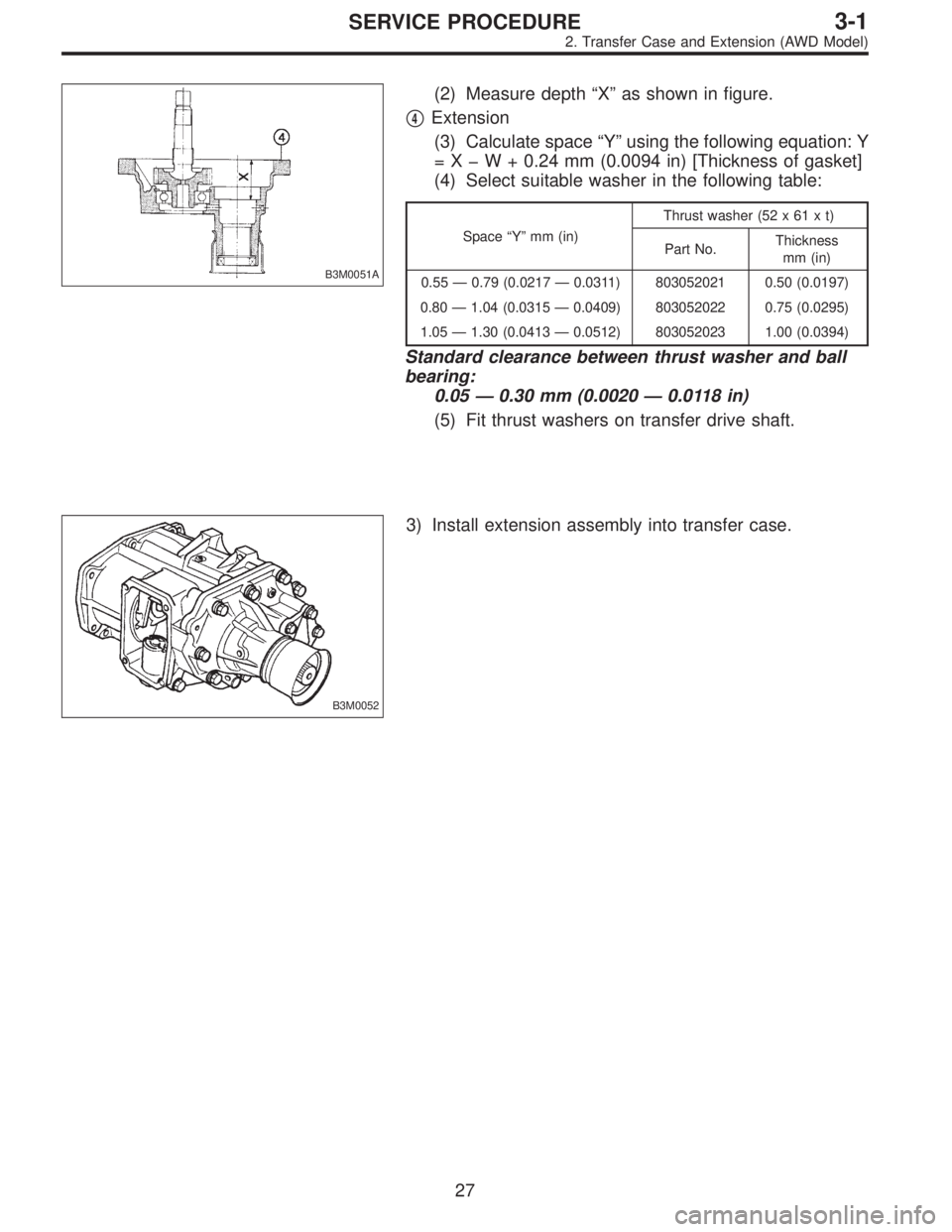

Page 659 of 3342

SUBARU LEGACY 1997 Service Repair Manual B3M0051A (2) Measure depth“X”as shown in figure.  4Extension (3) Calculate space“Y”using the following equation: Y =X�W+0.24 mm (0.0094 in) [Thickness of gasket] (4) Select suitable washer in

Page 660 of 3342

SUBARU LEGACY 1997 Service Repair Manual D: INSTALLATION B3M0053A Tightening torque: N⋅m (kg-m, ft-lb) T1: 15.7±1.5 (1.6±0.15, 11.6±1.1) T2: 19.6±1.5 (2.00±0.15, 14.5±1.1) T3: 24.5±2.0 (2.50±0.20, 18.1±1.4) 1) Install transfer cas

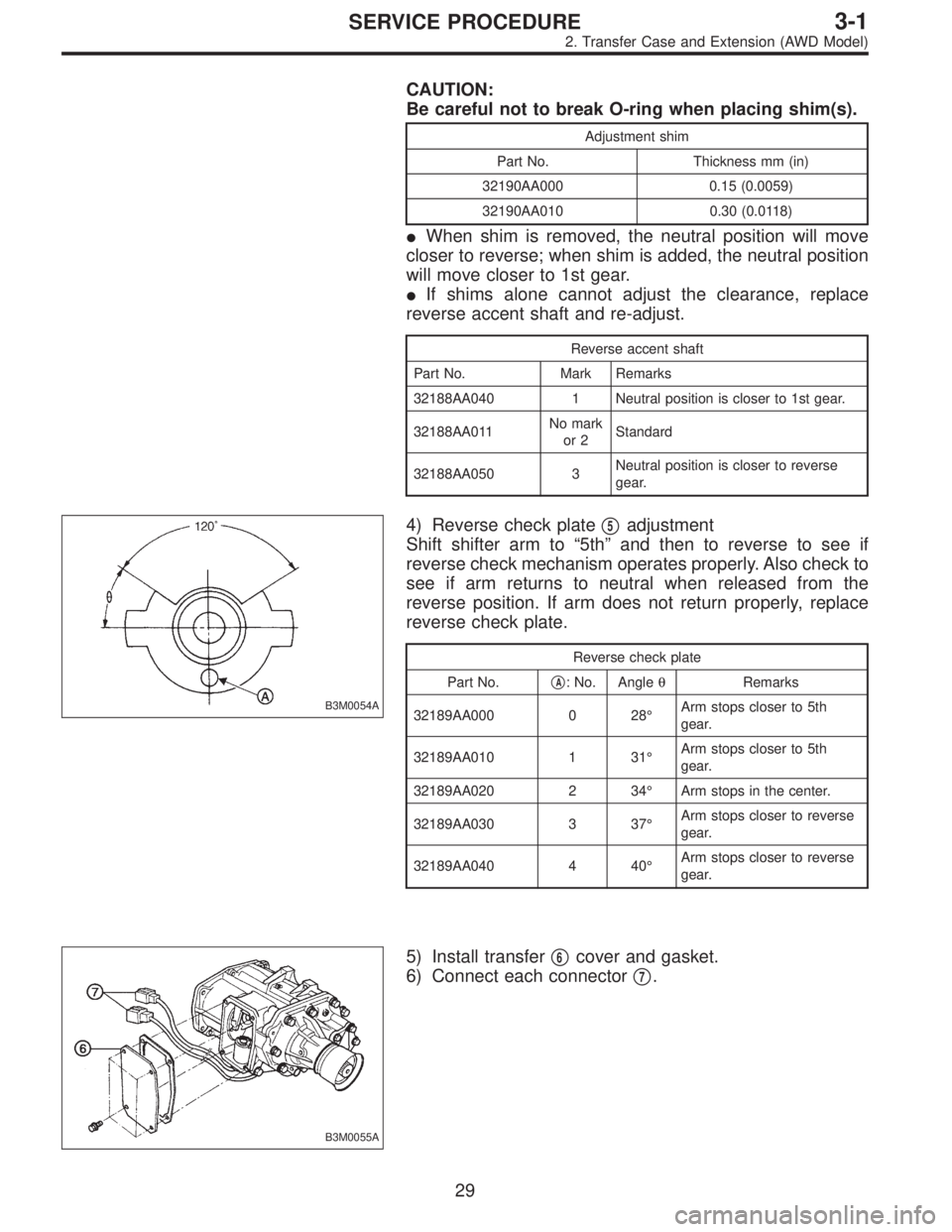

Page 661 of 3342

SUBARU LEGACY 1997 Service Repair Manual CAUTION: Be careful not to break O-ring when placing shim(s). Adjustment shim Part No. Thickness mm (in) 32190AA000 0.15 (0.0059) 32190AA010 0.30 (0.0118) When shim is removed, the neutral position w

Page 662 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3. Rear Case (FWD Model) A: DISASSEMBLY G3M0952 Tightening torque: N⋅m (kg-m, ft-lb) T1: 6.4±0.5 (0.65±0.05, 4.7±0.4) T2: 10±1 (1.0±0.1, 7.2±0.7) T3: 25±2 (2.5±0.2, 18.1±1.4) 1) Remove rear

Page 663 of 3342

SUBARU LEGACY 1997 Service Repair Manual B: ASSEMBLY 1) Assembly of rear case is in the reverse order of disas- sembly. G3M0952 Tightening torque: N⋅m (kg-m, ft-lb) T1: 6.4±0.5 (0.65±0.05, 4.7±0.4) T2: 10±1 (1.0±0.1, 7.2±0.7) T3: 25

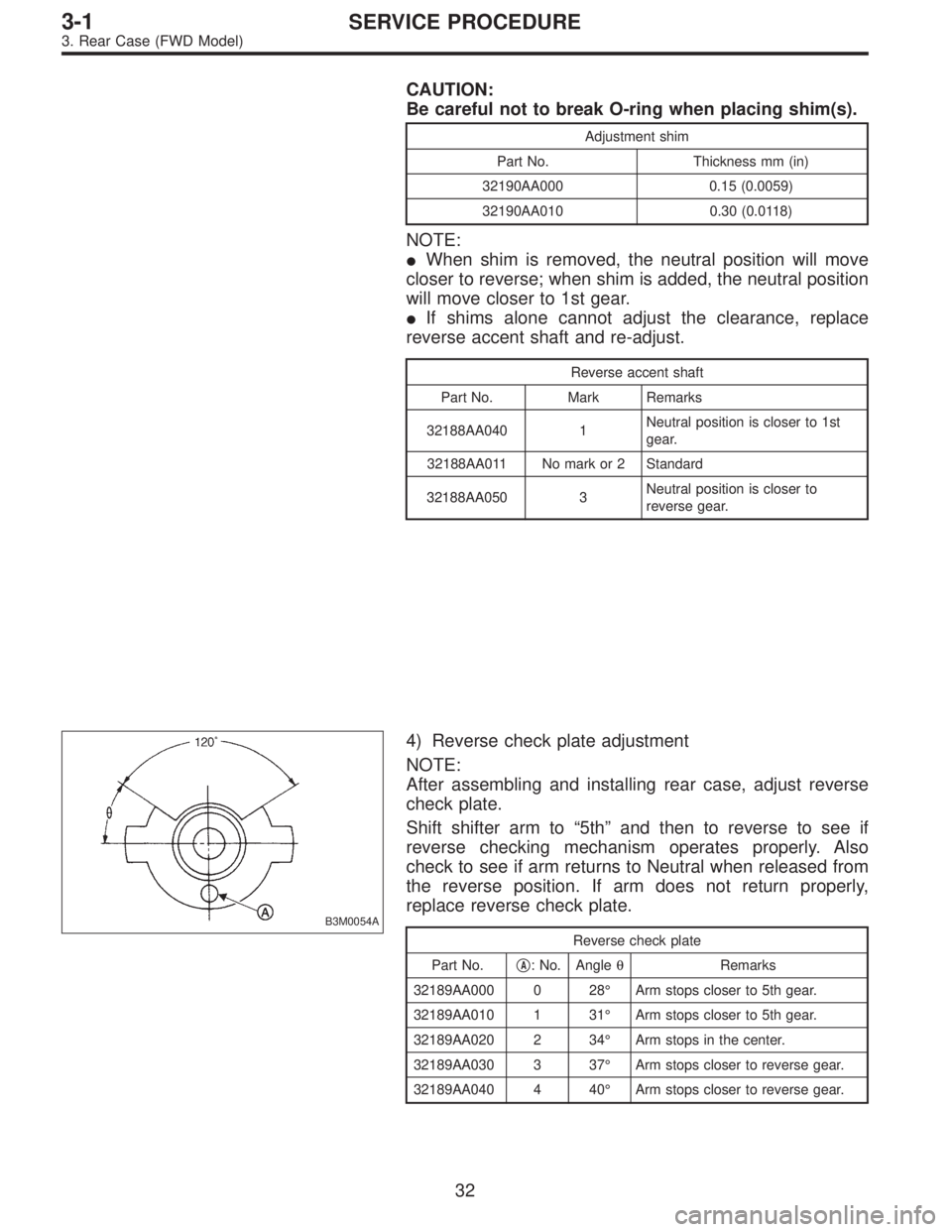

Page 664 of 3342

SUBARU LEGACY 1997 Service Repair Manual CAUTION: Be careful not to break O-ring when placing shim(s). Adjustment shim Part No. Thickness mm (in) 32190AA000 0.15 (0.0059) 32190AA010 0.30 (0.0118) NOTE: When shim is removed, the neutral posi
