1997 SUBARU LEGACY child lock

B5M0065

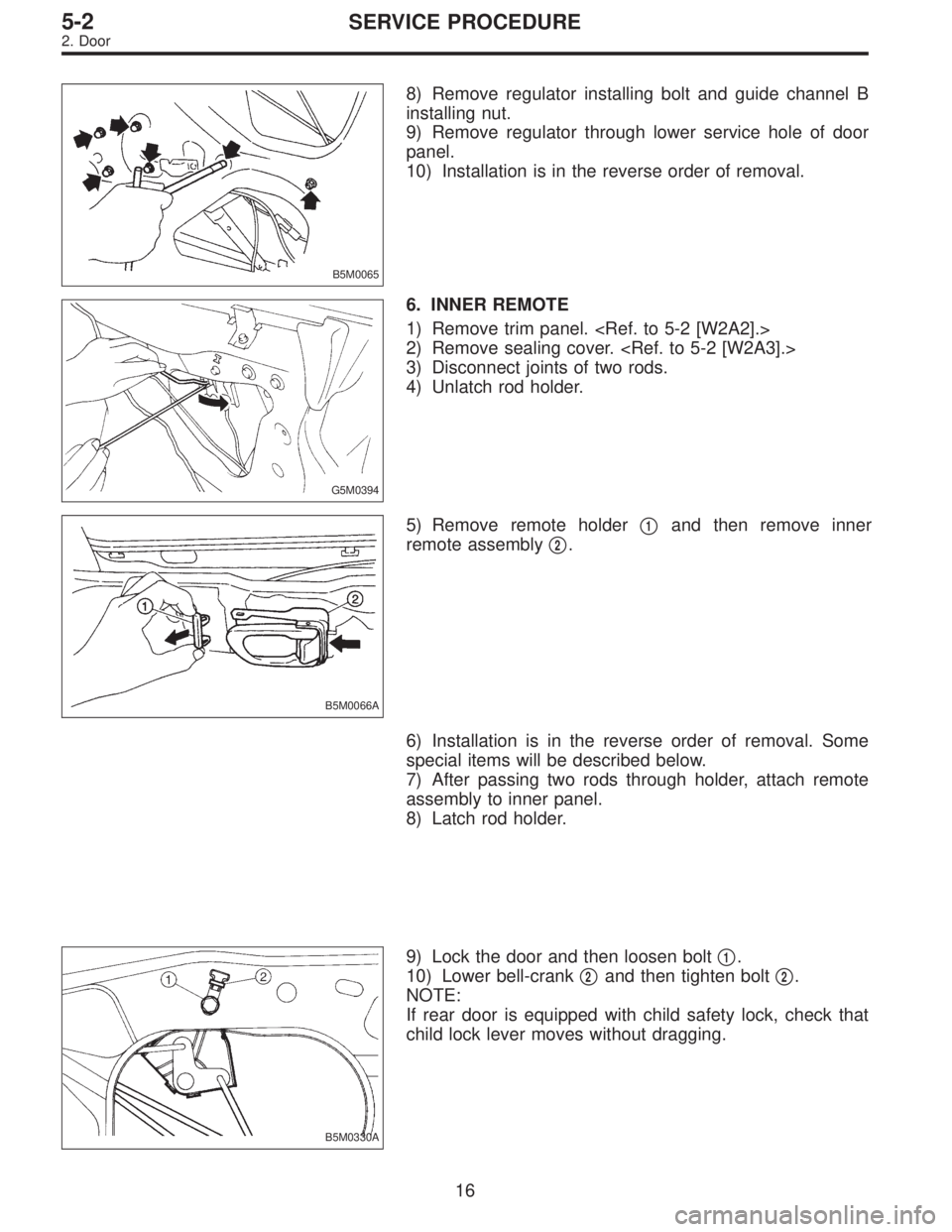

8) Remove regulator installing bolt and guide channel B
installing nut.
9) Remove regulator through lower service hole of door
panel.
10) Installation is in the reverse order of removal.
G5M0394
6. INNER REMOTE
1) Remove trim panel.
2) Remove sealing cover.
3) Disconnect joints of two rods.
4) Unlatch rod holder.
B5M0066A
5) Remove remote holder
1and then remove inner
remote assembly

2.
6) Installation is in the reverse order of removal. Some
special items will be described below.
7) After passing two rods through holder, attach remote
assembly to inner panel.
8) Latch rod holder.
B5M0330A
9) Lock the door and then loosen bolt
1.
10) Lower bell-crank

2and then tighten bolt
2.
NOTE:
If rear door is equipped with child safety lock, check that
child lock lever moves without dragging.
16
5-2SERVICE PROCEDURE
2. Door
