1997 SUBARU LEGACY Service Repair Manual

audiowiper fluidTPMS resetalternator beltfold seatslumbar support
Popular search:
change timeair conditiondriver seat adjustmentdead batterybrake pads replacementautomatic transmissionturn signals
Previous
Next
Load previous 8 pages

Page 625 of 3342

SUBARU LEGACY 1997 Service Repair Manual B: INSTALLATION 1. Install transmission to engine. 2. Install transmission rear crossmember. 3. Take off transmission jack. 4. Tighten nuts which hold lower side of transmission to engine. 5. Tighten

Page 626 of 3342

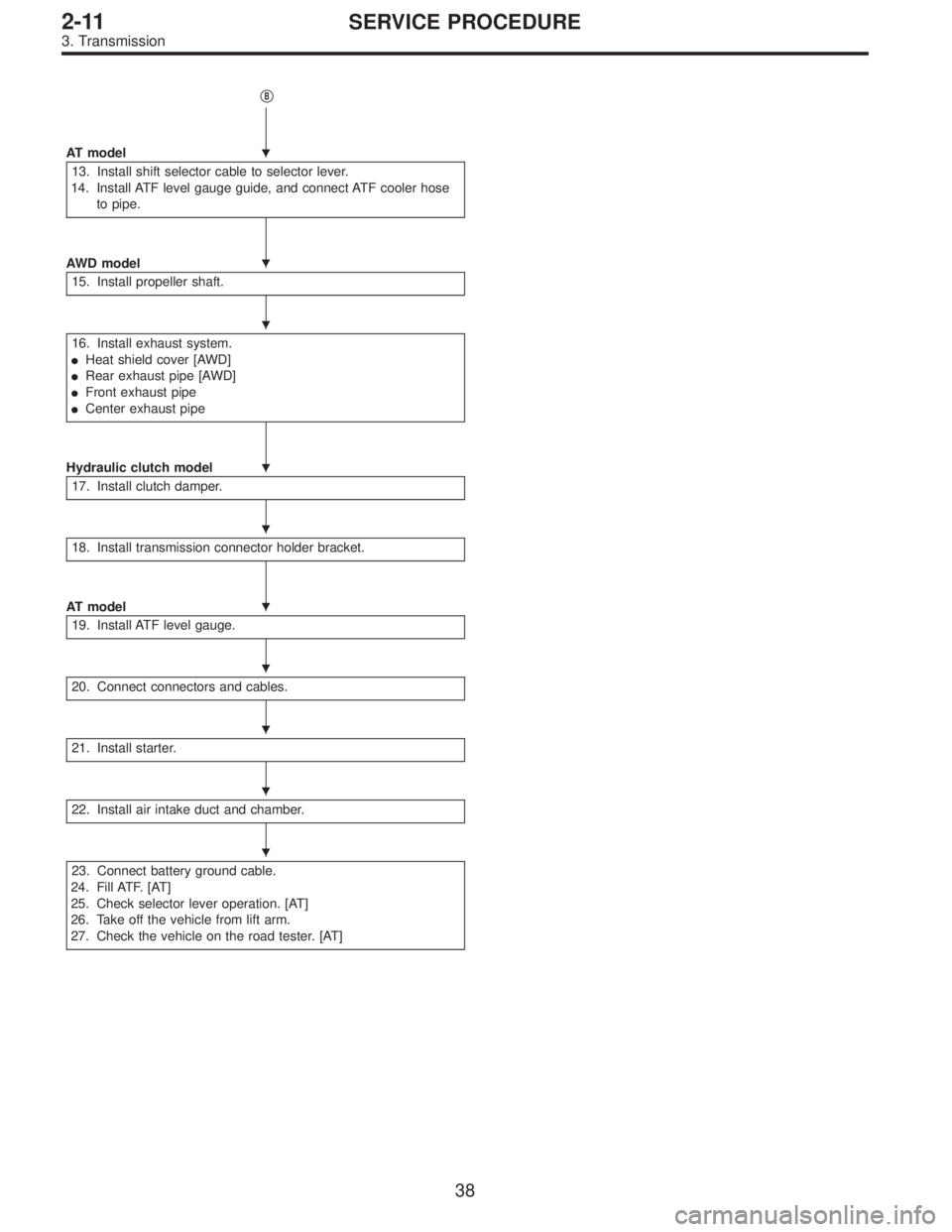

SUBARU LEGACY 1997 Service Repair Manual B AT model 13. Install shift selector cable to selector lever. 14. Install ATF level gauge guide, and connect ATF cooler hose to pipe. AWD model 15. Install propeller shaft. 16. Install exhaust syste

Page 627 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0035 1) Install transmission onto engine. (1) Gradually raise transmission with transmission jack. (2) Engage them at splines. CAUTION: Be careful not to strike mainshaft against clutch cover. (MT

Page 628 of 3342

SUBARU LEGACY 1997 Service Repair Manual G2M0294 6) Install torque converter to drive plate. (AT model) (1) Tighten bolts which hold torque converter to drive plate. (2) Tighten other bolts while rotating the engine by using ST. ST 499977000

Page 629 of 3342

SUBARU LEGACY 1997 Service Repair Manual G2M0302 9) Install pitching stopper. Tightening torque: T1: 49±5 N⋅m (5.0±0.5 kg-m, 36.2±3.6 ft-lb) T2: 57±10 N⋅m (5.8±1.0 kg-m, 42±7 ft-lb) G2M0325 10) Install front drive shafts into trans

Page 630 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0033A 13) Install shift selector cable onto selector lever. (AT model) (1) Install selector cable into selector lever. (2) Install cable bracket onto body. NOTE: Tighten selector cable adjusting an

Page 631 of 3342

SUBARU LEGACY 1997 Service Repair Manual G2M0382 (2) Install rear exhaust pipe to muffler. (AWD model) Tightening torque: 48±9 N⋅m (4.9±0.9 kg-m, 35.4±6.5 ft-lb) B2M0032 (3) Install hanger bracket on right side of transmission. (AWD mod

Page 632 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0335 (7) Connect connector to rear oxygen sensor. B2M1300A 17) Install clutch damper. (Hydraulic clutch model) Tightening torque: 25±7 N⋅m (2.5±0.7 kg-m, 18.1±5.1 ft-lb) G2M0312 18) Install tr
