SUBARU LEGACY 1997 Service Repair Manual 10AA4 CHECK ABSCM&H/U. 1) Connect all connectors. 2) Erase the memory. 3) Perform inspection mode. 4) Read out the trouble code. : Is the same trouble code as in the current diagnosis still being outp

Page 3026 of 3342

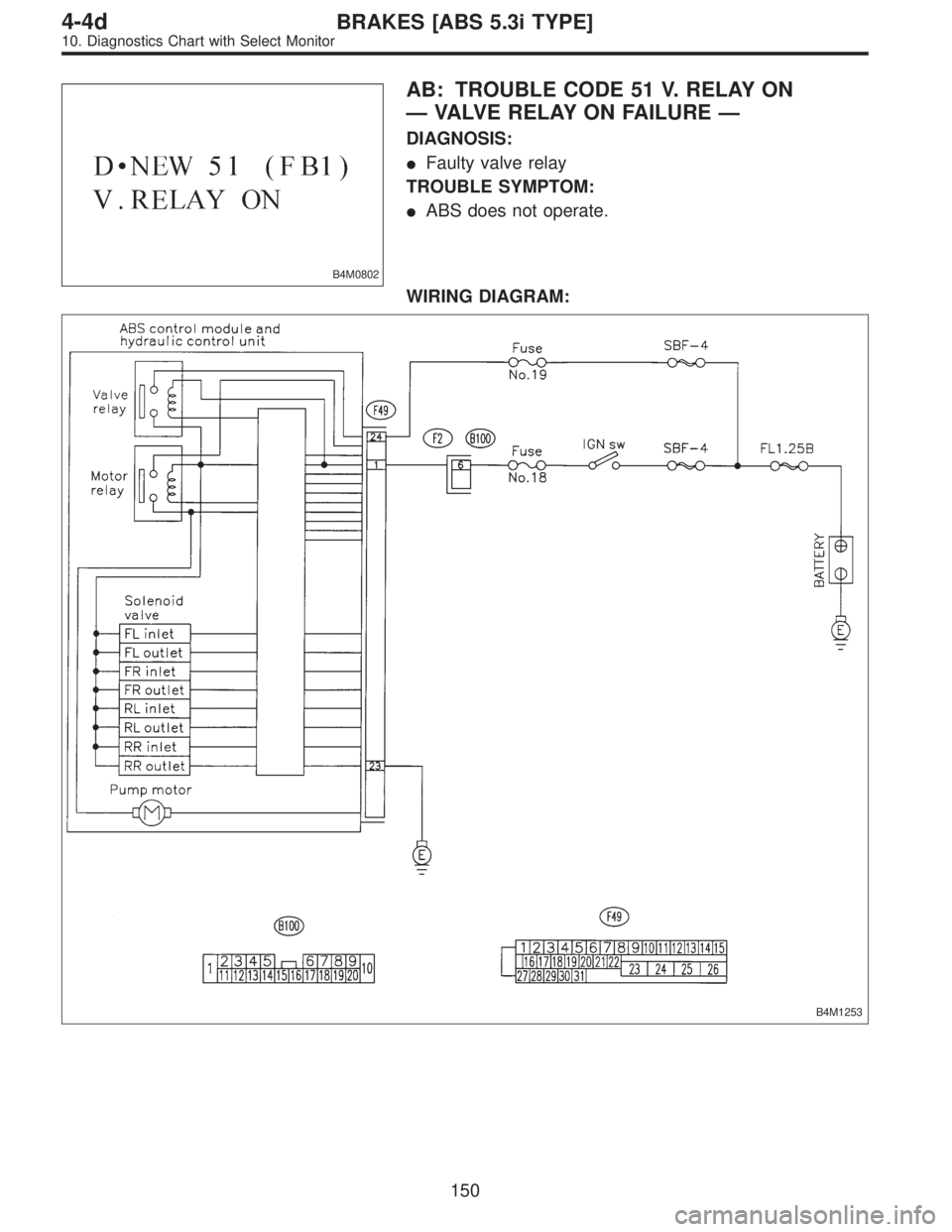

SUBARU LEGACY 1997 Service Repair Manual B4M0802 AB: TROUBLE CODE 51 V. RELAY ON —VALVE RELAY ON FAILURE— DIAGNOSIS: Faulty valve relay TROUBLE SYMPTOM: ABS does not operate. WIRING DIAGRAM: B4M1253 150 4-4dBRAKES [ABS 5.3i TYPE] 10. D

Page 3027 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M1272A 10AB1 CHECK VALVE RELAY IN ABSCM&H/U. Measure resistance between ABSCM&H/U terminals. Terminals No. 23 (+)—No. 24 (�): : Is the resistance more than 1 MΩ? : Go to step10AB2. : Replace ABS

Page 3028 of 3342

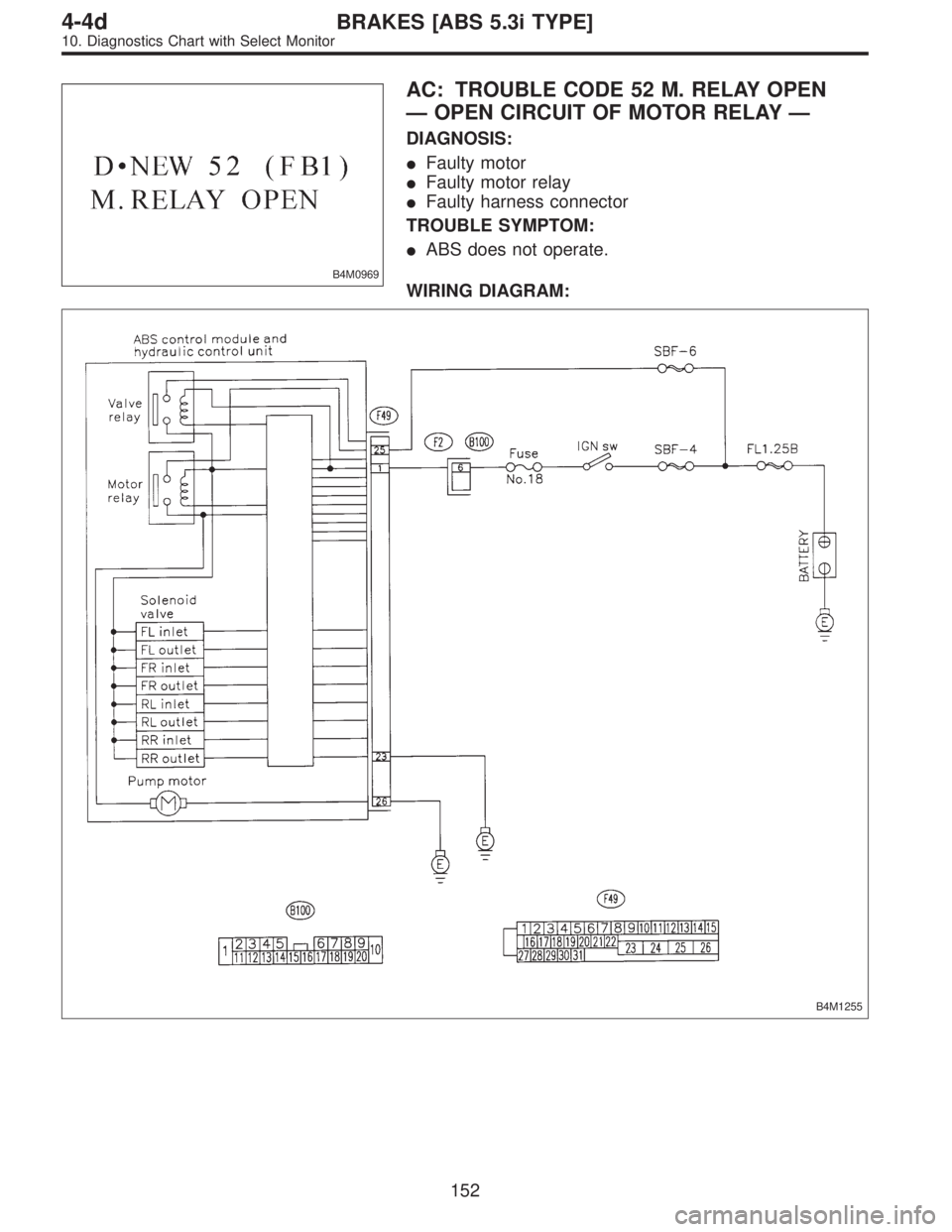

SUBARU LEGACY 1997 Service Repair Manual B4M0969 AC: TROUBLE CODE 52 M. RELAY OPEN —OPEN CIRCUIT OF MOTOR RELAY— DIAGNOSIS: Faulty motor Faulty motor relay Faulty harness connector TROUBLE SYMPTOM: ABS does not operate. WIRING DIAGRA

Page 3029 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M1256A 10AC1CHECK INPUT VOLTAGE OF ABSCM&H/U. 1) Turn ignition switch to OFF. 2) Disconnect connector from ABSCM&H/U. 3) Turn ignition switch to ON. 4) Measure voltage between ABSCM&H/U connector an

Page 3030 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10AC4CHECK POOR CONTACT IN CONNEC- TORS. Turn ignition switch to OFF. : Is there poor contact in connector between hydraclic unit, relay box and ABSCM&H/U? <Ref. to FOREWORD [T3C1].> : Repair connecto

Page 3031 of 3342

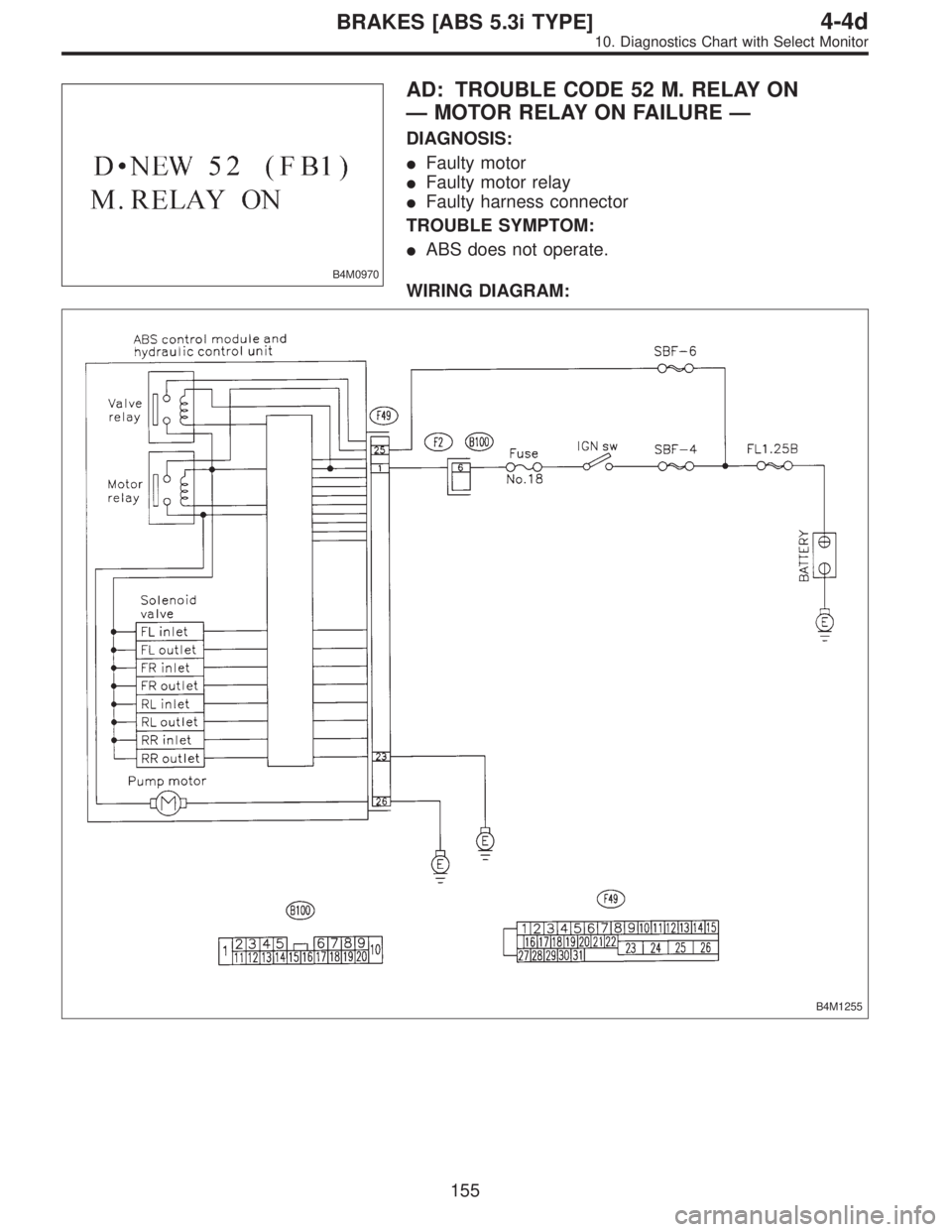

SUBARU LEGACY 1997 Service Repair Manual B4M0970 AD: TROUBLE CODE 52 M. RELAY ON —MOTOR RELAY ON FAILURE— DIAGNOSIS: Faulty motor Faulty motor relay Faulty harness connector TROUBLE SYMPTOM: ABS does not operate. WIRING DIAGRAM: B4M1

Page 3032 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M1270A 10AD1 CHECK MOTOR RELAY IN ABSCM&H/U. Measure resistance between ABSCM&H/U terminals. Terminals No. 25—No. 26: : Is the resistance more than 1 MΩ? : Go to step10AD2. : Replace ABSCM&H/U.
