Page 2369 of 3342

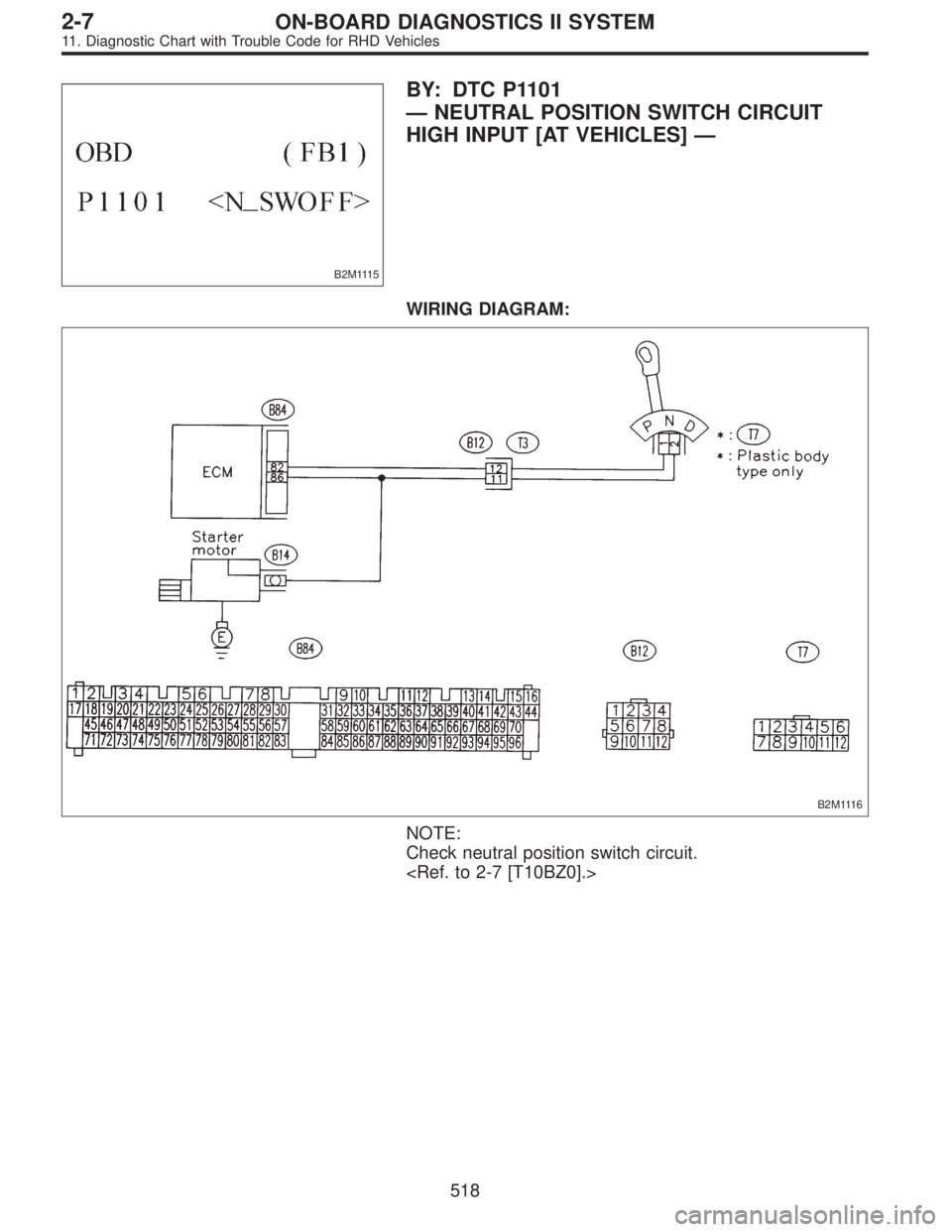

SUBARU LEGACY 1997 Service Repair Manual B2M1115 BY: DTC P1101 —NEUTRAL POSITION SWITCH CIRCUIT HIGH INPUT [AT VEHICLES]— WIRING DIAGRAM: B2M1116 NOTE: Check neutral position switch circuit. <Ref. to 2-7 [T10BZ0].> 518 2-7ON-BOARD DIAGNO

Page 2370 of 3342

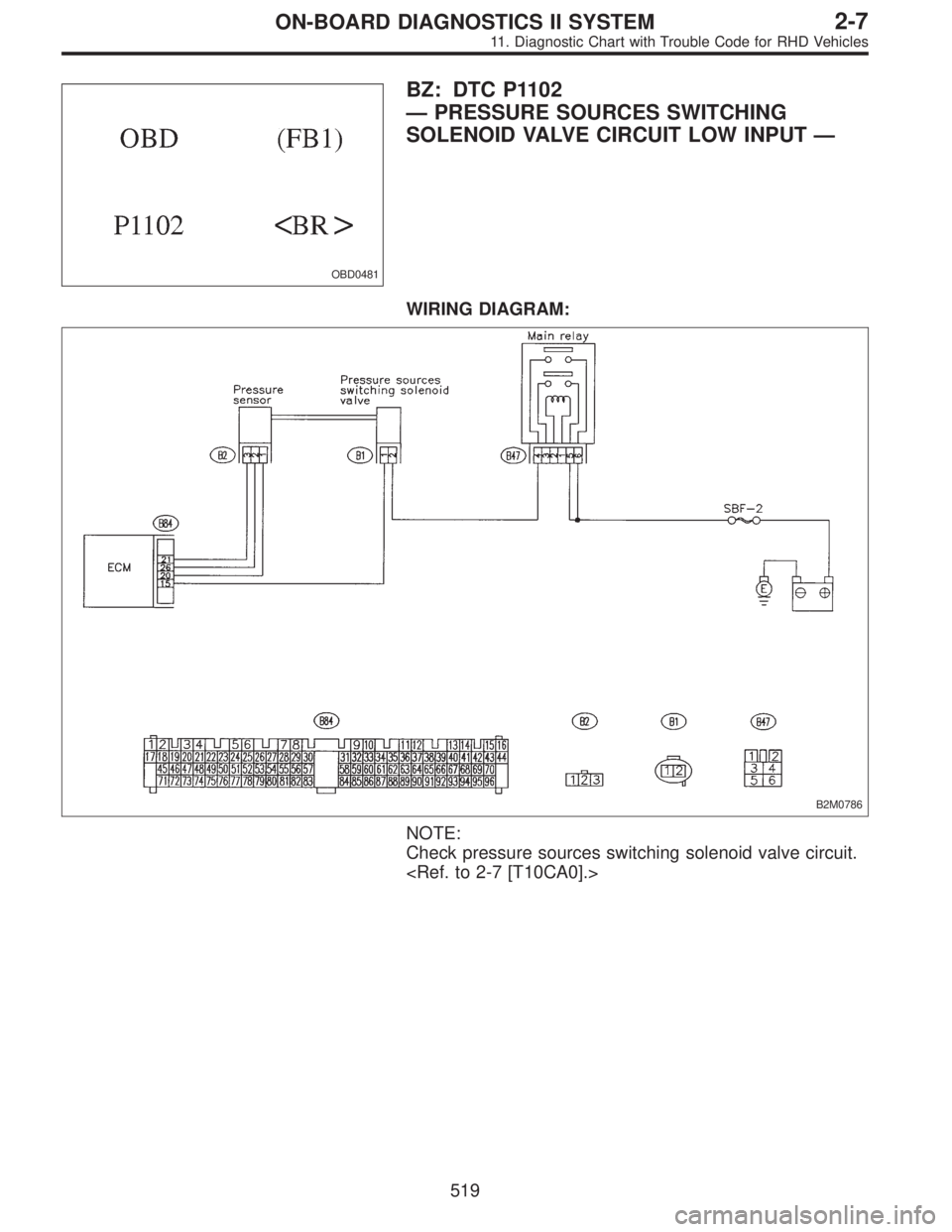

SUBARU LEGACY 1997 Service Repair Manual OBD0481 BZ: DTC P1102 —PRESSURE SOURCES SWITCHING SOLENOID VALVE CIRCUIT LOW INPUT— WIRING DIAGRAM: B2M0786 NOTE: Check pressure sources switching solenoid valve circuit. <Ref. to 2-7 [T10CA0].> 5

Page 2371 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0489 CA: DTC P1103 —ENGINE TORQUE CONTROL SIGNAL CIRCUIT MALFUNCTION— WIRING DIAGRAM: B2M0598 NOTE: Check engine torque control signal circuit. <Ref. to 2-7 [T10CB0].> 520 2-7ON-BOARD DIAGNOSTI

Page 2372 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1122 CB: DTC P1120 —STARTER SWITCH CIRCUIT HIGH INPUT — WIRING DIAGRAM: B2M1153 NOTE: Check starter switch circuit. <Ref. to 2-7 [T10CD0].> 521 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. Diagnostic

Page 2373 of 3342

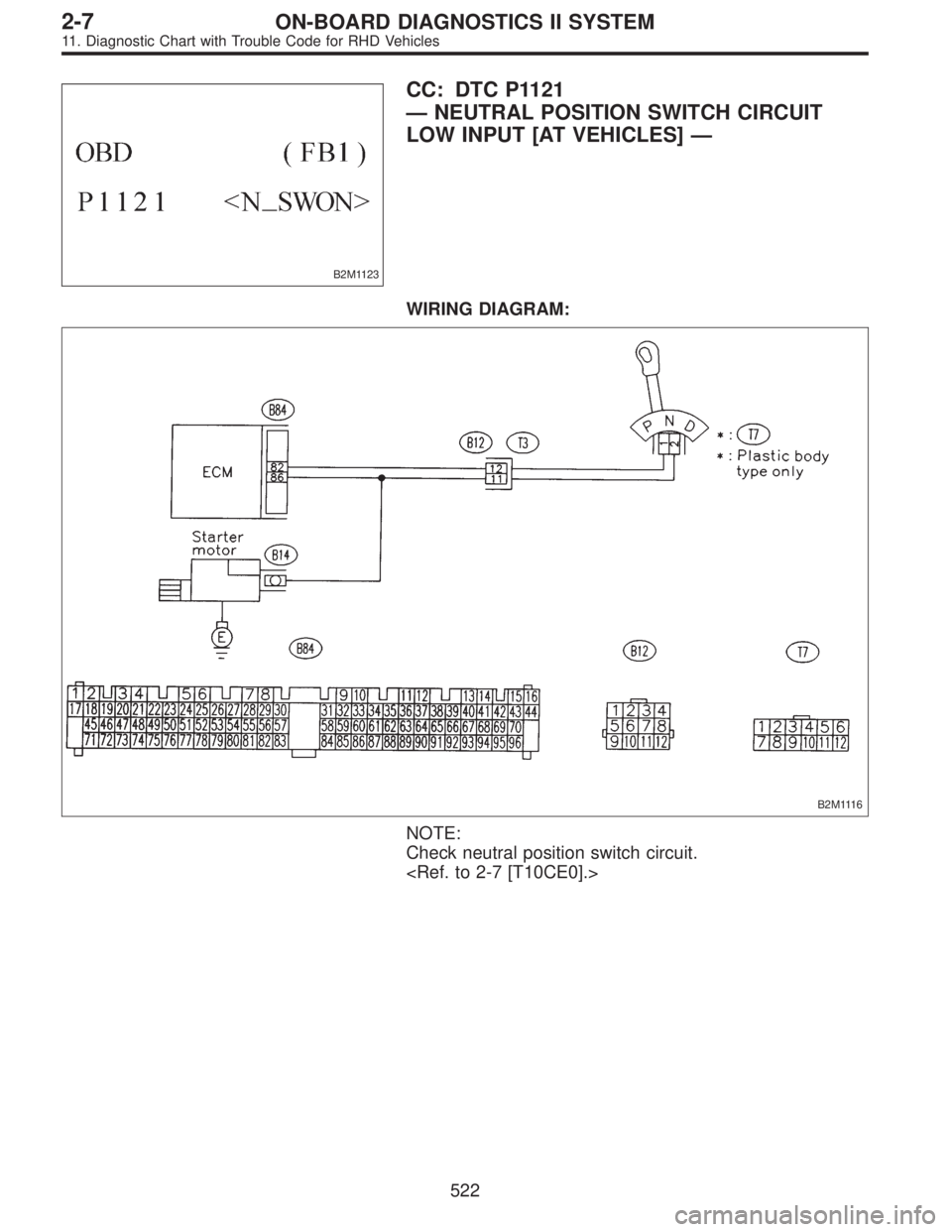

SUBARU LEGACY 1997 Service Repair Manual B2M1123 CC: DTC P1121 —NEUTRAL POSITION SWITCH CIRCUIT LOW INPUT [AT VEHICLES]— WIRING DIAGRAM: B2M1116 NOTE: Check neutral position switch circuit. <Ref. to 2-7 [T10CE0].> 522 2-7ON-BOARD DIAGNOS

Page 2374 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1124 CD: DTC P1122 —PRESSURE SOURCES SWITCHING SOLENOID VALVE CIRCUIT HIGH INPUT— WIRING DIAGRAM: B2M0786 NOTE: Check pressure sources switching solenoid valve circuit. <Ref. to 2-7 [T10CF0].>

Page 2375 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1126 CE: DTC P1141 —MASS AIR FLOW SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM (HIGH INPUT)— WIRING DIAGRAM: B2M1149 NOTE: Check mass air flow sensor circuit. <Ref. to 2-7 [T10CH0].> 524 2-7ON-BOAR

Page 2376 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1127 CF: DTC P1142 —THROTTLE POSITION SENSOR CIRCUIT RANGE/PERFORMANCE PROBLEM (LOW INPUT)— WIRING DIAGRAM: B2M0540 NOTE: Check throttle position sensor circuit. <Ref. to 2-7 [T10CI0].> 525 2-7
