Page 2769 of 3342

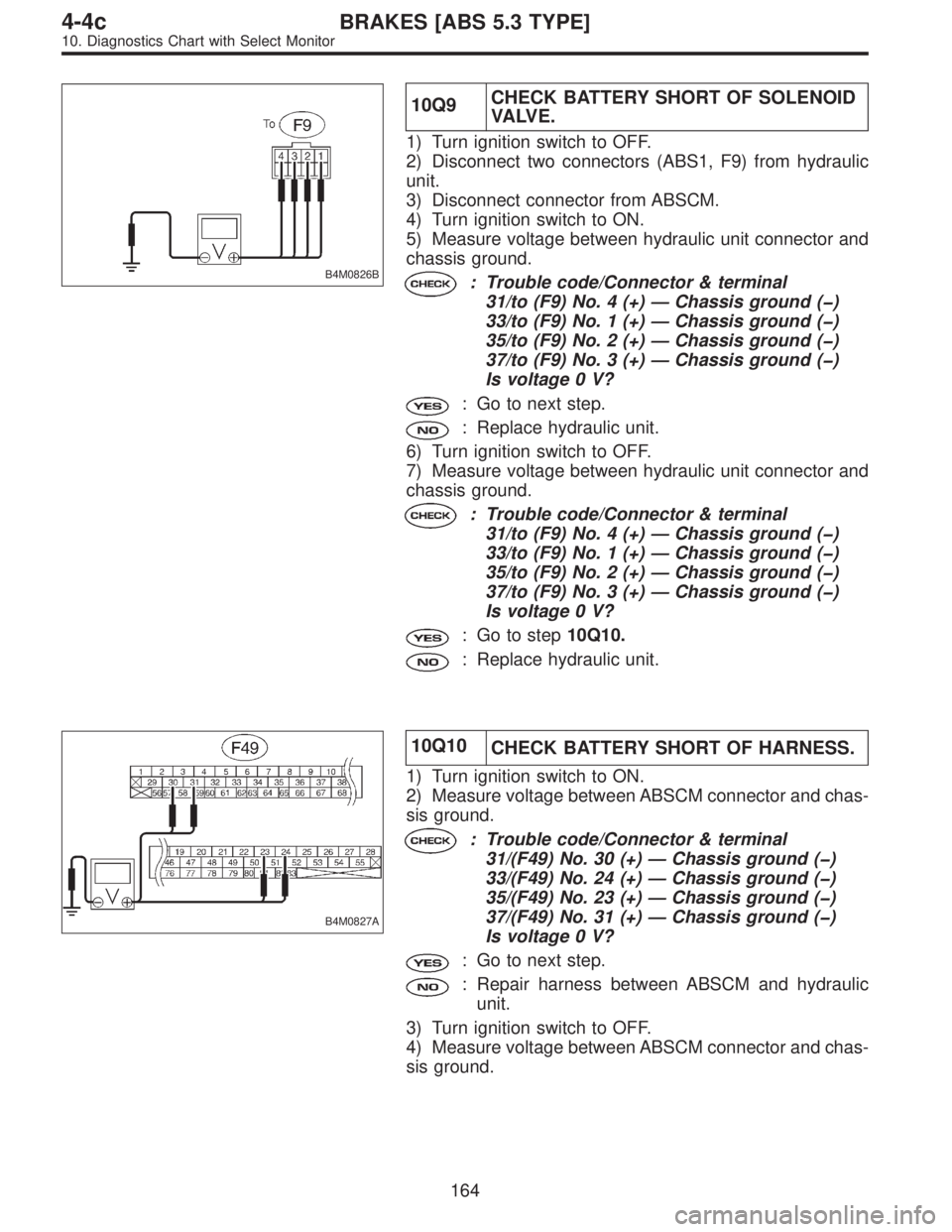

SUBARU LEGACY 1997 Service Repair Manual B4M0826B 10Q9CHECK BATTERY SHORT OF SOLENOID VA LV E . 1) Turn ignition switch to OFF. 2) Disconnect two connectors (ABS1, F9) from hydraulic unit. 3) Disconnect connector from ABSCM. 4) Turn ignition

Page 2770 of 3342

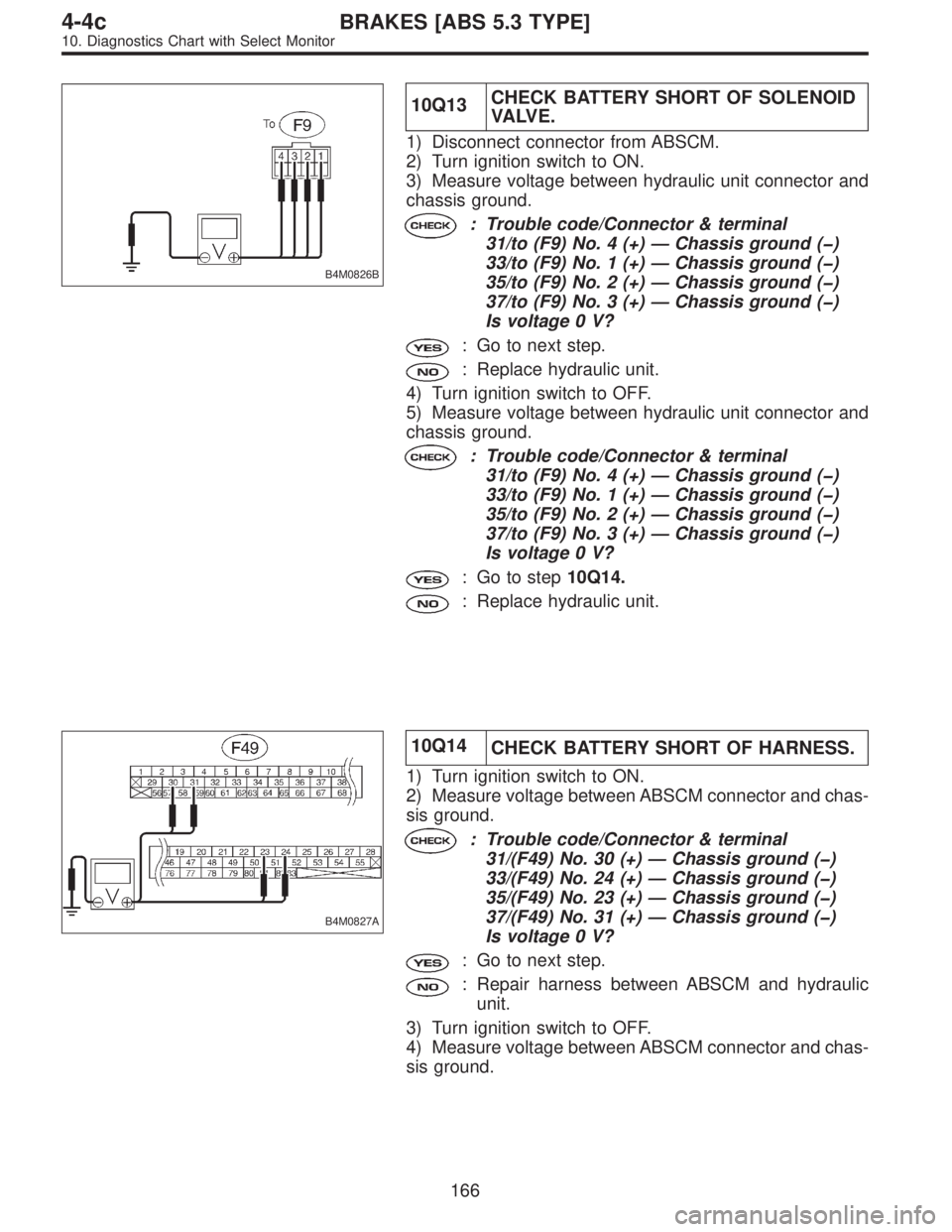

SUBARU LEGACY 1997 Service Repair Manual : Trouble code/Connector & terminal 31/(F49) No. 30 (+)—Chassis ground (�) 33/(F49) No. 24 (+)—Chassis ground (�) 35/(F49) No. 23 (+)—Chassis ground (�) 37/(F49) No. 31 (+)—Chassis ground (�)

Page 2771 of 3342

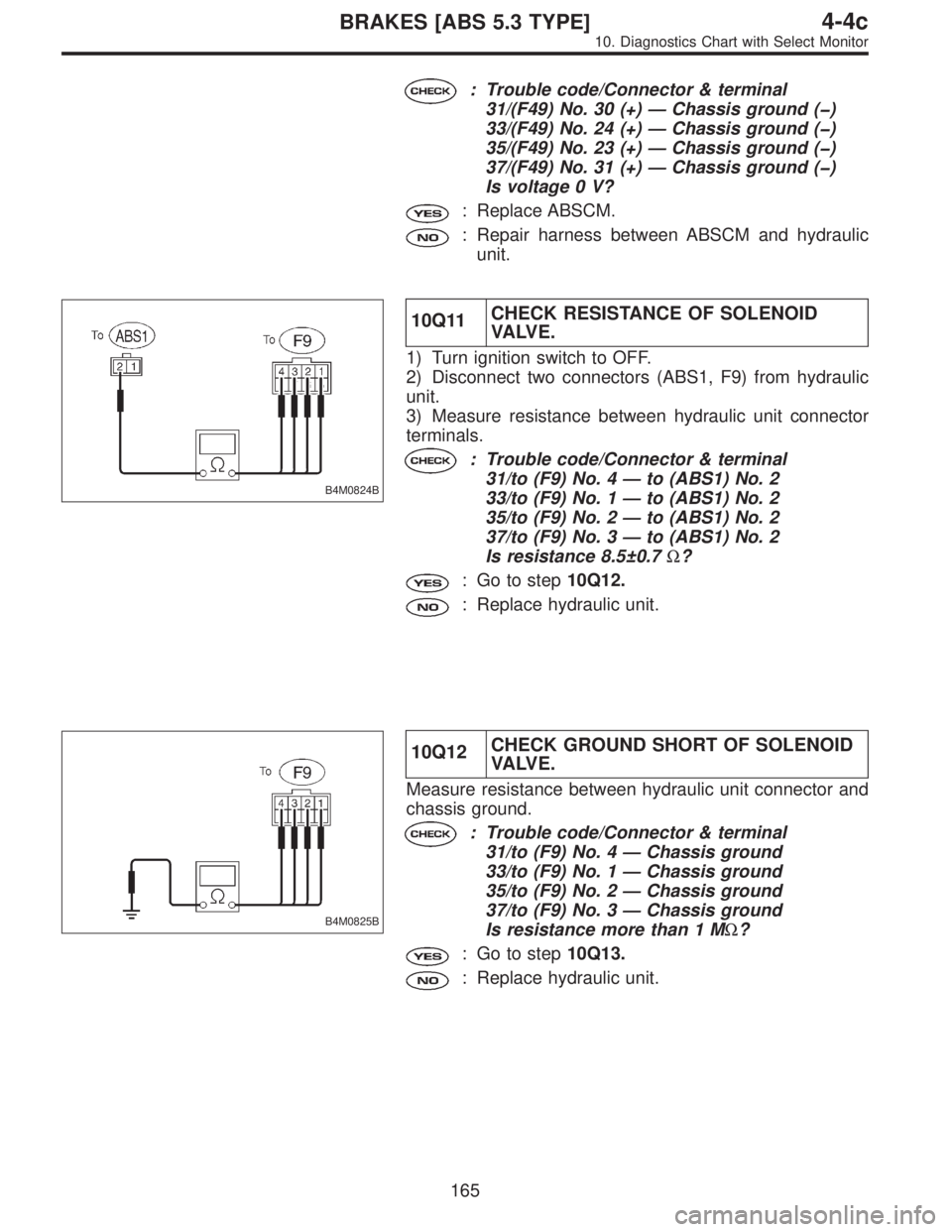

SUBARU LEGACY 1997 Service Repair Manual B4M0826B 10Q13CHECK BATTERY SHORT OF SOLENOID VA LV E . 1) Disconnect connector from ABSCM. 2) Turn ignition switch to ON. 3) Measure voltage between hydraulic unit connector and chassis ground. : Tro

Page 2772 of 3342

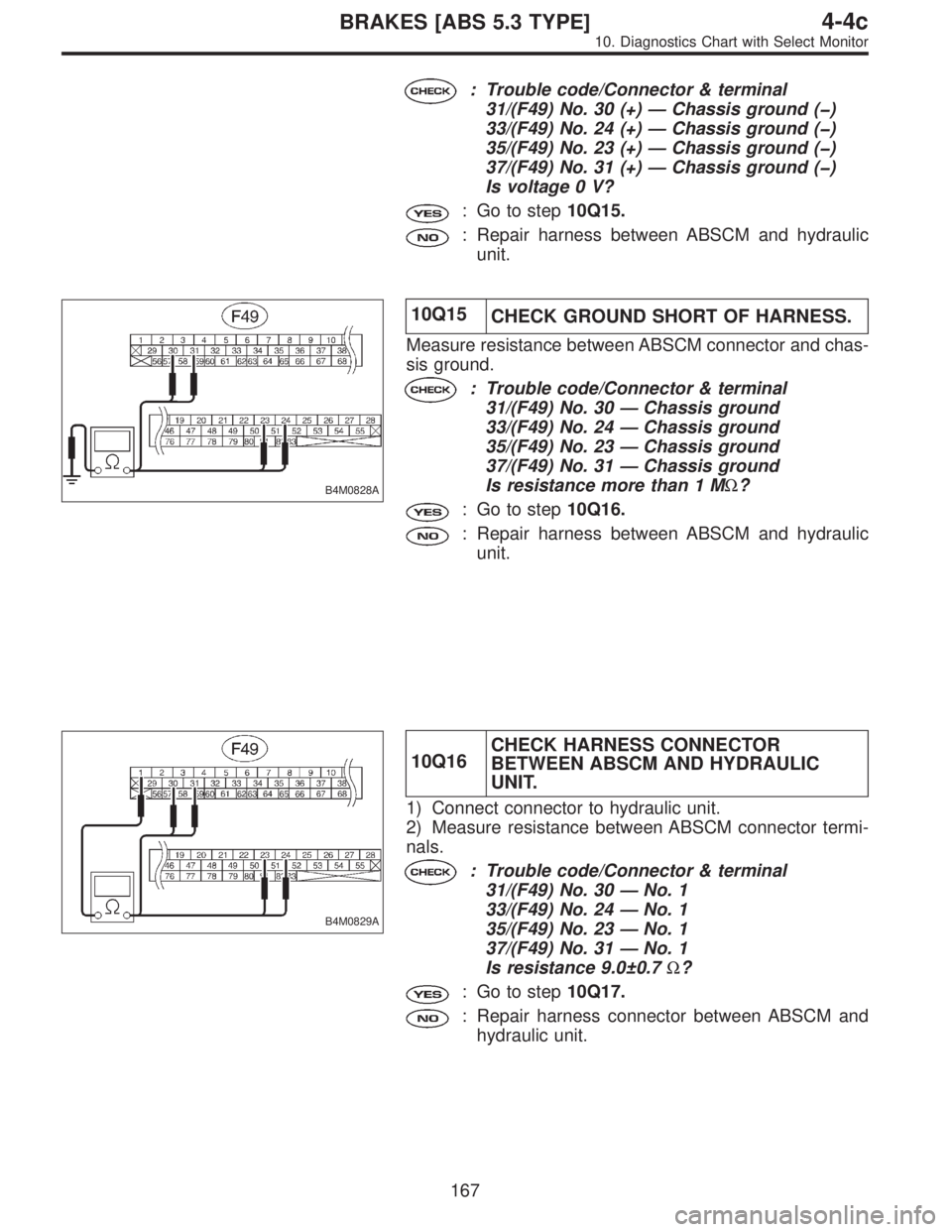

SUBARU LEGACY 1997 Service Repair Manual : Trouble code/Connector & terminal 31/(F49) No. 30 (+)—Chassis ground (�) 33/(F49) No. 24 (+)—Chassis ground (�) 35/(F49) No. 23 (+)—Chassis ground (�) 37/(F49) No. 31 (+)—Chassis ground (�)

Page 2773 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10Q17CHECK POOR CONTACT IN CONNEC- TOR BETWEEN ABSCM AND HYDRAU- LIC UNIT. : Is there poor contact in connectors between ABSCM and hydraulic unit? : Repair connector. : Go to step10Q18. 10Q18 CHECK AB

Page 2774 of 3342

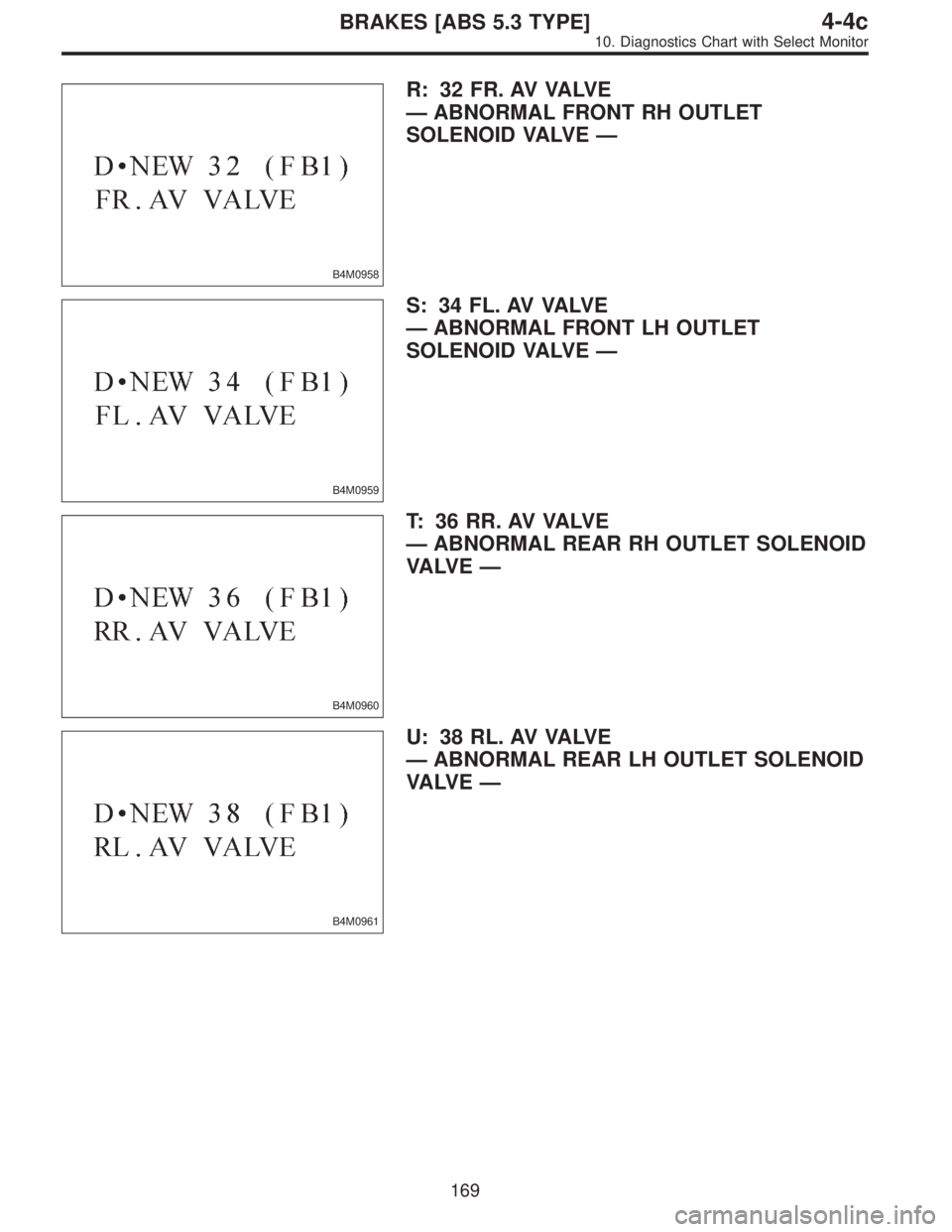

SUBARU LEGACY 1997 Service Repair Manual B4M0958 R: 32 FR. AV VALVE —ABNORMAL FRONT RH OUTLET SOLENOID VALVE— B4M0959 S: 34 FL. AV VALVE —ABNORMAL FRONT LH OUTLET SOLENOID VALVE— B4M0960 T: 3 6 R R . AV VA LV E —ABNORMAL REAR RH OU

Page 2775 of 3342

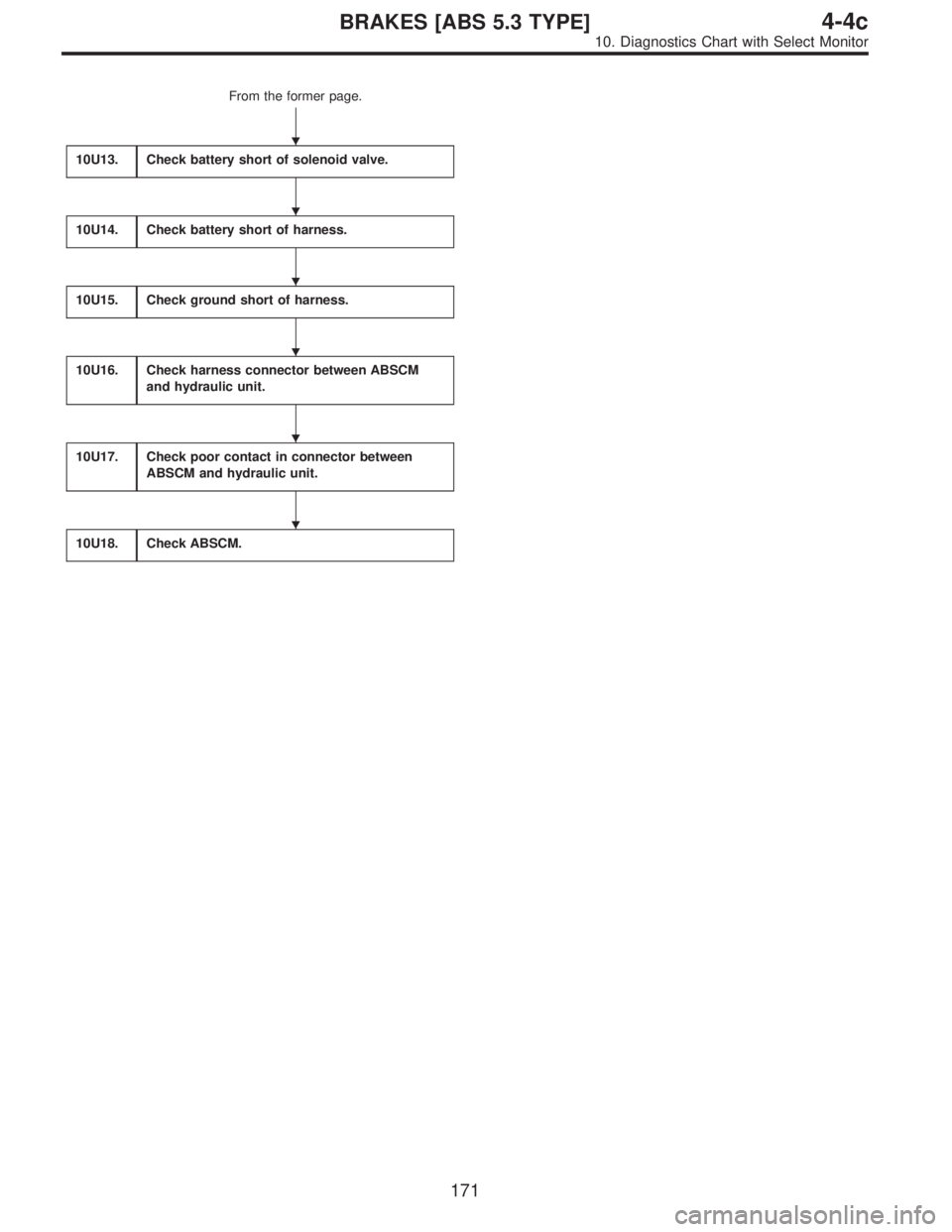

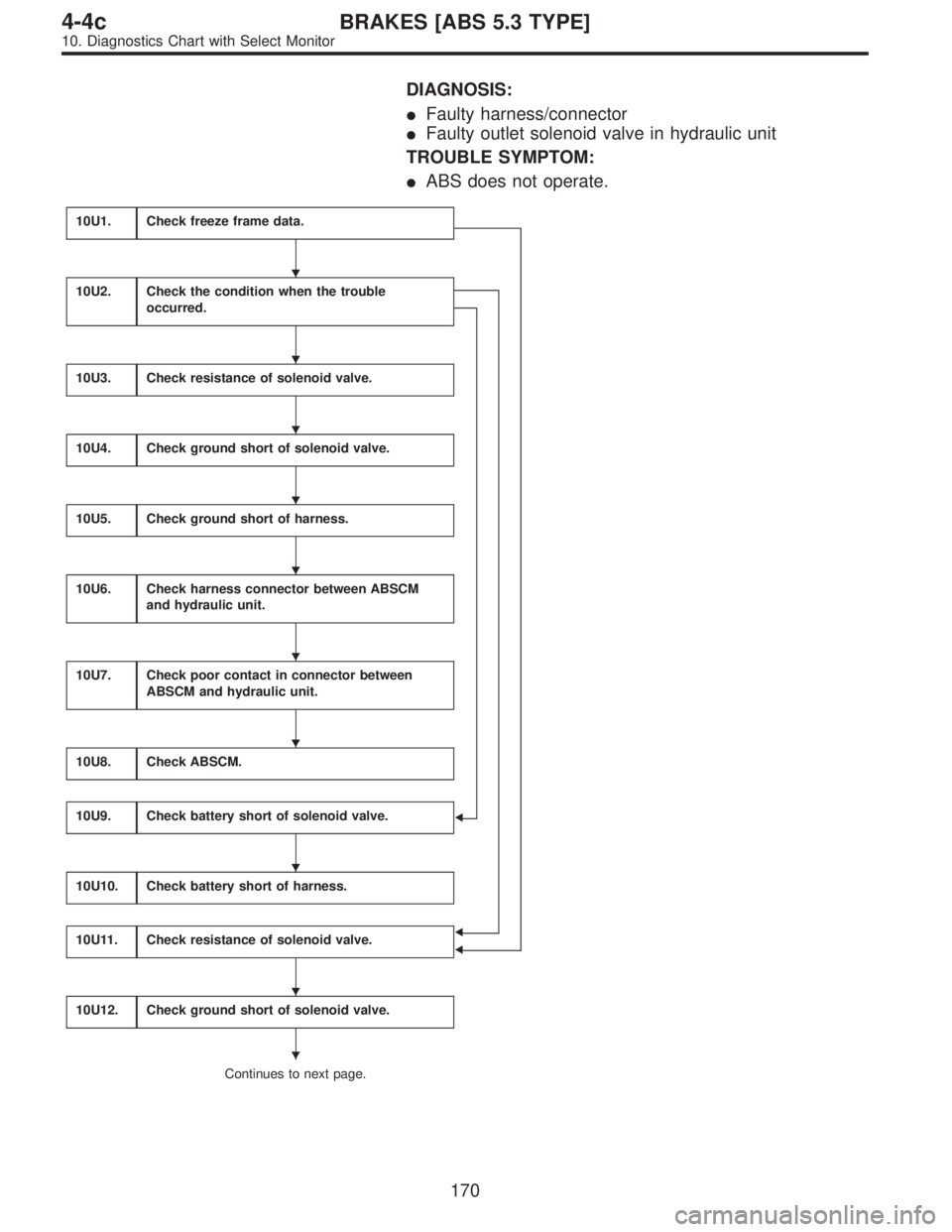

SUBARU LEGACY 1997 Service Repair Manual DIAGNOSIS: Faulty harness/connector Faulty outlet solenoid valve in hydraulic unit TROUBLE SYMPTOM: ABS does not operate. 10U1.Check freeze frame data.    10U2.Check the condition when the troub

Page 2776 of 3342

SUBARU LEGACY 1997 Service Repair Manual From the former page. 10U13. Check battery short of solenoid valve. 10U14.Check battery short of harness. 10U15.Check ground short of harness. 10U16.Check harness connector between ABSCM and hydraulic
