SUBARU LEGACY 1997 Service Repair Manual B2M0340 (3) Remove bolts which secure power steering pipe brackets to intake manifold. NOTE: Do not disconnect power steering hose. B2M0334 (4) Remove bolts which install power steering pump to bracke

Page 482 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1241 16) Disconnect engine coolant hose from throttle body. H2M1259A 17) Disconnect engine coolant hose1from idle air con- trol solenoid valve. 18) Disconnect air by-pass hose 2from idle air cont

Page 483 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0019 22) Disconnect engine harness connectors from bulkhead harness connectors, and remove engine harness connec- tors from bracket. B2M0345A 23) Disconnect connectors from engine coolant tempera-

Page 484 of 3342

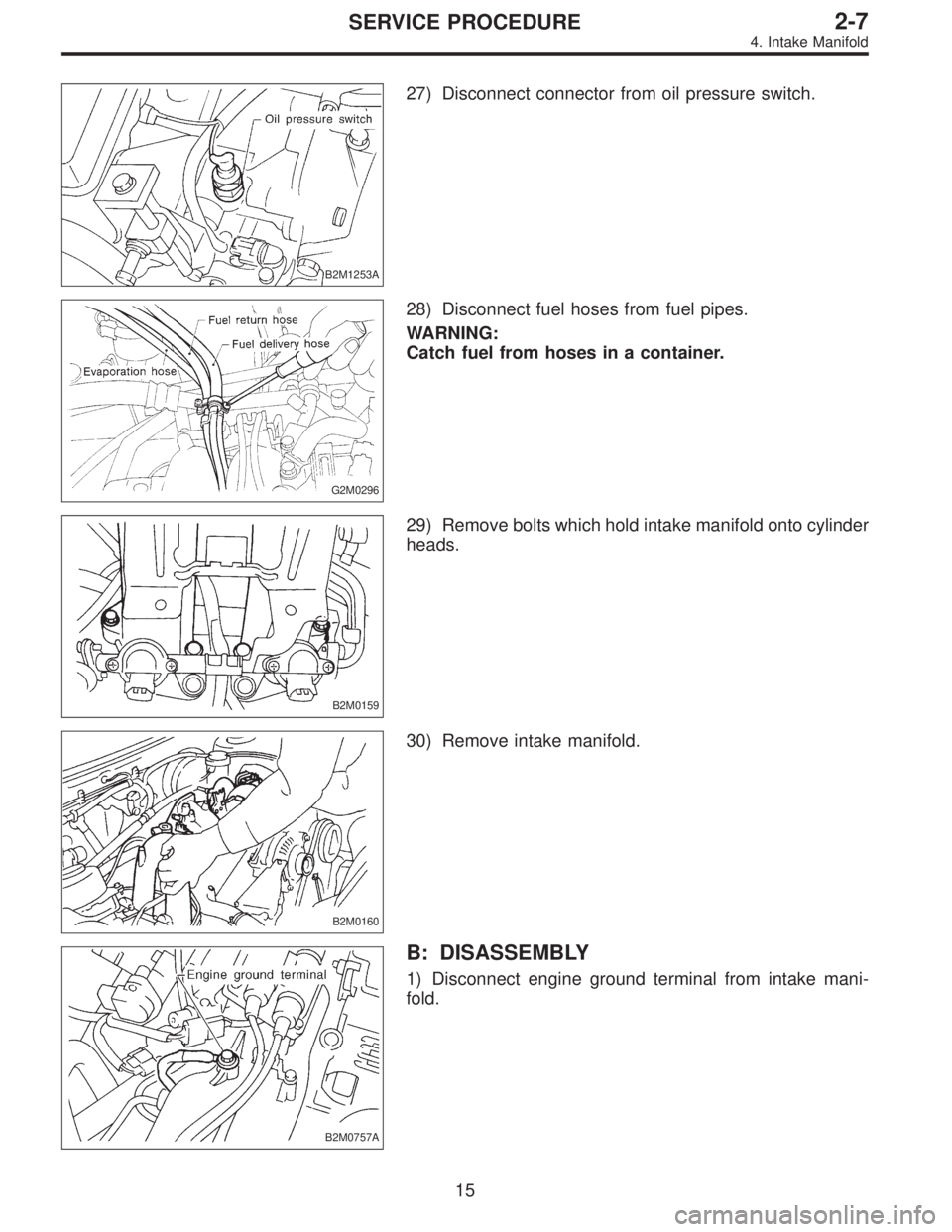

SUBARU LEGACY 1997 Service Repair Manual B2M1253A 27) Disconnect connector from oil pressure switch. G2M0296 28) Disconnect fuel hoses from fuel pipes. WARNING: Catch fuel from hoses in a container. B2M0159 29) Remove bolts which hold intake

Page 485 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0347A 2) Disconnect connectors from throttle position sensor, ignition coil, fuel injectors, idle air control solenoid valve, purge control solenoid valve and EGR solenoid valve. 3) Remove engine h

Page 486 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0157 3) Assemble throttle body to intake manifold. CAUTION: Replace gasket with a new one. Tightening torque: 22±2 N⋅m (2.2±0.2 kg-m, 15.9±1.4 ft-lb) H2M1247 4) Install idle air control soleno

Page 487 of 3342

SUBARU LEGACY 1997 Service Repair Manual G2M0296 2) Connect fuel hoses. B2M1253A 3) Connect connector to oil pressure switch. B2M1252A 4) Connect connector to crankshaft position sensor. B2M1251A 5) Connect connector to camshaft position sen

Page 488 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0345A 7) Connect connectors to engine coolant temperature sen- sor 1and thermometer2. B2M0019 8) Install engine harness connectors to bracket, and con- nect engine harness connectors to bulkhead
