Page 809 of 3342

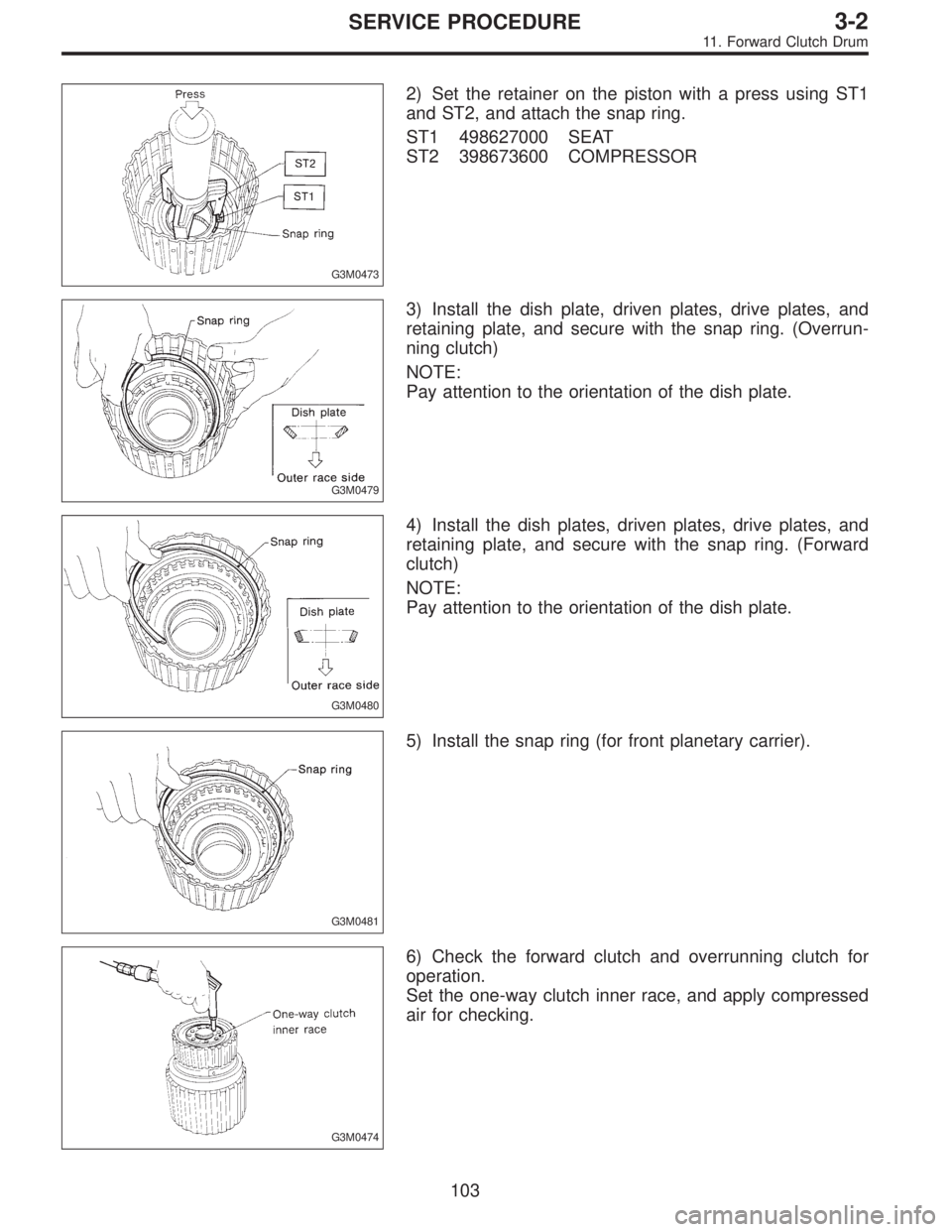

SUBARU LEGACY 1997 Service Repair Manual G3M0473 2) Set the retainer on the piston with a press using ST1 and ST2, and attach the snap ring. ST1 498627000 SEAT ST2 398673600 COMPRESSOR G3M0479 3) Install the dish plate, driven plates, drive

Page 810 of 3342

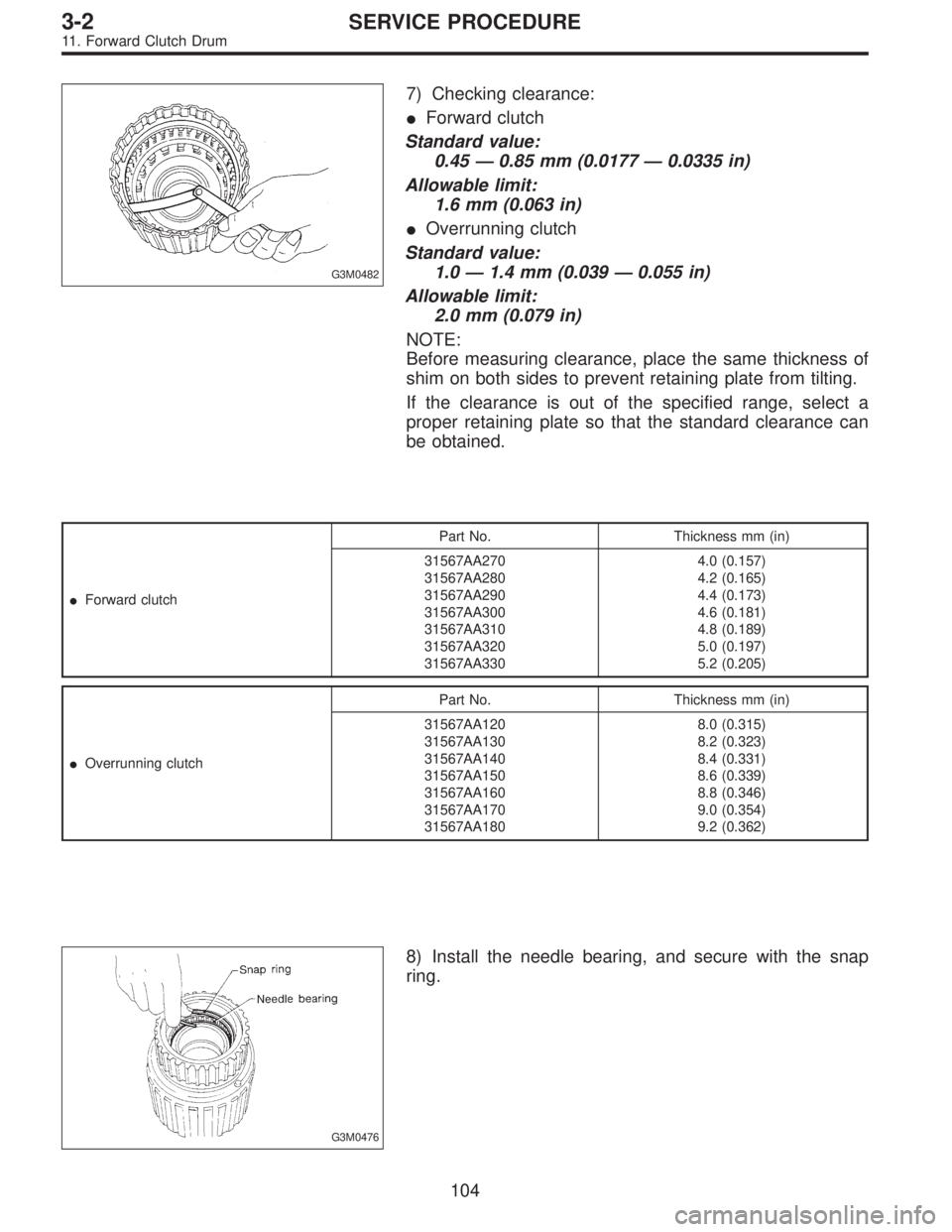

SUBARU LEGACY 1997 Service Repair Manual G3M0482 7) Checking clearance: Forward clutch Standard value: 0.45—0.85 mm (0.0177—0.0335 in) Allowable limit: 1.6 mm (0.063 in) Overrunning clutch Standard value: 1.0—1.4 mm (0.039—0.055 in

Page 811 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0484 9) Install the one-way clutch (1-2) and plate, and secure with the snap ring. NOTE: Set the inner race. Make sure that the forward clutch is free in the clockwise direction and locked in the c

Page 812 of 3342

SUBARU LEGACY 1997 Service Repair Manual B3M0407A 13. Servo Piston 1Band servo piston stem  2Spring  3Lathe cut seal ring  4Band servo piston (1-2)  5Lathe cut seal ring  6O-ring  7Band servo retainer  8O-ring  9Spring  10Retainer

Page 813 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0488 14. Differential Case Assembly A: DISASSEMBLY 1) Using a press and ST, remove the taper roller bearing. ST 498077000 REMOVER CAUTION: Be careful not to damage the speedometer drive gear. G3M04

Page 814 of 3342

SUBARU LEGACY 1997 Service Repair Manual G3M0489 2) Install the washer and differential bevel gear to the dif- ferential case (LH). Then put the case over the differential case (RH), and connect both cases. 3) Install the crown gear and secu

Page 815 of 3342

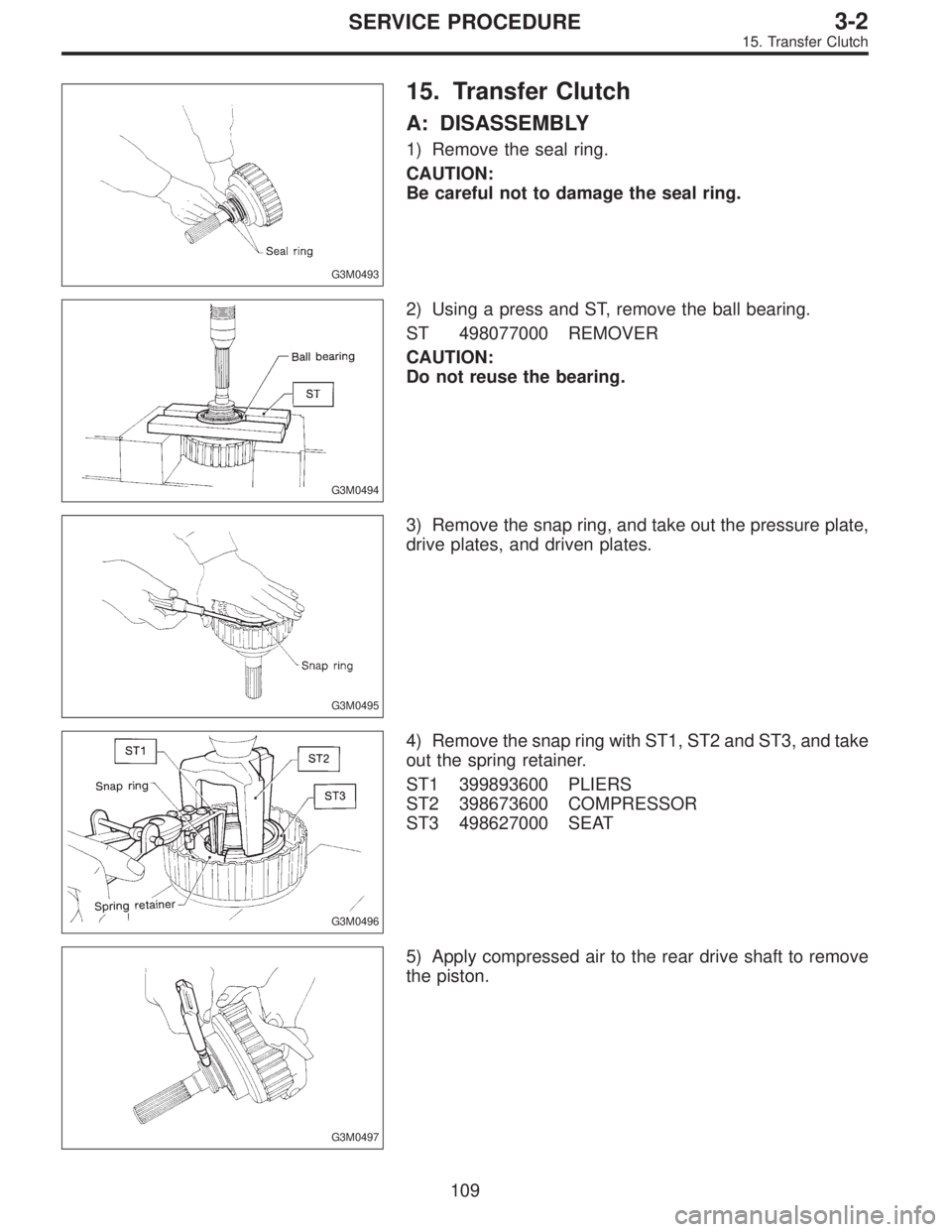

SUBARU LEGACY 1997 Service Repair Manual G3M0493 15. Transfer Clutch A: DISASSEMBLY 1) Remove the seal ring. CAUTION: Be careful not to damage the seal ring. G3M0494 2) Using a press and ST, remove the ball bearing. ST 498077000 REMOVER CAUT

Page 816 of 3342

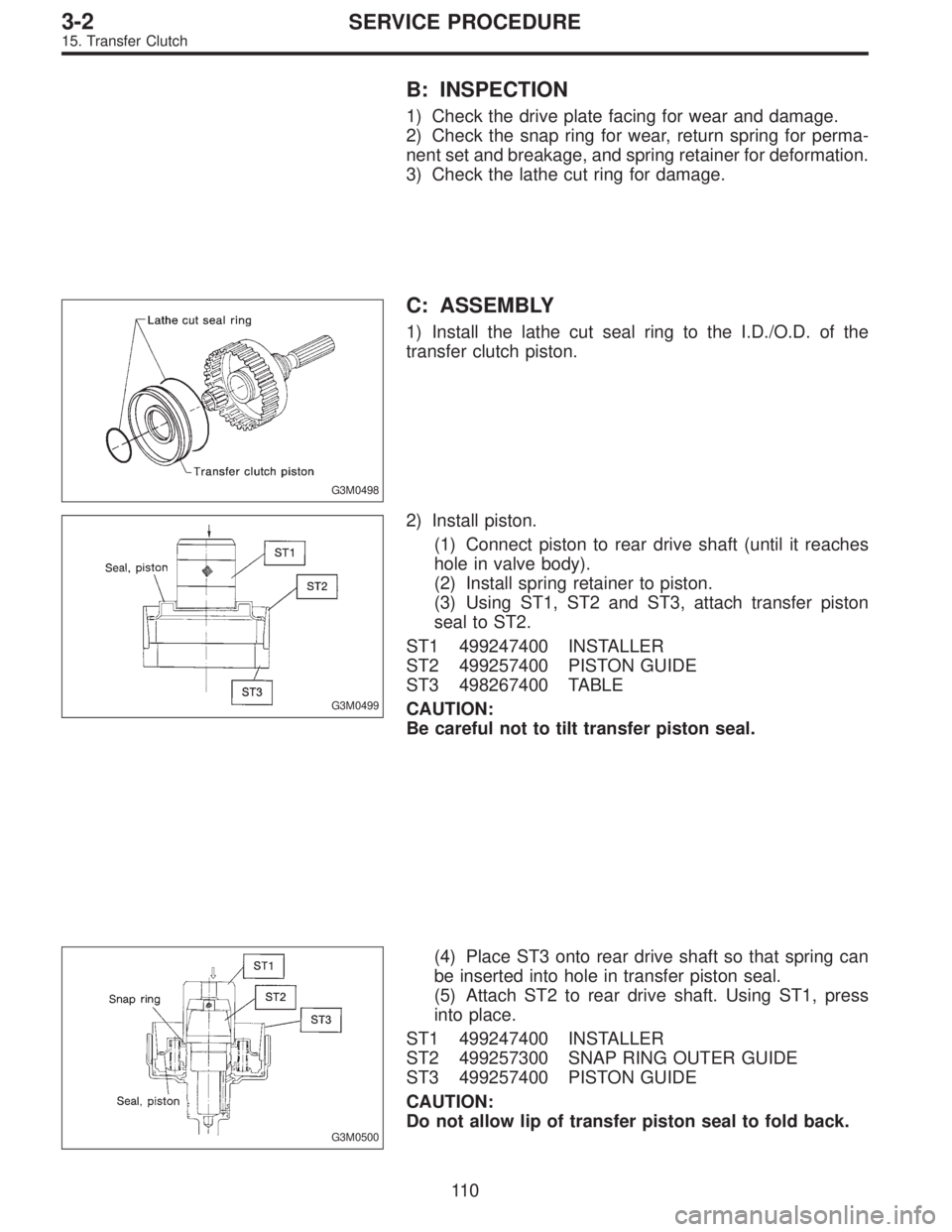

SUBARU LEGACY 1997 Service Repair Manual B: INSPECTION 1) Check the drive plate facing for wear and damage. 2) Check the snap ring for wear, return spring for perma- nent set and breakage, and spring retainer for deformation. 3) Check the la
