Page 2153 of 3342

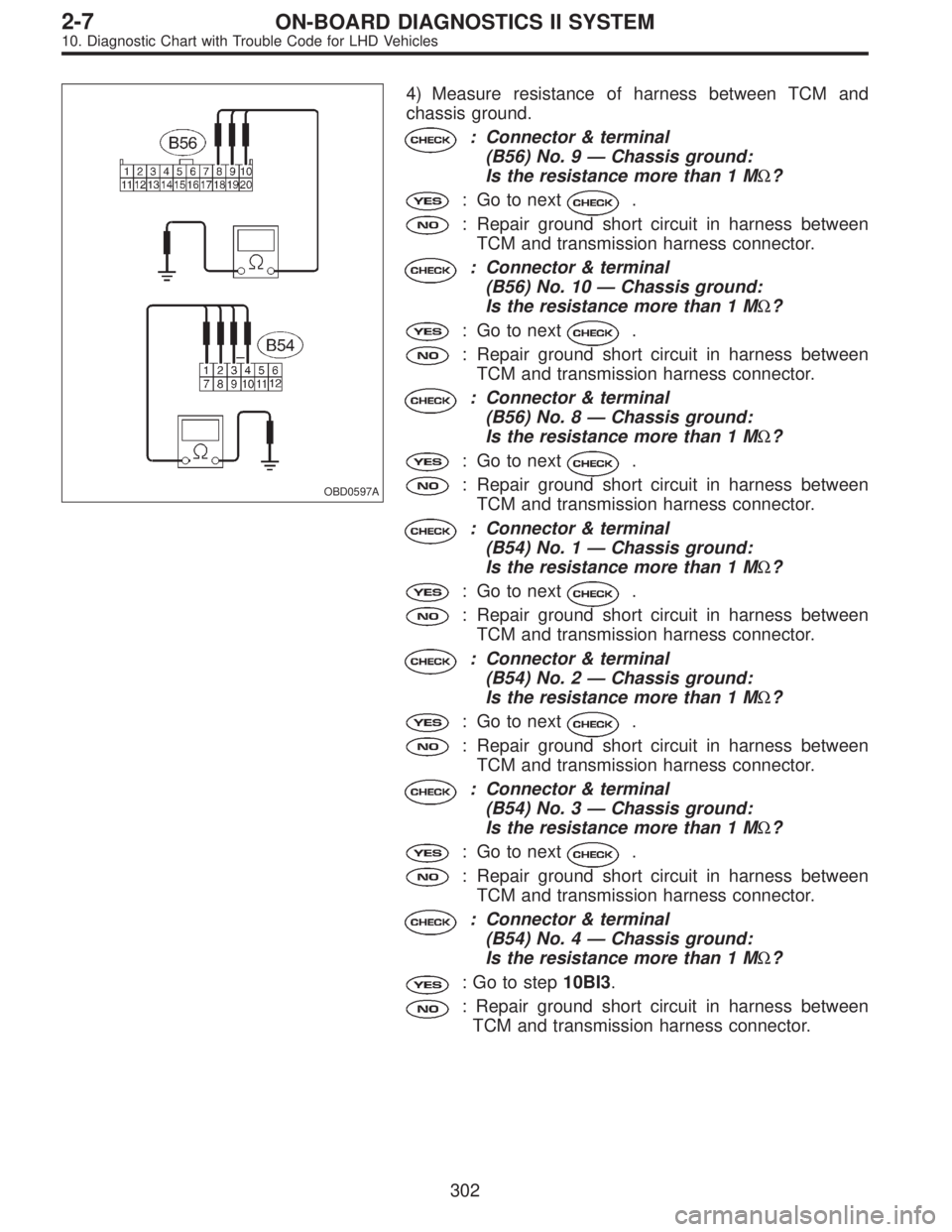

SUBARU LEGACY 1997 Service Repair Manual OBD0597A 4) Measure resistance of harness between TCM and chassis ground. : Connector & terminal (B56) No. 9—Chassis ground: Is the resistance more than 1 MΩ? : Go to next. : Repair ground short c

Page 2154 of 3342

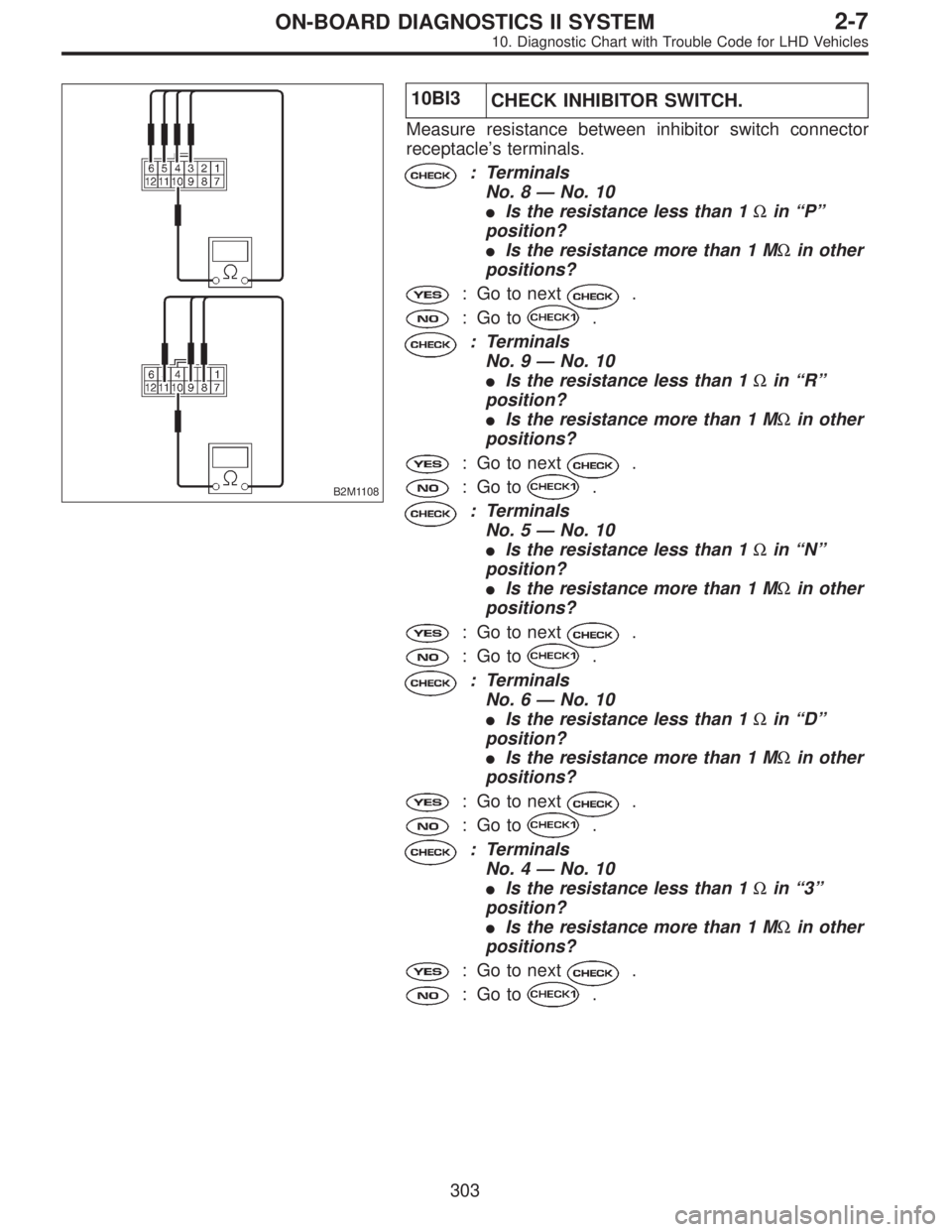

SUBARU LEGACY 1997 Service Repair Manual B2M1108 10BI3 CHECK INHIBITOR SWITCH. Measure resistance between inhibitor switch connector receptacle’s terminals. : Terminals No. 8—No. 10 Is the resistance less than 1Ωin“P” position? I

Page 2155 of 3342

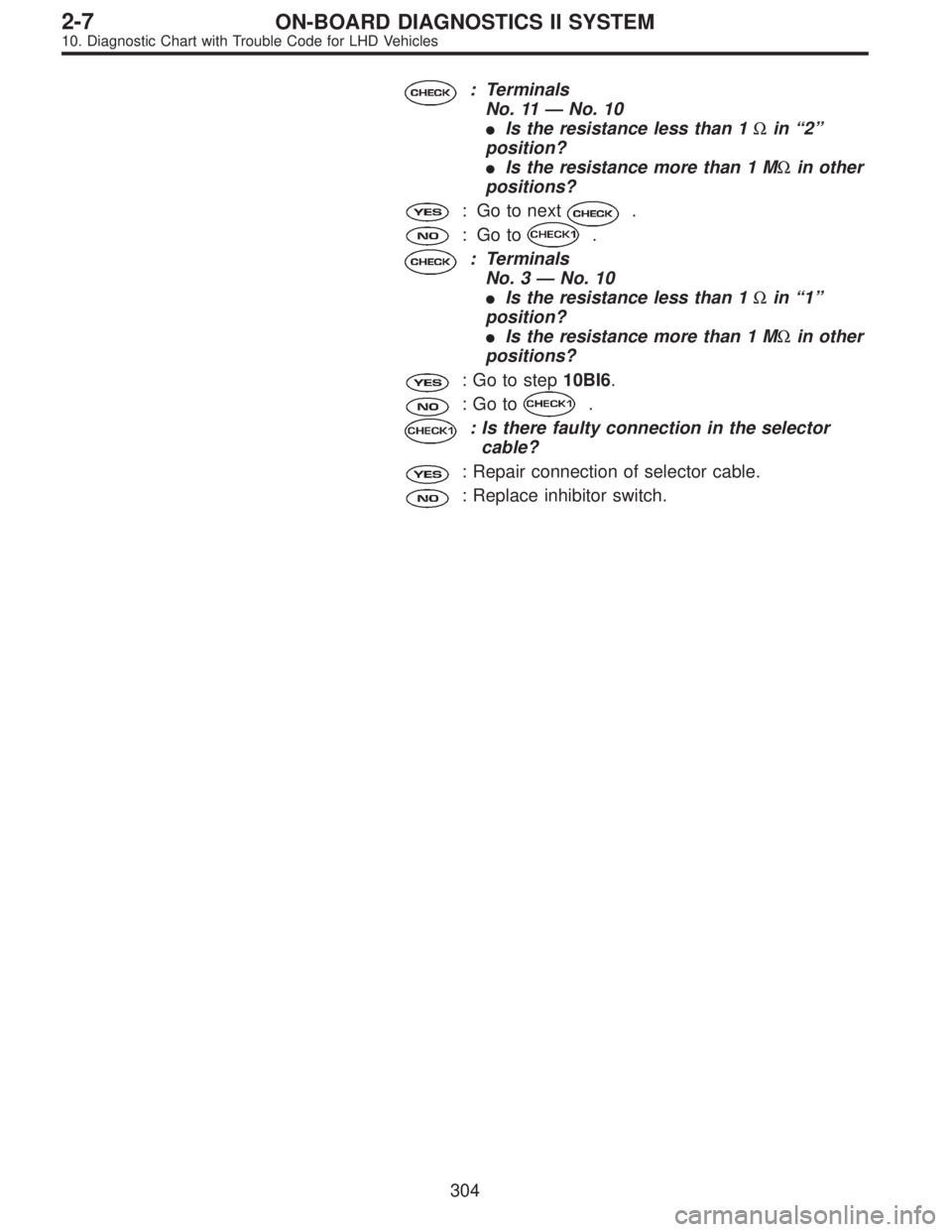

SUBARU LEGACY 1997 Service Repair Manual : Terminals No. 11—No. 10 Is the resistance less than 1Ωin“2” position? Is the resistance more than 1 MΩin other positions? : Go to next. :Goto. : Terminals No. 3—No. 10 Is the resistan

Page 2156 of 3342

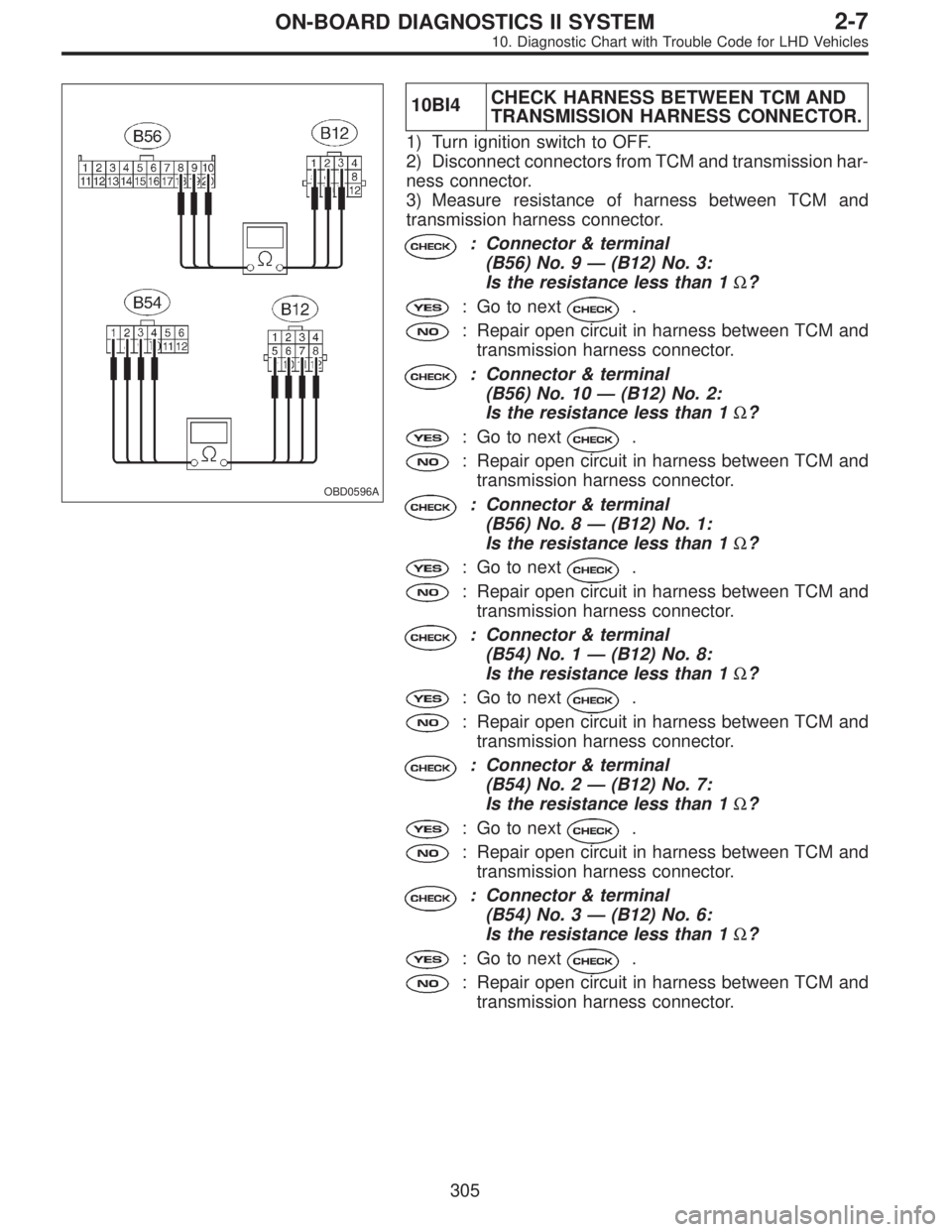

SUBARU LEGACY 1997 Service Repair Manual OBD0596A 10BI4CHECK HARNESS BETWEEN TCM AND TRANSMISSION HARNESS CONNECTOR. 1) Turn ignition switch to OFF. 2) Disconnect connectors from TCM and transmission har- ness connector. 3) Measure resistanc

Page 2157 of 3342

SUBARU LEGACY 1997 Service Repair Manual : Connector & terminal (B54) No. 4—(B12) No. 5: Is the resistance less than 1Ω? : Go to next step 4). : Repair open circuit in harness between TCM and transmission harness connector. OBD0597A 4) M

Page 2158 of 3342

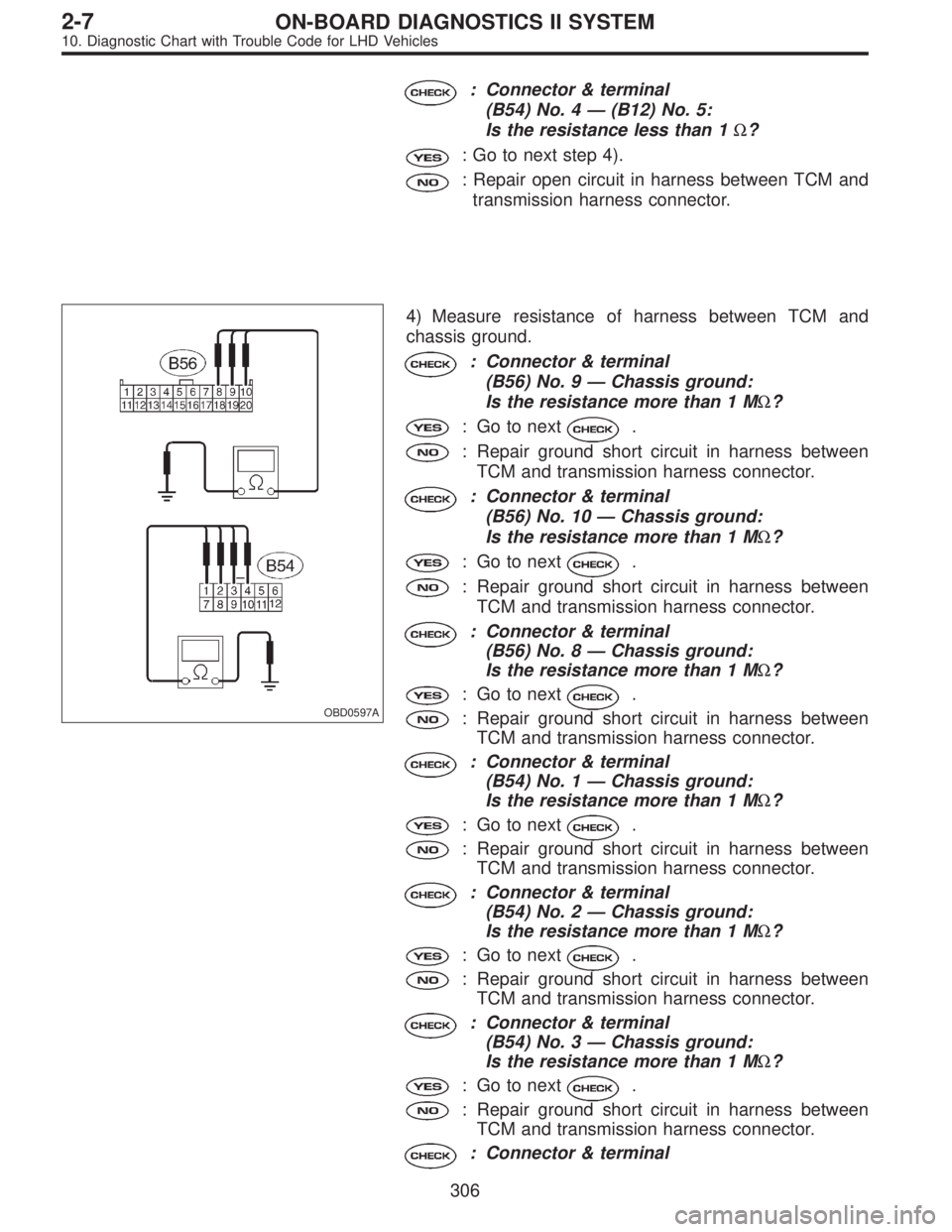

SUBARU LEGACY 1997 Service Repair Manual (B54) No. 4—Chassis ground: Is the resistance more than 1 MΩ? : Go to step10BI5. : Repair ground short circuit in harness between TCM and transmission harness connector. B2M1286A 10BI5 CHECK INHIB

Page 2159 of 3342

SUBARU LEGACY 1997 Service Repair Manual : Connector & terminal (T3) No. 7—No. 4 Is the resistance less than 1Ωin“3” position? Is the resistance more than 1 MΩin other positions? : Go to next. :Goto. : Connector & terminal (T3) N

Page 2160 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0595A 10BI6 CHECK INPUT SIGNAL FOR TCM. 1) Turn ignition switch to OFF. 2) Connect connector to TCM and transmission. 3) Turn ignition switch to ON. 4) Measure voltage between TCM and chassis groun
