SUBARU LEGACY 1997 Service Repair Manual B2M1137 CP: DTC P1442 —FUEL LEVEL SENSOR CIRCUIT RANGE/ PERFORMANCE PROBLEM 2— DTC DETECTING CONDITION: Two consecutive driving cycles with fault WIRING DIAGRAM: B2M1021 CAUTION: After repair or

Page 2394 of 3342

SUBARU LEGACY 1997 Service Repair Manual 11CP1CHECK DTC P0461, P0462 OR P0463 ON DISPLAY. : Does the Subaru select monitor or OBD-II general scan tool indicate DTC P0461, P0462 or P0463? : Inspect DTC P0461, P0462 or P0463 using“11 . Diagn

Page 2395 of 3342

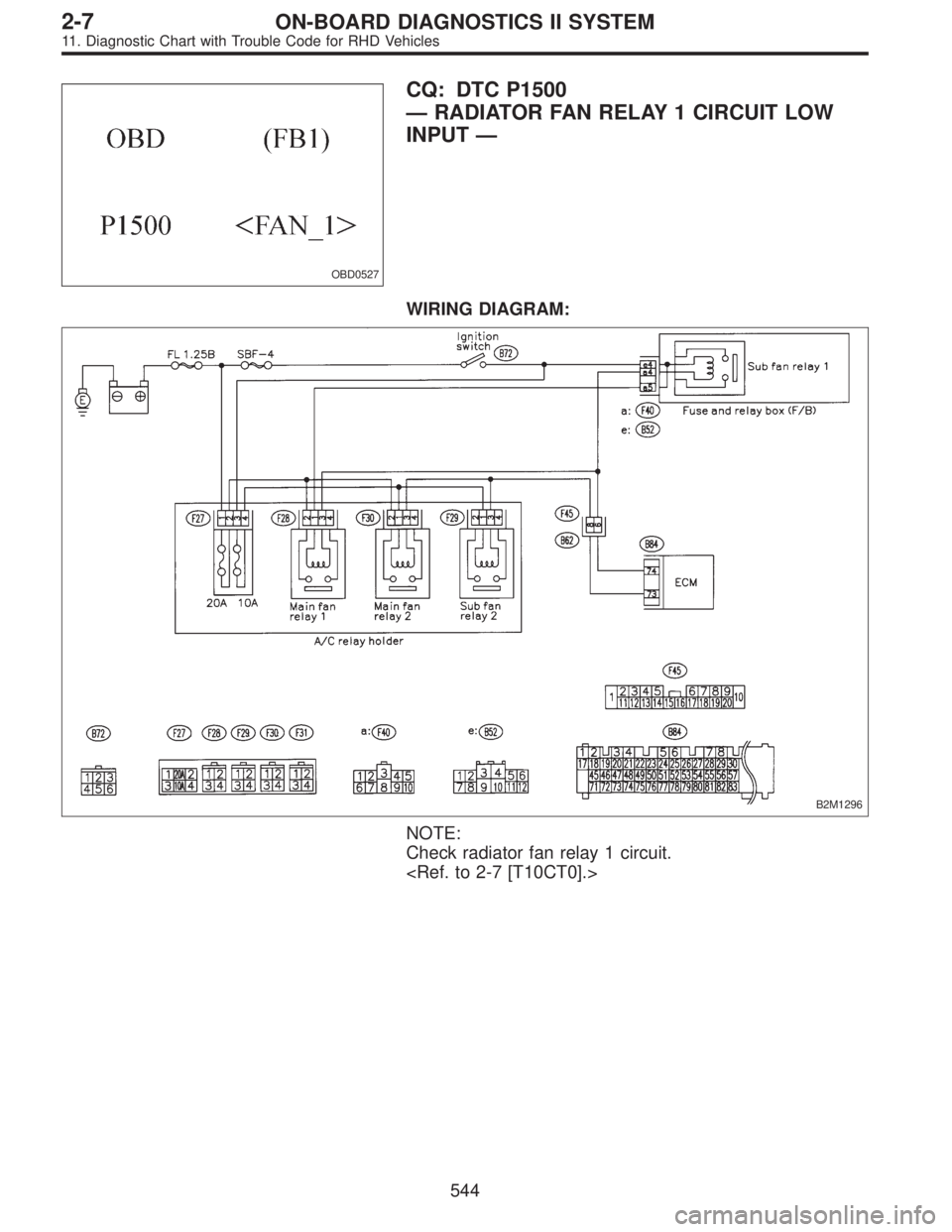

SUBARU LEGACY 1997 Service Repair Manual OBD0527 CQ: DTC P1500 —RADIATOR FAN RELAY 1 CIRCUIT LOW INPUT— WIRING DIAGRAM: B2M1296 NOTE: Check radiator fan relay 1 circuit. <Ref. to 2-7 [T10CT0].> 544 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. D

Page 2396 of 3342

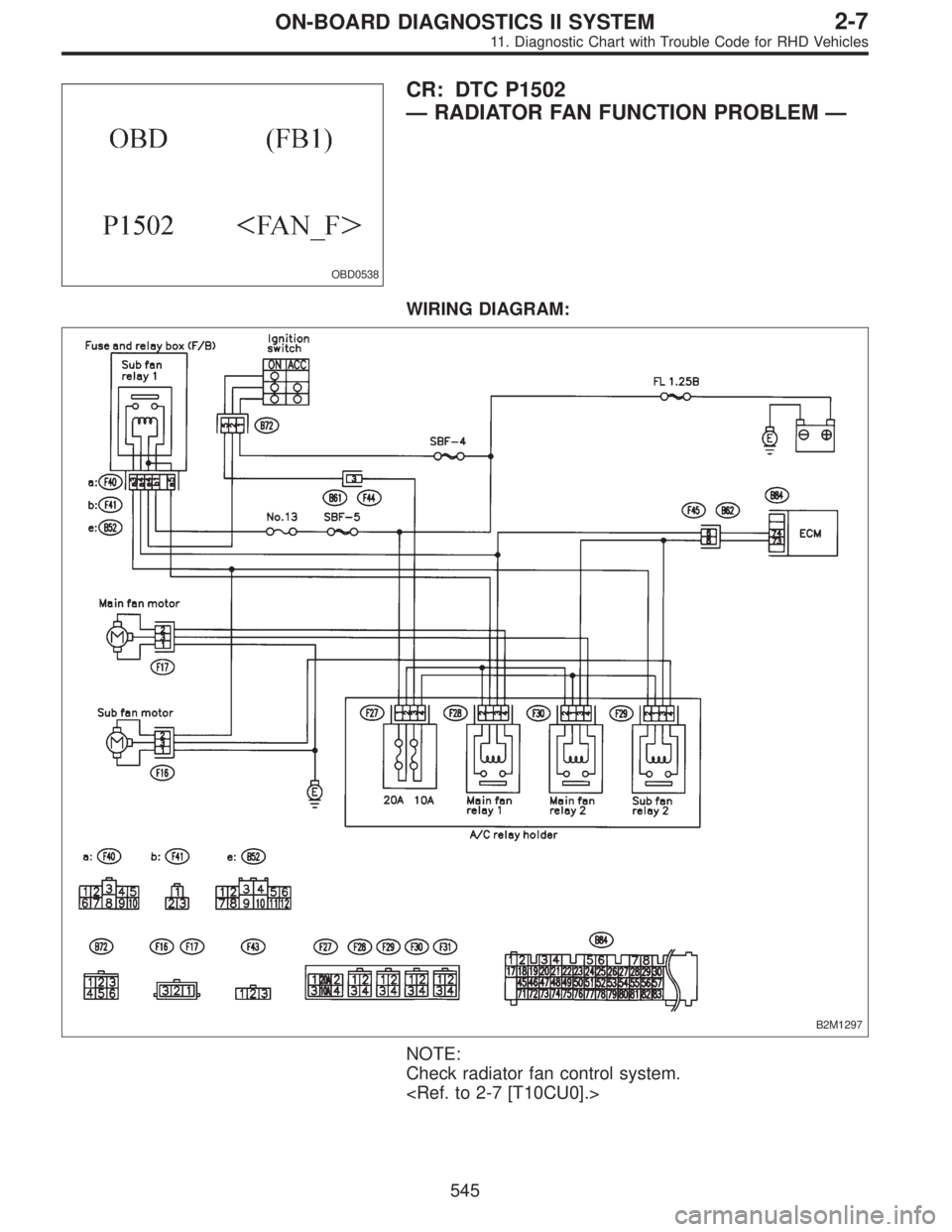

SUBARU LEGACY 1997 Service Repair Manual OBD0538 CR: DTC P1502 —RADIATOR FAN FUNCTION PROBLEM— WIRING DIAGRAM: B2M1297 NOTE: Check radiator fan control system. <Ref. to 2-7 [T10CU0].> 545 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. Diagnostic

Page 2397 of 3342

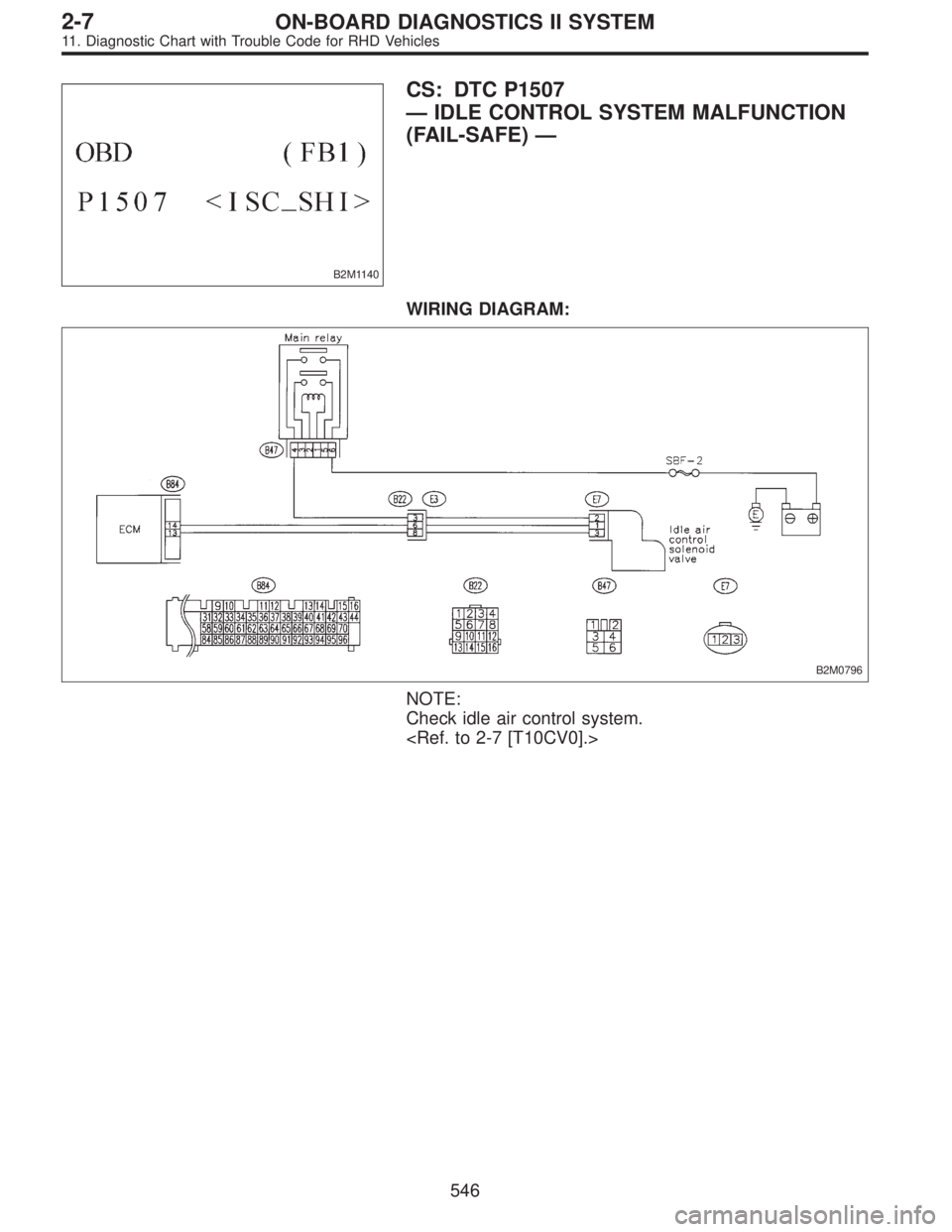

SUBARU LEGACY 1997 Service Repair Manual B2M1140 CS: DTC P1507 —IDLE CONTROL SYSTEM MALFUNCTION (FAIL-SAFE)— WIRING DIAGRAM: B2M0796 NOTE: Check idle air control system. <Ref. to 2-7 [T10CV0].> 546 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. D

Page 2398 of 3342

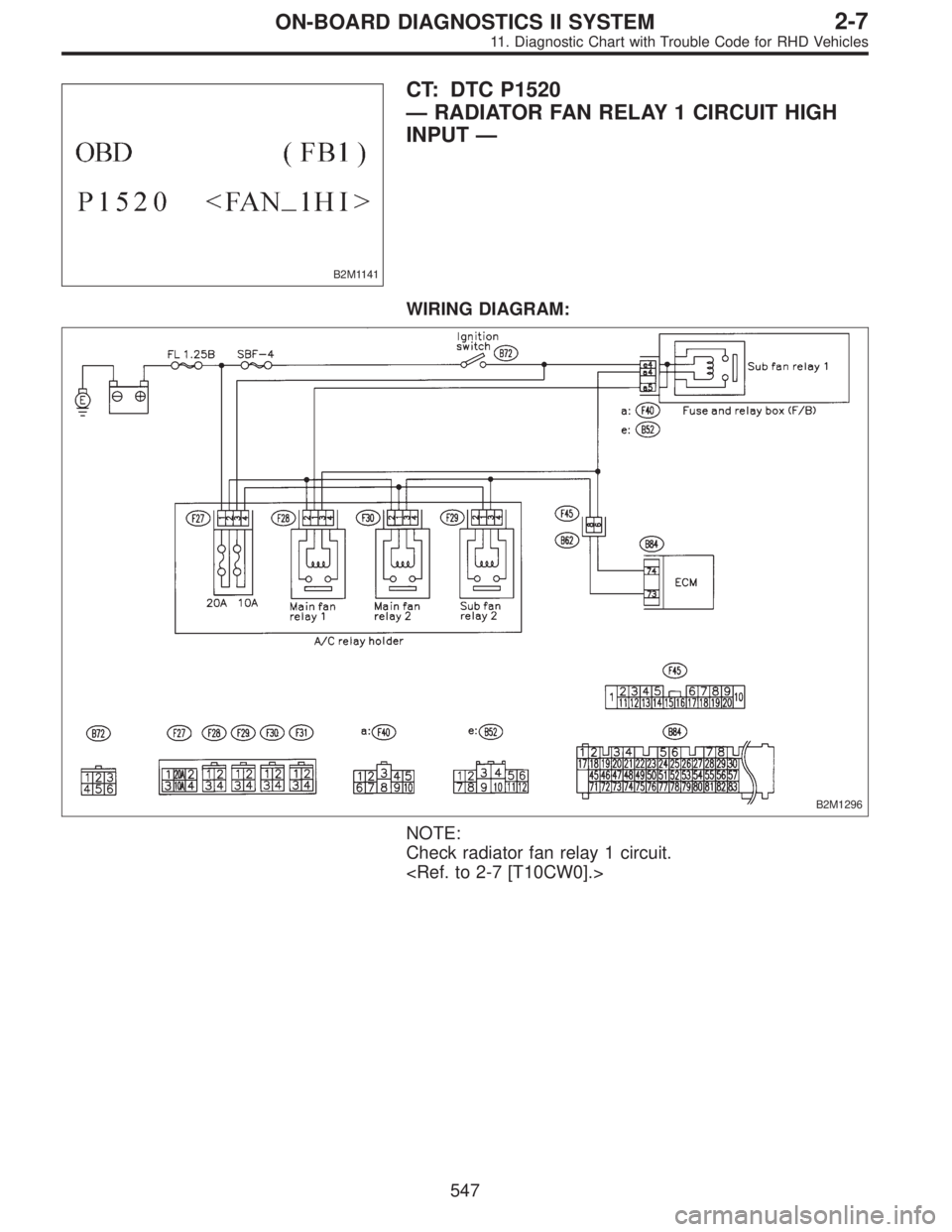

SUBARU LEGACY 1997 Service Repair Manual B2M1141 CT: DTC P1520 —RADIATOR FAN RELAY 1 CIRCUIT HIGH INPUT— WIRING DIAGRAM: B2M1296 NOTE: Check radiator fan relay 1 circuit. <Ref. to 2-7 [T10CW0].> 547 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11.

Page 2399 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1142 CU: DTC P1540 —VEHICLE SPEED SENSOR MALFUNCTION 2— WIRING DIAGRAM: B2M1285 NOTE: Check vehicle speed sensor 2 circuit. <Ref. to 2-7 [T10CX0].> 548 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. Dia

Page 2400 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0501 CV: DTC P1700 —THROTTLE POSITION SENSOR CIRCUIT MALFUNCTION— WIRING DIAGRAM: B2M0613 NOTE: Check throttle position sensor circuit for automatic trans- mission. <Ref. to 2-7 [T10CY0].> 549
