Page 3097 of 3342

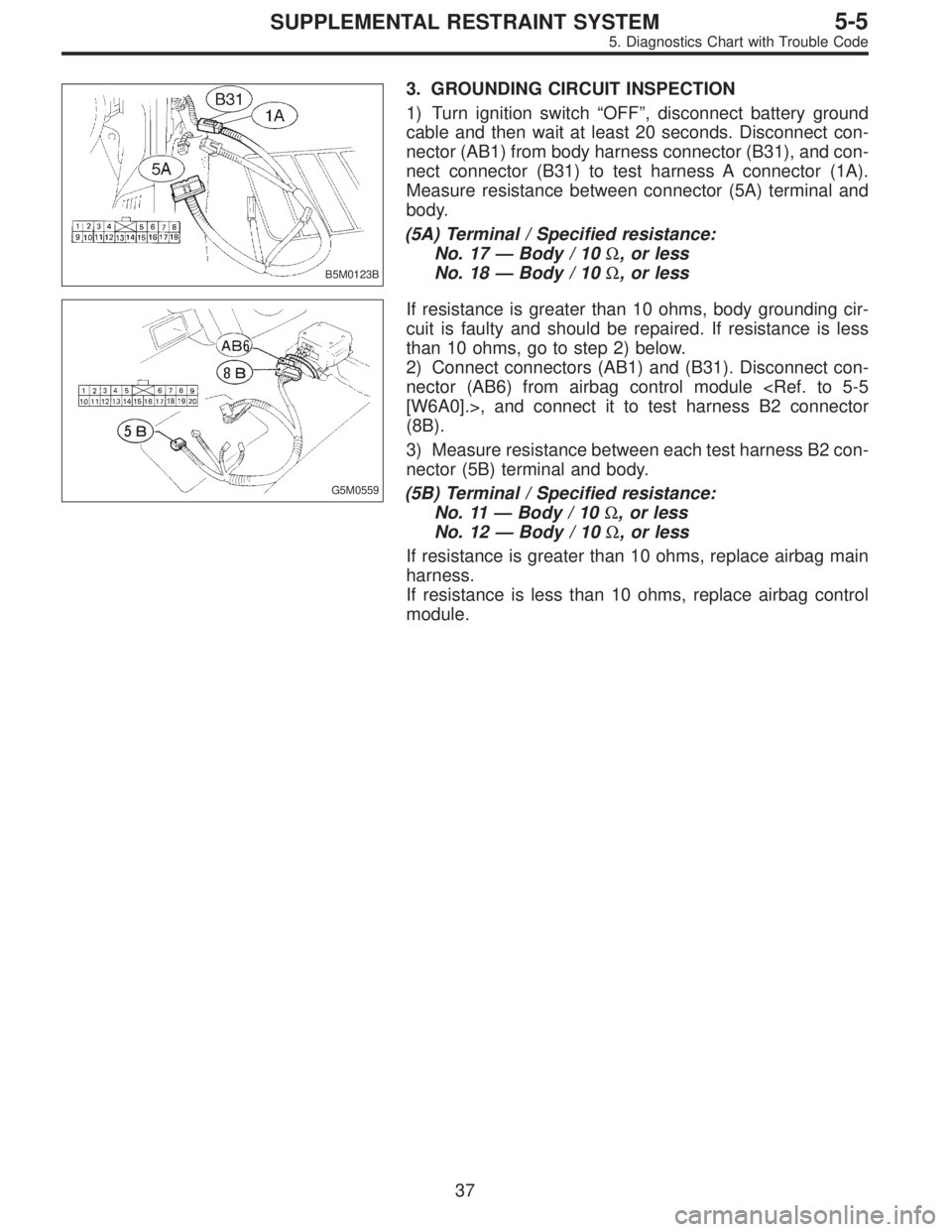

SUBARU LEGACY 1997 Service Repair Manual B5M0123B 3. GROUNDING CIRCUIT INSPECTION 1) Turn ignition switch“OFF”, disconnect battery ground cable and then wait at least 20 seconds. Disconnect con- nector (AB1) from body harness connector (

Page 3098 of 3342

SUBARU LEGACY 1997 Service Repair Manual O: AIRBAG WARNING LIGHT REMAINS OFF. DIAGNOSIS: Fuse No. 15 is blown. Body harness circuit is open. Airbag warning light is faulty. Airbag main harness is faulty. Airbag control module is faulty.

Page 3099 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0122B 3. AIRBAG WARNING LIGHT MODULE (IN COMBINATION METER) INSPECTION 1) Turn ignition switch“OFF”, disconnect battery ground cable and then wait at least 20 seconds. 2) Disconnect body harnes

Page 3100 of 3342

SUBARU LEGACY 1997 Service Repair Manual P: WARNING LIGHT INDICATES TROUBLE CODE, THEN NORMAL CODE. —FLASHING TROUBLE CODE.— DIAGNOSIS: Airbag system component parts are faulty. 1. Selection of check parts 2. Airbag component parts appe

Page 3101 of 3342

SUBARU LEGACY 1997 Service Repair Manual 1. SELECTION OF CHECK PARTS 1) Conduct on-board diagnostic and call up trouble codes stored in memory. <Ref. to 5-5 [T4B0].> 2) Select trouble code required to check airbag compo- nent parts from thos

Page 3102 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. AIRBAG COMPONENT PARTS APPEARANCE INSPECTION Conduct appearance inspection on parts selected. NOTE: Also check connector terminals, wiring harness, case, etc. for damage. 3. AIRBAG COMPONENT PARTS

Page 3103 of 3342

SUBARU LEGACY 1997 Service Repair Manual Q: WARNING LIGHT INDICATES TROUBLE CODE, THEN NORMAL CODE. —FLASHING NORMAL CODE.— DIAGNOSIS: Airbag connector is faulty. Fuse No. 16 is blown. Airbag main harness is faulty. Airbag control mo

Page 3104 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0461 2. SHOWERING INSPECTION TO BODY 1) Spray water on vehicle body. CAUTION: Do not directly spray water on airbag components. 2) Check passenger compartment for traces of leaking. NOTE: If leaks
