Page 801 of 3342

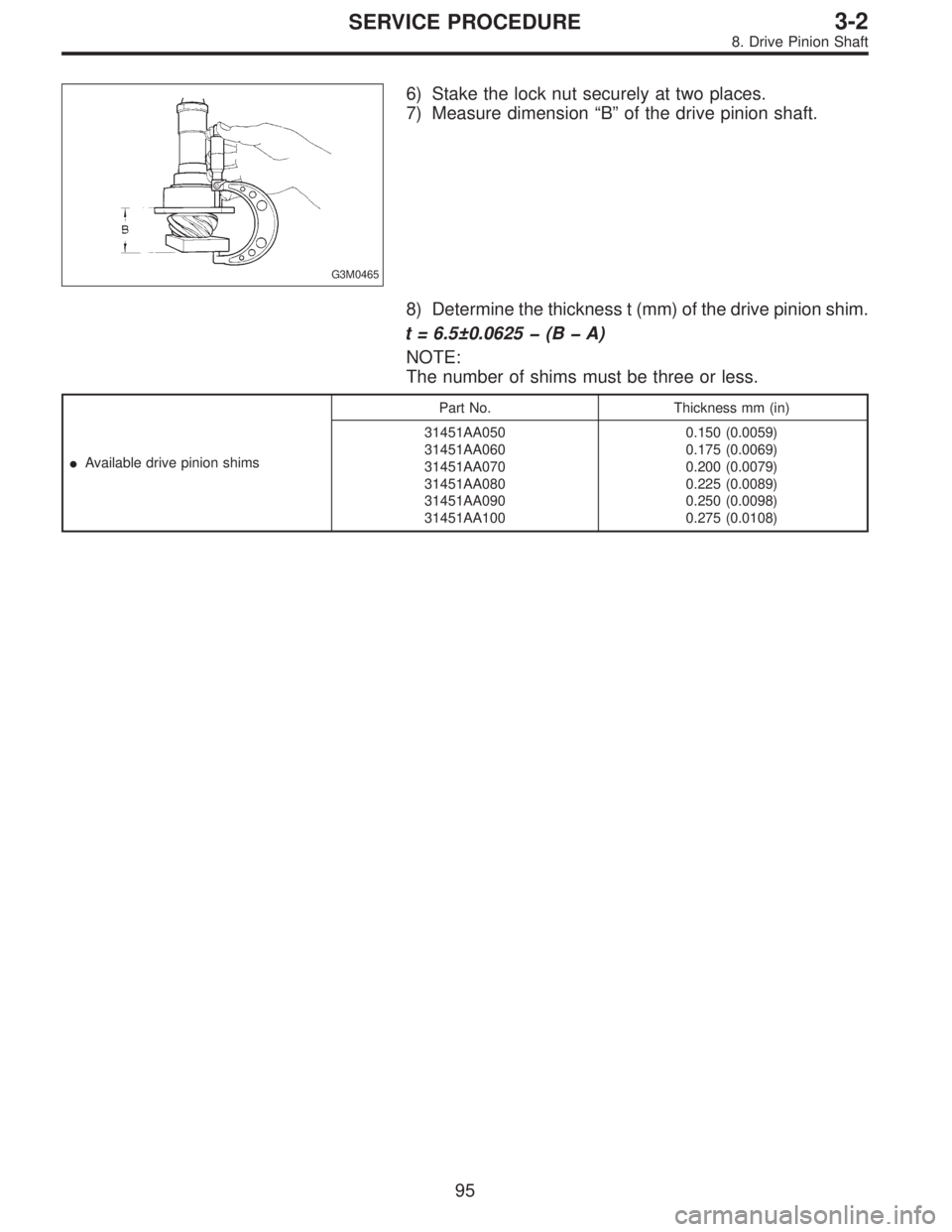

SUBARU LEGACY 1997 Service Repair Manual G3M0465 6) Stake the lock nut securely at two places. 7) Measure dimension“B”of the drive pinion shaft. 8) Determine the thickness t (mm) of the drive pinion shim. t = 6.5±0.0625 � (B � A) NOTE:

Page 802 of 3342

SUBARU LEGACY 1997 Service Repair Manual 9. Reverse Clutch G3M0909 1Reverse clutch drum  2Lip seal  3Reverse clutch piston  4Lathe cut seal ring  5Spring  6Spring retainer  7Snap ring 8Dish plate  9Driven plate  10Drive plate  11R

Page 803 of 3342

SUBARU LEGACY 1997 Service Repair Manual C: ASSEMBLY G3M0909 1Reverse clutch drum  2Lip seal  3Reverse clutch piston  4Lathe cut seal ring 5Spring  6Spring retainer  7Snap ring 8Dish plate  9Driven plate  10Drive plate 11Retaining

Page 804 of 3342

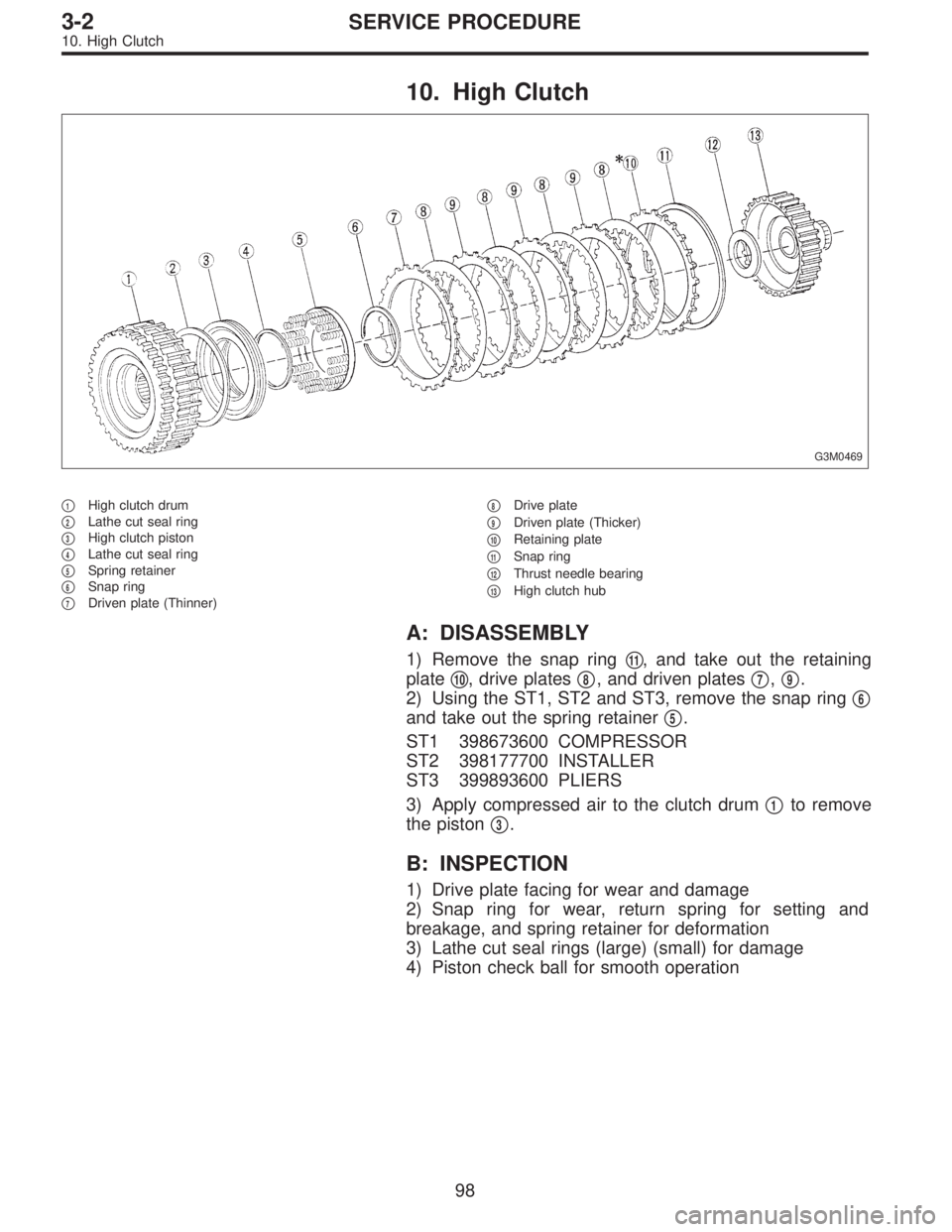

SUBARU LEGACY 1997 Service Repair Manual 10. High Clutch G3M0469 1High clutch drum  2Lathe cut seal ring  3High clutch piston  4Lathe cut seal ring  5Spring retainer  6Snap ring  7Driven plate (Thinner) 8Drive plate  9Driven plate (

Page 805 of 3342

SUBARU LEGACY 1997 Service Repair Manual C: ASSEMBLY G3M0469 1High clutch drum  2Lathe cut seal ring  3High clutch piston  4Lathe cut seal ring  5Spring retainer  6Snap ring  7Driven plate (Thinner) 8Drive plate  9Driven plate (Thic

Page 806 of 3342

SUBARU LEGACY 1997 Service Repair Manual Available retaining platesPart No. Thickness mm (in) 31567AA190 31567AA200 31567AA210 31567AA220 31567AA230 31567AA240 31567AA250 31567AA2603.6 (0.142) 3.8 (0.150) 4.0 (0.157) 4.2 (0.165) 4.4 (0.173)

Page 807 of 3342

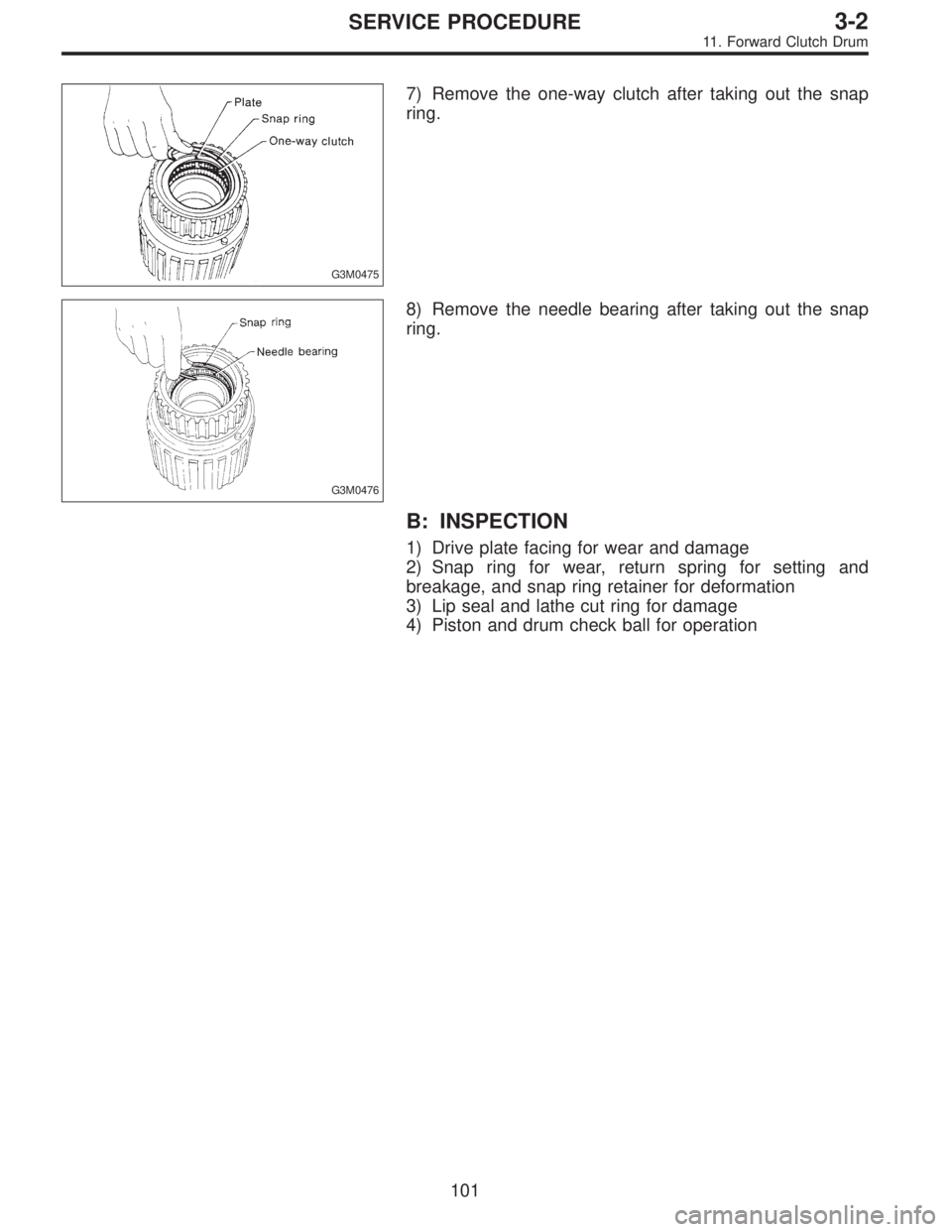

SUBARU LEGACY 1997 Service Repair Manual G3M0475 7) Remove the one-way clutch after taking out the snap ring. G3M0476 8) Remove the needle bearing after taking out the snap ring. B: INSPECTION 1) Drive plate facing for wear and damage 2) Sna

Page 808 of 3342

SUBARU LEGACY 1997 Service Repair Manual C: ASSEMBLY B3H0014 1Snap ring  2Retainer  3Lathe cut seal ring  4Dish plate  5Snap ring  6Snap ring  7Retaining plate  8Dish plate  9Snap ring  10Retaining plate 11Forward clutch piston
