Page 1177 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0051 7. Full Wheel Cap A: REMOVAL Pry off the full wheel cap with a wheel cap remover inserted between openings in the cap. B: INSTALLATION Align the valve hole in the wheel cap with the valve on t

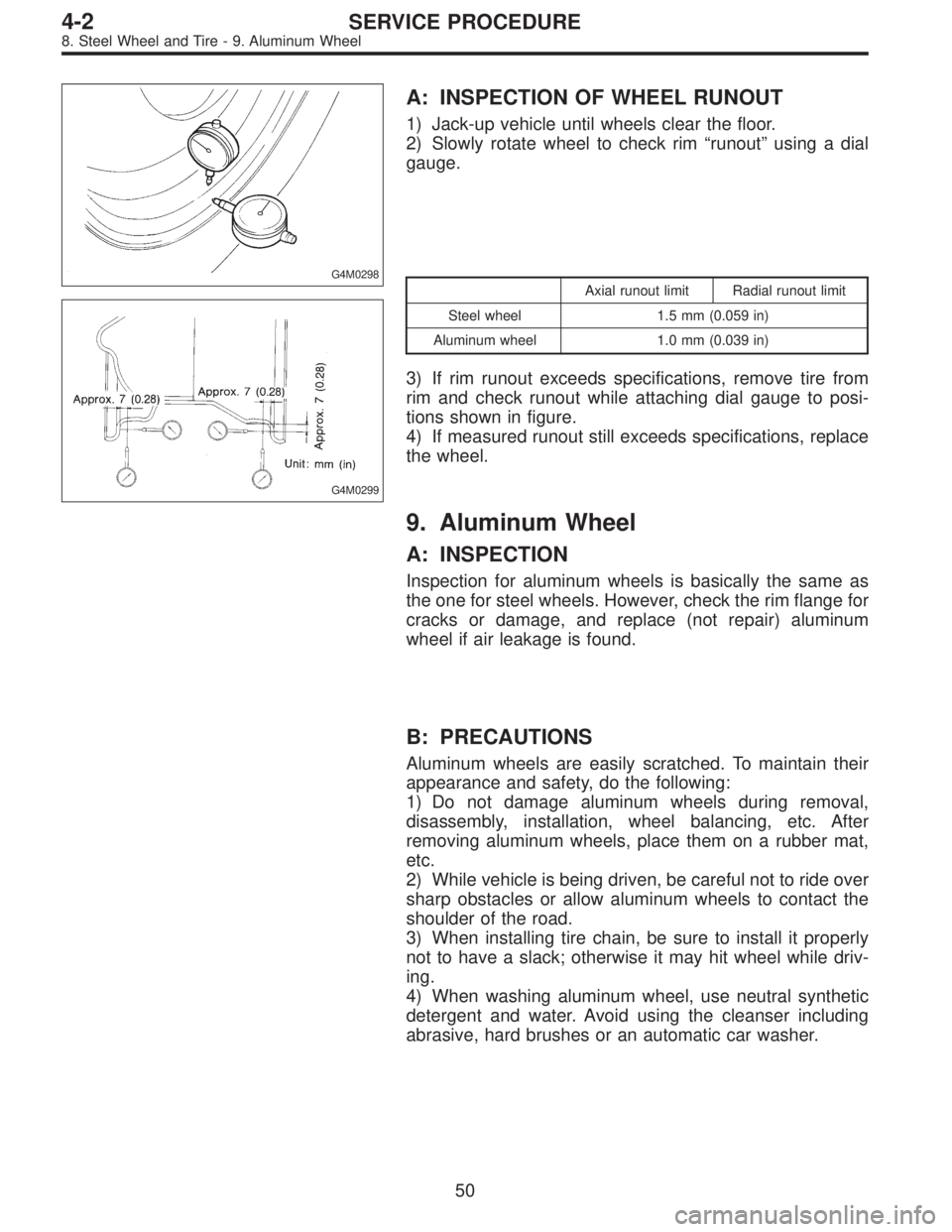

Page 1178 of 3342

SUBARU LEGACY 1997 Service Repair Manual G4M0298 A: INSPECTION OF WHEEL RUNOUT 1) Jack-up vehicle until wheels clear the floor. 2) Slowly rotate wheel to check rim“runout”using a dial gauge. G4M0299 Axial runout limit Radial runout limit

Page 1179 of 3342

SUBARU LEGACY 1997 Service Repair Manual G4M0298 A: INSPECTION OF WHEEL RUNOUT 1) Jack-up vehicle until wheels clear the floor. 2) Slowly rotate wheel to check rim“runout”using a dial gauge. G4M0299 Axial runout limit Radial runout limit

Page 1180 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0053A 10. Wheel Balancing 1) Proper wheel balance may be lost if the tire is repaired or if it wears. Check the tire for dynamic balance, and repair as necessary. 2) To check for dynamic balance, u

Page 1181 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M0053A 10. Wheel Balancing 1) Proper wheel balance may be lost if the tire is repaired or if it wears. Check the tire for dynamic balance, and repair as necessary. 2) To check for dynamic balance, u

Page 1182 of 3342

SUBARU LEGACY 1997 Service Repair Manual G4M0301 12. Tire Rotation If tires are maintained at the same positions for a long period of time, uneven wear results. Therefore, they should be periodically rotated. This lengthens service life of t

Page 1183 of 3342

SUBARU LEGACY 1997 Service Repair Manual G4M0301 12. Tire Rotation If tires are maintained at the same positions for a long period of time, uneven wear results. Therefore, they should be periodically rotated. This lengthens service life of t

Page 1184 of 3342

SUBARU LEGACY 1997 Service Repair Manual 14. Replacement of Front FTJ and BJ Boots A: REMOVAL 1) Disconnect ground cable from battery. 2) Jack-up vehicle, support it with safety stands (rigid rocks), and remove front wheel cap and wheels. NO
