SUBARU LEGACY 1997 Service Repair Manual OBD0376 BG: DTC P0601 —INTERNAL CONTROL MODULE MEMORY CHECK SUM ERROR— WIRING DIAGRAM: B2M1295 NOTE: Check internal control module memory. <Ref. to 2-7 [T10BG0].> 502 2-7ON-BOARD DIAGNOSTICS II SY

Page 2354 of 3342

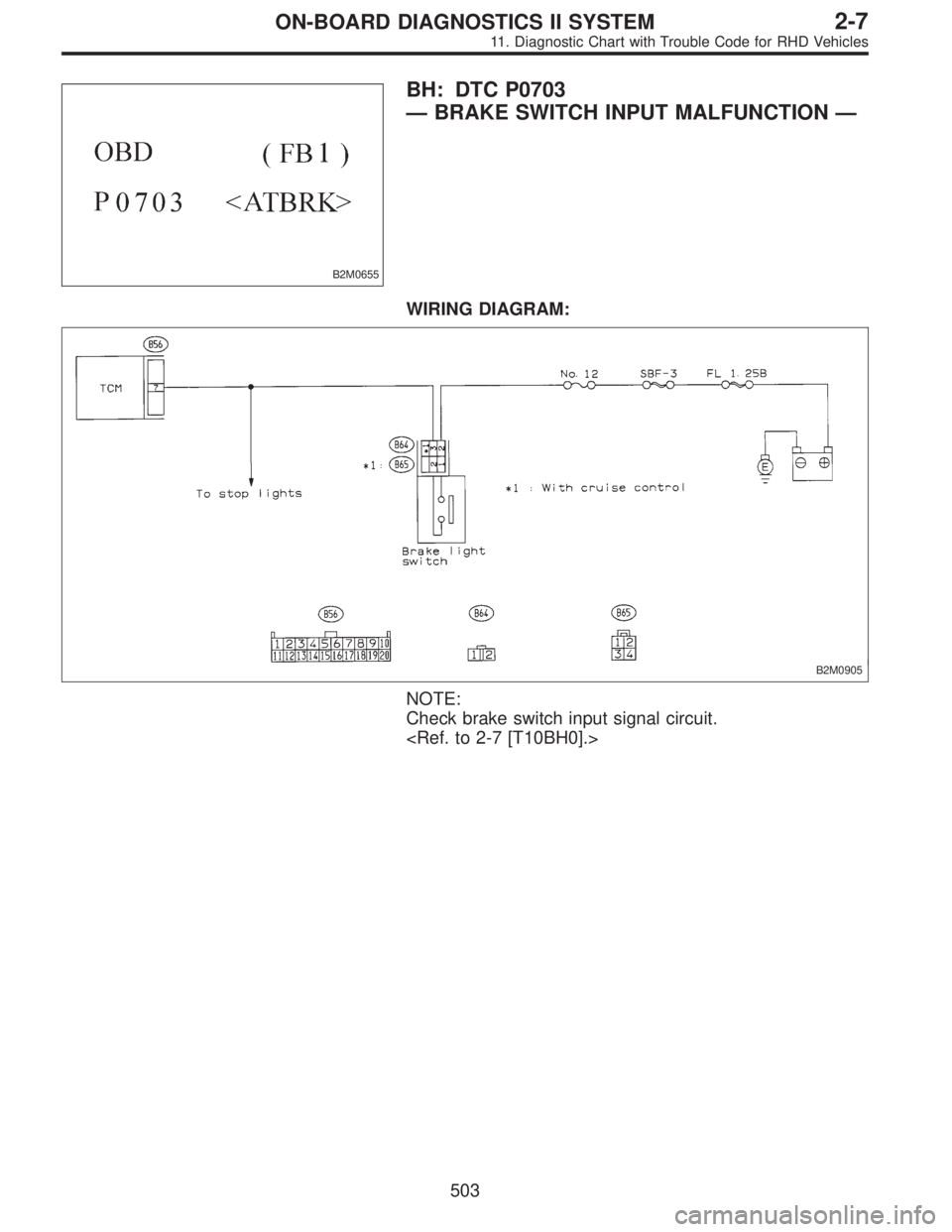

SUBARU LEGACY 1997 Service Repair Manual B2M0655 BH: DTC P0703 —BRAKE SWITCH INPUT MALFUNCTION— WIRING DIAGRAM: B2M0905 NOTE: Check brake switch input signal circuit. <Ref. to 2-7 [T10BH0].> 503 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. Diag

Page 2355 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0656 BI: DTC P0705 —TRANSMISSION RANGE SENSOR CIRCUIT MALFUNCTION— WIRING DIAGRAM: B2M1106 NOTE: Check inhibitor switch circuit. <Ref. to 2-7 [T10BI0].> 504 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11

Page 2356 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0380 BJ: DTC P0710 —TRANSMISSION FLUID TEMPERATURE SENSOR CIRCUIT MALFUNCTION— WIRING DIAGRAM: OBD0383 NOTE: Check automatic transmission fluid temperature sensor cir- cuit. <Ref. to 2-7 [T10BJ

Page 2357 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0392 BK: DTC P0720 —OUTPUT SPEED SENSOR (VEHICLE SPEED SENSOR 1) CIRCUIT MALFUNCTION — WIRING DIAGRAM: B2M0584 NOTE: Check vehicle speed sensor 1 circuit. <Ref. to 2-7 [T10BK0].> 506 2-7ON-BOAR

Page 2358 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0404 BL: DTC P0725 —ENGINE SPEED INPUT CIRCUIT MALFUNCTION— WIRING DIAGRAM: B2M0585 NOTE: Check engine speed signal input circuit. <Ref. to 2-7 [T10BL0].> 507 2-7ON-BOARD DIAGNOSTICS II SYSTEM

Page 2359 of 3342

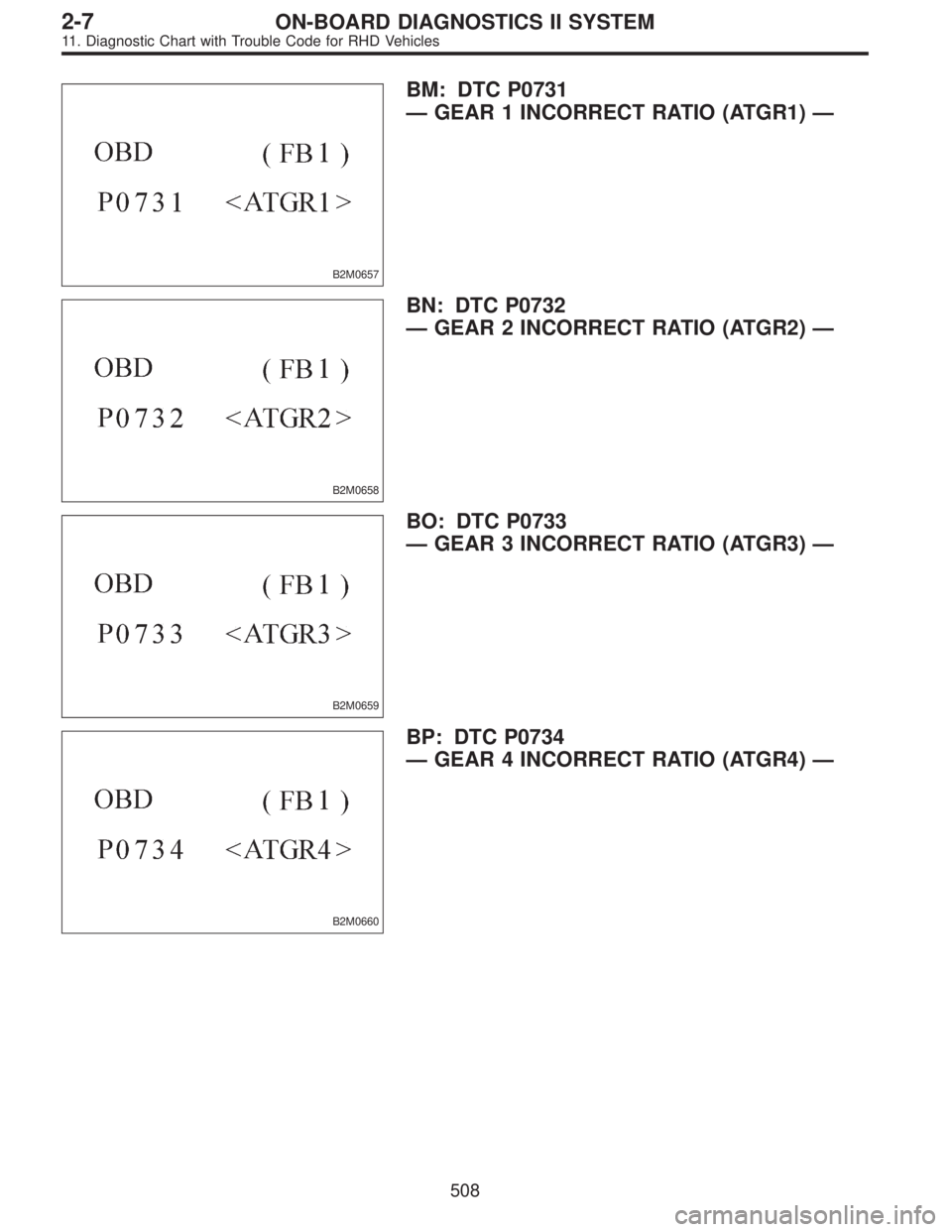

SUBARU LEGACY 1997 Service Repair Manual B2M0657 BM: DTC P0731 —GEAR 1 INCORRECT RATIO (ATGR1)— B2M0658 BN: DTC P0732 —GEAR 2 INCORRECT RATIO (ATGR2)— B2M0659 BO: DTC P0733 —GEAR 3 INCORRECT RATIO (ATGR3)— B2M0660 BP: DTC P0734

Page 2360 of 3342

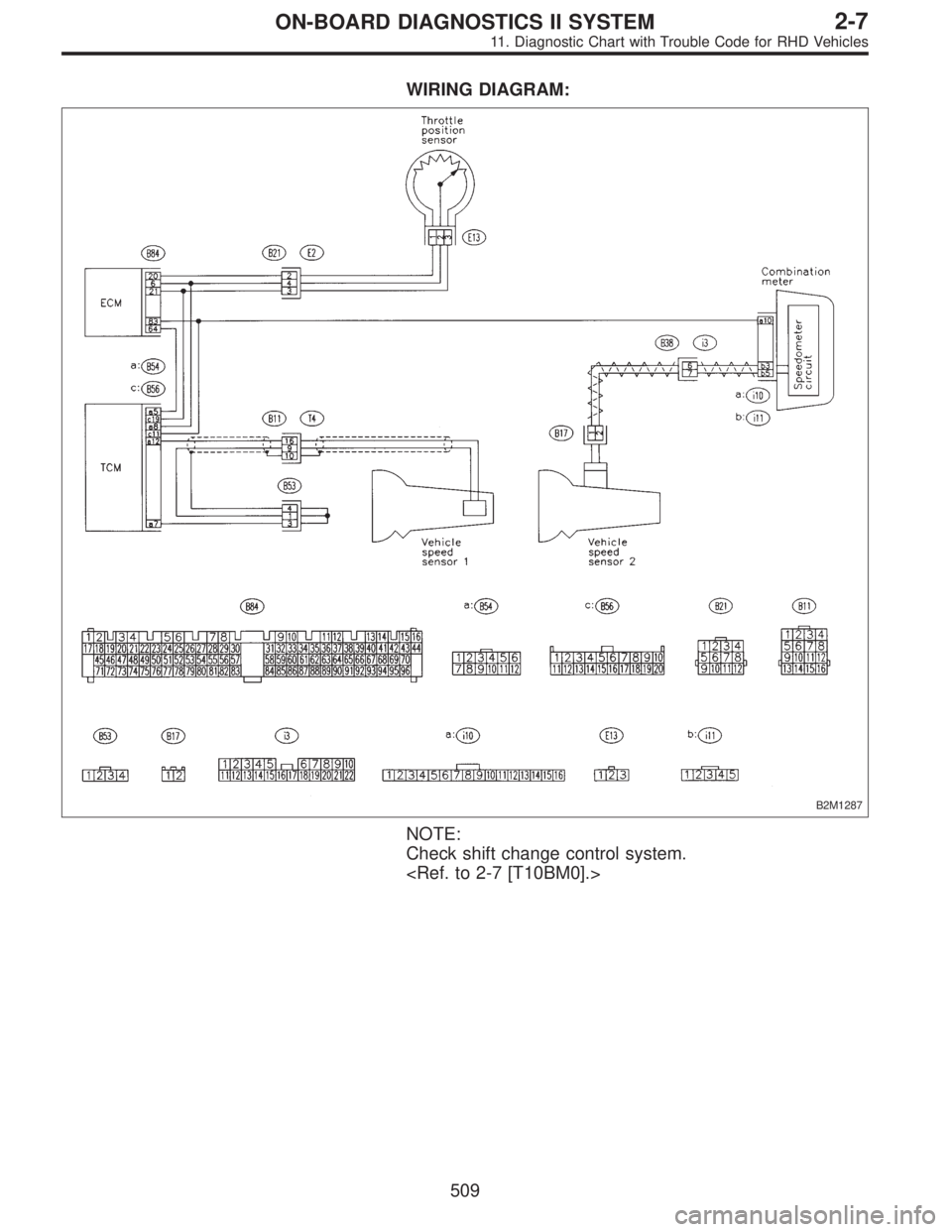

SUBARU LEGACY 1997 Service Repair Manual WIRING DIAGRAM: B2M1287 NOTE: Check shift change control system. <Ref. to 2-7 [T10BM0].> 509 2-7ON-BOARD DIAGNOSTICS II SYSTEM 11. Diagnostic Chart with Trouble Code for RHD Vehicles
