SUBARU LEGACY 1997 Service Repair Manual D: ASSEMBLY B2M1220B B2M1221A 1) Installation of valve spring and valve (1) Coat stem of each valve with engine oil and insert valve into valve guide. CAUTION: When inserting valve into valve guide, u

Page 386 of 3342

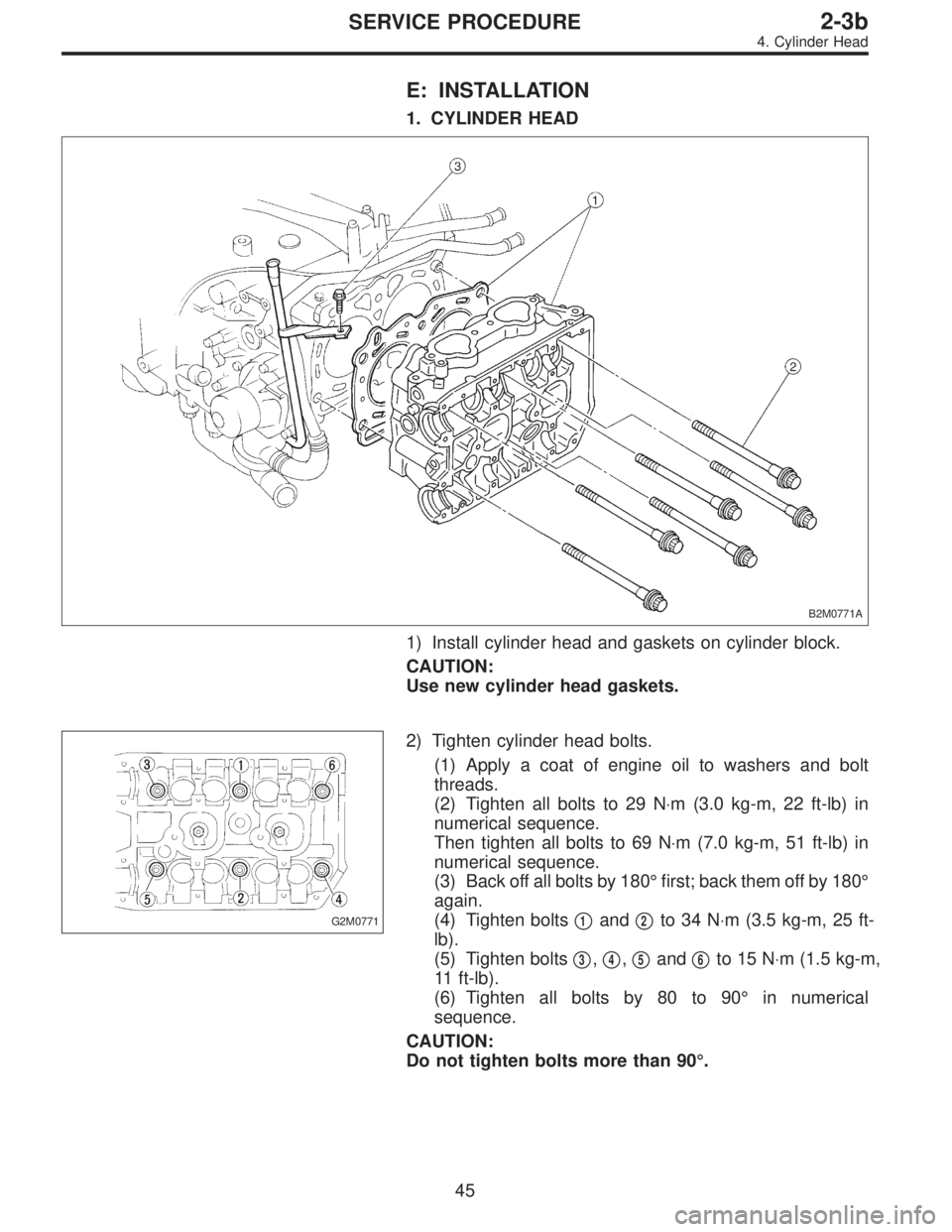

SUBARU LEGACY 1997 Service Repair Manual E: INSTALLATION 1. CYLINDER HEAD B2M0771A 1) Install cylinder head and gaskets on cylinder block. CAUTION: Use new cylinder head gaskets. G2M0771 2) Tighten cylinder head bolts. (1) Apply a coat of en

Page 387 of 3342

SUBARU LEGACY 1997 Service Repair Manual (7) Further tighten all bolts by 80 to 90°in numerical sequence. CAUTION: Ensure that the total“re-tightening angle”[steps (6) and (7) above] do not exceed 180°. 3) Install oil level gauge guide

Page 388 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2) Install camshaft sprockets, timing belt and related parts. <Ref. to 2-3b [W2C0].> B2M0702 B2M0703 3) Install engine coolant pipe. CAUTION: Use new gaskets. 47 2-3bSERVICE PROCEDURE 4. Cylinder Head

Page 389 of 3342

SUBARU LEGACY 1997 Service Repair Manual G2M0774 4) Install intake manifold. CAUTION: Use new gaskets. 5) Install coolant filler tank. 6) Install crankshaft position sensor, camshaft position sensor and knock sensor. Use dry compressed air t

Page 390 of 3342

SUBARU LEGACY 1997 Service Repair Manual 5. Cylinder Block A: REMOVAL 1. RELATED PARTS 1) Remove timing belt, camshaft sprockets and related parts. <Ref. to 2-3b [W2A0].> B2M0702 49 2-3bSERVICE PROCEDURE 5. Cylinder Block

Page 391 of 3342

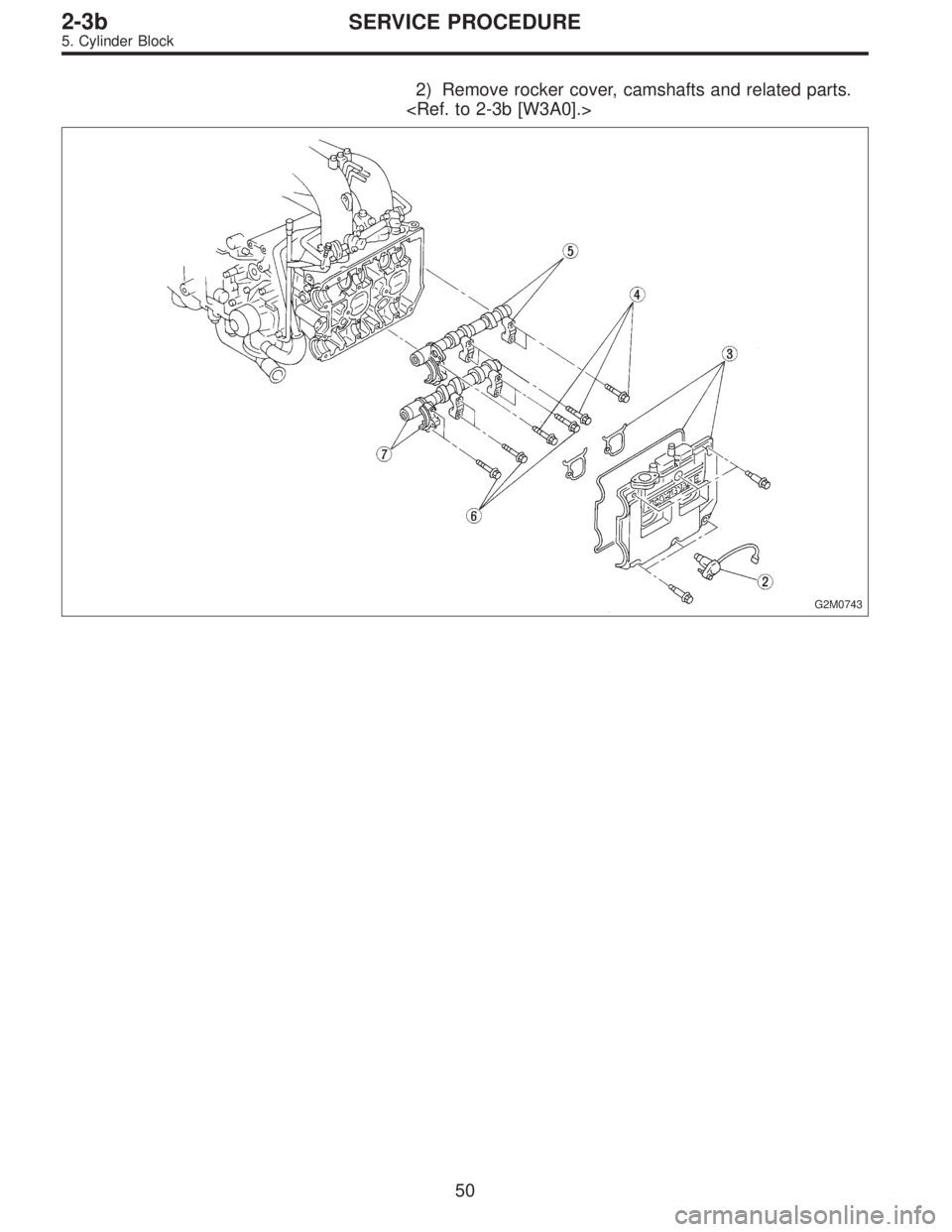

SUBARU LEGACY 1997 Service Repair Manual 2) Remove rocker cover, camshafts and related parts. <Ref. to 2-3b [W3A0].> G2M0743 50 2-3bSERVICE PROCEDURE 5. Cylinder Block

Page 392 of 3342

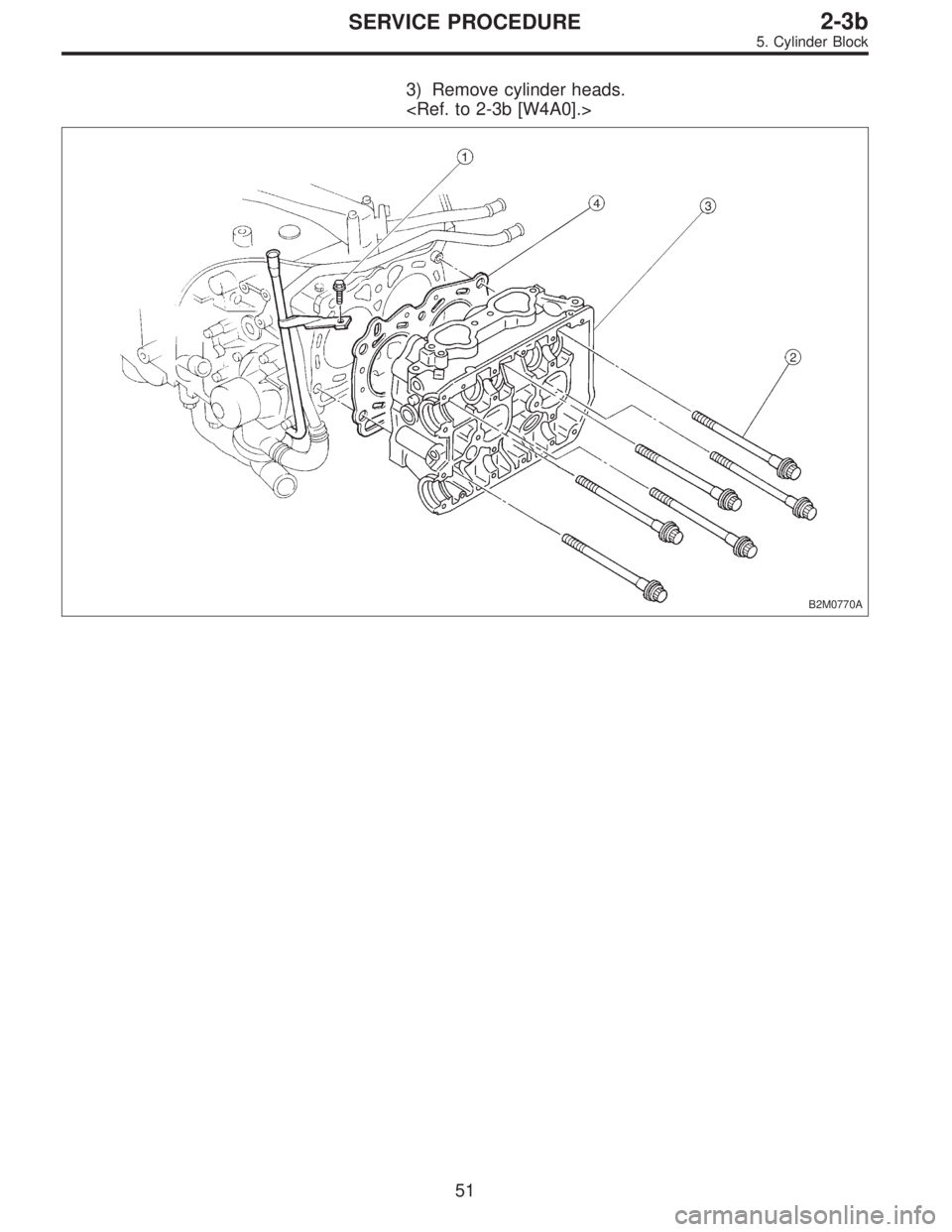

SUBARU LEGACY 1997 Service Repair Manual 3) Remove cylinder heads. <Ref. to 2-3b [W4A0].> B2M0770A 51 2-3bSERVICE PROCEDURE 5. Cylinder Block
