Page 3081 of 3342

SUBARU LEGACY 1997 Service Repair Manual E: TROUBLE CODE 12 DIAGNOSIS: Airbag main harness circuit is open. Airbag module harness (Driver) circuit is open. Roll connector circuit is open. Airbag control module is faulty. 1. Airbag main h

Page 3082 of 3342

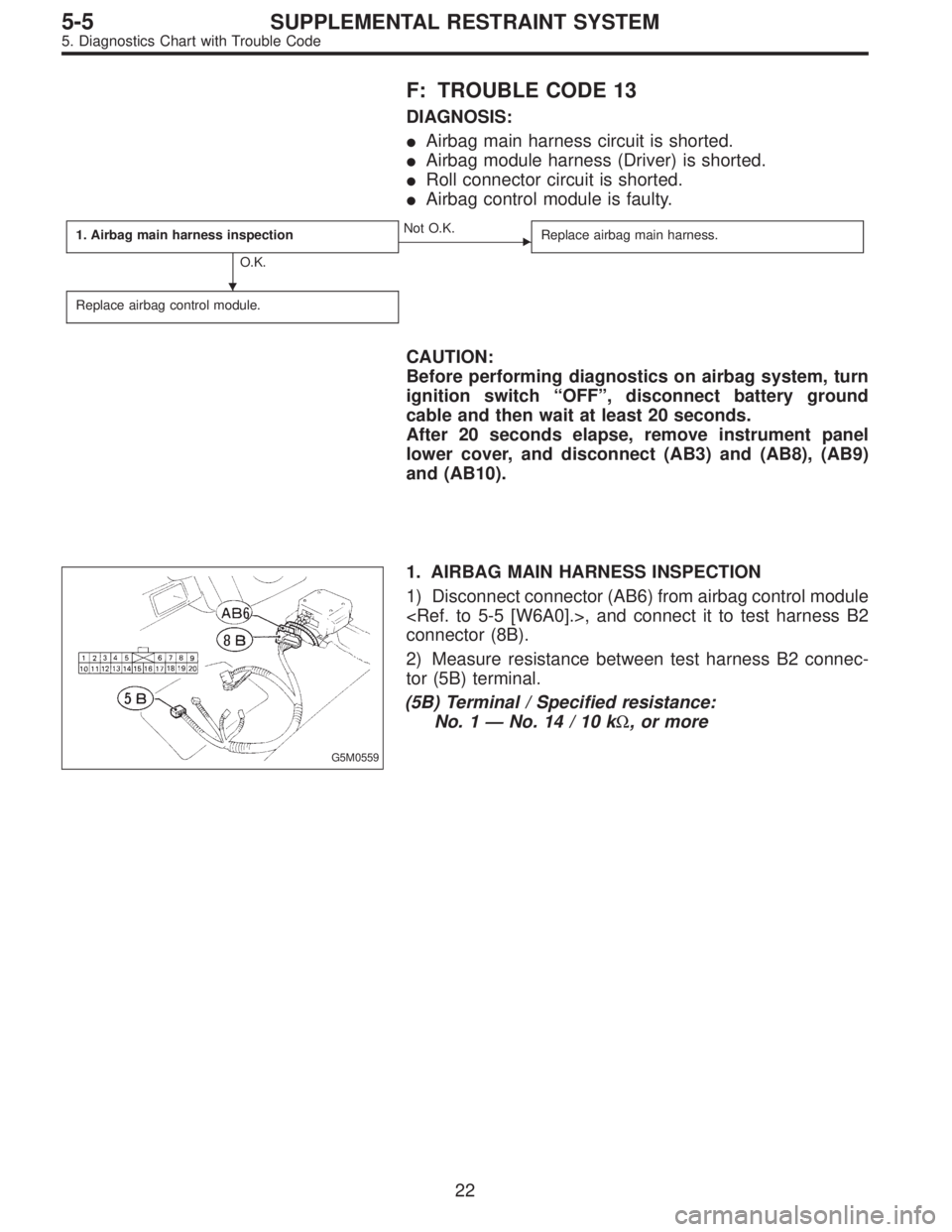

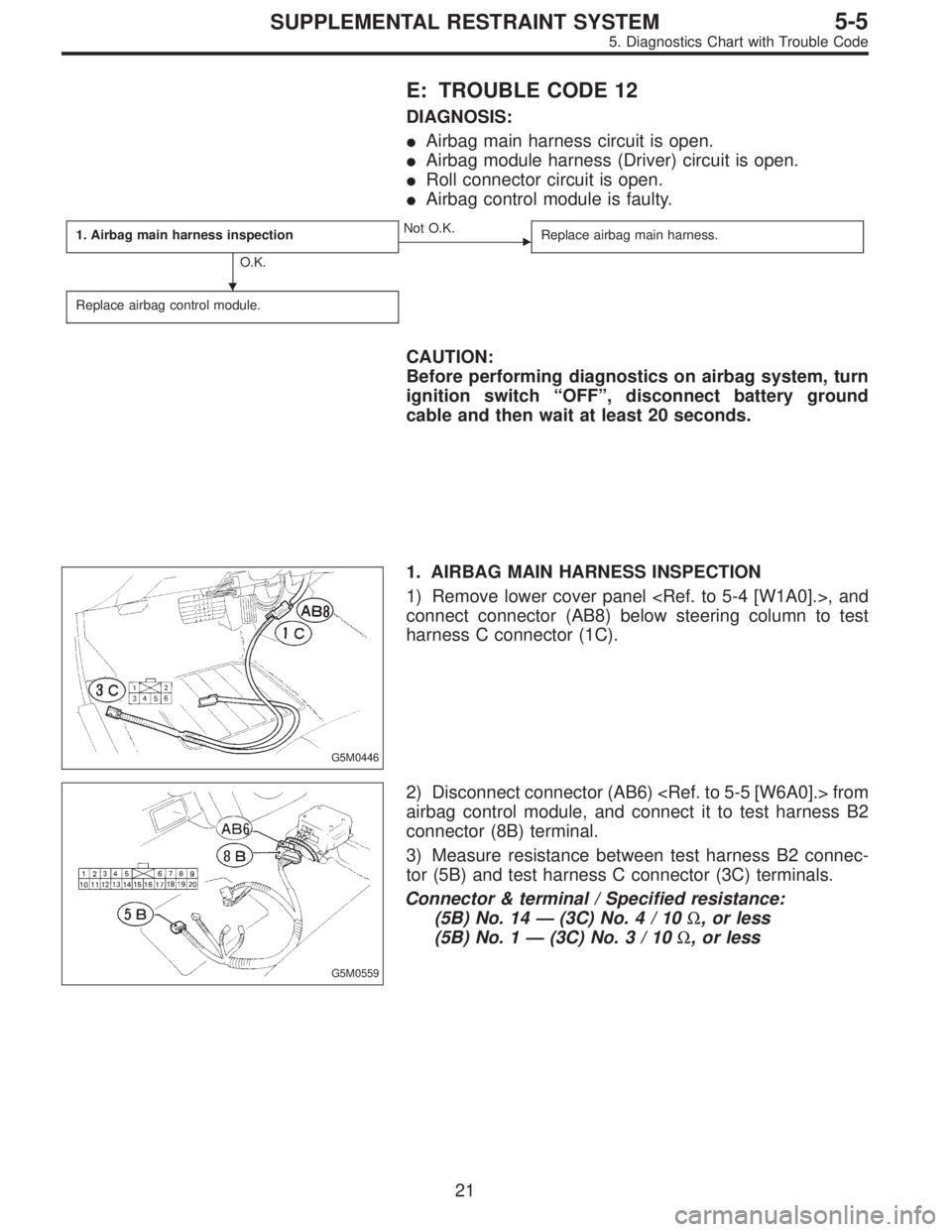

SUBARU LEGACY 1997 Service Repair Manual F: TROUBLE CODE 13 DIAGNOSIS: Airbag main harness circuit is shorted. Airbag module harness (Driver) is shorted. Roll connector circuit is shorted. Airbag control module is faulty. 1. Airbag main

Page 3083 of 3342

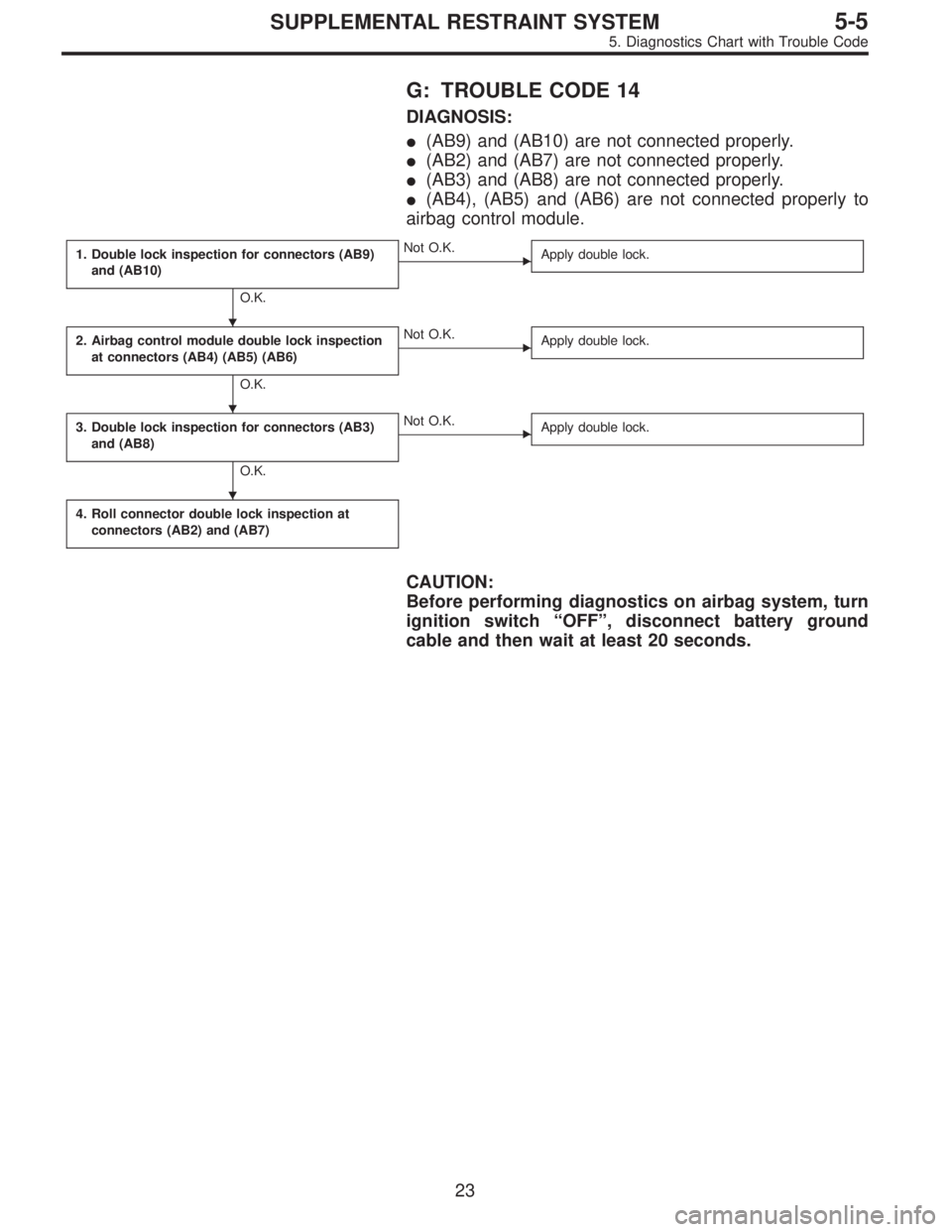

SUBARU LEGACY 1997 Service Repair Manual G: TROUBLE CODE 14 DIAGNOSIS: (AB9) and (AB10) are not connected properly. (AB2) and (AB7) are not connected properly. (AB3) and (AB8) are not connected properly. (AB4), (AB5) and (AB6) are not co

Page 3084 of 3342

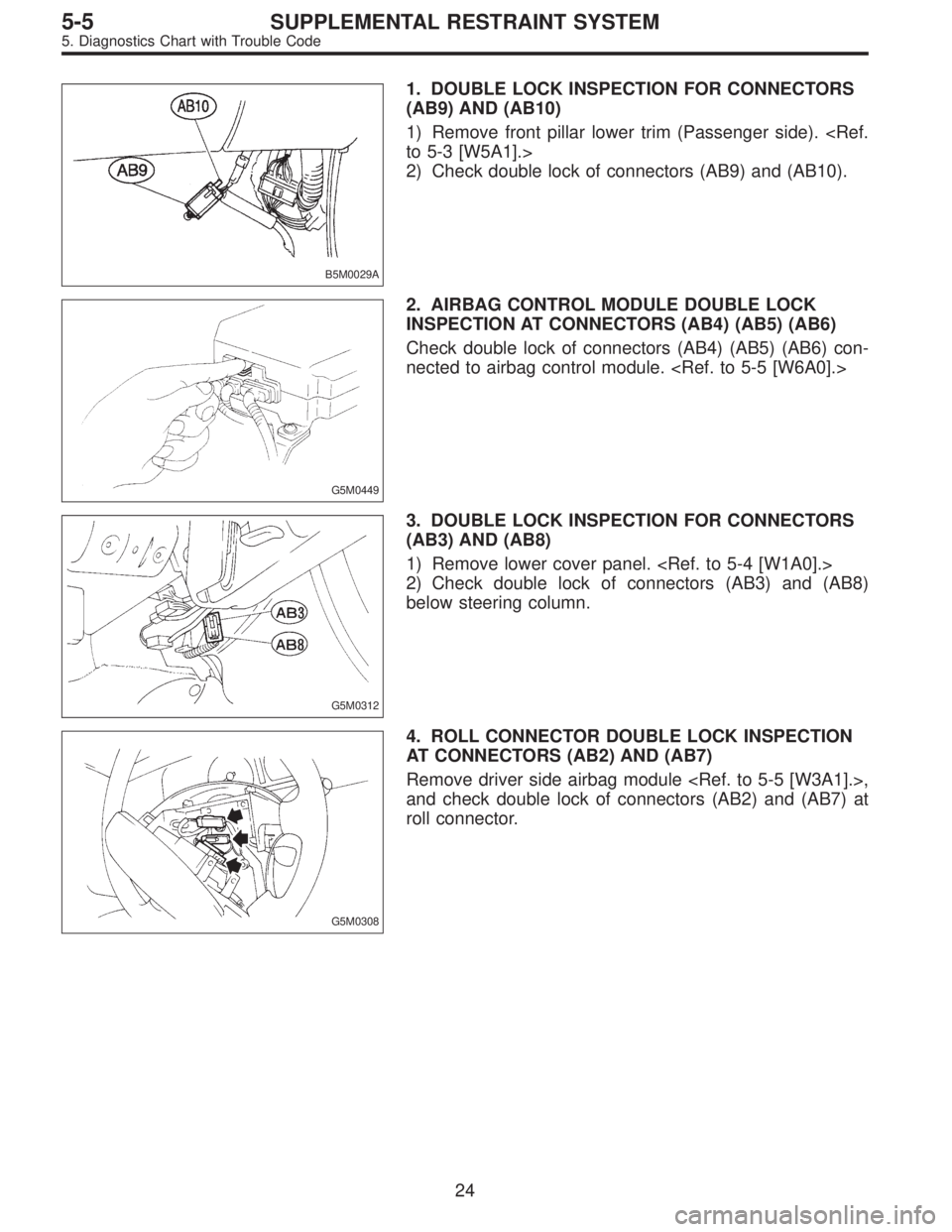

SUBARU LEGACY 1997 Service Repair Manual B5M0029A 1. DOUBLE LOCK INSPECTION FOR CONNECTORS (AB9) AND (AB10) 1) Remove front pillar lower trim (Passenger side). <Ref. to 5-3 [W5A1].> 2) Check double lock of connectors (AB9) and (AB10). G5M044

Page 3085 of 3342

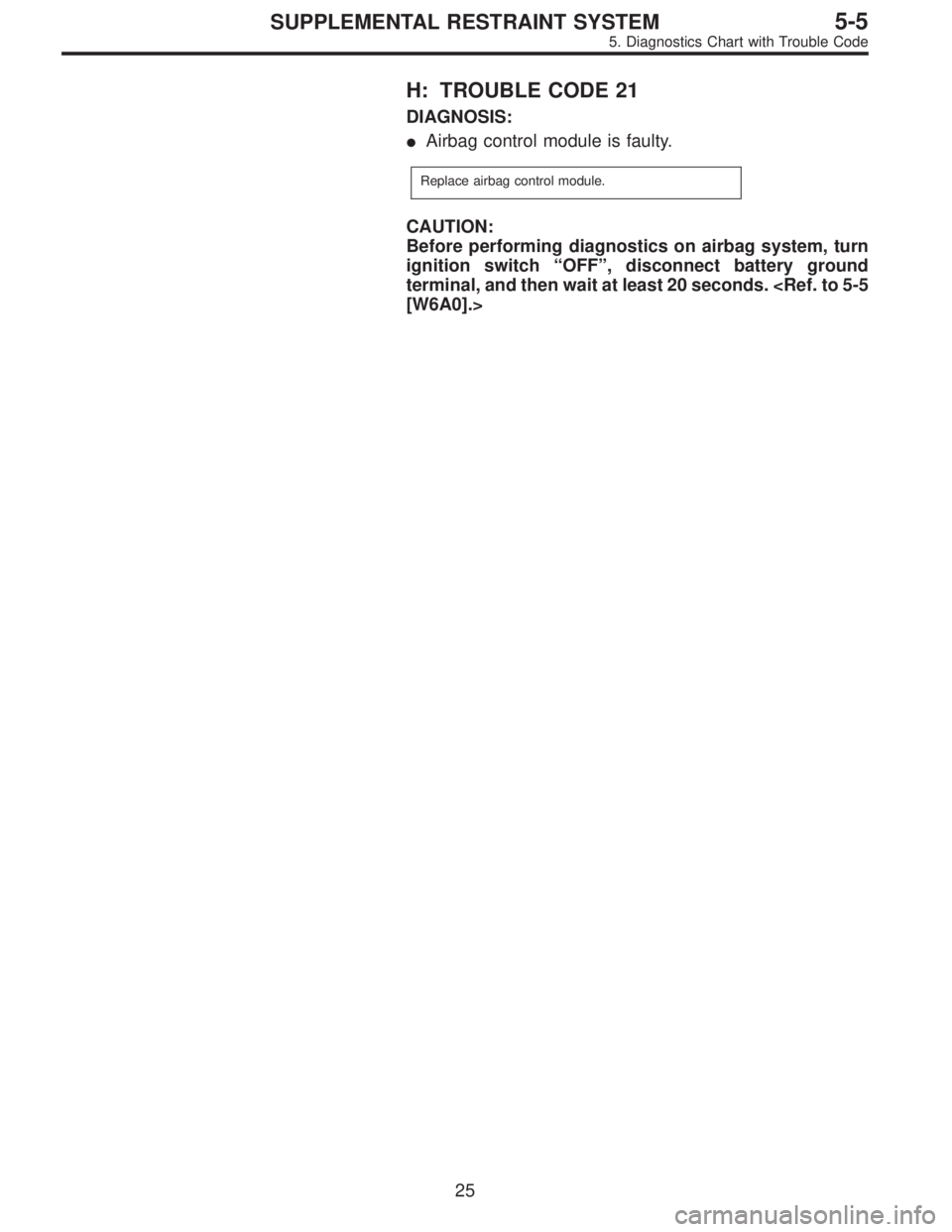

SUBARU LEGACY 1997 Service Repair Manual H: TROUBLE CODE 21 DIAGNOSIS: Airbag control module is faulty. Replace airbag control module. CAUTION: Before performing diagnostics on airbag system, turn ignition switch“OFF”, disconnect batter

Page 3086 of 3342

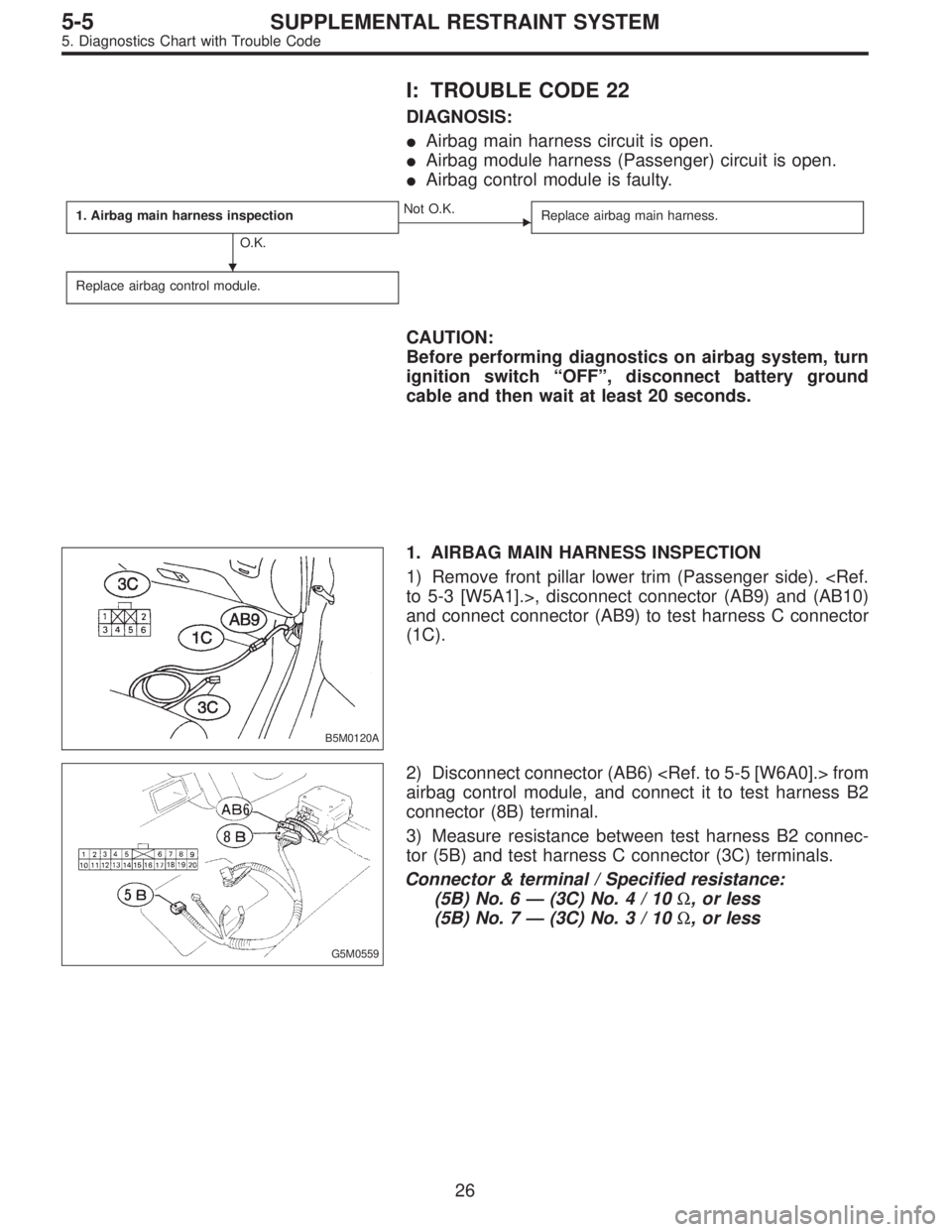

SUBARU LEGACY 1997 Service Repair Manual I: TROUBLE CODE 22 DIAGNOSIS: Airbag main harness circuit is open. Airbag module harness (Passenger) circuit is open. Airbag control module is faulty. 1. Airbag main harness inspection O.K. Not O.

Page 3087 of 3342

SUBARU LEGACY 1997 Service Repair Manual J: TROUBLE CODE 23 DIAGNOSIS: Airbag main harness is shorted to power supply. Front sensor harness is shorted to power supply. Airbag module harness (Driver or passenger) is dam- aged. Roll connec

Page 3088 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0558 1. FRONT SENSOR INSPECTION 1) Disconnect connectors (AB4) and (AB5) from airbag control module. <Ref. to 5-5 [W6A0].> 2) Connect connectors (AB4) and (AB5) to test harness B2 connector (8B). 3
