SUBARU LEGACY 1997 Service Repair Manual G3M0896 7) Installation of extension case (AWD), transmission cover (FWD) and transmission case. AWD model: (1) Attach the selected thrust needle bearing to the end surface of reduction drive gear wi

Page 986 of 3342

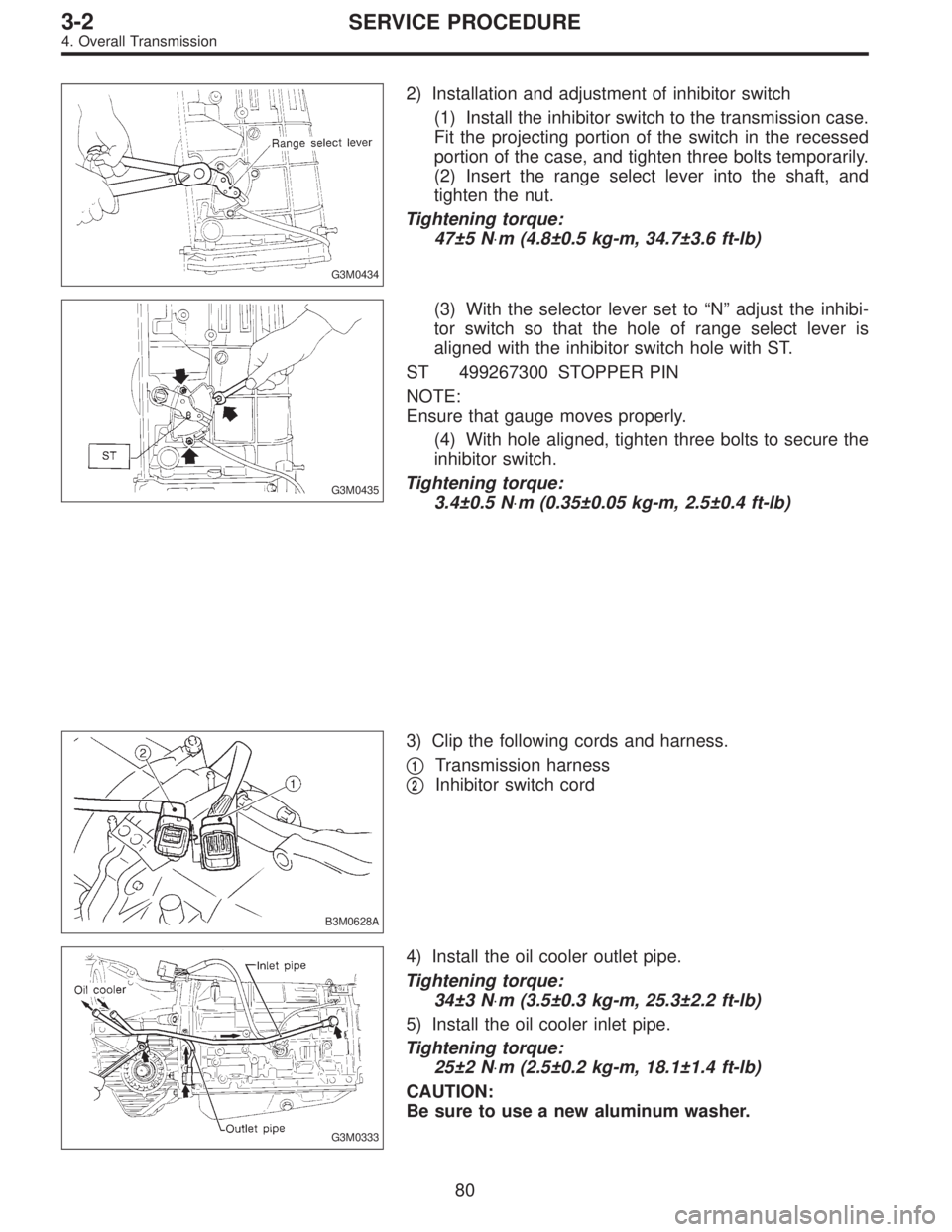

SUBARU LEGACY 1997 Service Repair Manual G3M0434 2) Installation and adjustment of inhibitor switch (1) Install the inhibitor switch to the transmission case. Fit the projecting portion of the switch in the recessed portion of the case, and

Page 987 of 3342

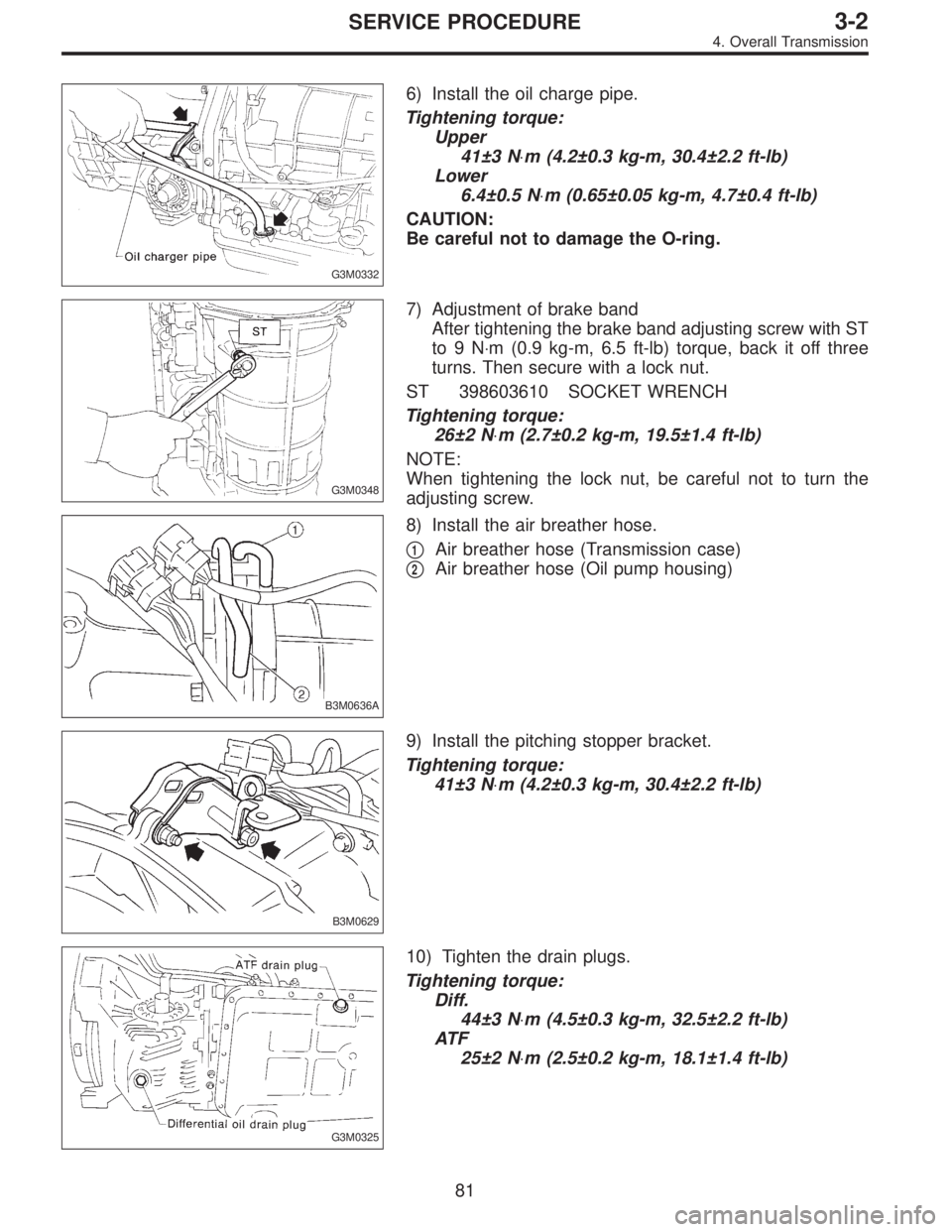

SUBARU LEGACY 1997 Service Repair Manual G3M0332 6) Install the oil charge pipe. Tightening torque: Upper 41±3 N⋅m (4.2±0.3 kg-m, 30.4±2.2 ft-lb) Lower 6.4±0.5 N⋅m (0.65±0.05 kg-m, 4.7±0.4 ft-lb) CAUTION: Be careful not to damage t

Page 988 of 3342

SUBARU LEGACY 1997 Service Repair Manual B3M0630A 11) Insert the input shaft while turning lightly by hand. CAUTION: Be careful not to damage the bushing. Normal protrusion A: 2200 cc: 50—55 mm (1.97—2.17 in) 2500 cc: 28—32 mm (1.10—

Page 989 of 3342

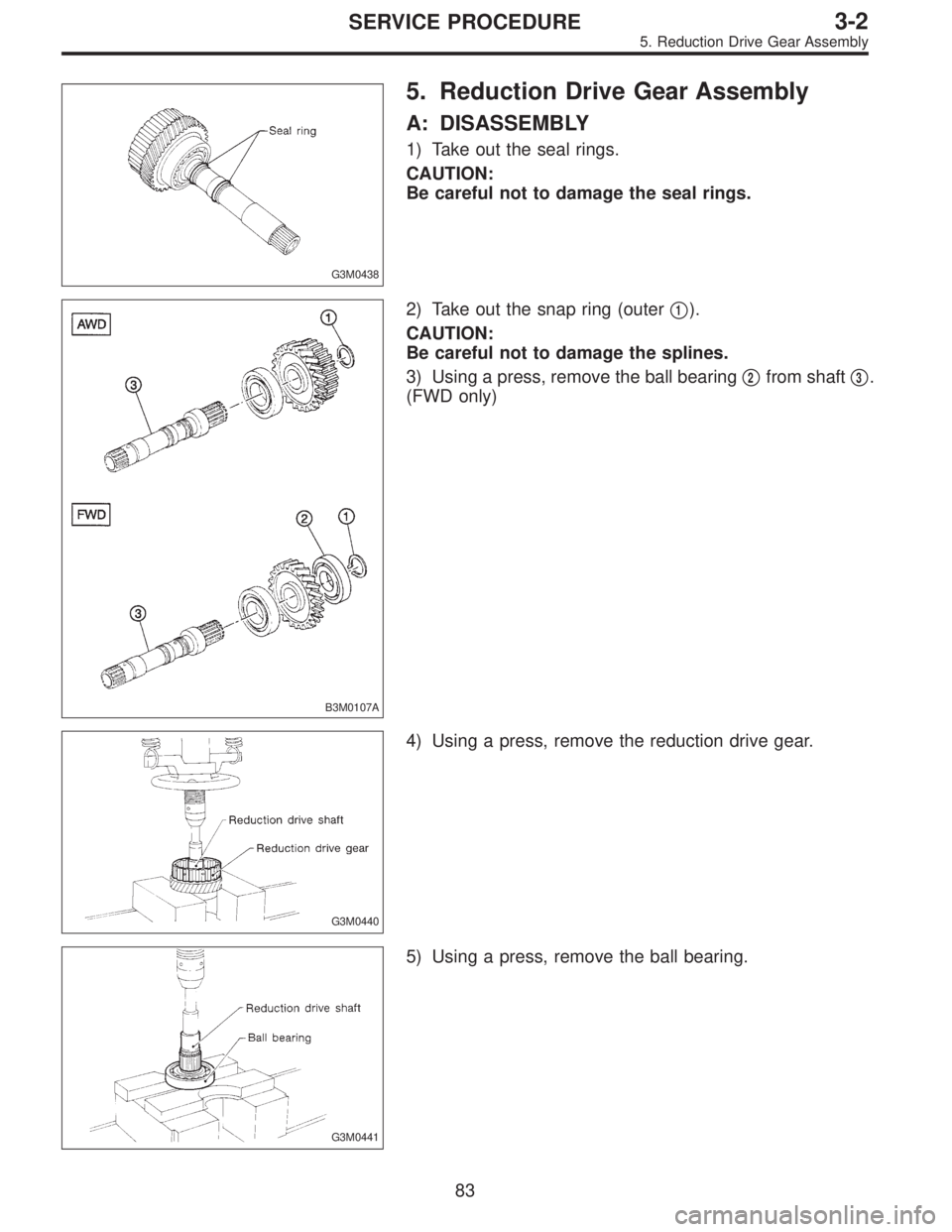

SUBARU LEGACY 1997 Service Repair Manual G3M0438 5. Reduction Drive Gear Assembly A: DISASSEMBLY 1) Take out the seal rings. CAUTION: Be careful not to damage the seal rings. B3M0107A 2) Take out the snap ring (outer1). CAUTION: Be careful

Page 990 of 3342

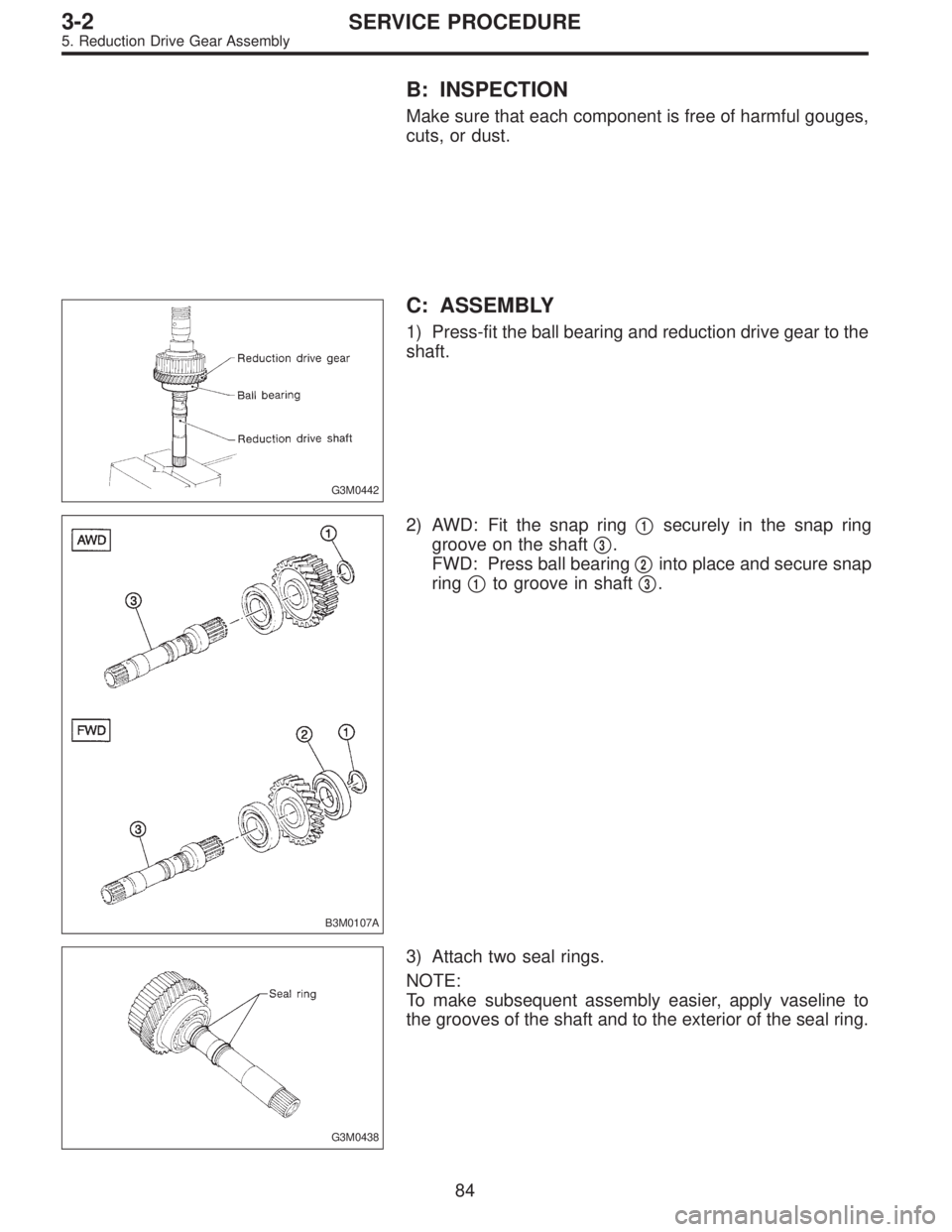

SUBARU LEGACY 1997 Service Repair Manual B: INSPECTION Make sure that each component is free of harmful gouges, cuts, or dust. G3M0442 C: ASSEMBLY 1) Press-fit the ball bearing and reduction drive gear to the shaft. B3M0107A 2) AWD: Fit the

Page 991 of 3342

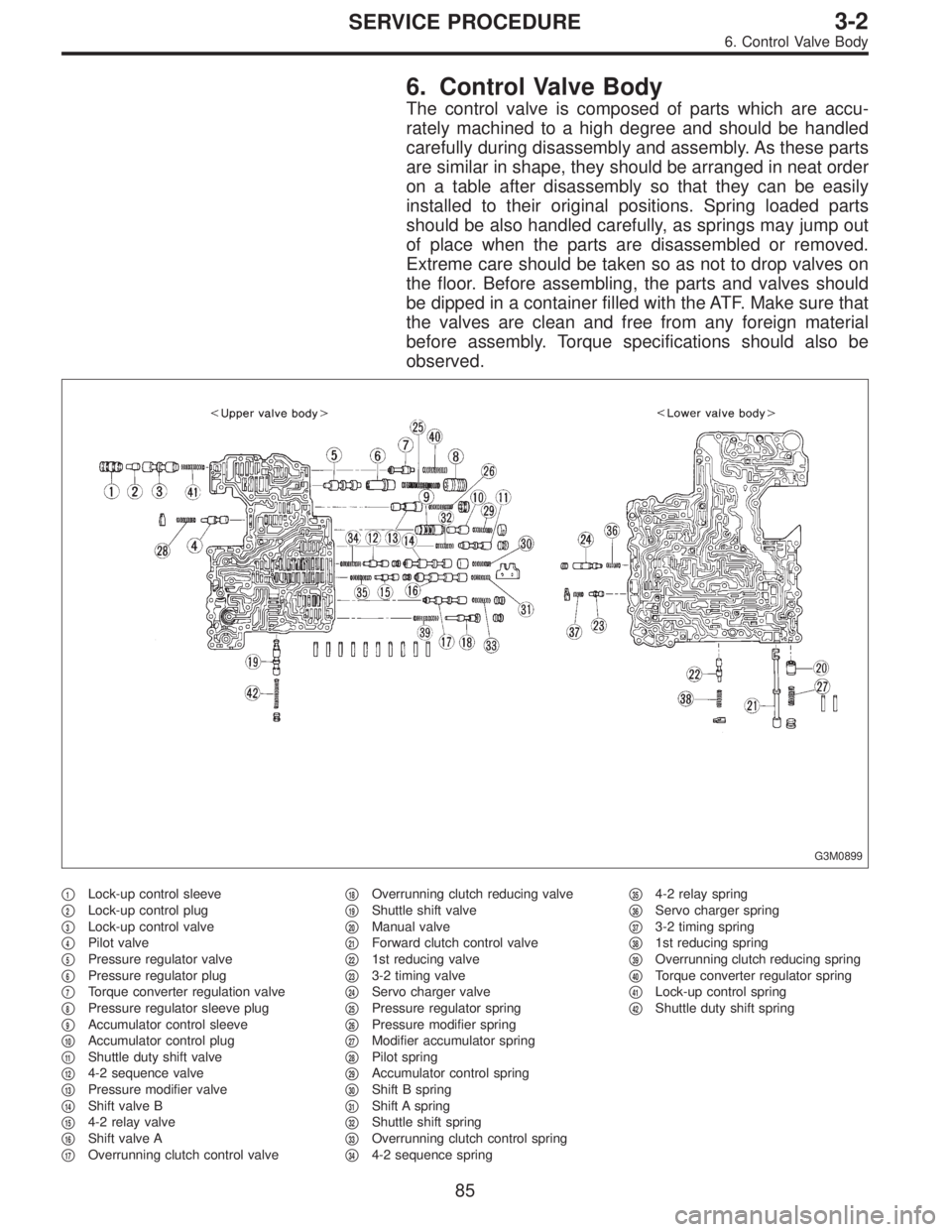

SUBARU LEGACY 1997 Service Repair Manual 6. Control Valve Body The control valve is composed of parts which are accu- rately machined to a high degree and should be handled carefully during disassembly and assembly. As these parts are simila

Page 992 of 3342

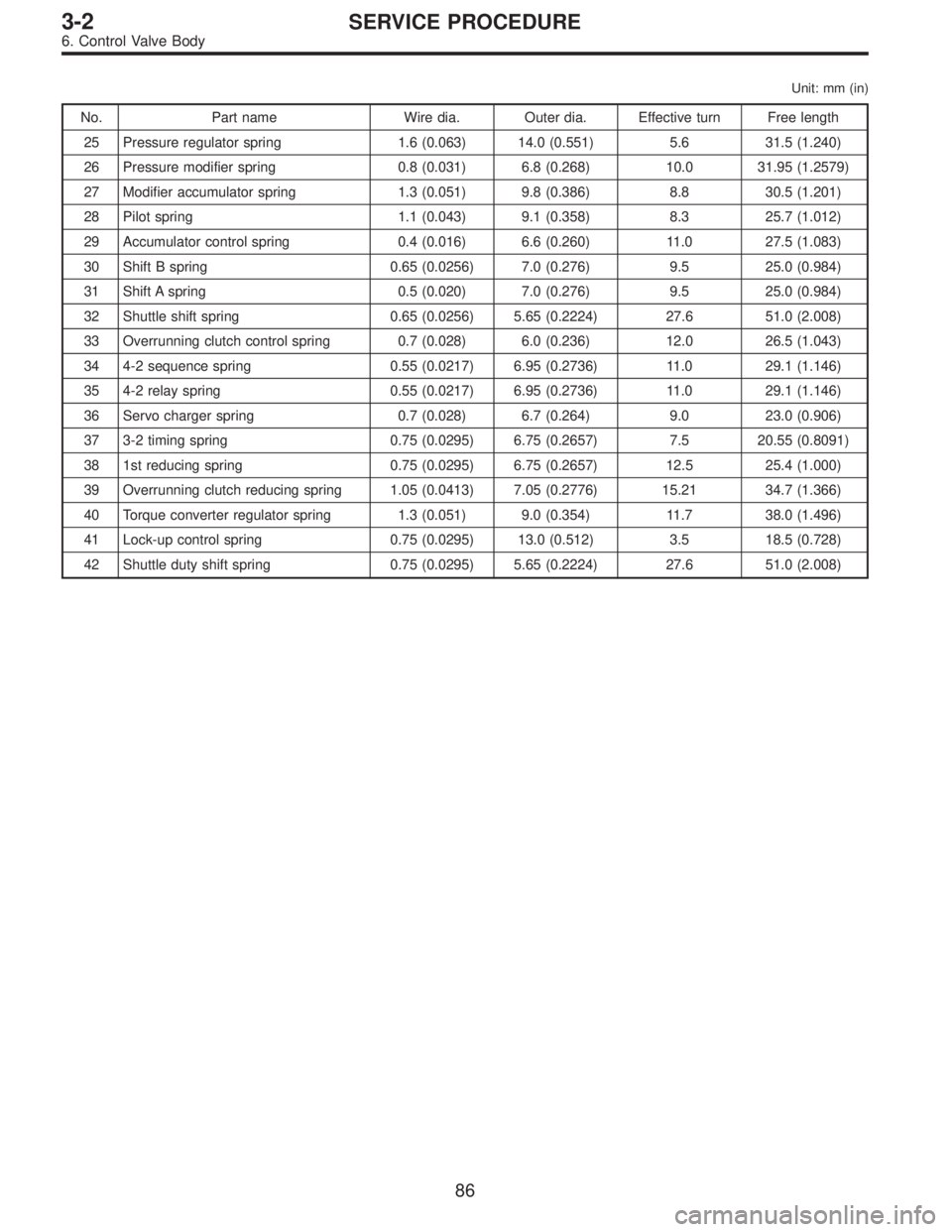

SUBARU LEGACY 1997 Service Repair Manual Unit: mm (in) No. Part name Wire dia. Outer dia. Effective turn Free length 25 Pressure regulator spring 1.6 (0.063) 14.0 (0.551) 5.6 31.5 (1.240) 26 Pressure modifier spring 0.8 (0.031) 6.8 (0.268) 1
