Page 1593 of 3342

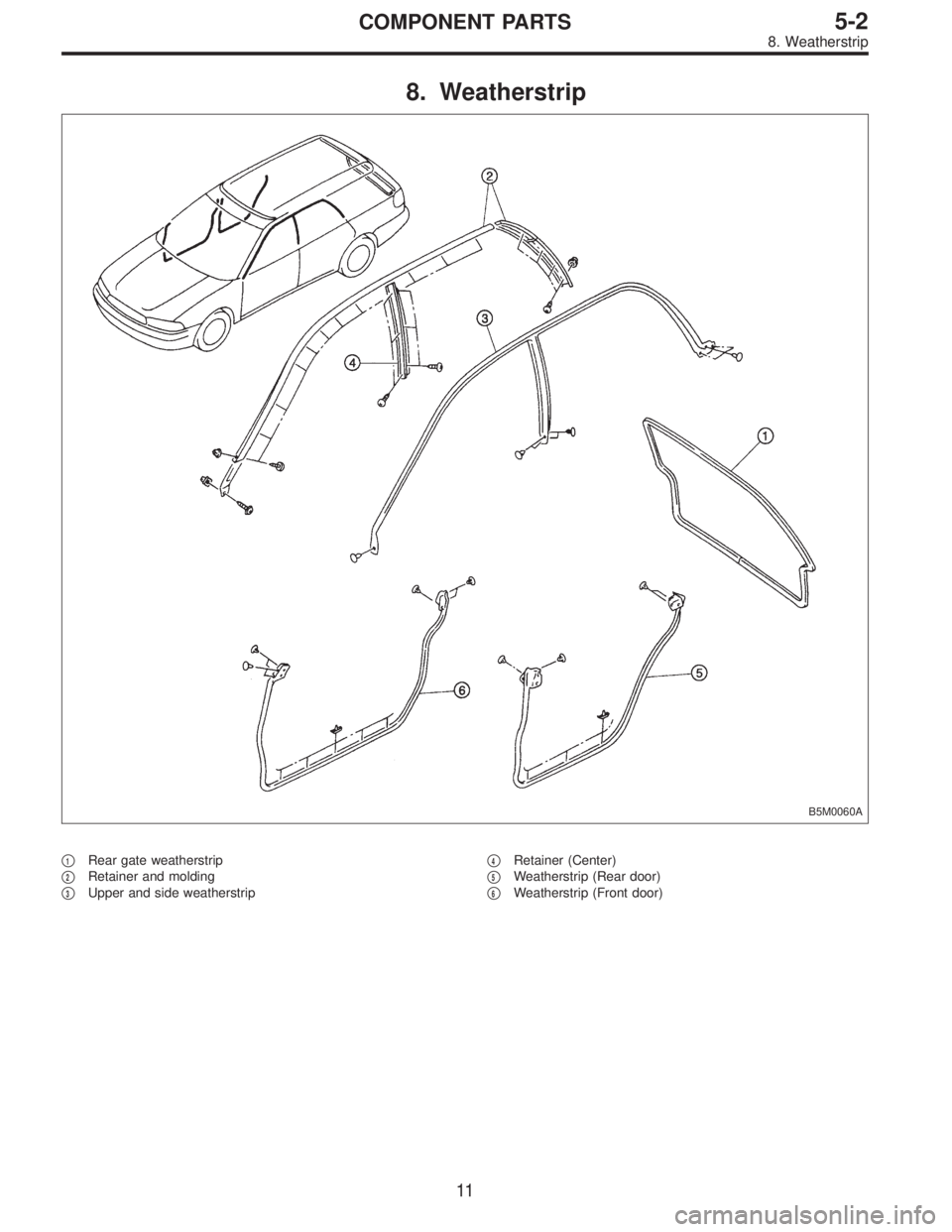

SUBARU LEGACY 1997 Service Repair Manual 8. Weatherstrip B5M0060A 1Rear gate weatherstrip  2Retainer and molding  3Upper and side weatherstrip 4Retainer (Center)  5Weatherstrip (Rear door)  6Weatherstrip (Front door) 11 5-2COMPONENT PA

Page 1594 of 3342

SUBARU LEGACY 1997 Service Repair Manual 1. Procedure Chart for Removing and Installing Door and Related Parts NOTE: This flow chart shows the main procedures for removing and installing the door and its related parts. For details, refer to

Page 1595 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0486 2. Door A: REMOVAL AND INSTALLATION 1. DOOR ASSY 1) Remove lower trim and disconnect connectors from body harness. 2) Place a cloth or a wood block under door to prevent damage, and support it

Page 1596 of 3342

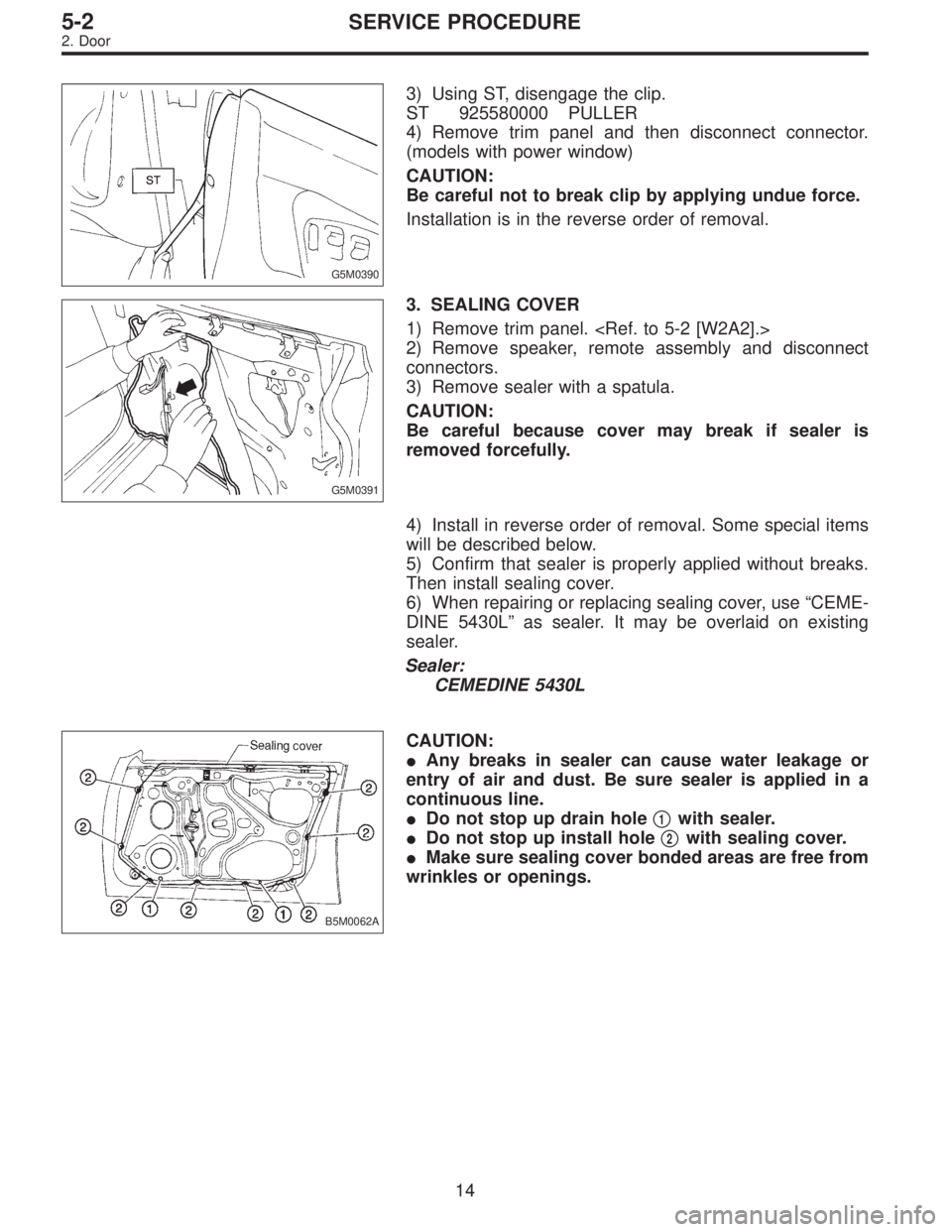

SUBARU LEGACY 1997 Service Repair Manual G5M0390 3) Using ST, disengage the clip. ST 925580000 PULLER 4) Remove trim panel and then disconnect connector. (models with power window) CAUTION: Be careful not to break clip by applying undue forc

Page 1597 of 3342

SUBARU LEGACY 1997 Service Repair Manual G5M0392 4. CHECKER 1) Remove trim panel. <Ref. to 5-2 [W2A2].> 2) Remove sealing cover. <Ref. to 5-2 [W2A3].> 3) Apply a cloth to door and body to prevent damaging them, and remove checker pin by driv

Page 1598 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0065 8) Remove regulator installing bolt and guide channel B installing nut. 9) Remove regulator through lower service hole of door panel. 10) Installation is in the reverse order of removal. G5M03

Page 1599 of 3342

SUBARU LEGACY 1997 Service Repair Manual 7. DOOR LATCH 1) Remove trim panel. <Ref. to 5-2 [W2A2].> 2) Remove inner remote assembly. <Ref. to 5-2 [W2A6].> 3) Remove sealing cover around latch service hole. <Ref. to 5-2 [W2A3].> 4) Completely

Page 1600 of 3342

SUBARU LEGACY 1997 Service Repair Manual B5M0068 8. OUTER HANDLE 1) Remove trim panel. <Ref. to 5-2 [W2A2].> 2) Remove sealing cover. <Ref. to 5-2 [W2A3].> 3) Detach door latch rod from outer handle and key lock. 4) Loosen nut securing outer
