Page 1881 of 3342

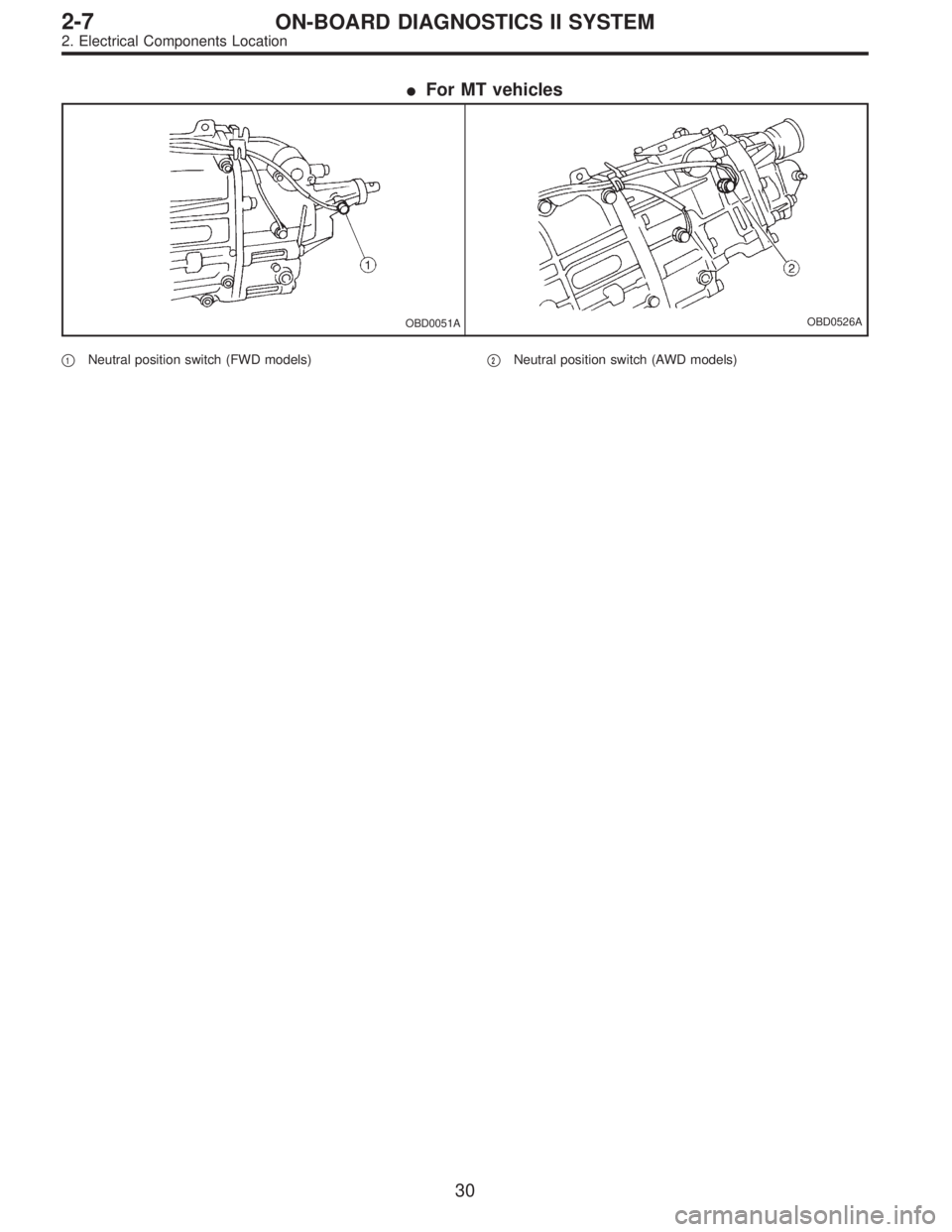

SUBARU LEGACY 1997 Service Repair Manual For MT vehicles OBD0051AOBD0526A 1Neutral position switch (FWD models)2Neutral position switch (AWD models) 30 2-7ON-BOARD DIAGNOSTICS II SYSTEM 2. Electrical Components Location

Page 1882 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0470C 3. Diagnosis System A: CHECK ENGINE MALFUNCTION INDICATOR LAMP (MIL) 1. ACTIVATION OF CHECK ENGINE MALFUNCTION INDICATOR LAMP (MIL) 1) When ignition switch is turned to ON (engine off), the C

Page 1883 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0006F B2M0433D B: OBD-II GENERAL SCAN TOOL 1. HOW TO USE OBD-II GENERAL SCAN TOOL 1) Prepare a general scan tool (OBD-II general scan tool) required by SAE J1978. 2) Open the cover and connect the

Page 1884 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3. CURRENT POWERTRAIN DIAGNOSTIC DATA (MODE $01) Refers to data denoting the current operating condition of analog input/output, digital input/output and/or the power- train system. A list of the supp

Page 1885 of 3342

SUBARU LEGACY 1997 Service Repair Manual 4. POWERTRAIN FREEZE FRAME DATA (MODE $02) Refers to data denoting the operating condition when trouble is sensed by the on-board diagnosis system. A list of the support data and PID (Parameter Identi

Page 1886 of 3342

SUBARU LEGACY 1997 Service Repair Manual 6. CLEAR/RESET EMISSION-RELATED DIAGNOSTIC INFORMATION (MODE $04) Refers to the mode used to clear or reset emission-related diagnostic information (OBD-II trouble diagnostic informa- tion). NOTE: Ref

Page 1887 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0057A C: SUBARU SELECT MONITOR 1. HOW TO USE SUBARU SELECT MONITOR 1) Prepare Subaru select monitor and cartridge. ST1 498307500 SELECT MONITOR KIT ST2 498346300 CARTRIDGE G3M0150 2) Turn ignition

Page 1888 of 3342

SUBARU LEGACY 1997 Service Repair Manual OBD0006F B2M0433D (2) Open the cover and connect Subaru select monitor to data link connector located in the lower portion of the instrument panel (on the driver’s side), to the lower cover. CAUTION
