Page 3001 of 3342

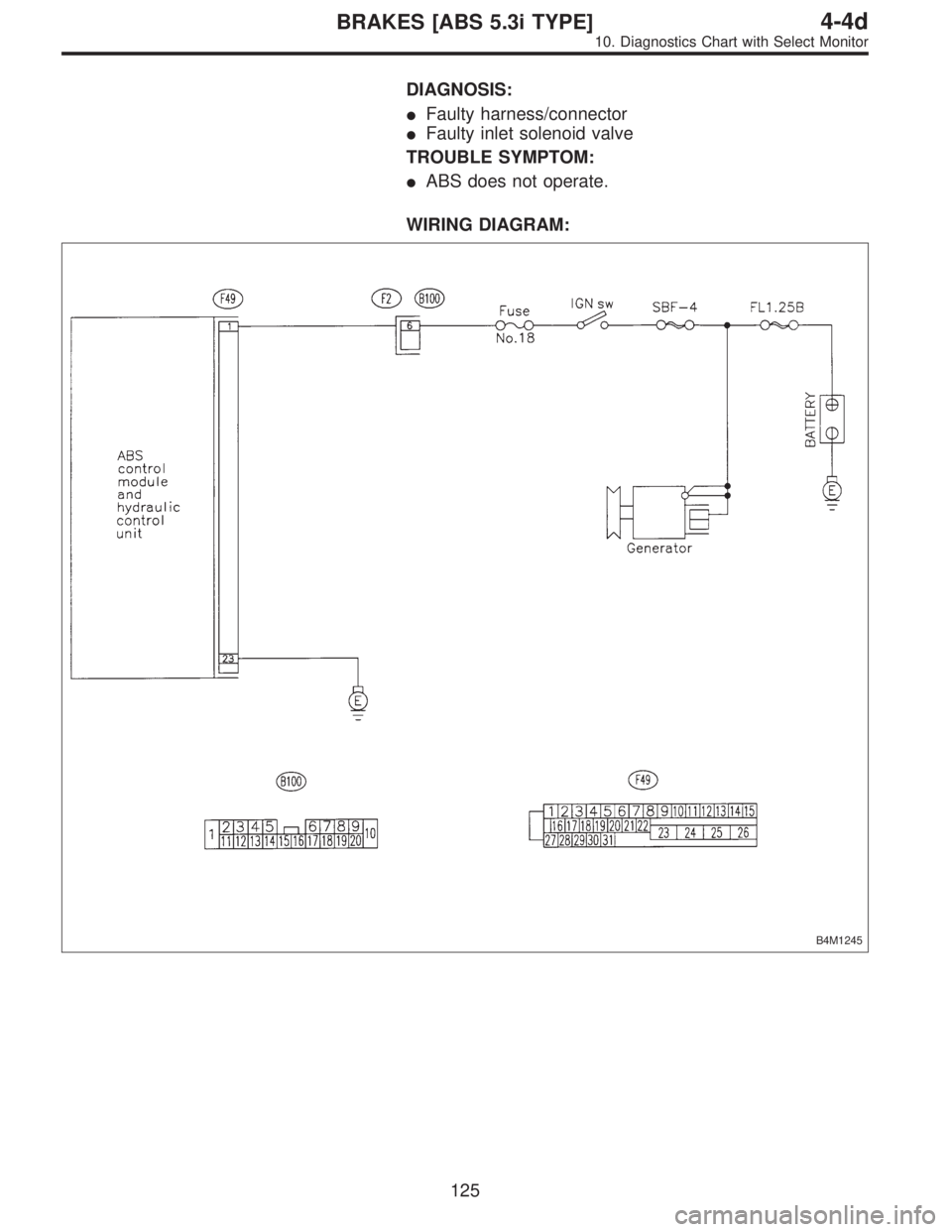

SUBARU LEGACY 1997 Service Repair Manual DIAGNOSIS: Faulty harness/connector Faulty inlet solenoid valve TROUBLE SYMPTOM: ABS does not operate. WIRING DIAGRAM: B4M1245 125 4-4dBRAKES [ABS 5.3i TYPE] 10. Diagnostics Chart with Select Monit

Page 3002 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M1234A 10Q1CHECK INPUT VOLTAGE OF ABSCM&H/U. 1) Turn ignition switch to OFF. 2) Disconnect connector from ABSCM&H/U. 3) Run the engine at idle. 4) Measure voltage between ABSCM&H/U connector and cha

Page 3003 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10Q4 CHECK ABSCM&H/U. 1) Connect all connectors. 2) Erase the memory. 3) Perform inspection mode. 4) Read out the trouble code. : Is the same trouble code as in the current diagnosis still being outpu

Page 3004 of 3342

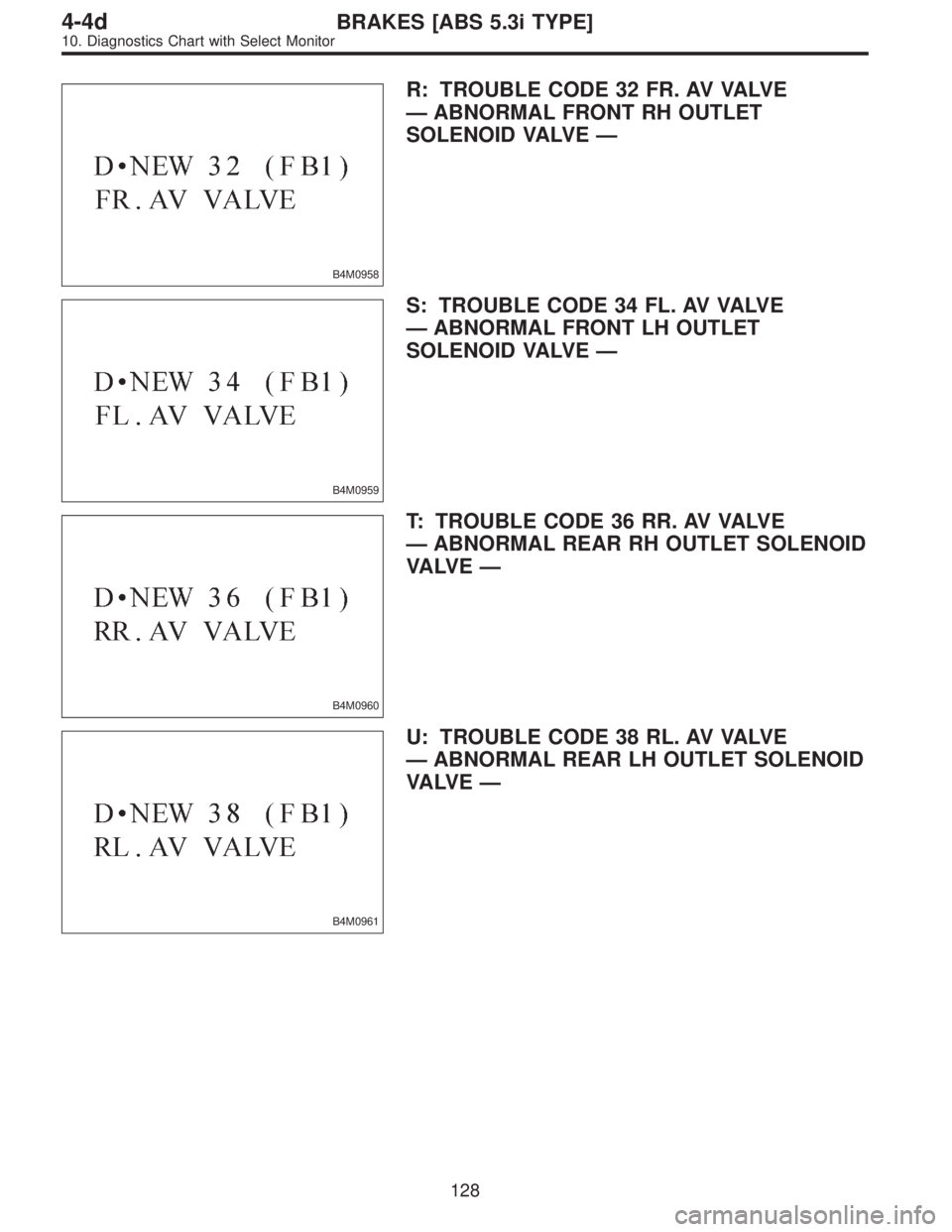

SUBARU LEGACY 1997 Service Repair Manual B4M0958 R: TROUBLE CODE 32 FR. AV VALVE —ABNORMAL FRONT RH OUTLET SOLENOID VALVE— B4M0959 S: TROUBLE CODE 34 FL. AV VALVE —ABNORMAL FRONT LH OUTLET SOLENOID VALVE— B4M0960 T: TROUBLE CODE 36 R

Page 3005 of 3342

SUBARU LEGACY 1997 Service Repair Manual DIAGNOSIS: Faulty harness/connector Faulty outlet solenoid valve TROUBLE SYMPTOM: ABS does not operate. WIRING DIAGRAM: B4M1245 129 4-4dBRAKES [ABS 5.3i TYPE] 10. Diagnostics Chart with Select Moni

Page 3006 of 3342

SUBARU LEGACY 1997 Service Repair Manual B4M1234A 10U1CHECK INPUT VOLTAGE OF ABSCM&H/U. 1) Turn ignition switch to OFF. 2) Disconnect connector from ABSCM&H/U. 3) Run the engine at idle. 4) Measure voltage between ABSCM&H/U connector and cha

Page 3007 of 3342

SUBARU LEGACY 1997 Service Repair Manual 10U4 CHECK ABSCM&H/U. 1) Connect all connectors. 2) Erase the memory. 3) Perform inspection mode. 4) Read out the trouble code. : Is the same trouble code as in the current diagnosis still being outpu

Page 3008 of 3342

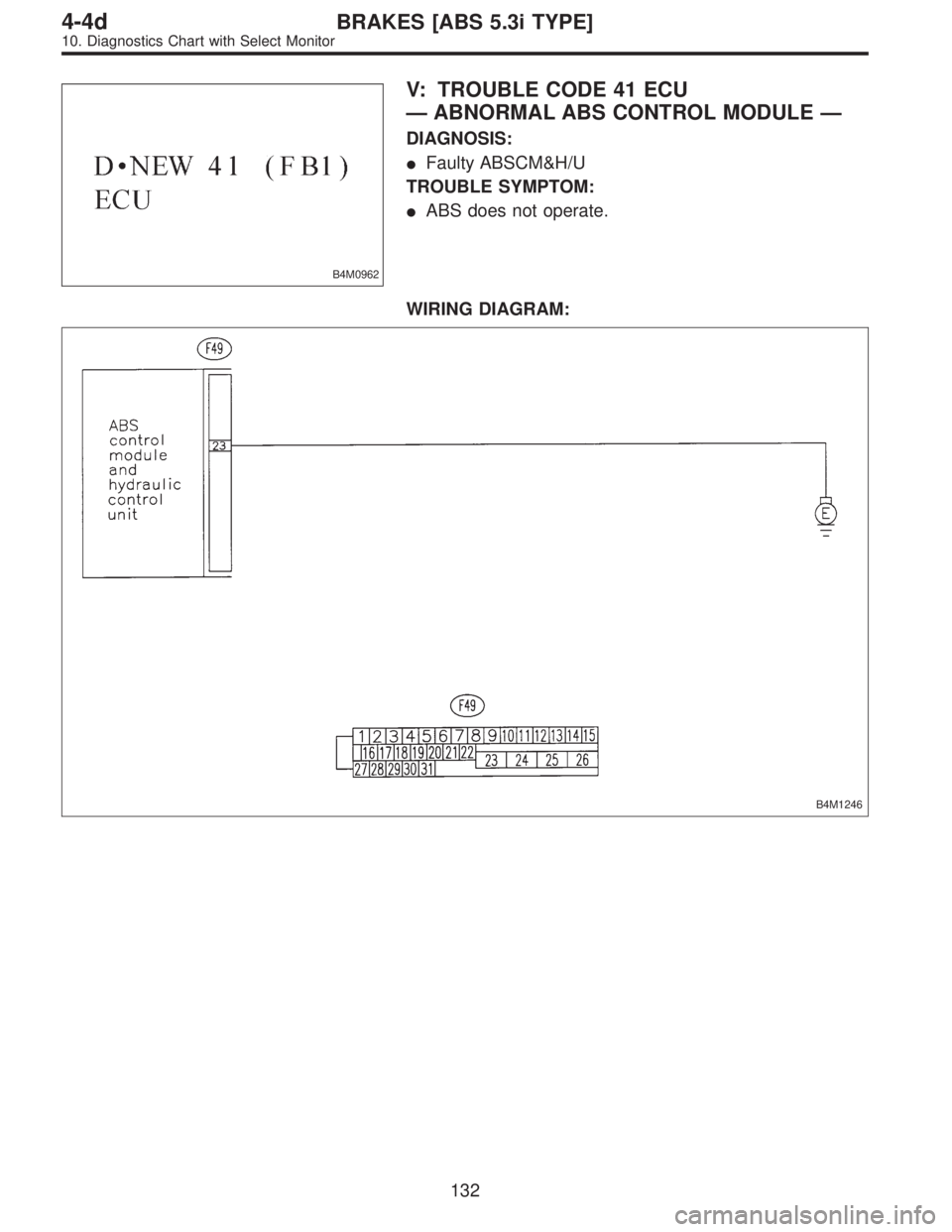

SUBARU LEGACY 1997 Service Repair Manual B4M0962 V: TROUBLE CODE 41 ECU —ABNORMAL ABS CONTROL MODULE— DIAGNOSIS: Faulty ABSCM&H/U TROUBLE SYMPTOM: ABS does not operate. WIRING DIAGRAM: B4M1246 132 4-4dBRAKES [ABS 5.3i TYPE] 10. Diagnos
