Page 1961 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M1051A B2M0224A 8D5 CHECK INPUT SIGNAL FOR IGNITOR. Check if voltage varies synchronously with engine speed when cranking, while monitoring voltage between ignitor connector and engine ground. : Con

Page 1962 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0523A 8D7CHECK HARNESS BETWEEN ECM AND IGNITOR CONNECTOR. 1) Disconnect connector from ECM. 2) Measure resistance of harness connector between ECM and ignitor. : Connector & terminal (B84) No. 41

Page 1963 of 3342

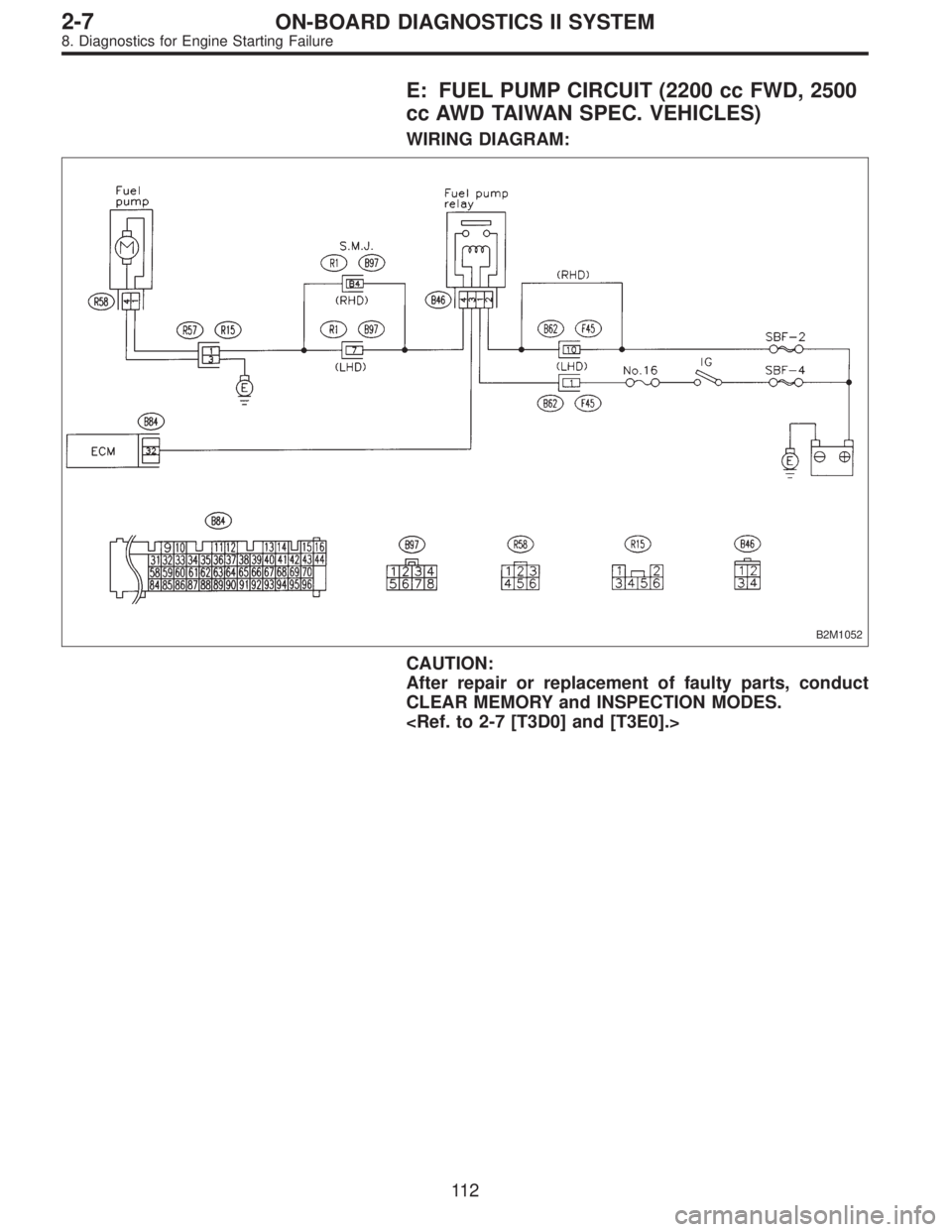

SUBARU LEGACY 1997 Service Repair Manual E: FUEL PUMP CIRCUIT (2200 cc FWD, 2500 cc AWD TAIWAN SPEC. VEHICLES) WIRING DIAGRAM: B2M1052 CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES. <Ref. to

Page 1964 of 3342

SUBARU LEGACY 1997 Service Repair Manual 8E1CHECK OPERATING SOUND OF FUEL PUMP. Make sure that fuel pump is in operation for two seconds when turning ignition switch to ON. : Does fuel pump produce operating sound? NOTE: Fuel pump operation

Page 1965 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0526A 8E4CHECK HARNESS BETWEEN FUEL PUMP AND FUEL PUMP RELAY CON- NECTOR. 1) Turn ignition switch to OFF. 2) Measure resistance of harness connector between fuel pump and fuel pump relay. : Connect

Page 1966 of 3342

SUBARU LEGACY 1997 Service Repair Manual B2M0527A 8E6CHECK HARNESS BETWEEN ECM AND FUEL PUMP RELAY CONNECTOR. 1) Disconnect connectors from ECM. 2) Measure resistance of harness between ECM and fuel pump relay connector. : Connector & termin

Page 1967 of 3342

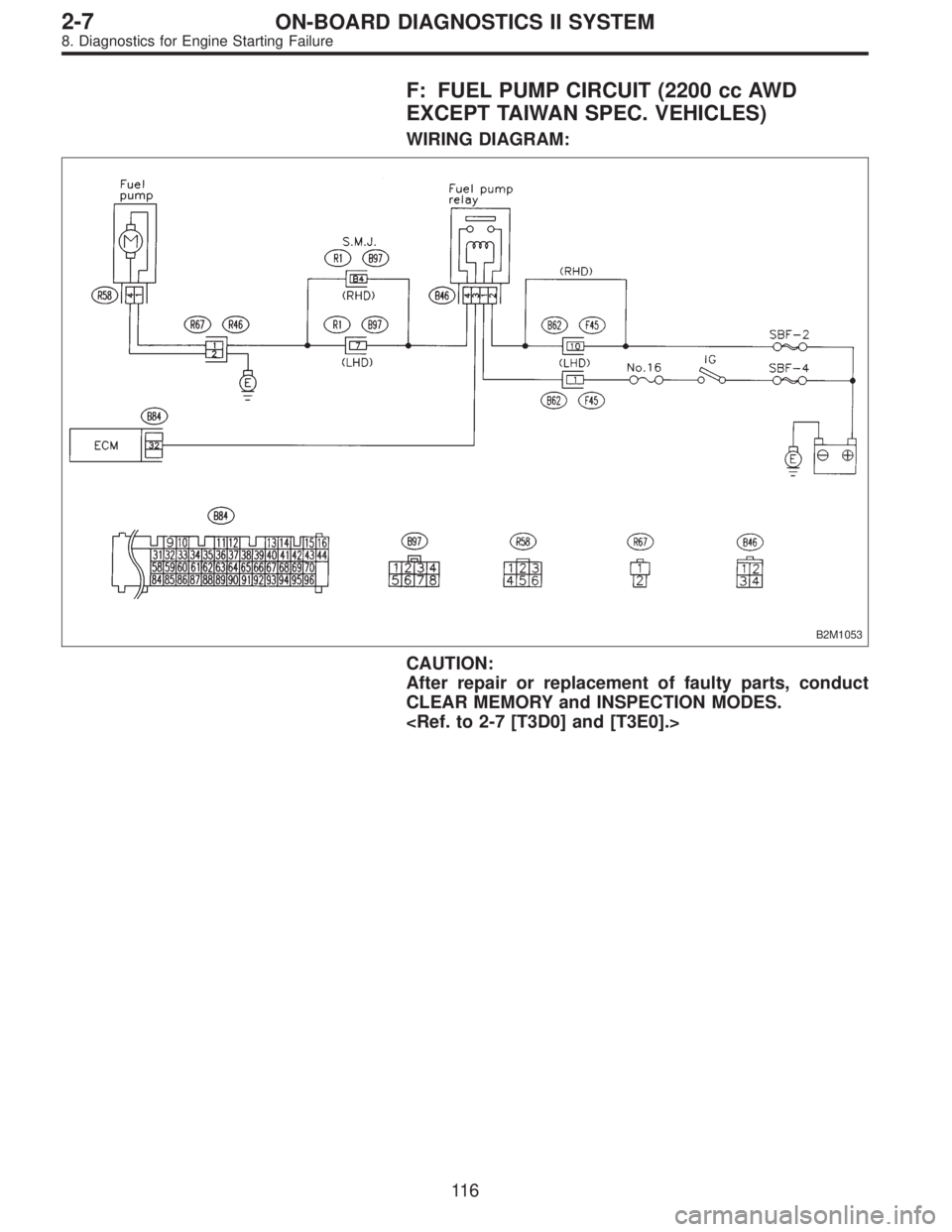

SUBARU LEGACY 1997 Service Repair Manual F: FUEL PUMP CIRCUIT (2200 cc AWD EXCEPT TAIWAN SPEC. VEHICLES) WIRING DIAGRAM: B2M1053 CAUTION: After repair or replacement of faulty parts, conduct CLEAR MEMORY and INSPECTION MODES. <Ref. to 2-7 [T

Page 1968 of 3342

SUBARU LEGACY 1997 Service Repair Manual 8F1CHECK OPERATING SOUND OF FUEL PUMP. Make sure that fuel pump is in operation for two seconds when turning ignition switch to ON. : Does fuel pump produce operating sound? NOTE: Fuel pump operation
