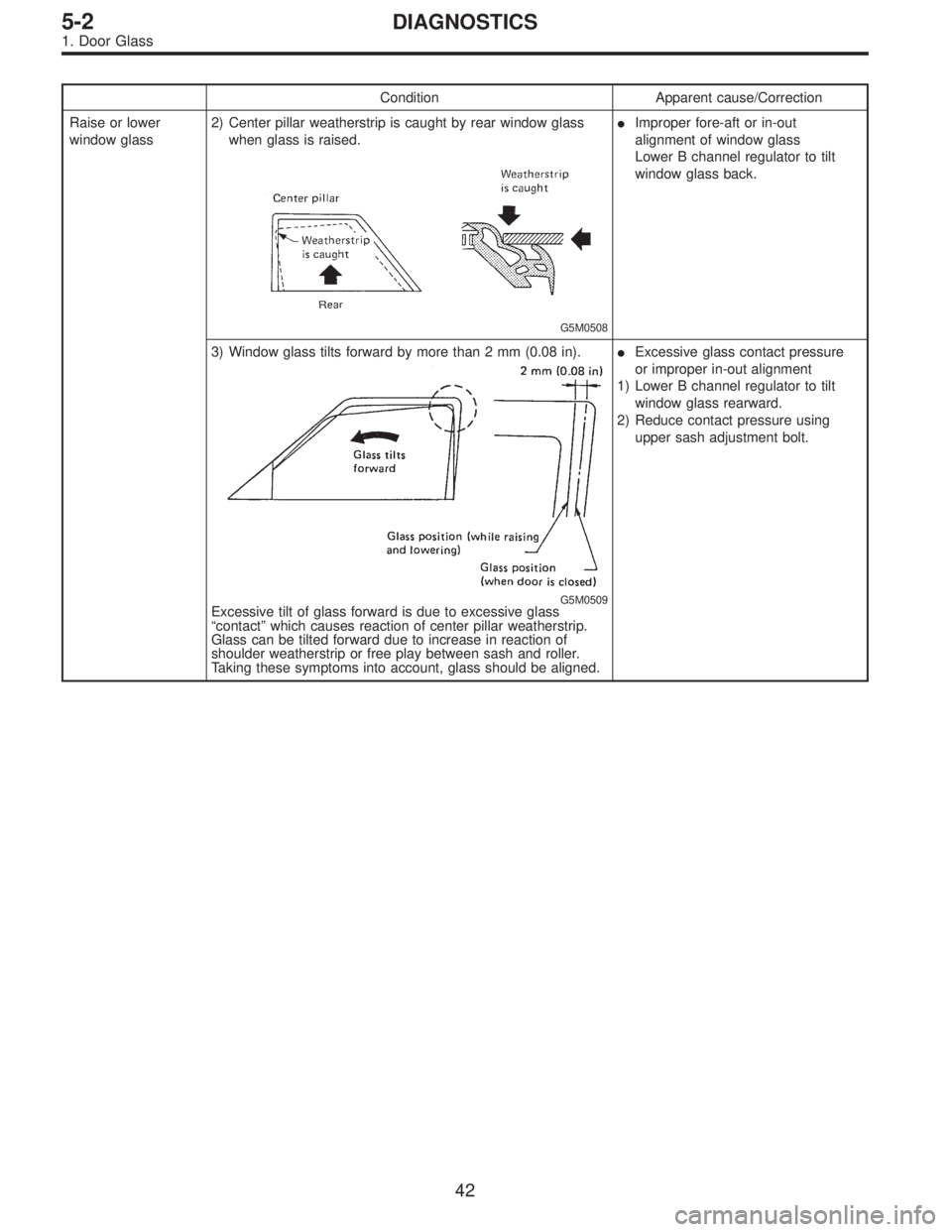

Page 1625 of 3342

SUBARU LEGACY 1997 Service Repair Manual Condition Apparent cause/Correction Raise or lower window glass2) Center pillar weatherstrip is caught by rear window glass when glass is raised. G5M0508 Improper fore-aft or in-out alignment of wind

Page 1626 of 3342

SUBARU LEGACY 1997 Service Repair Manual 43 5-2DIAGNOSTICS 1. Door Glass

Page 1627 of 3342

SUBARU LEGACY 1997 Service Repair Manual 1. Front Seat G5M0522 1Headrest free bushing  2Headrest lock bushing  3Headrest ASSY  4Front backrest frame ASSY  5Protector  6Cover (Bolt) (outer)  7Cover (Bolt) (inner)  8Inner belt ASSY  9

Page 1628 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. Rear Seat 1. SEDAN MODEL B5M0033A 1Backrest  2Striker  3Lock cover  4Bracket (LH)  5Backrest (LH)  6Cushion 7Lock ASSY  8Backrest (RH)  9Bracket (RH)  10Arm rest  11Hinge  12Cover Tight

Page 1629 of 3342

SUBARU LEGACY 1997 Service Repair Manual 2. WAGON MODEL B5M0331A 1Hinge bracket (RH)  2Backrest (RH)  3Pillow  4Backrest (LH)  5Striker  6Hinge bracket (LH)  7Lock hinge 8Rear cushion  9Hinge  10Hinge cover  11Backrest center hing

Page 1630 of 3342

SUBARU LEGACY 1997 Service Repair Manual 3. Front Seat Belt G5M0337 1Adjuster anchor ASSY  2Through anchor cover  3Webbing guide  4Inner belt ASSY  5Outer belt ASSY Tightening torque: N⋅m (kg-m, ft-lb) T1: 13±3 (1.3±0.3, 9.4±2.2) T

Page 1631 of 3342

SUBARU LEGACY 1997 Service Repair Manual 4. Rear Seat Belt B5M0035B 1Outer seat belt (LH)  2Center seat belt  3Outer seat belt (RH)  4Inner seat belt 5Lap anchor cover (LH)  6Lap anchor cover (RH)Tightening torque: N⋅m (kg-m, ft-lb)

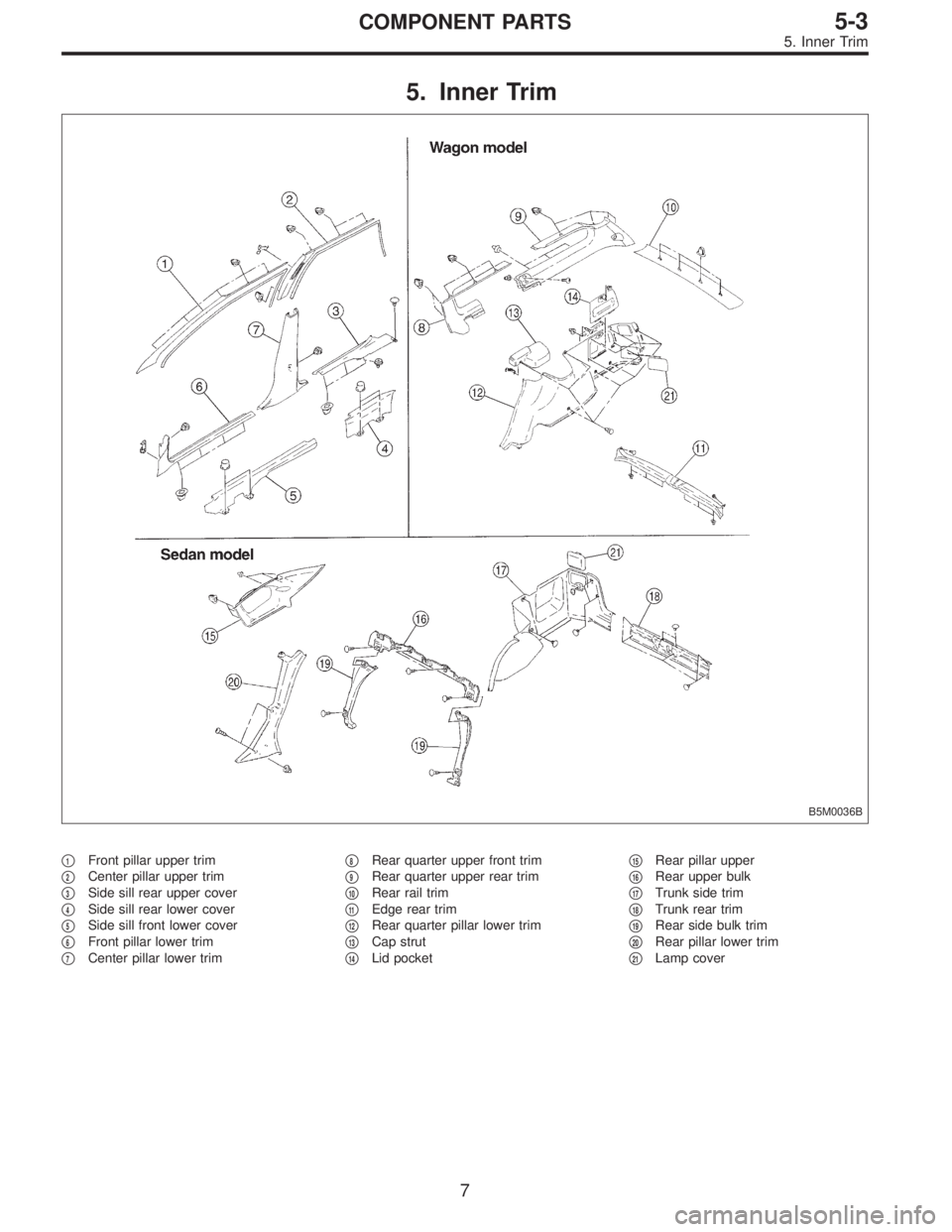

Page 1632 of 3342

SUBARU LEGACY 1997 Service Repair Manual 5. Inner Trim B5M0036B 1Front pillar upper trim  2Center pillar upper trim  3Side sill rear upper cover  4Side sill rear lower cover  5Side sill front lower cover  6Front pillar lower trim  7Ce
